84 Photos
2022 Astec Ranger C12OC Tracked Cone Crusher
Located
Spokane, WA
Spokane, WA
Usage
173 hrs
173 hrs
Serial number
225115
225115
Loading...
ID number
#14427654
In yard
No
Features
Tier 4, 2022 US EPA Label, Volvo TAD572VE 4 Cylinder 172 hp Diesel Engine, Requires Diesel Exhaust Fluid, 9 ft x 16 ft Belt Feeder w/Grizzly HCU 7 R/65 Cone Crusher, 39 in Wide Feed Conveyor, 35 in Wide Fines Discharge Conveyor, 35 in Wide End Discharge Conveyor, Radio and Cable Remote Control, 16 in Triple Grouser Track Shoes

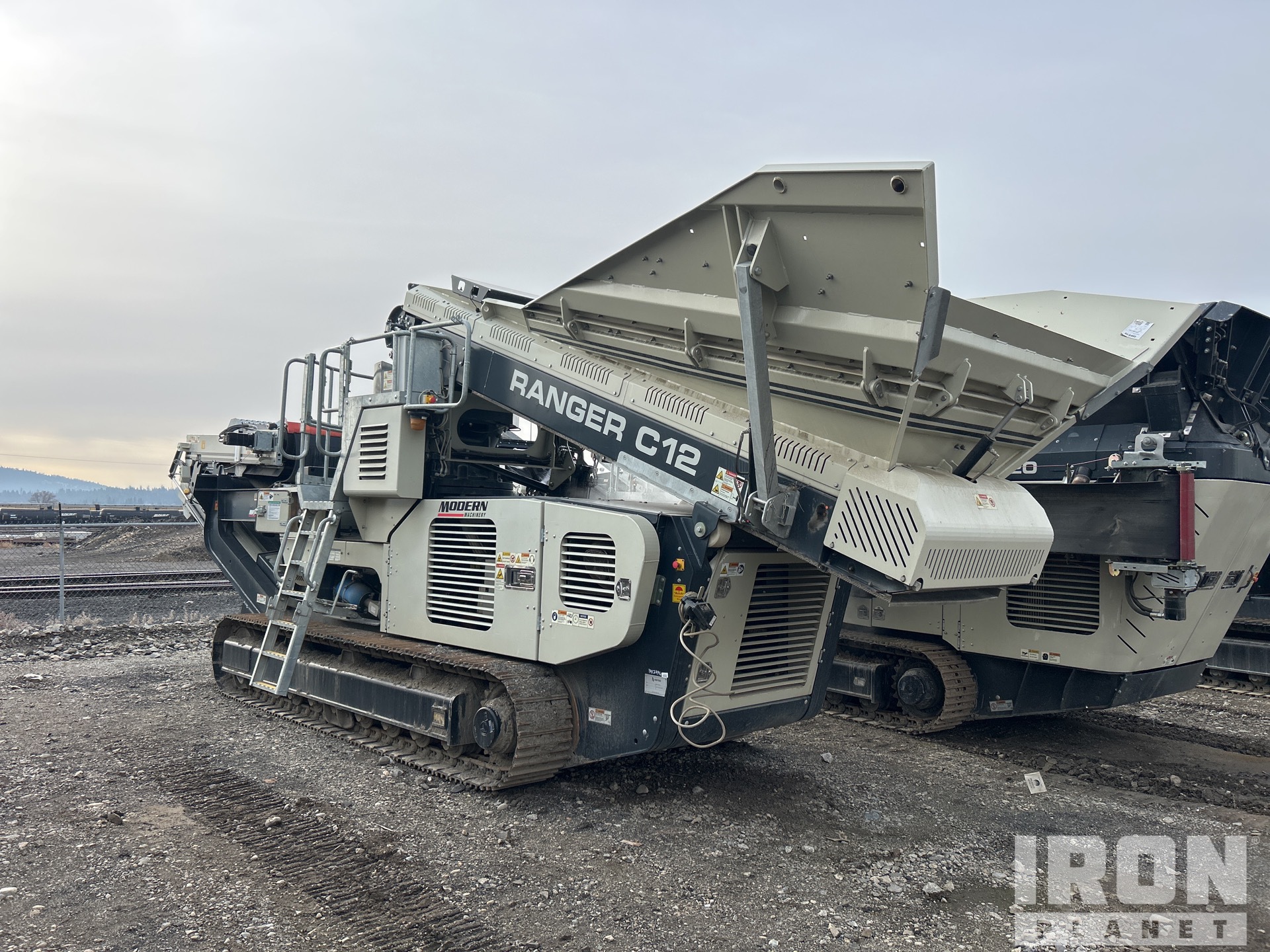

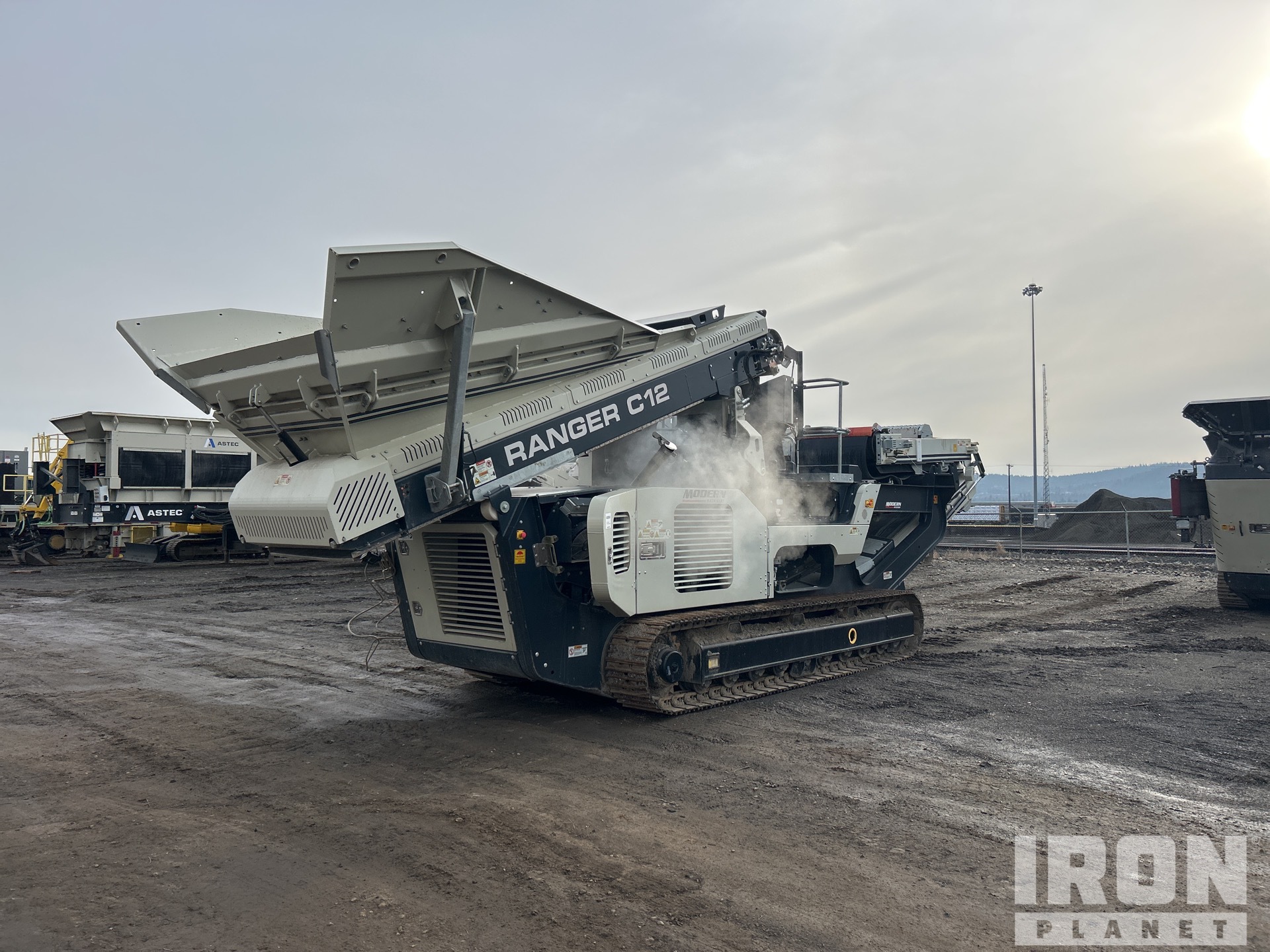

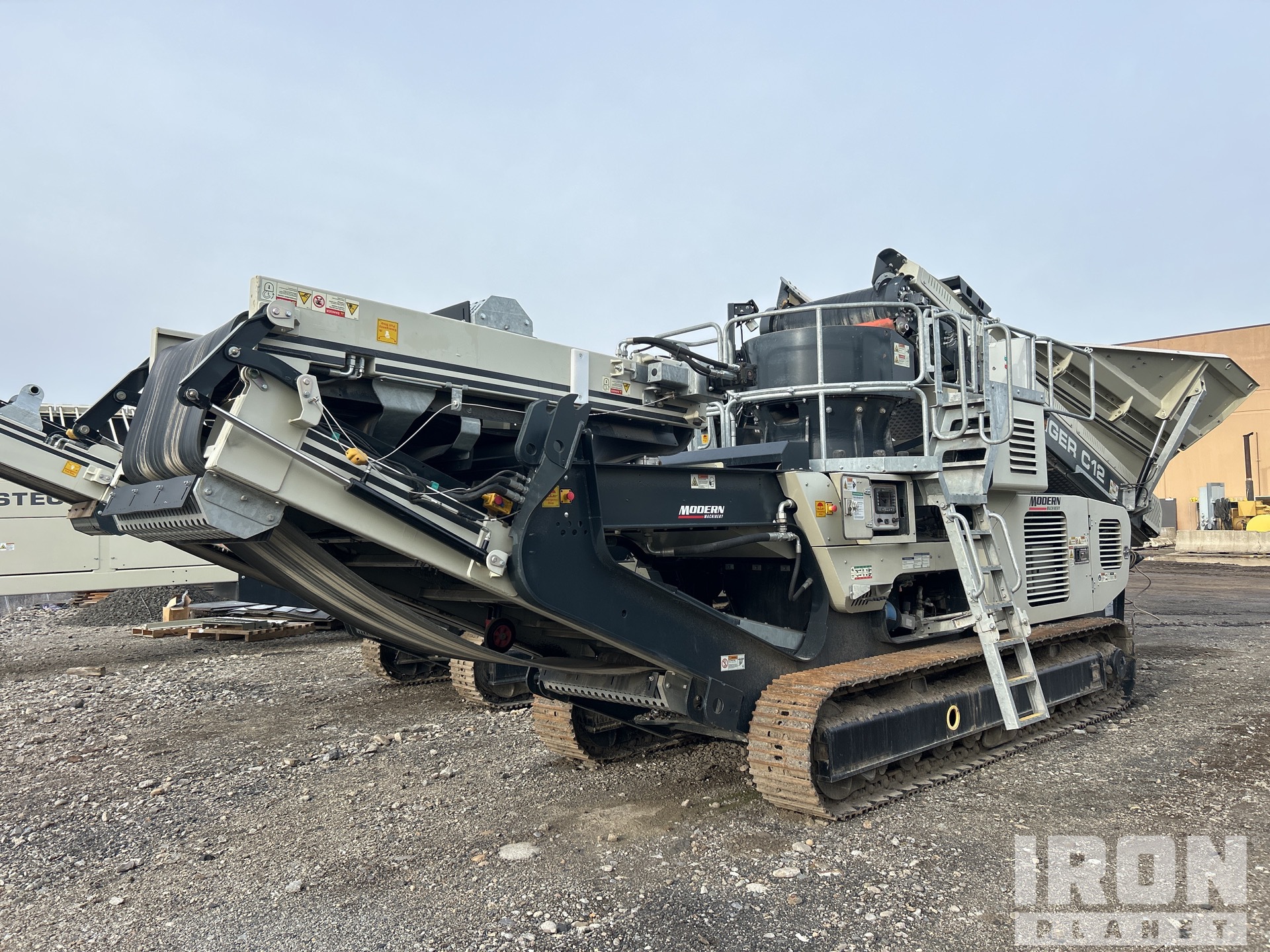

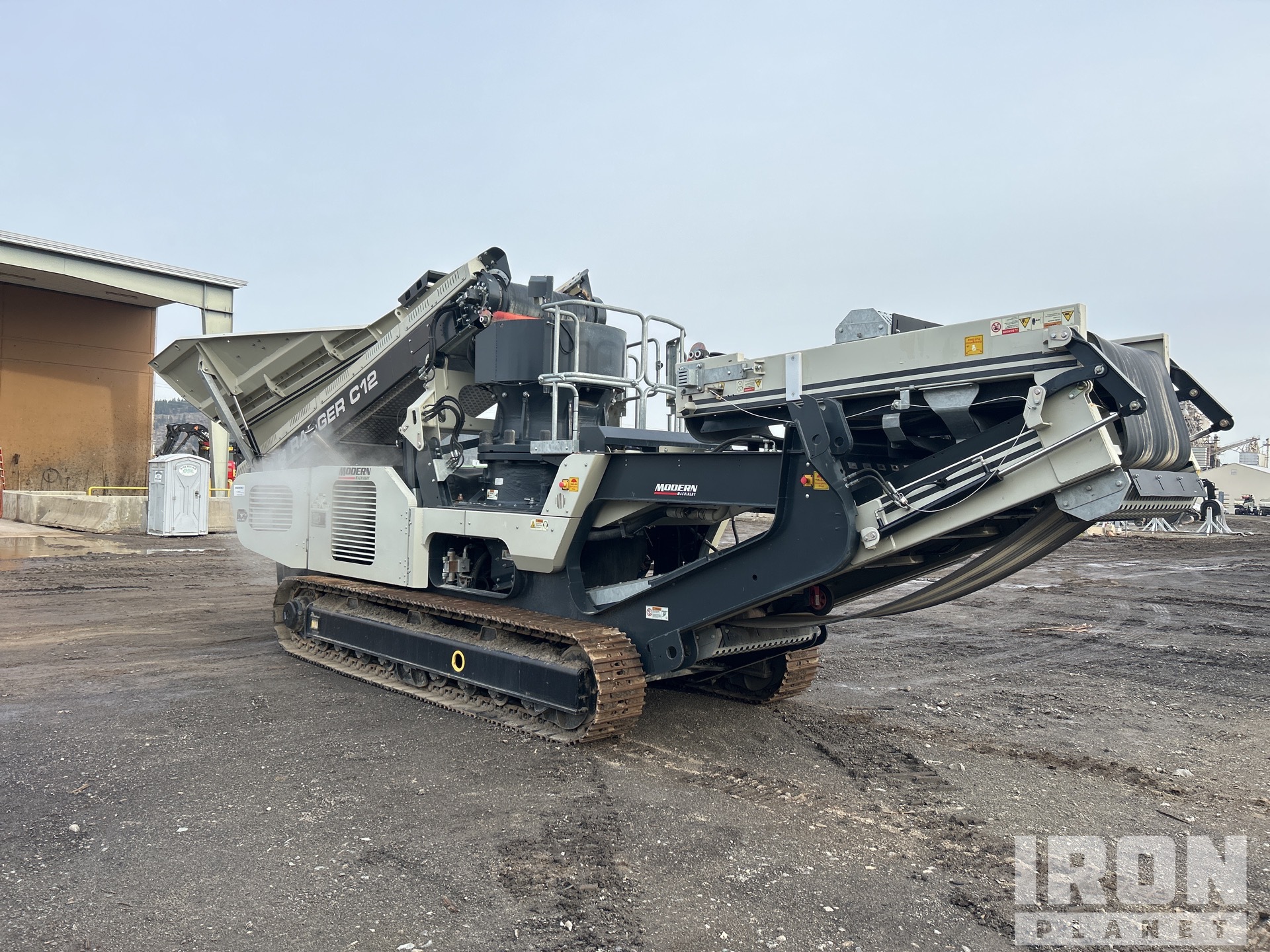

General Appearance
Serial Number / VIN
225115
Hour Meter / Odometer
173 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Control Station
Gauges
Operational
Engine Controls
Crusher/Screen Controls
Limited Function Check
The main components are in place and operational as noted.
Engine
Emission Certification Label
US EPA certification label
Blow by @ idle (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks Coolant reservoir low
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check (Engine)
After jump starting, the engine ran.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses
Conveyor Cylinders
Power Travel Drive System
1 Travel Speed, Travels properly
Limited Function Check
The hydraulic system was operational.
Chassis
Feed Hopper
Length @ top: 16’, Width @ top: 36”, Grizzly length: 9’, Width between grizzly bars: 3’
Crusher Base Frame
Crusher Chamber Frame
Jaw, Blow Bar and Anvil Wear Surface
Crusher Drive System
Not functionally checked
VSI / HSI Crusher Chamber
Feed Conveyor Condition
39 in wide feed belt
Feed Conveyor Frame
Feed Conveyor Drive Motor
Operational
Feed Conveyor Rollers
Covered
Feed Conveyor Head and Tail Pulley
Discharge Conveyor Condition
Discharge Conveyor Drive Motor
Operational
Discharge Conveyor Rollers
Discharge Conveyor Head and Tail Pulley
Deck Frames / Wear Bars
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
22 mm
Left Track Links
Left Track Bushings
Bushings have not been turned
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
22 mm
Right Track Links
Right Track Bushings
Bushings have not been turned
Right Track Rollers
Right Idler
Right Sprocket
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Dec 08, 2025 |
| Silicon | 0 PPM |
| Tin | 0.88 PPM |
| Silver | 0 PPM |
| Aluminum | 2.52 PPM |
| Chromium | 0.3 PPM |
| Lead | 0 PPM |
| Copper | 2.98 PPM |
| Nickel | 0.19 PPM |
| Iron | 7.72 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
