107 Photos
2021 (unverified) Metso Lokotrack LT96 Tracked Jaw Crushing Plant
Located
Phoenix, AZ
Phoenix, AZ
Usage
1,119 hrs
1,119 hrs
Serial number
181715
181715
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15618568
In yard
No
Features
2021 US EPA Label, Cat C7.1 7.1 L Diesel Engine, Requires Diesel Exhaust Fluid, Metso 3 ft x 9 ft Vibratory Grizzly Feeder w/Hydraulic Fold Hopper Wings, Pre-Screen, Metso C96 36 in x 22 in Jaw Crusher, 19 in Wide Fines Discharge Conveyor, 31.5 in Wide End Discharge Conveyor, Metso 29 in x 6 ft Cross Belt Magnet, Radio and Cable Remote Control, Auto Lube, 19.5 in Triple Grouser Track Shoes

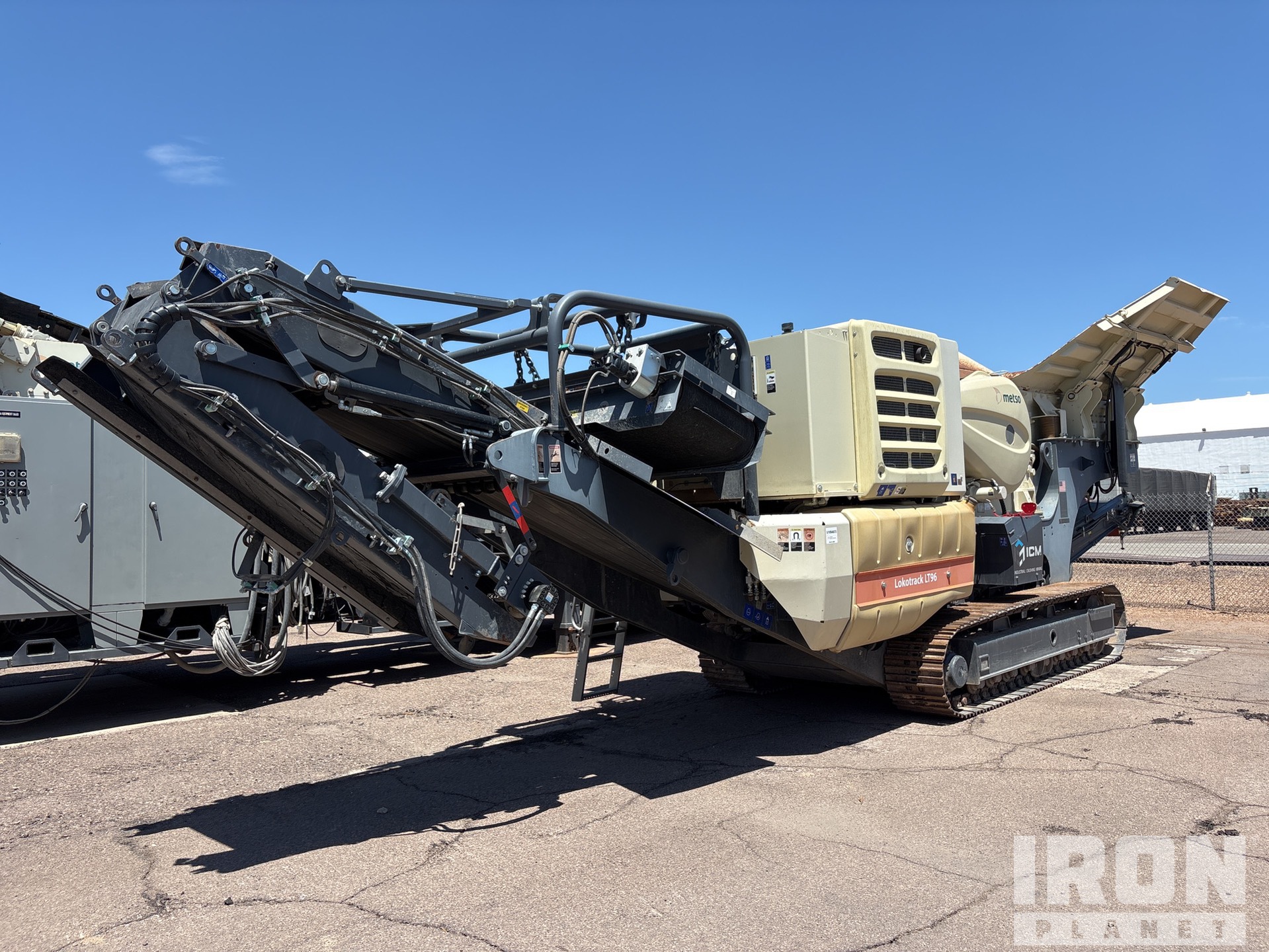

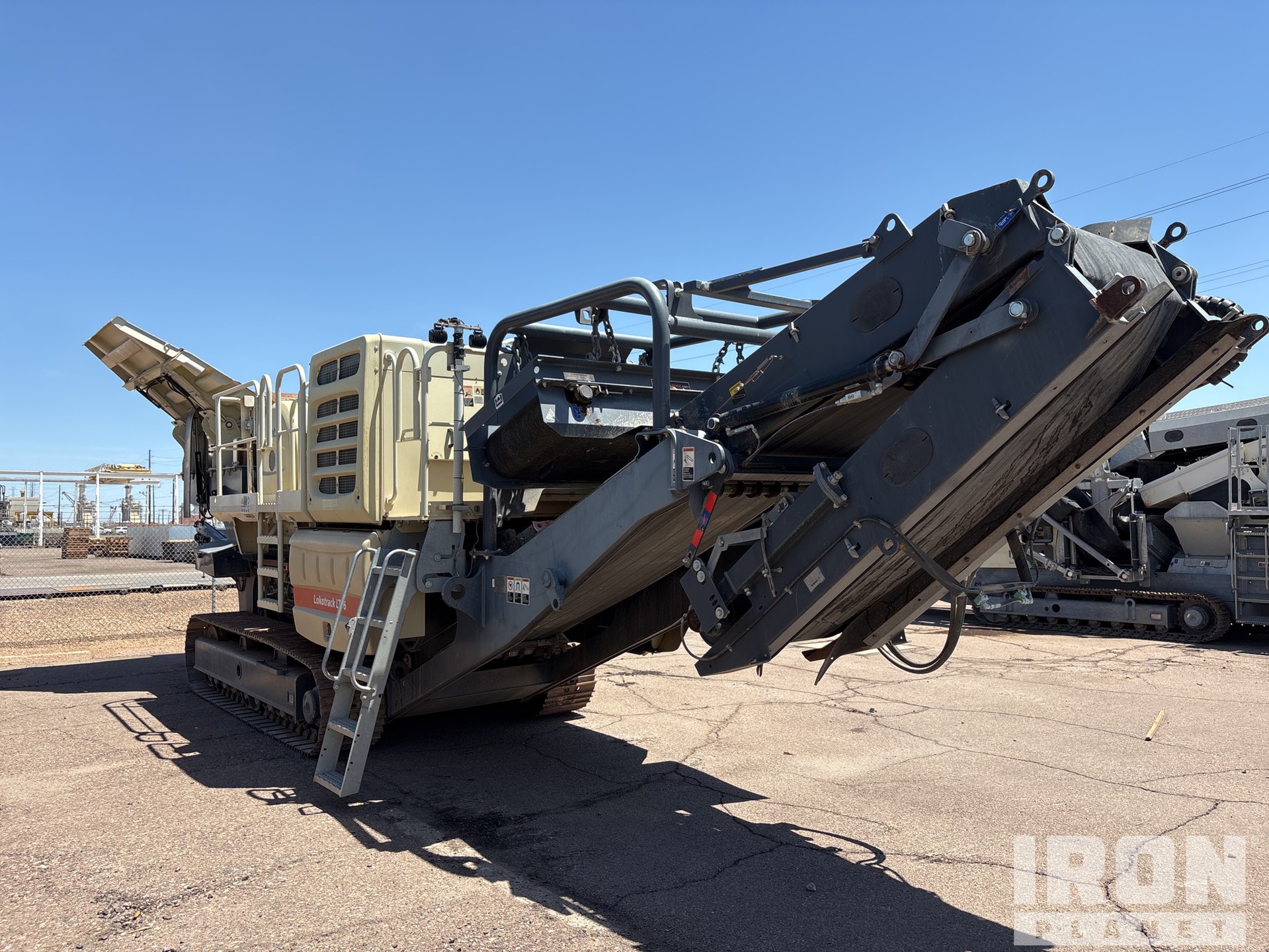

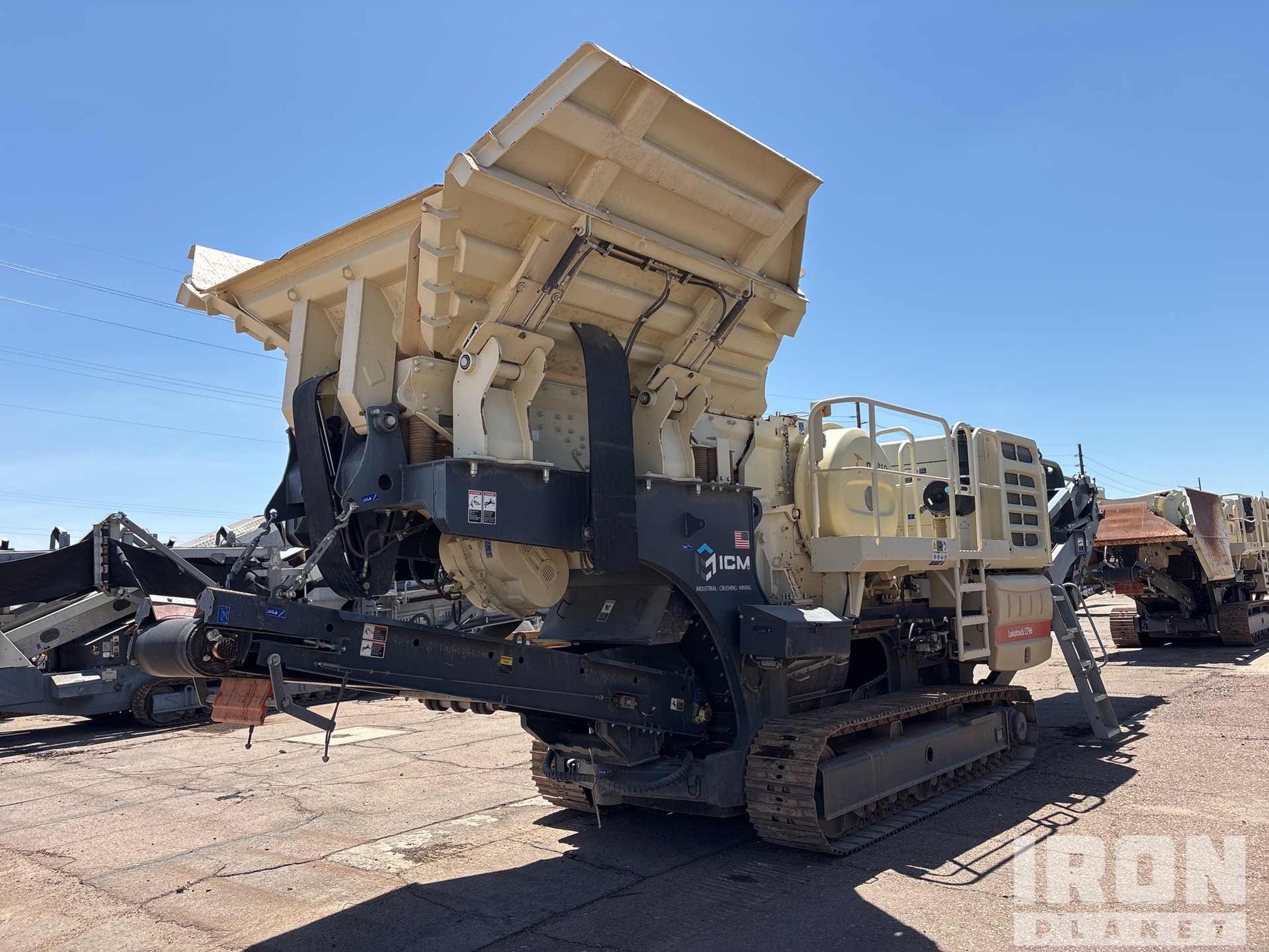

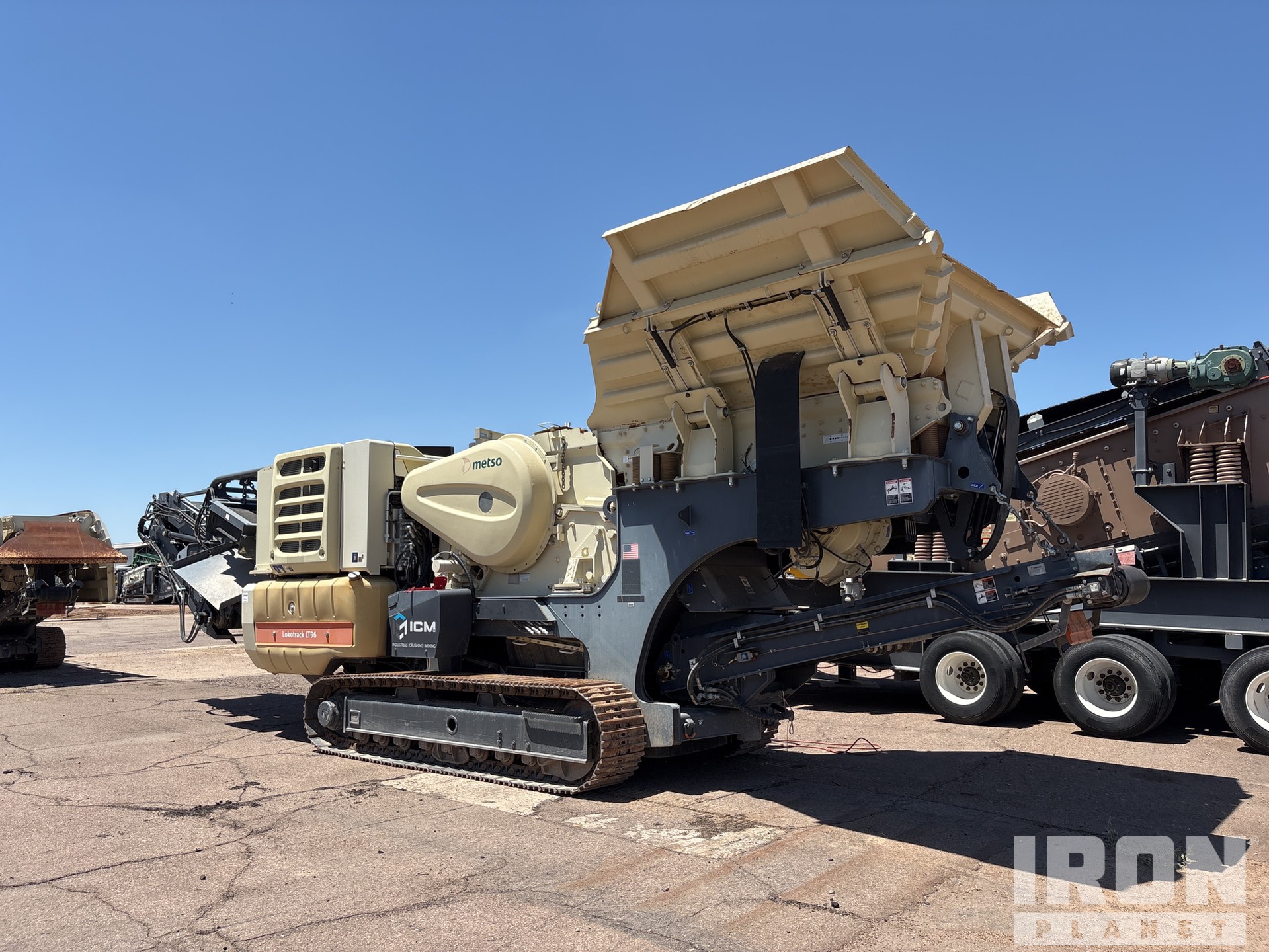

General Appearance
Serial Number / VIN
181715
Hour Meter / Odometer
1119 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Control Station
Gauges
Operational
Engine Controls
Crusher/Screen Controls
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
2021 US EPA Label
Emission Certification Label
US EPA certification label
Blow by @ idle (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check (Engine)
The engine started and ran.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses
Conveyor Cylinders
Power Travel Drive System
Travels properly
Limited Function Check
The hydraulic system was operational.
Chassis
Feed Hopper
Length @ top: 6’, Width @ top: 11’, Grizzly length: 5’, Width between grizzly bars: 2”
Crusher Base Frame
Crusher Chamber Frame
Jaw, Blow Bar and Anvil Wear Surface
Crusher Drive System
Not functionally checked
VSI / HSI Crusher Chamber
Discharge Conveyor Condition
Discharge Conveyor Drive Motor
Not operationally checked
Discharge Conveyor Rollers
Discharge Conveyor Head and Tail Pulley
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
25 mm
Left Track Links
Left Track Bushings
Bushings have not been turned
Left Carrier Rollers
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
25 mm
Right Track Links
Right Track Bushings
Bushings have not been turned
Right Carrier Rollers
Right Track Rollers
Right Idler
Right Sprocket
Oil Sample Analysis
Oil Sample Analysis
| engine | hydraulic | |
|---|---|---|
| date of analysis | Aug 03, 2026 | Aug 03, 2026 |
| Silicon | 0.47 PPM | 0 PPM |
| Tin | 1.17 PPM | 0.48 PPM |
| Silver | 0 PPM | 0 PPM |
| Aluminum | 0 PPM | 0 PPM |
| Chromium | 0 PPM | 0 PPM |
| Lead | 0 PPM | 0.15 PPM |
| Copper | 0.12 PPM | 1.63 PPM |
| Nickel | 0 PPM | 0.05 PPM |
| Iron | 0.09 PPM | 0 PPM |
| Glycol | NEG | N/A |
| Water | NEG | N/A |
| Fuel | <5% | <5% |
