88 Photos
2020 Dura-lift DT-29 FP 29 ft on 2020 Ford F-550 XL 4x4 Bucket Truck
Located
North east, MD
North east, MD
Usage
19,321 mi (31,095 km)
19,321 mi (31,095 km)
Serial number
1FDUF5HT7LDA10304
1FDUF5HT7LDA10304
Loading...
Detailed equipment information
An inspection report will be available soon. Please check back later.
ID number
#14671395
In yard
Yes
Year
2020
Manufacturer
Model
Asset type
Serial number or VIN
1FDUF5HT7LDA10304
Features
Ford V8 6.7 L Diesel Engine, 2020 US EPA Label, Requires Diesel Exhaust Fluid, 1329 Engine hrs, Engine Brake, Automatic Transmission, 7500 lb Front Axle, 14706 lb Rears, 19500 lb GVWR, 225/70R19.5, Spring Suspension, 145 in Wheelbase, PTO, 350 lb Capacity, Front Mounted, Insulated One-Person Telescopic Boom, Utility Body, 9 ft x 92 in Bed
Notes
The listed asset is subject to applicable title or bill of sale requirements and taxes in accordance with the laws of the state in which it is located and sold - Comes with Ironclad Assurance
General Appearance

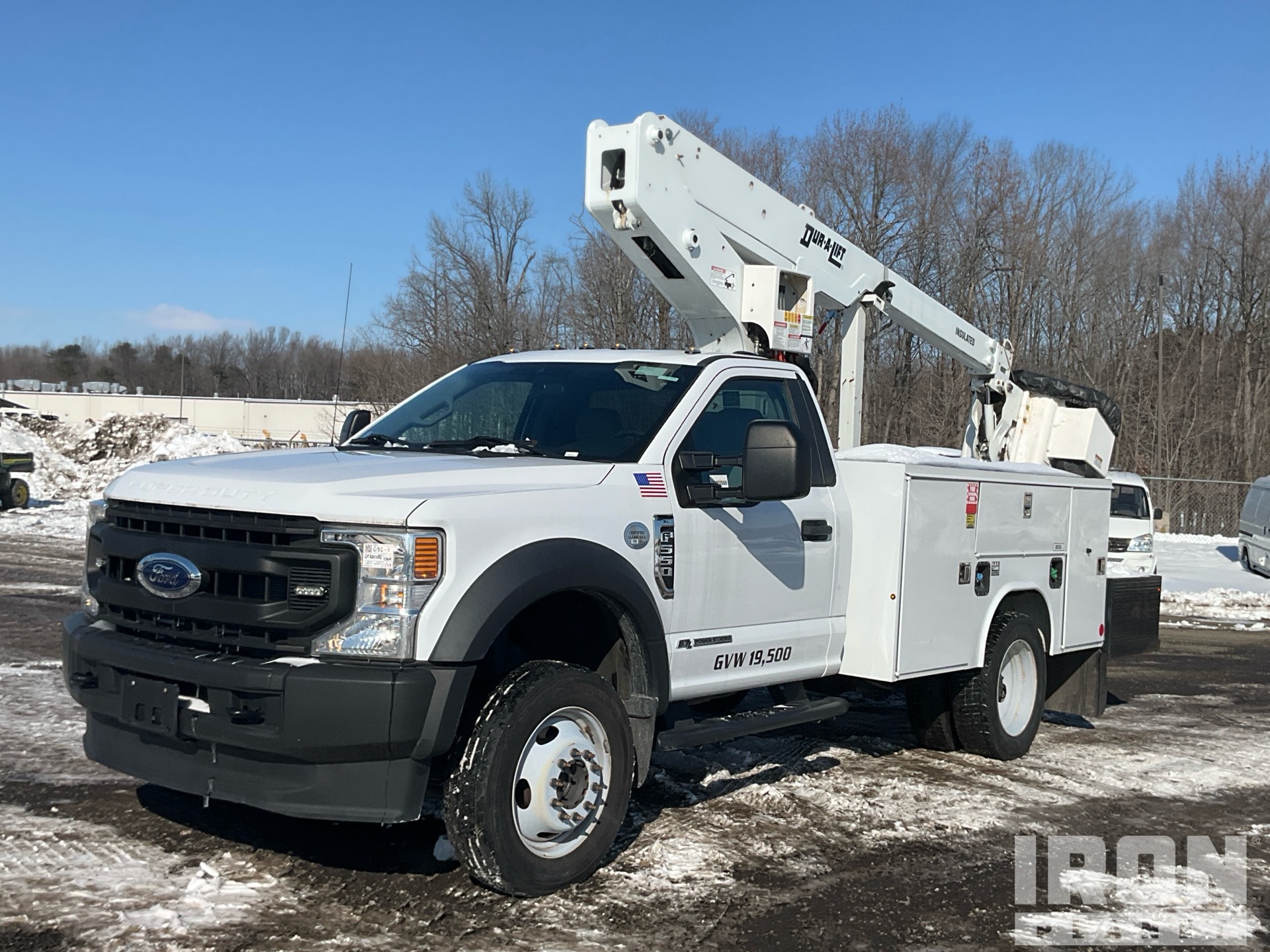

Picture, Left Front Corner

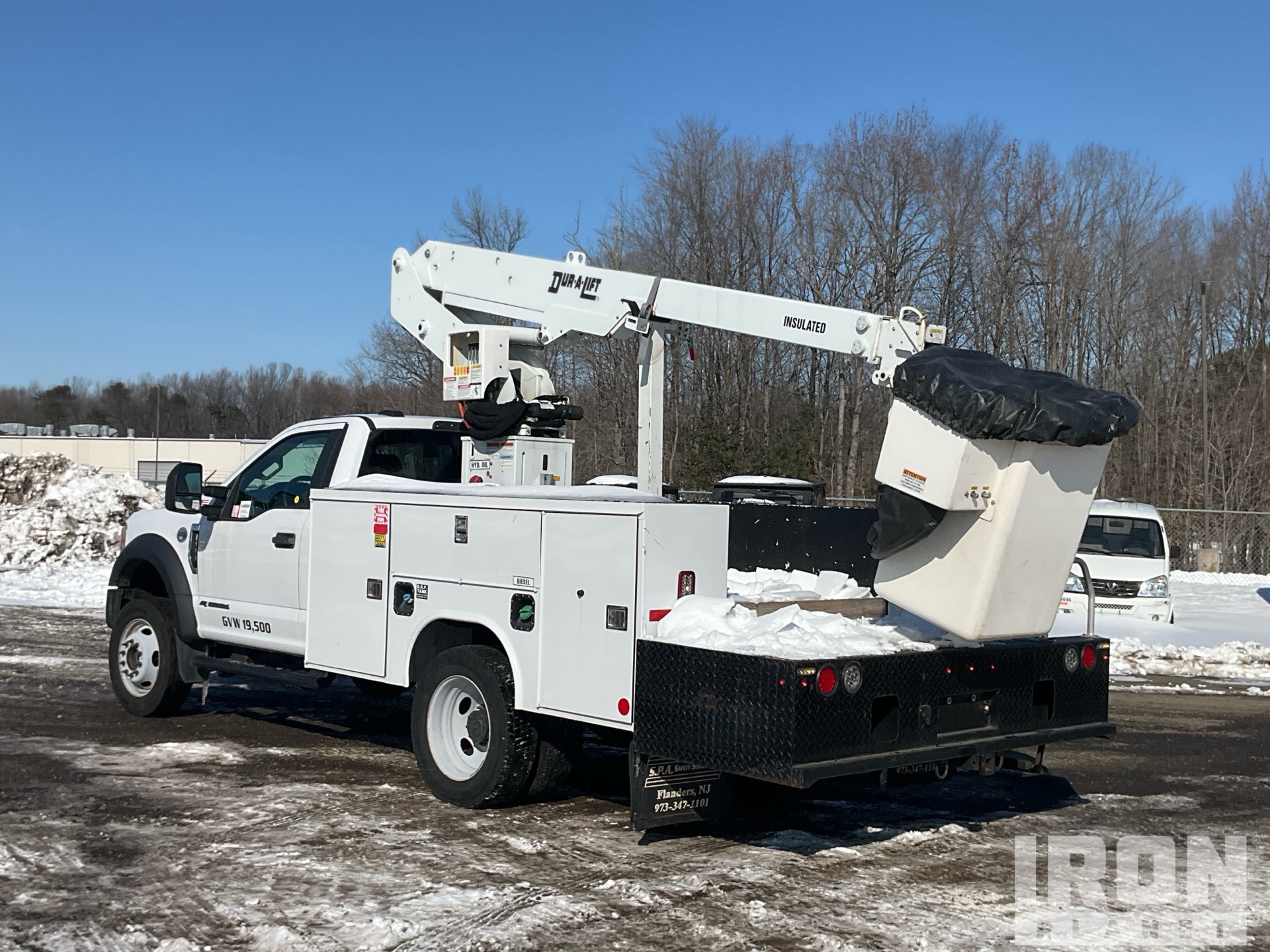

Picture, Left Rear Corner

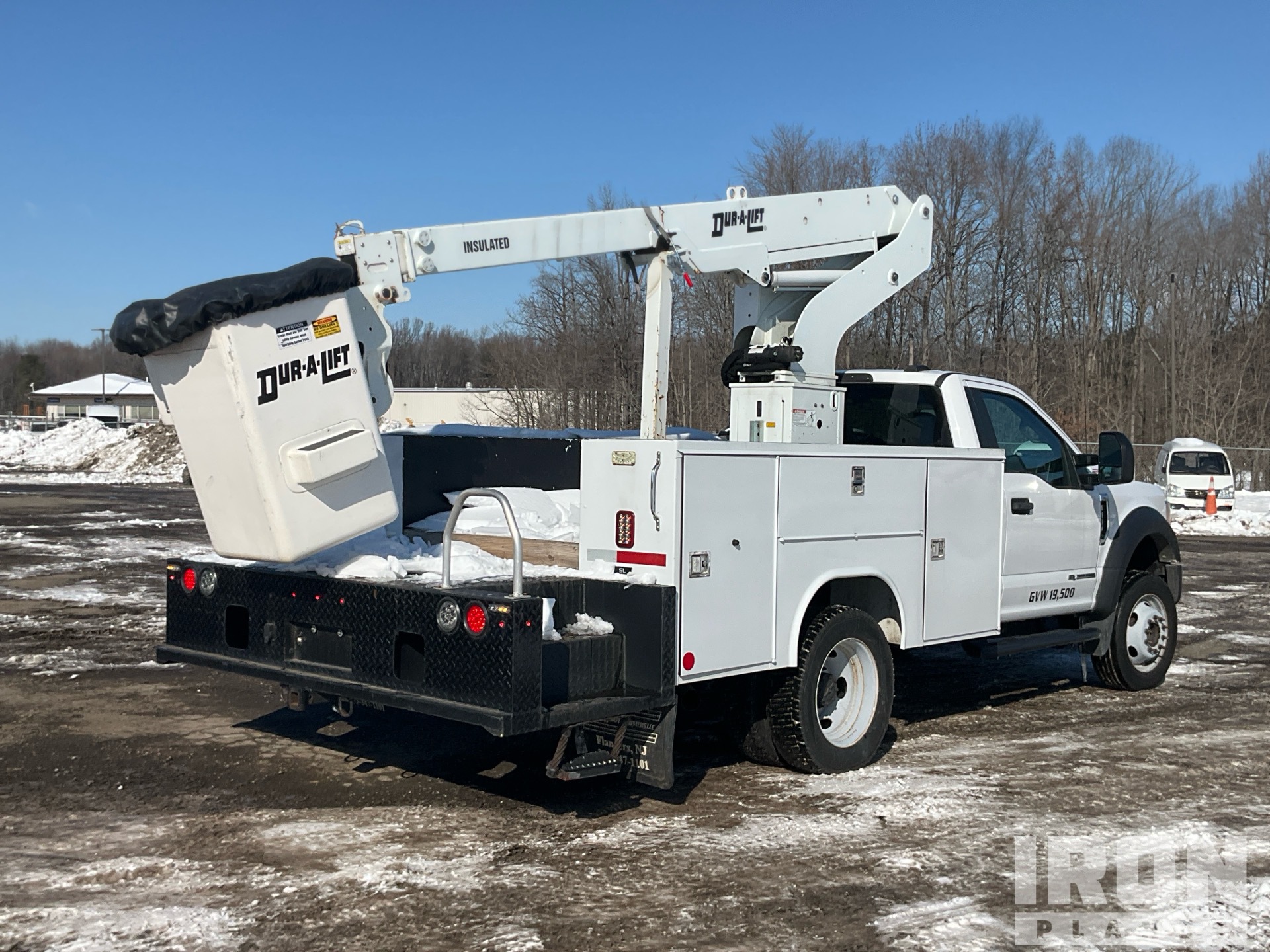

Picture, Right Rear Corner

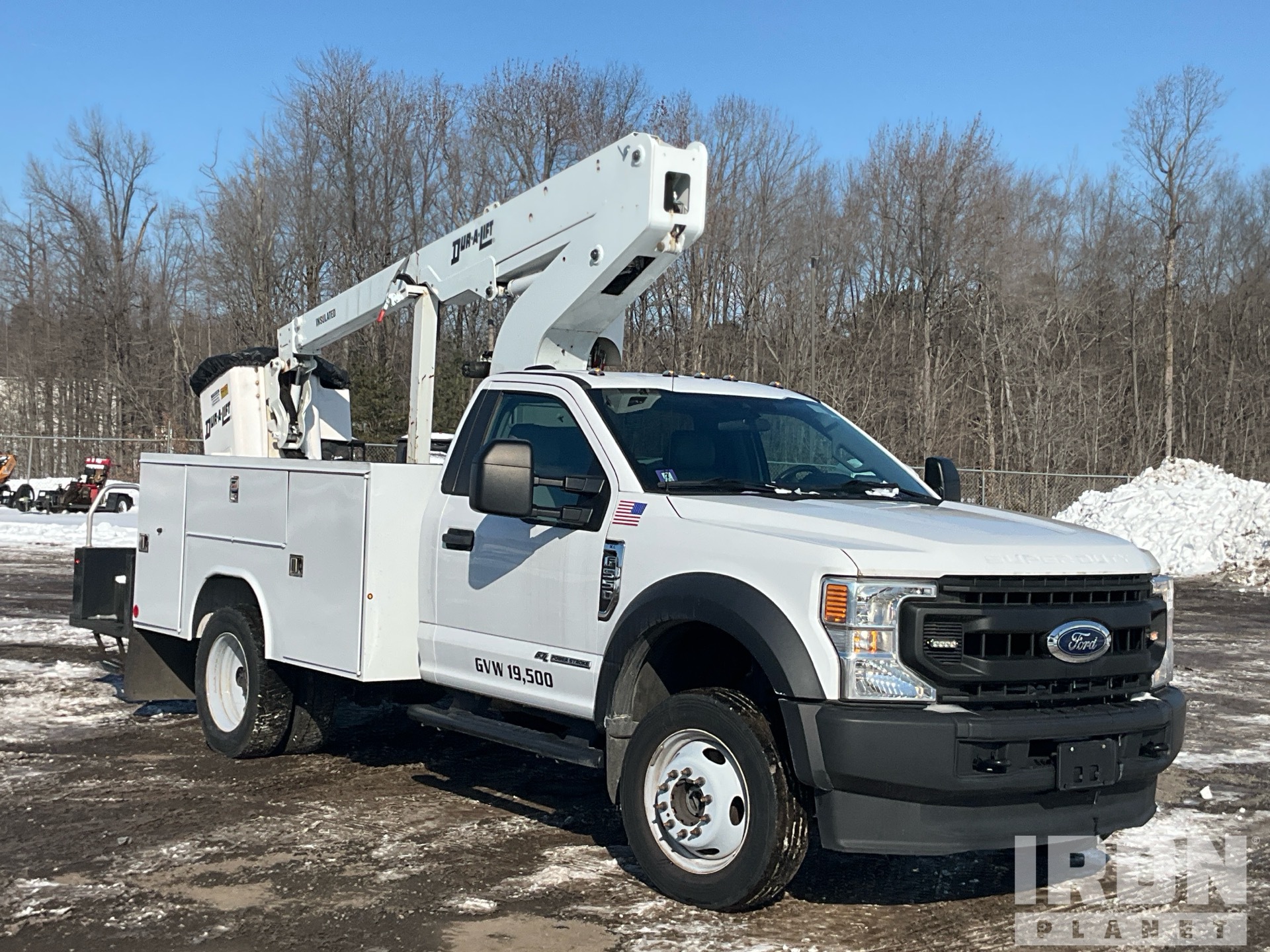

Picture, Right Front Corner

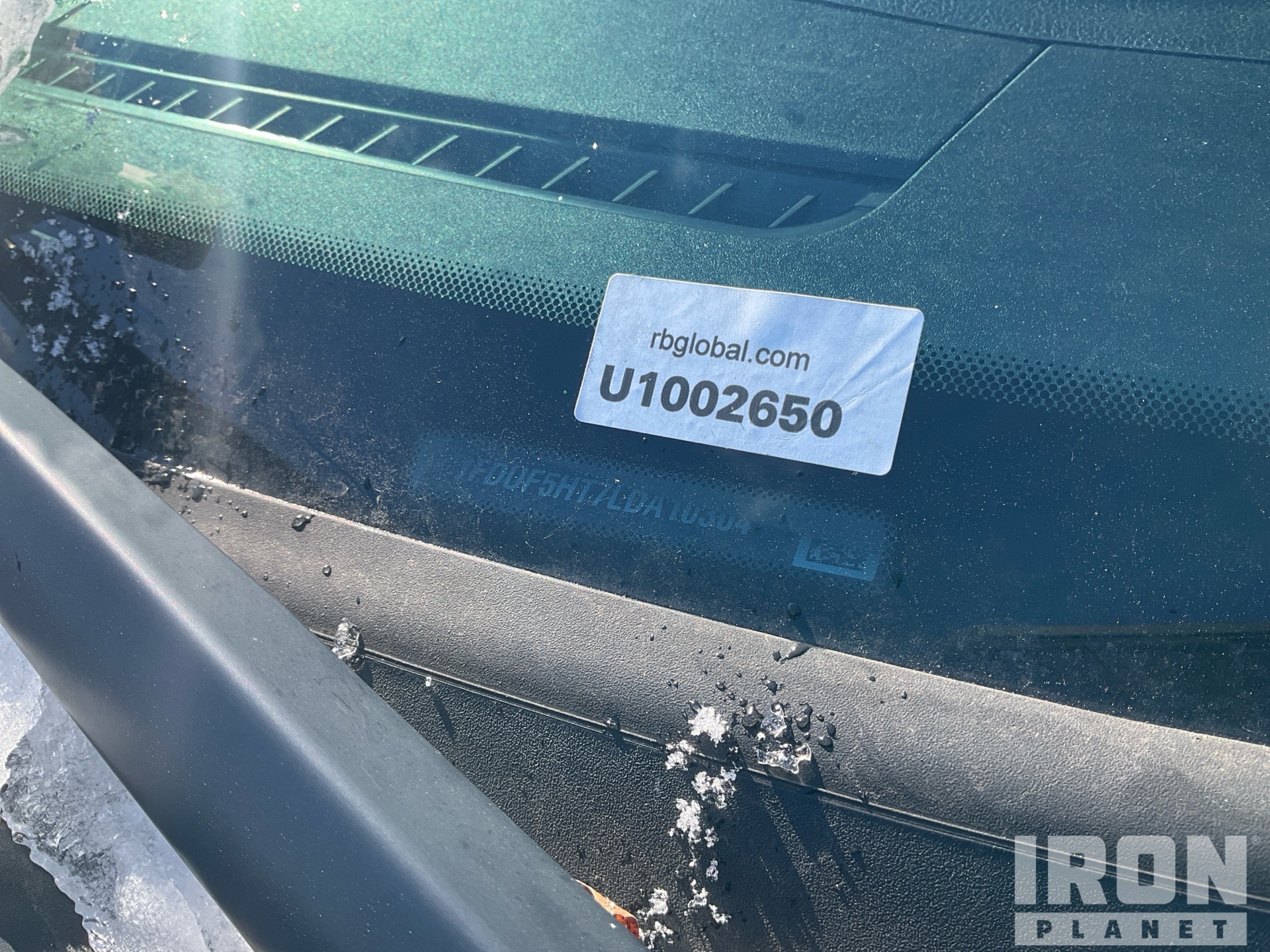

Serial Number / VIN
1FDUF5HT7LDA10304
Second Serial Number/VIN Photo
Hour Meter / Odometer
19321 mi-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Brakes / Tires
Steer Axle
- 13/32" Steel
- Disc
- Disc
- 10/32" Steel
Rear Axle
- 14/32" Steel
- 16/32" Steel
- Disc
- Disc
- 15/32" Steel
- 15/32" Steel
Engine
Emissions Information
2020 US EPA Label, Requires Diesel Exhaust Fluid
Emission Label
A/C Compressor
In place; ambient temperature too cold to check operation
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Fuel System
Operational
Exhaust System
Diesel Particulate Filter
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check
The engine started and ran.
Cab
Engine Hours
1329 Engine hrs
Mirrors
Window Controls
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Electric horn operational
Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational
Gauges
Operational
Gear Selector
Brake Control
Operational
Engine Brake
Not operationally checked
PTO Control
Operational
ECM Miles
Reader will not display ECM mileage
Air Conditioner
The ambient temperature is too cold to check.
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Underbody
Transmission
Operational
Drive Shaft
Power Take Off
Operational
Steer Axle
Front Drive Axle
Rear Drive Axle
Limited Function Check
The drivetrain was operational.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulic)
Boom Lift Cylinder
Cylinders
Limited Function Check
The hydraulic system was operational.
Configuration
Bed Body
Support Frame
Hinge Points
Limited Function Check
The main chassis components were operational in a limited check.
Tool / Work Box
Painted to match body
Steering Linkage
Brake Type
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Held against power, Stopped the machine while rolling
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Springs/Hangers Condition
Suspension Bushings
Frame Condition
Wheel Condition
Wheel Studs
Dielectric Certification
No expiration date present
Turntable Bearing
Boom Condition
Boom Wear Guides
Work Bucket
Hydraulic Controls
