110 Photos
2017 John Deere 648L 4x4 Skidder
Located
Simpsonville, SC
Simpsonville, SC
Usage
10,526 hrs
10,526 hrs
Serial number
1DW648LXKHF679922
1DW648LXKHF679922
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15517044
In yard
No
Features
Air Conditioner, Joystick Steering, Air Ride Seat, Sweeps, Screens, Two-Position Station, Tier 4, 2017 US EPA Label, Requires Diesel Exhaust Fluid, Blade, John Deere Grapple, Winch, 35.5x32 Tires, Floatation Tires

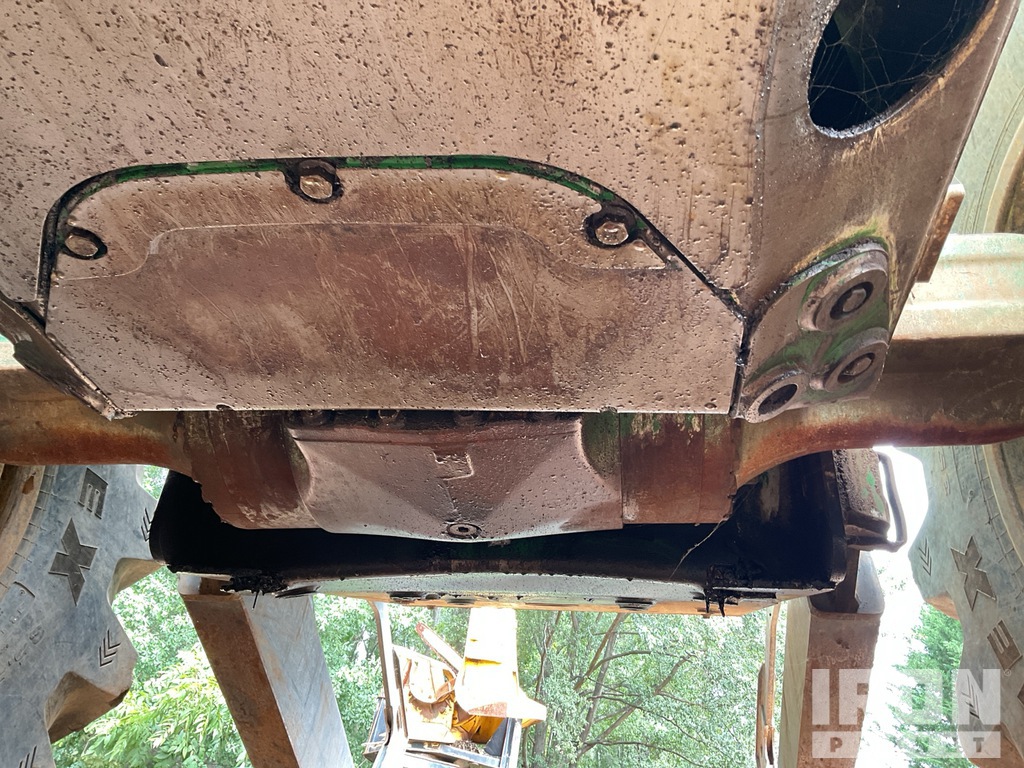

Drivetrain
(3)
Transmission
Operational
Front Drive Axle
Wet with oil, unsure of source

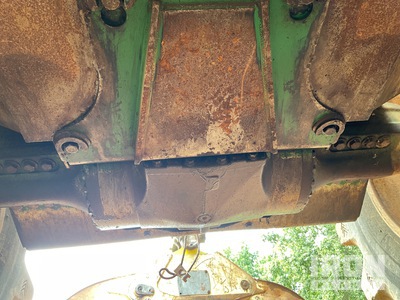

Rear Drive Axle
Wet with oil, unsure of source
Limited Function Check
The drivetrain was operational.

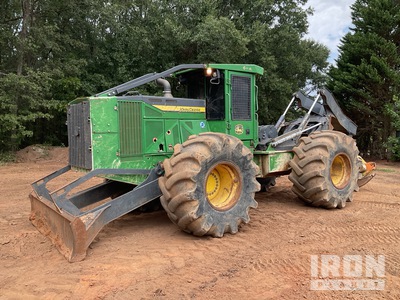

General Appearance
(26)
Serial Number / VIN
1DW648LXKHF679922, Tag laying loose on dash
CE Mark
No CE mark found
Hour Meter / Odometer
10526 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Both doors damaged, left side engine panels damaged (1 is missing latch), grille/surround frame pushed in at top
Steps/Ladders
Hand Rails
Left rear top grab handle damaged, left inside door grab handle bent. Right side front bottom and left rear bottom grab handles pushed into ROPS at mounting.
Glass
All polycarbonate windows scratched severely. Right side door window does not operate because of damage to door
Exterior Lights
Some not operational, Left front cab light, 2 of the rear cab lights lights are not operational
Safety
(1)
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
(19)
Seats/Armrests
Mirrors
Steering Controls
Hydraulic Controls
Drivetrain Controls
Dash Console
Armrest broken
Engine Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational, Yellow warning light came on while testing light stays on
Gauges
Operational
Air Conditioner
Operational, Blows cool but not cold air
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
(14)
Engine
2017 US EPA Label, Requires Diesel Exhaust Fluid
Emission Label
A/C Compressor
Cannot see clutch
Blow-by (subjective visual observation)
Visible
Starter
Operational
Exhaust System
Radiator
Oil Leaks
Oil Pan, Belly pan has a pool of engine oil. Drain valve fitting appears to be leaking.
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check
The engine started and ran.
Hydraulics
(17)
Pumps (Hydraulics)
Valves
Hydraulic Tank
Low fluid level
Hoses/Lines - Skidder
Hose at articulation seeping oil, another appears to be sucked flat.
Boom Lift Cylinder(s)
Grapple Cylinders
Blade Lift Cylinders
Oil accumulation at both cylinders
Steering Cylinders
Dripping leak on the left cylinder
Hydraulic Motors
Winch does not operate
Limited Function Check
The hydraulic system is weak. Groaned when grapple hydraulic functions used
Chassis
(22)
Grapple Boom Condition
Chassis to Arm Pins
Boom to Grapple Pins and Bushings
Limited Function Check
The main components were operational except as noted.
Articulating Center Pins
Brake Type
Hydrostatic
Park Brake
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Frame Condition
Tire Brands
Primex, Bias ply
Left Front Tire
Left Rear Tire
Right Rear Tire
Right Front Tire
Wheel Condition
Wheel Studs, Nuts, Lugs
Specialty
(8)
Winch
Inoperable, Make: John Deere, Serial #: T04000X006951, No hook
Grapple
Grapple arm was repaired
Blade Condition
Both pins to frame have retainers missing/broken
