118 Photos
2015 Altec DM47BTR on 2016 Kenworth T370 4x2 Digger Derrick Truck
Located
North east, MD
Usage
85,469 mi (137,550 km)
Serial number
2NKHHM7X7GM493953
Loading...
Detailed equipment information
A qualified Ritchie Bros. employee collected detailed equipment information and performed functional tests on the key components of this asset. You, or a proxy, may also inspect any items on site prior to bidding on auction day.
ID number
#14382226
In yard
Yes
Year
2016
Manufacturer
Model
Asset type
Serial number or VIN
2NKHHM7X7GM493953
Features
10918 Engine hrs, Engine Brake, Allison 3500 6-Speed Automatic Transmission, 14600 lb Front Axle, 21000 lb Rears, Spicer P22060S Drive Axles, 5.57:1 Axle Ratio, 33000 lb GVWR, Paccar PX-7 6 Cylinder 6.7 L Diesel 260 hp Engine, 2015 US EPA Label, Requires Diesel Exhaust Fluid, 12R22.5 Front Tires, 11R22.5 Rear Tires, Spring Suspension, 192 in Wheelbase, PTO, 35 ft Sheave Height, 23790 lb Capacity, Rear Mounted, Insulated Upper Boom, Pole Guide, Boom Tip Mounted Winch, Material Handling Jib, One-Man Basket, Altec 14 ft 8 in Body, A-Outriggers, Rear Outriggers, Bumper Mounted Winch, Hydraulic Hose Reel
General Appearance

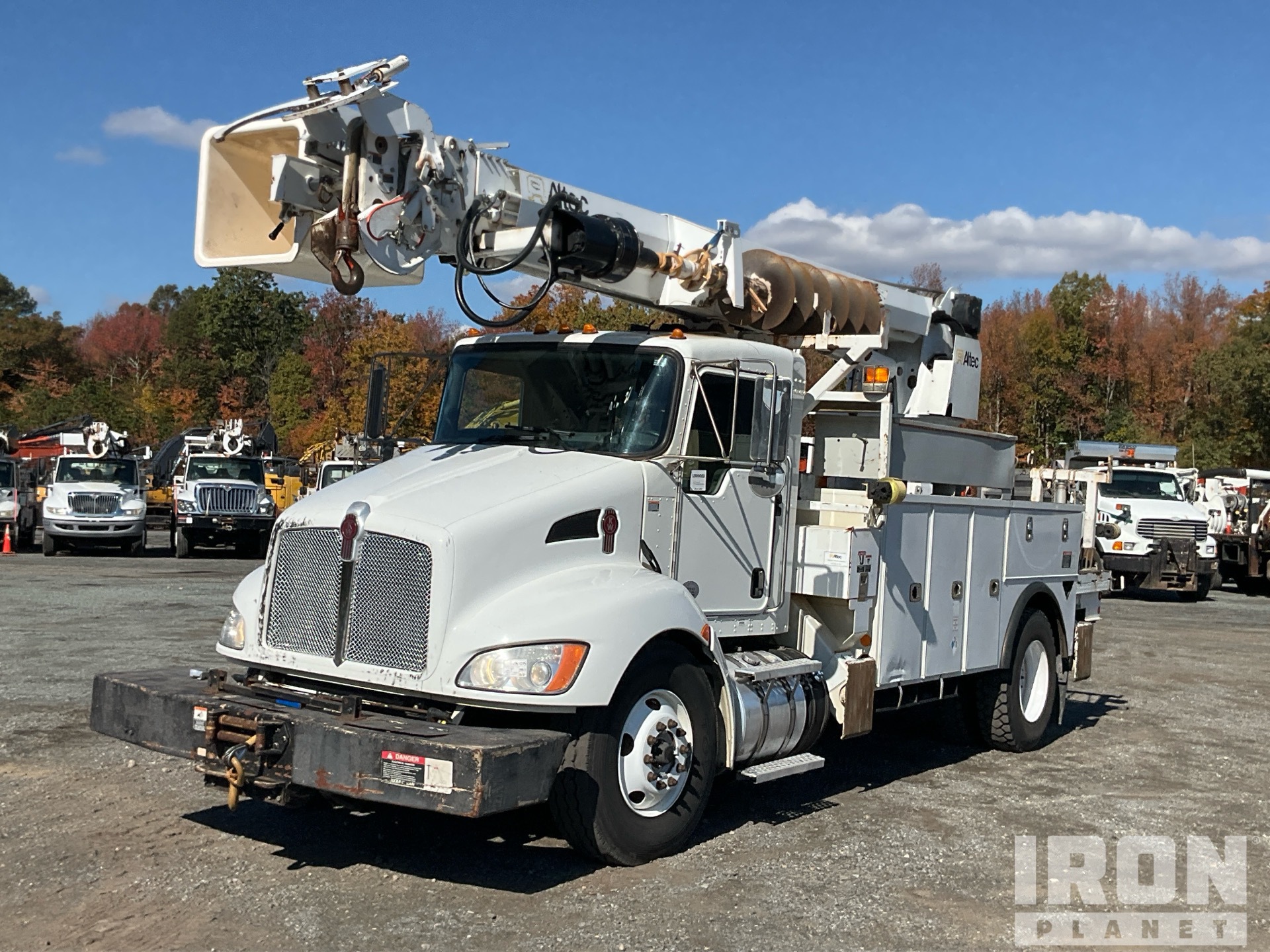

Picture, Left Front Corner

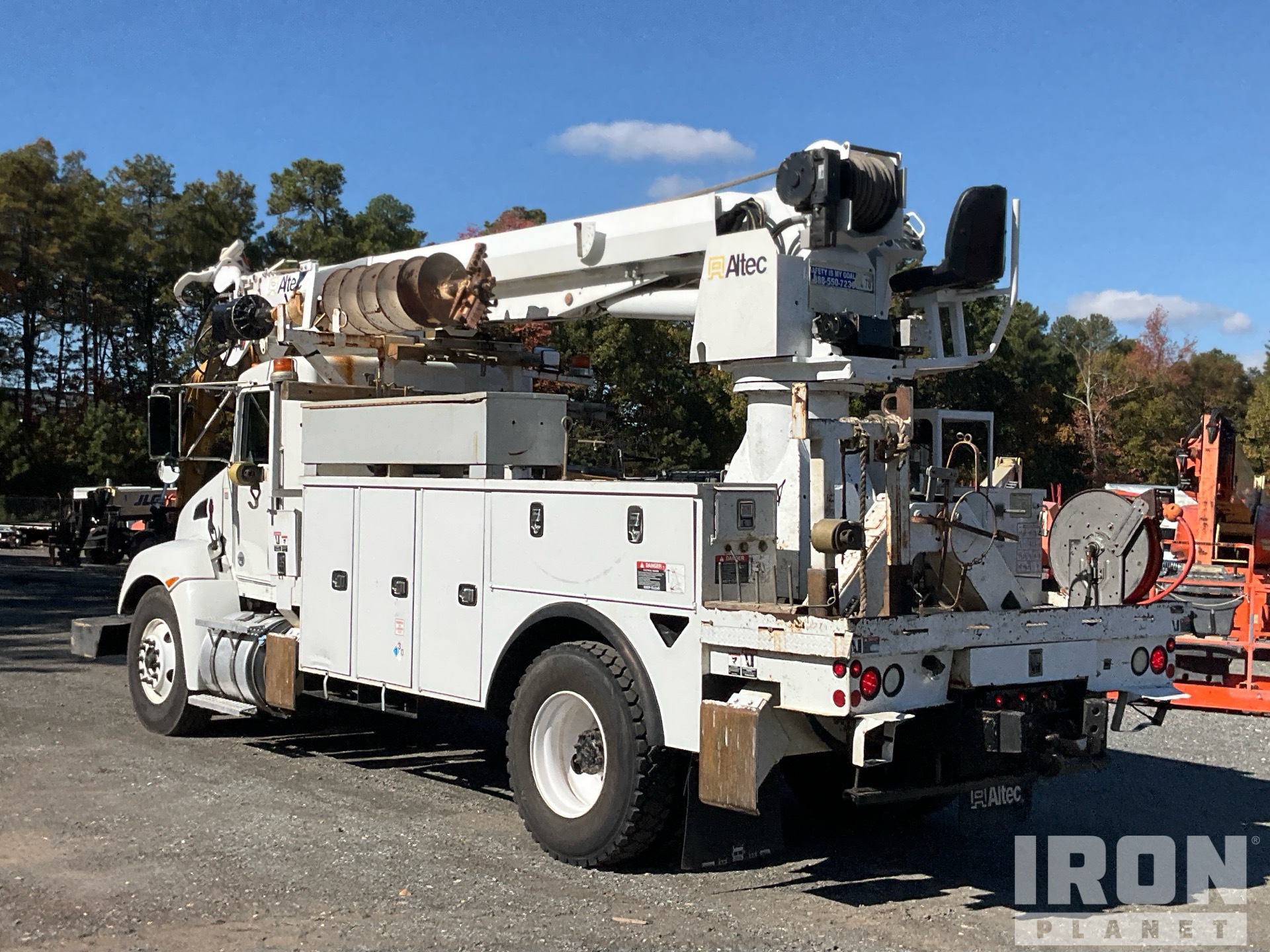

Picture, Left Rear Corner

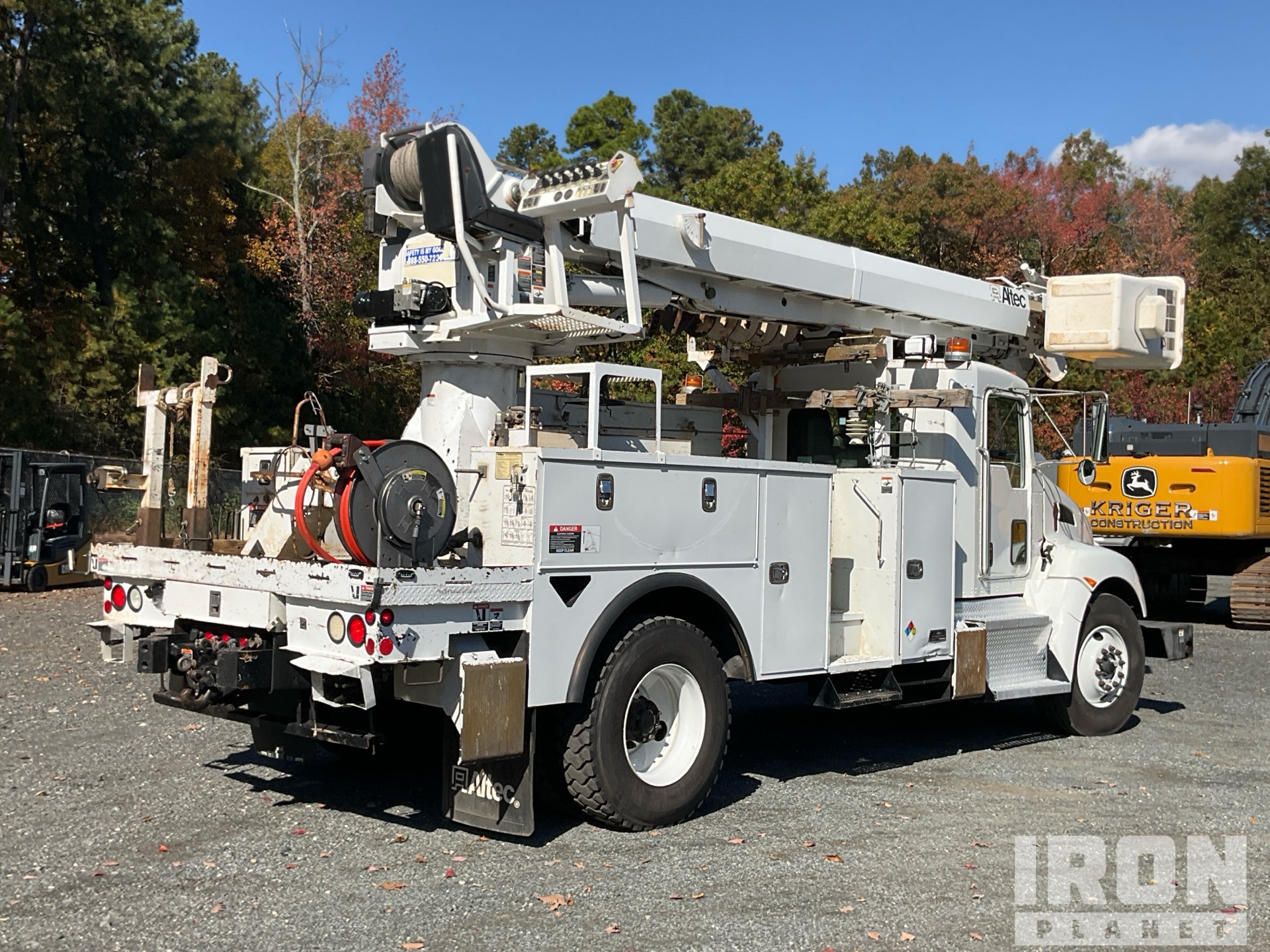

Picture, Right Rear Corner

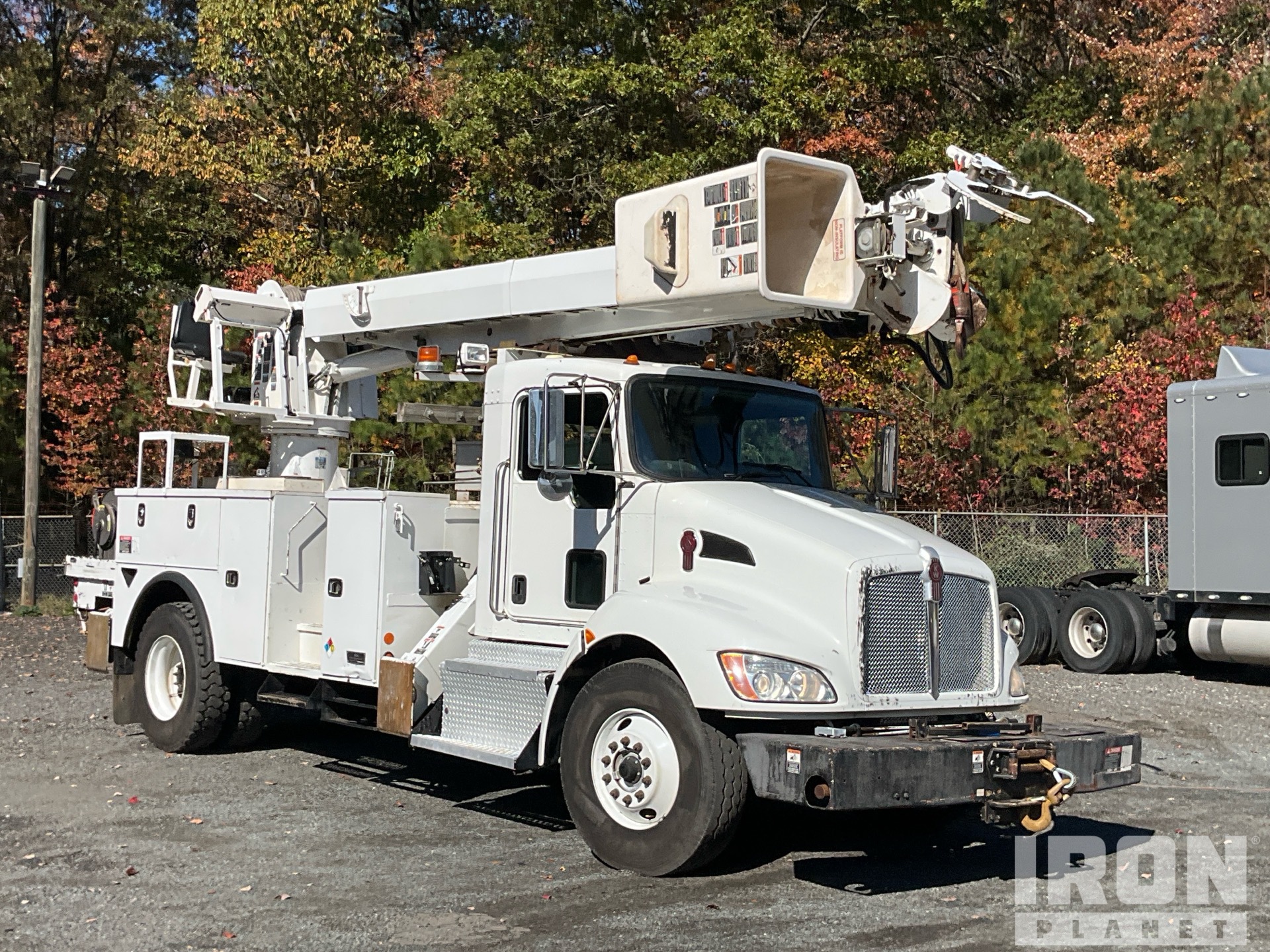

Picture, Right Front Corner

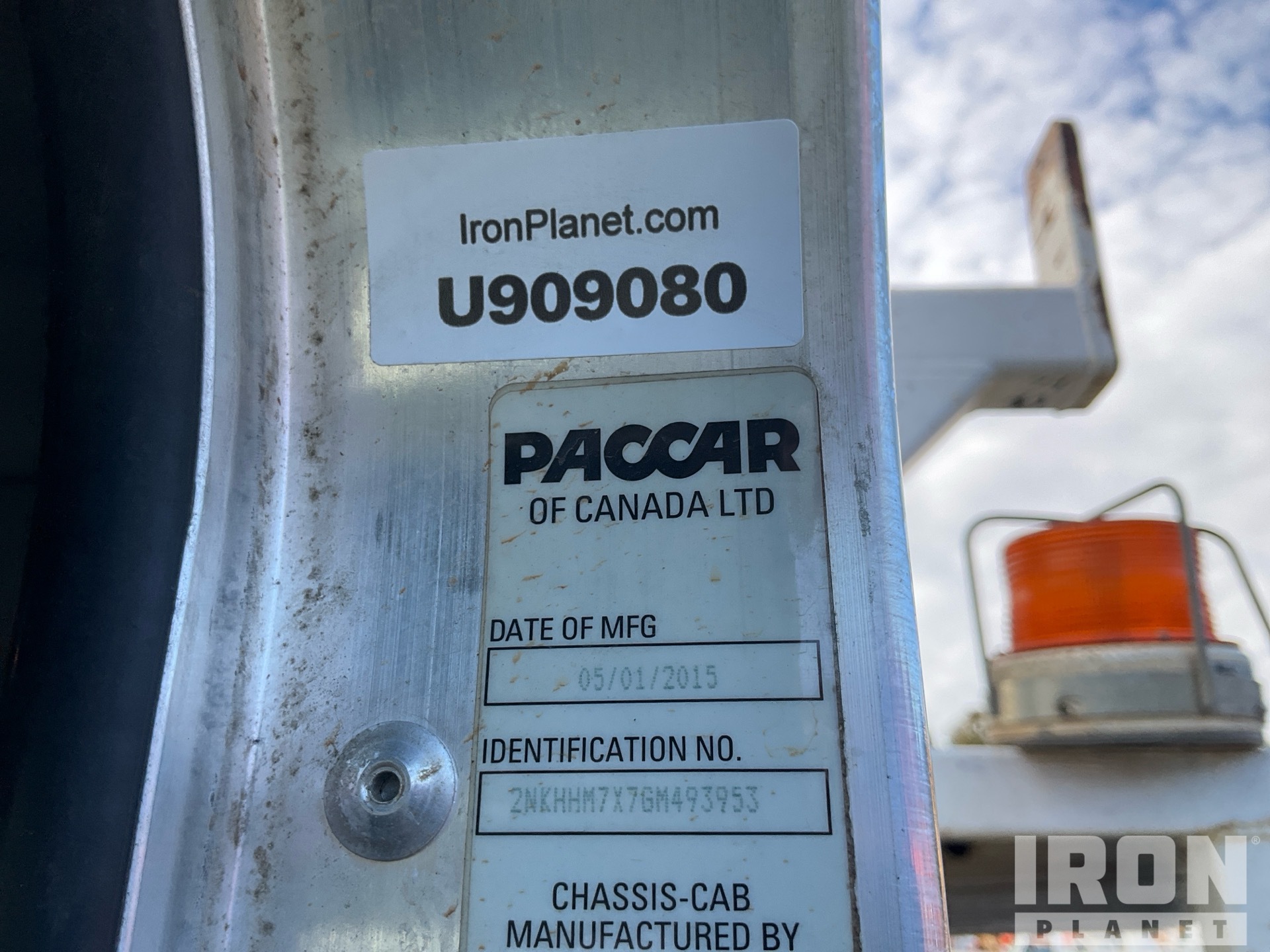

Serial Number / VIN
2NKHHM7X7GM493953
Second Serial Number/VIN Photo
Hour Meter / Odometer
85469 mi-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Brakes / Tires
Steer Axle
- 17/32" Steel
- Drum
- Drum
- 20/32" Steel
Rear Axle
- 23/32" Steel
- 22/32" Steel
- Drum
- Drum
- 20/32" Steel
- 20/32" Steel
Cab
Engine Hours
10918 Engine hrs
Mirrors
Window Controls
Both Power
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Air horn inoperable, Electric horn inoperable
Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational
Gauges
Operational
Gear Selector
Brake Control
Operational
Engine Brake
Not operationally checked
PTO Control
Operational
ECM Miles
85416 ECM mi
Air Conditioner
The ambient temperature is too cold to check.
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Information
2015 US EPA Label, Requires Diesel Exhaust Fluid
Emission Label
A/C Compressor
In place; ambient temperature too cold to check operation
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Diesel Particulate Filter
Radiator
Oil Leaks
Seepage at oil pan
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check
The engine started and ran.
Underbody
Steering Components
Steer Axle
Transmission
Operational
Power Take Off
Operational, Dripping leak
PTO Pump
Operational
Frame Condition
Rear Drive Axle
Limited Function Check
The drivetrain was operational without a load.
Suspension Springs/Hangers
Suspension Bushings
Left Steer Tire
Left Rear Drive Tires
Right Rear Drive Tires
Right Steer Tire
Wheel Condition
Wheel Studs
Wet Kit Plumbing
Hydraulic Tank
Dripping leak
Limited Function Check - Brakes
The service brakes are operational, The park brake is operational.
Configuration
Boom
Bed Body
Support Frame
Valves
Hoses (Hydraulic)
Swing Motor
Boom Lift Cylinder(s)
Boom Extension Cylinder
Stabilizer Cylinders
Boom Wear Guides
Boom Condition
Jib Condition
Cable Tray Ladder
Turntable Bearing
Stabilizer Beams
Stabilizer Controls
Work Basket
Could not get work basket to unlock and lower
Control Console
Hydraulic Controls
Safety Lock Out/Stop
Operational
Gauges
Operational
Limited Function Check
The hydraulic system was operational.
Oil Sample Analysis
Oil Sample Analysis
| engine | hydraulic | |
|---|---|---|
| date of analysis | Oct 31, 2025 | Oct 31, 2025 |
| Silicon | 5.2 PPM | 4.13 PPM |
| Tin | 2.26 PPM | 0.9 PPM |
| Silver | 0 PPM | 0.01 PPM |
| Aluminum | 12.65 PPM | 3.2 PPM |
| Chromium | 3.08 PPM | 0.1 PPM |
| Lead | 0 PPM | 1.16 PPM |
| Copper | 2.53 PPM | 7.07 PPM |
| Nickel | 0.73 PPM | 0.05 PPM |
| Iron | 90.98 PPM | 4.62 PPM |
| Glycol | NEG | N/A |
| Water | NEG | N/A |
| Fuel | <5% | N/A |
