104 Photos
2016 Atlas Copco Power ROC T30 E-01 Crawler Drilling Rig
Located
Mifflinburg, PA
Mifflinburg, PA
Usage
4,529 hrs
4,529 hrs
Serial number
TMG16SED0064/8992009893
TMG16SED0064/8992009893
Loading...
ID number
#15047647
In yard
No
Features
Open Operator Station, Cummins Diesel Engine, 12 in Single Grouser Track Shoes
Notes
</p><br><p style="font-size: 16px; color:red;"><strong>TODAY'S PRICE: $75,000 <strike> $95,000 </strike> 21% OFF</strong> </p> <br><a href="/mpe-justreducedprices">Click here to shop for more discounted items</a>

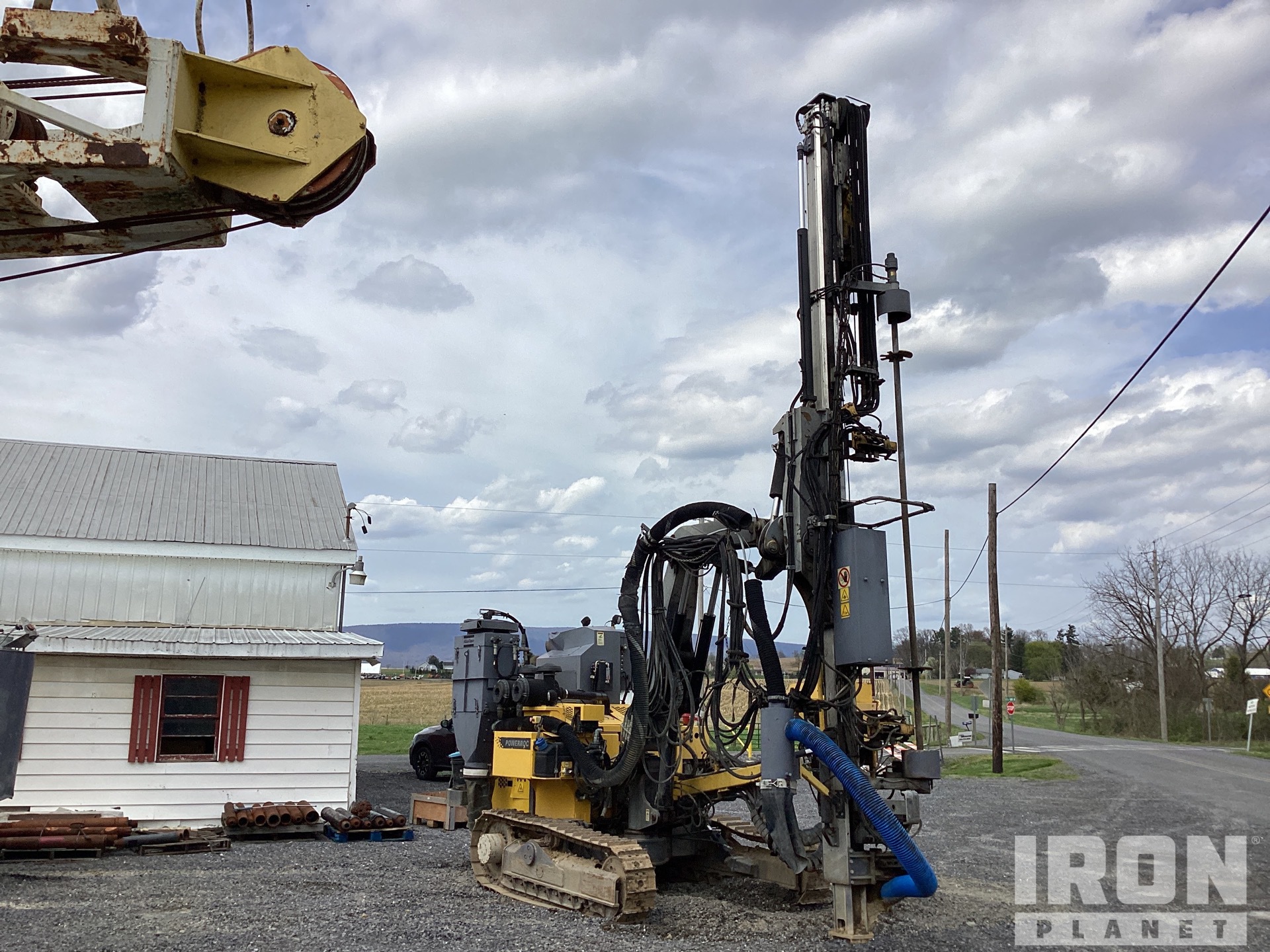

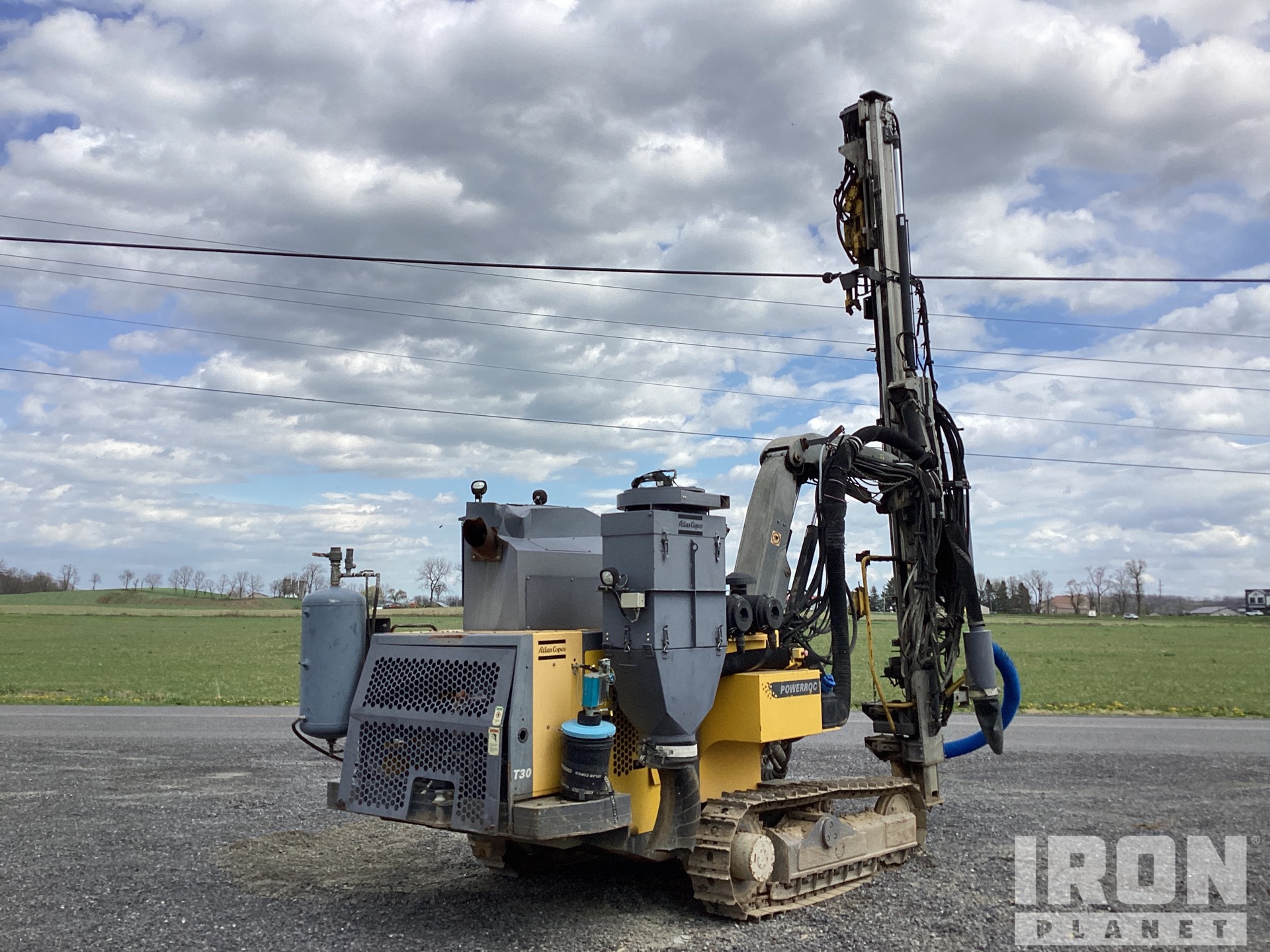

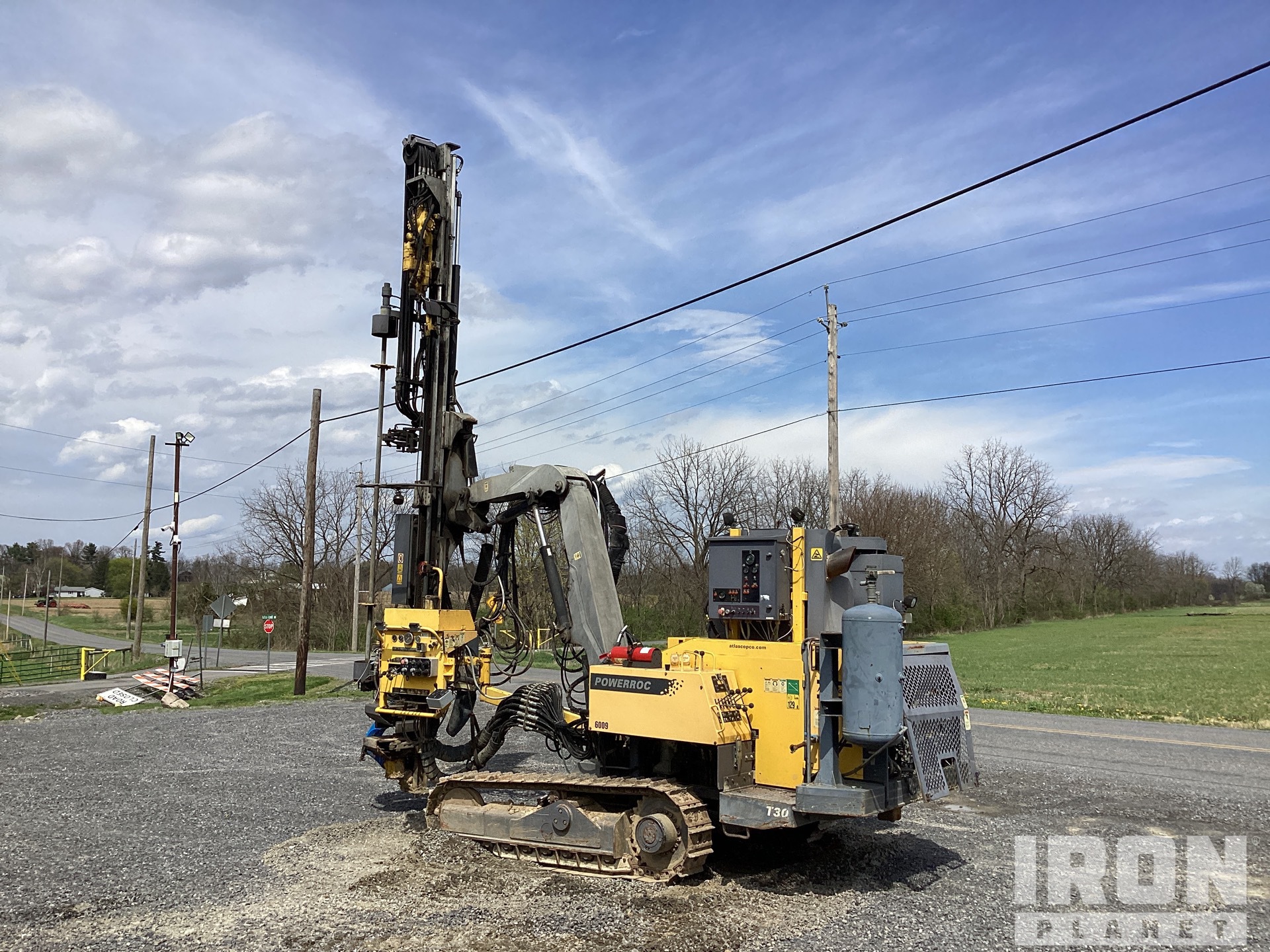

General Appearance

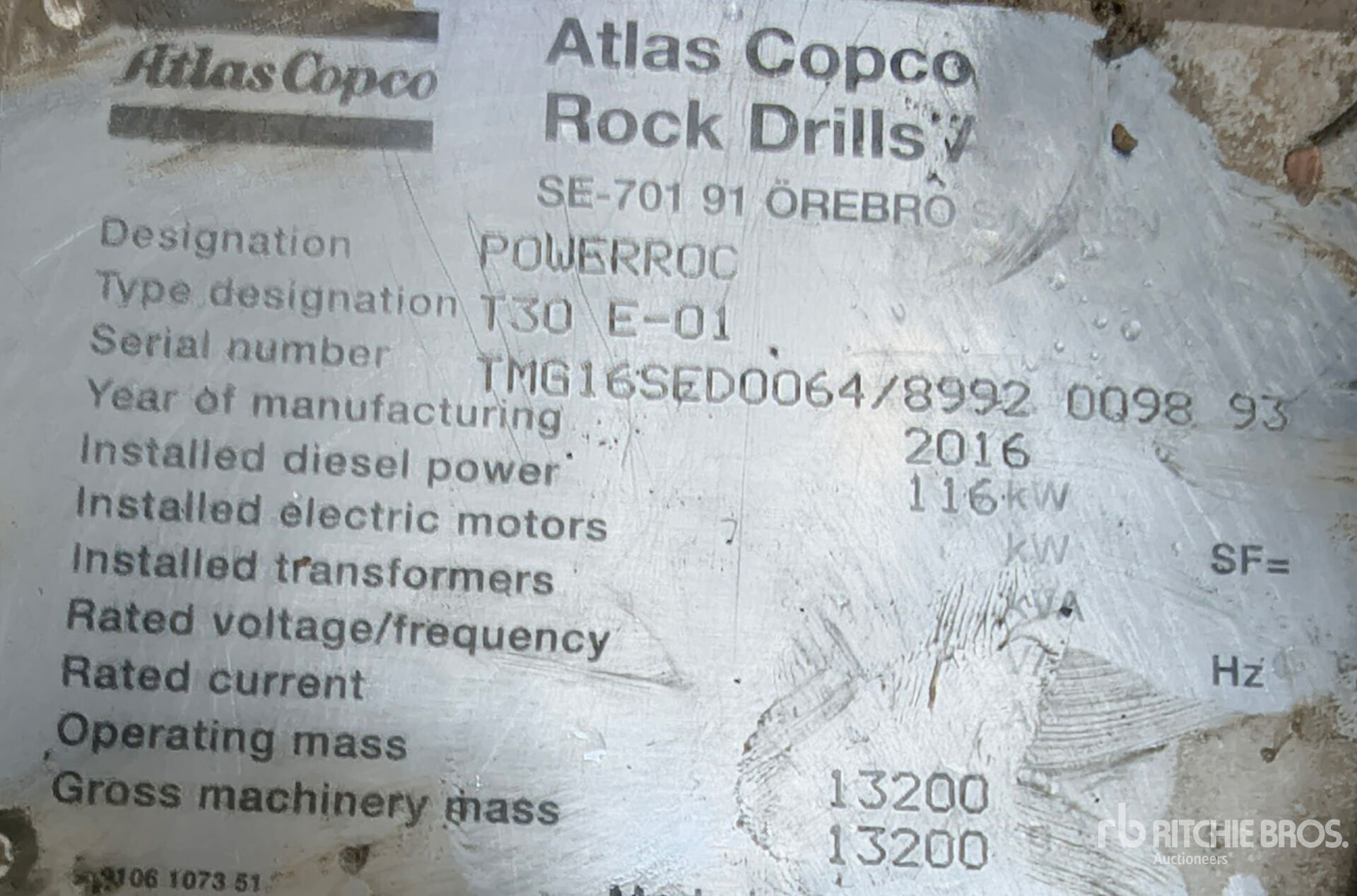

Serial Number / VIN
TMG16SED0064/8992009893
CE Mark
No CE mark found
Hour Meter / Odometer
4529 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Safety
Travel Alarm
Inoperable
Horn
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Steering Controls
Hydraulic Controls
Drivetrain Controls
Dash Console
Engine Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational
Gauges
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
DEF / AdBlue Tank
Limited Function Check
After jump starting, the engine ran.
Drivetrain
Drive Motors
Final Drives
Limited Function Check (Drivetrain-Track)
The drivetrain was operational without a load.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulics)
Hydraulic Motors
Boom Lift Cylinder(s)
Dripping leak on the left cylinder, Dripping leak on the right cylinder
Stabilizer Cylinders
Mast Angle Cylinders
Drifter Cylinder
Limited Function Check
The hydraulic system was operational.
Chassis
Boom Condition
Mast Condition
Main Frame
Bottom Covers
Kelly Slide Wear Plates
Hyd. Hose Carrier System
Vices
Drill Rod Loading System
Could not be operationally checked, Drill rods not included.
Drill Rod Racks
1 rod racks
Dust Collection System
Not operationally checked, Damaged hoses
Air Compressor
Operational, Can hear audible air leak when shut down. Not all component functions operationally checked.
Limited Function Check
The main chassis components functioned when checked without a load.
Undercarriage
Left Roller Frame
Left Track Tensioner
Tract is loose.
Left Track Shoes
Left Grouser Height
38 mm
Left Track Links
Left Carrier Rollers
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Track is loose.
Right Track Shoes
Right Grouser Height
38 mm
Right Track Links
Right Carrier Rollers
Right Track Rollers
Right Idler
Right Sprocket
