185 Photos
2015 Volvo VAH Car Carrier Truck
Located
South Vienna, OH
South Vienna, OH
Usage
649,204 mi
649,204 mi
Serial number
4V5RC9DG7FN184018
4V5RC9DG7FN184018
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15910661
In yard
Yes
Features
Volvo D11 6 Cylinder Diesel 405 hp Engine, Requires Diesel Exhaust Fluid, 17577.8 Engine hrs, Air Conditioner, Cruise Control, Engine Brake, Eaton Fuller FRO-15210C 10-Speed Manual Transmission, 14600 lb Front Axle, 38000 lb Rears, Meritor MT-40-14X Drive Axles, 3.08:1 Axle Ratio, 52600 lb GVWR, Aluminum Wheels, 295/60R22.5 Front Tires, 265/70R19.5 Rear Tires, Volvo Air Ride Suspension, 250 in Wheelbase, PTO, Hydraulic Lift, Soft Tie Downs, SOLD WITH - 2013 Cottrell T/A, Trailer S/N - 5E0AA1448EG505304, Soft Ties, Aluminum Wheels, 265/70R19.5 Tires, 45000 lb GVWR, Air Ride Suspension

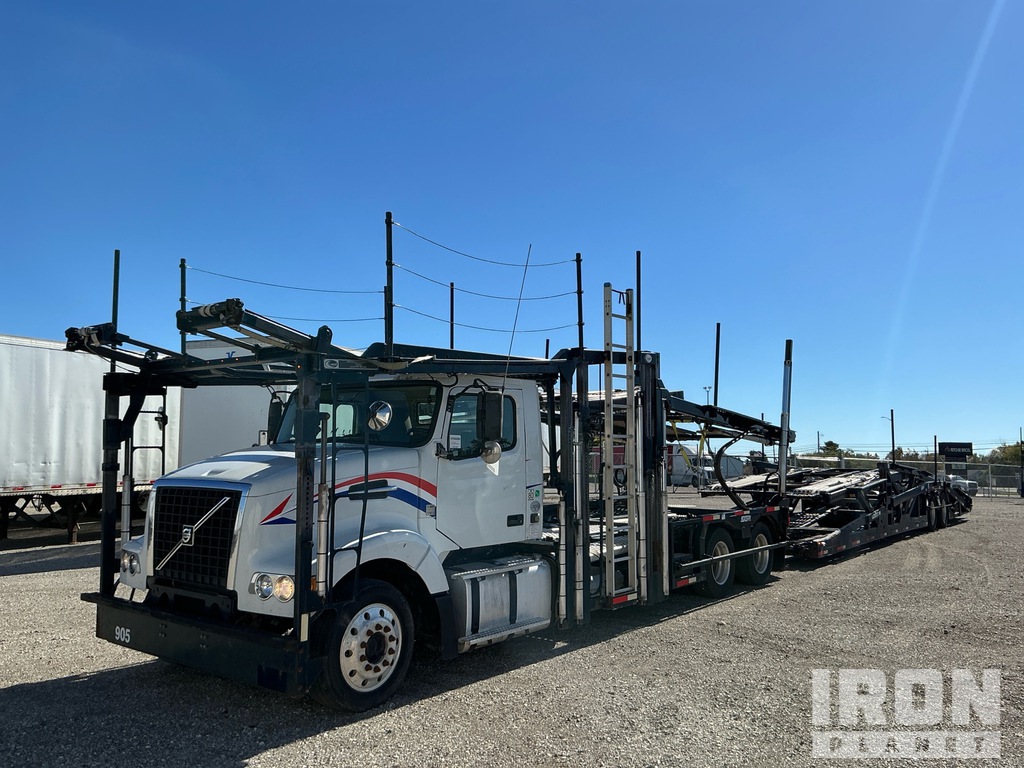

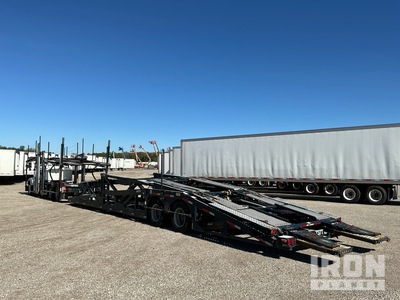

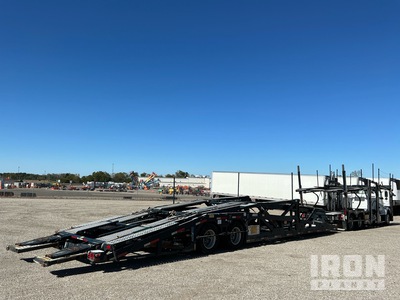

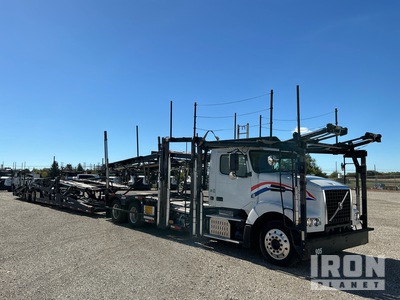

General Appearance
Serial Number / VIN
4V5RC9DG7FN184018
Hour Meter / Odometer
649204 mi-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Motor Vehicle Safety Standards Label
No
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Chipped windshield
Exterior Lights
Operational
Brakes / Tires
Steer Axle
- 9/32" Aluminum
- Drum
- Drum
- 11/32" Aluminum
Rear Axle
- 15/32" Aluminum
- 15/32" Aluminum
- Drum
- Drum
- 10/32" Aluminum
- 12/32" Aluminum
Rear Axle
- 6/32" Aluminum
- 7/32" Aluminum
- N/A
- N/A
- 17/32" Aluminum
- 16/32" Aluminum
Engine
Emissions Information
No US EPA Label Present Requires Diesel Exhaust Fluid
Emission Label
None found
A/C Compressor
Operational
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Diesel Particulate Filter
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check
The engine started and ran.
Cab
Engine Hours
17577.8 Engine hrs
Mirrors
Window Controls
Left Manual / Right Power
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Air horn operational, Electric horn operational
Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational, DEF Regen light stays on, Parked REGEN Needed message is on display screen
Gauges
Operational
Gear Selector
Brake Control
Operational
Engine Brake
Not operationally checked
Clutch
No free travel
PTO Control
Operational
ECM Miles
Would not connect to run report
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Underbody
Steering Components
Steer Axle
Transmission
Operational
Power Take Off
Operational
PTO Pump
Operational
Frame Condition
Front Drive Axle
Rear Drive Axle
Limited Function Check
The drivetrain was operational without a load.
Suspension Springs/Hangers
Suspension Bushings
Suspension Air Bags
Left Steer Tire
Left Front Drive Tires
Left Rear Drive Tires
Right Rear Drive Tires
Right Front Drive Tires
Right Steer Tire
Wheel Condition
Wheel Studs
Hydraulic Tank
Limited Function Check - Brakes
The service brakes are operational, The park brake is operational.
Configuration
Specialty
Support Frame
Decks/Ramps Condition
Tie Downs
Lift Operation
The vehicle lift raise and lower
Trailer Chassis
Frame Rails/ Main Beams Condition
Axle Condition
Springs/Hangers Condition
Suspension Air Bags
Brake Lines/Hoses
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Tire Condition
Tires
Left front outer: 13 /32", Left front inner: 13 /32", Left rear outer: 11 /32", Left rear inner: 9 /32", Right rear outer: 9 /32", Right rear inner: 9 /32", Right front outer: 12 /32", Right front inner: 11 /32"
Wheel Condition
Tongue/ Hitch Condition
No visible damage
Power Receptacle Functional
Yes
Lights/Wiring Condition
Functional
Marker Lights Functional
Yes
Brake Lights Functional
Yes
License Plate Light Functional
No
Deck/ Floor Condition
Ramps
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses
Cylinder(s)
Cylinder Pins and Bushings
Limited Function Check
The hydraulic system was operational.
Air System
Controls
Air Valve
Air Tank
Air Lines
Limited Function Check
The air system was operational.
