94 Photos
2014 Furukawa DCR20 Blasthole Drill
Located
Las Vegas, NV
Las Vegas, NV
Usage
3,418 hrs
3,418 hrs
Serial number
3212103
3212103
Loading...
ID number
#15480346
In yard
Yes
Features
Enclosed Cab, Air Conditioner, Pressurized Cab, Tier 3, Cat C13 6 Cylinder 440 hp 12.5 L Diesel Engine, FRD 10 ft 8 in Boom, 32 ft 8 in Mast, Rod Changer, Water Injection System, ( 0 ) 3.5 in Drill Rods, 13 in Triple Grouser Track Shoes

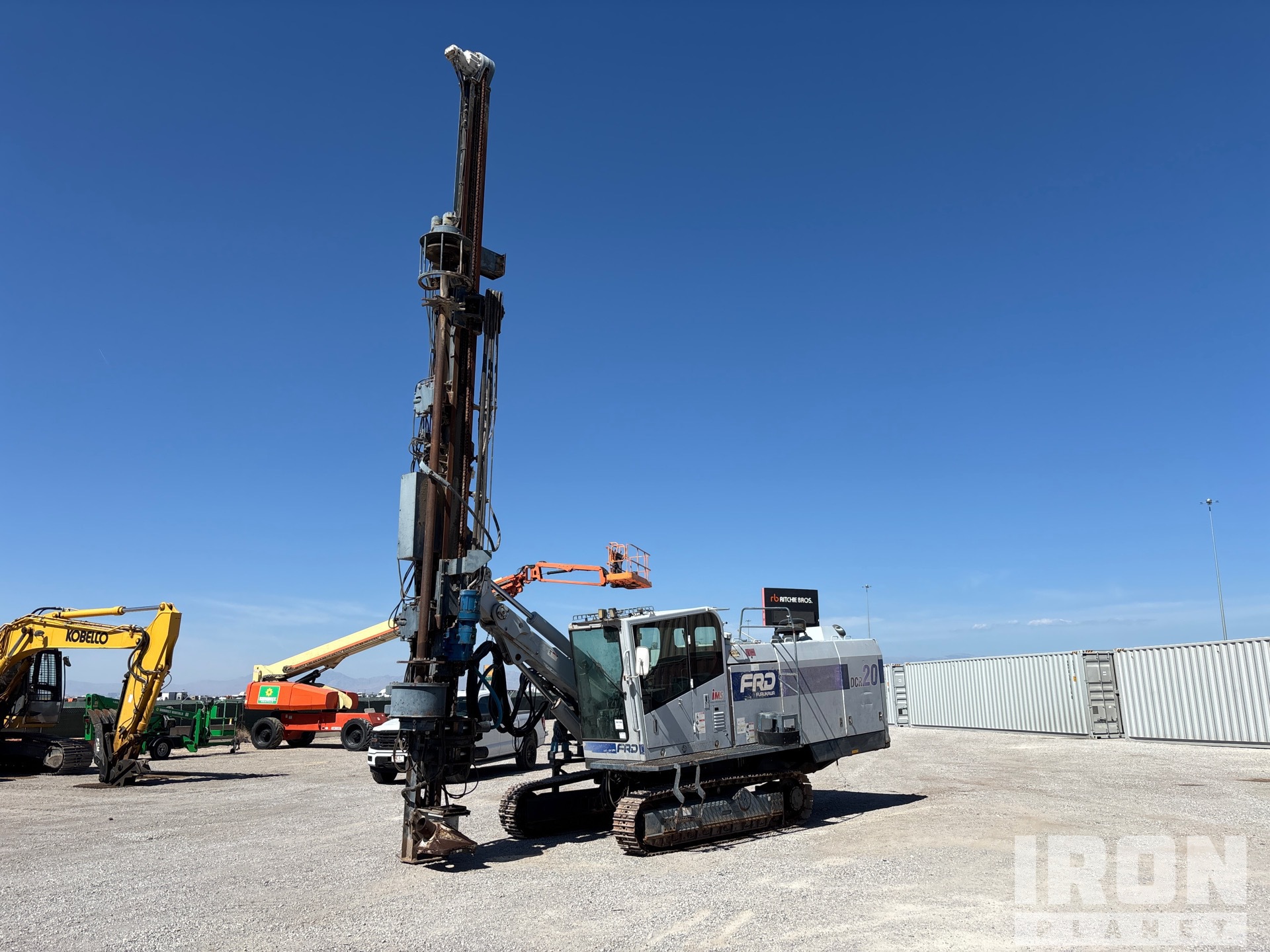

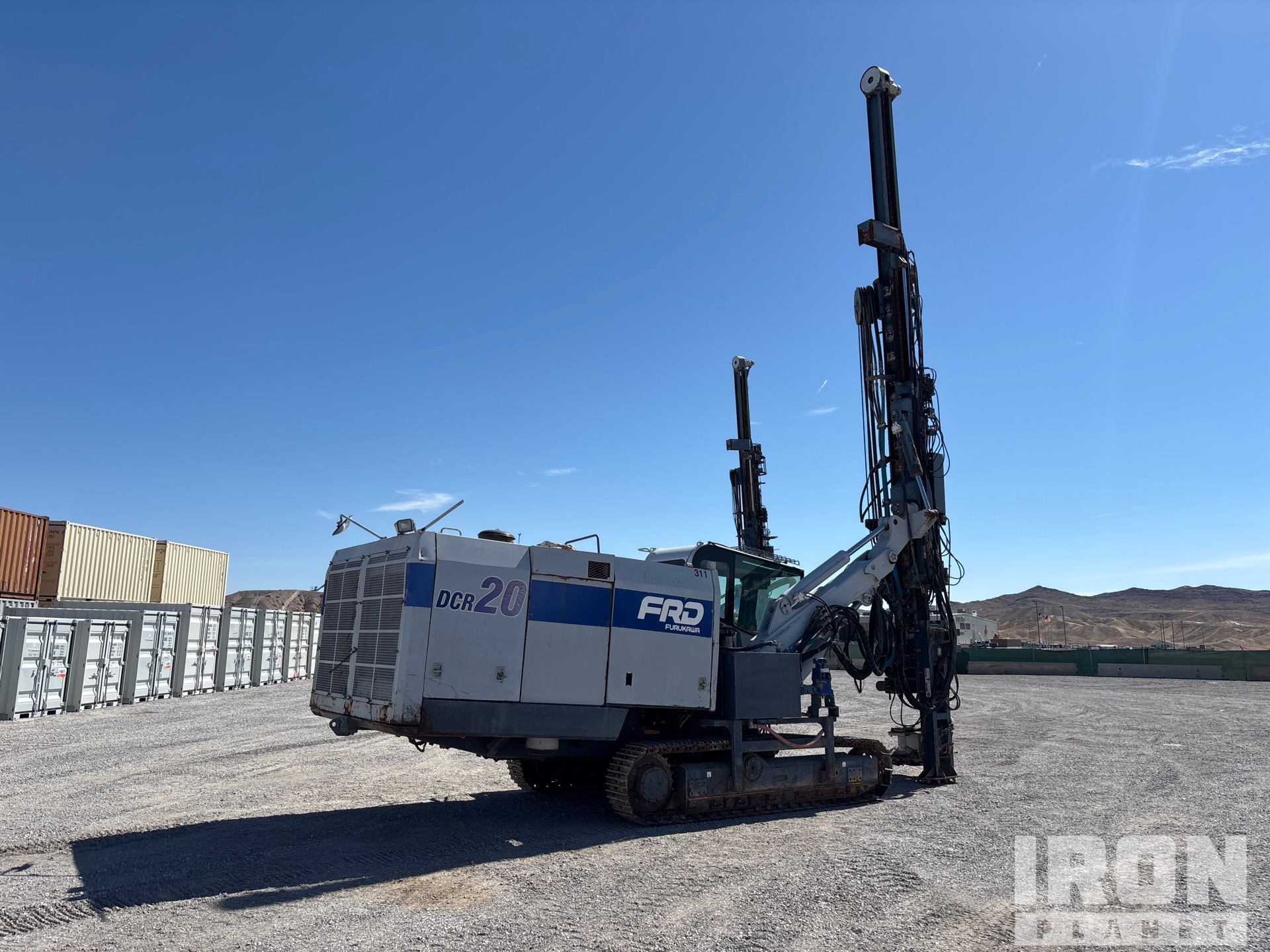

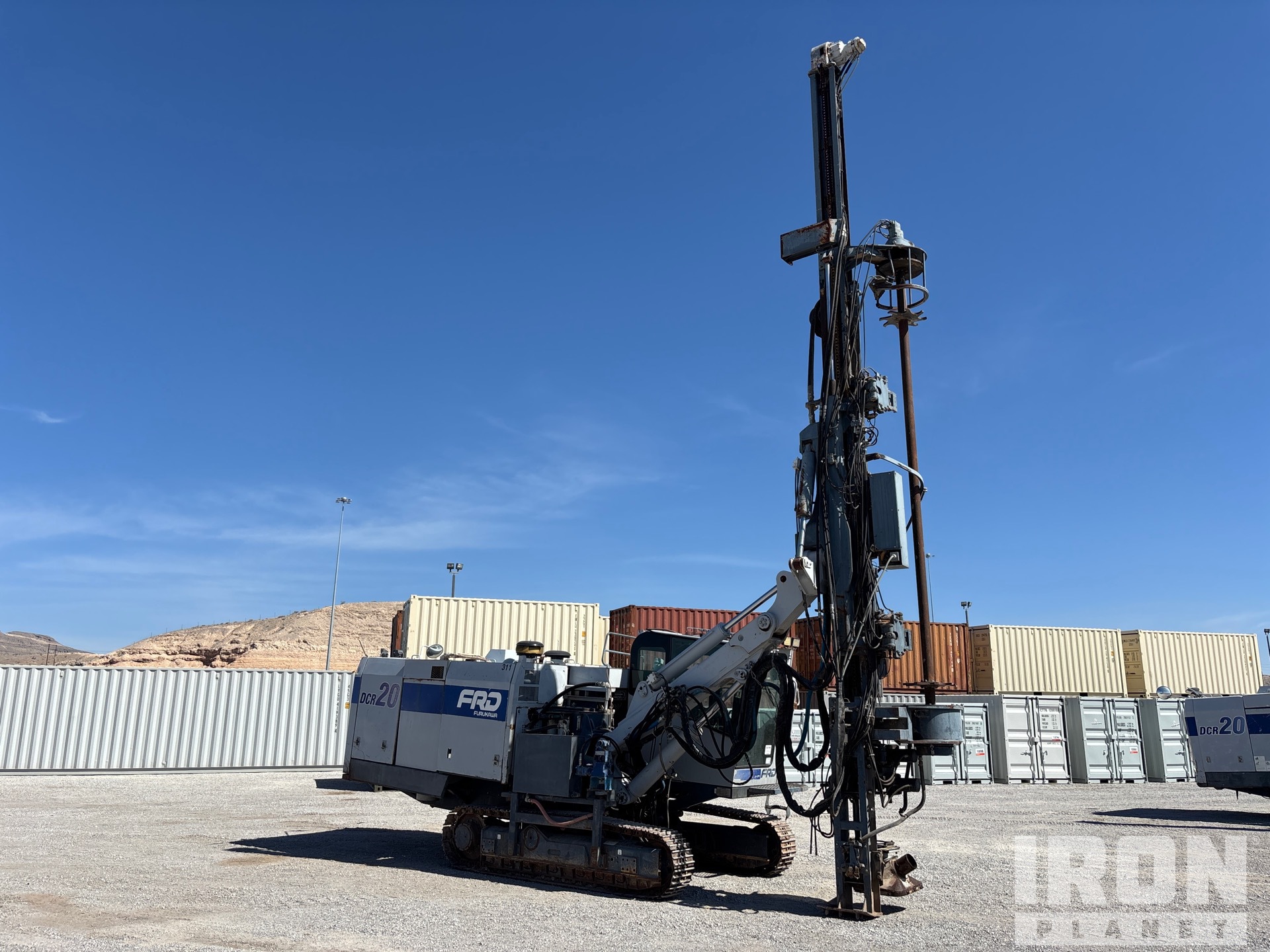

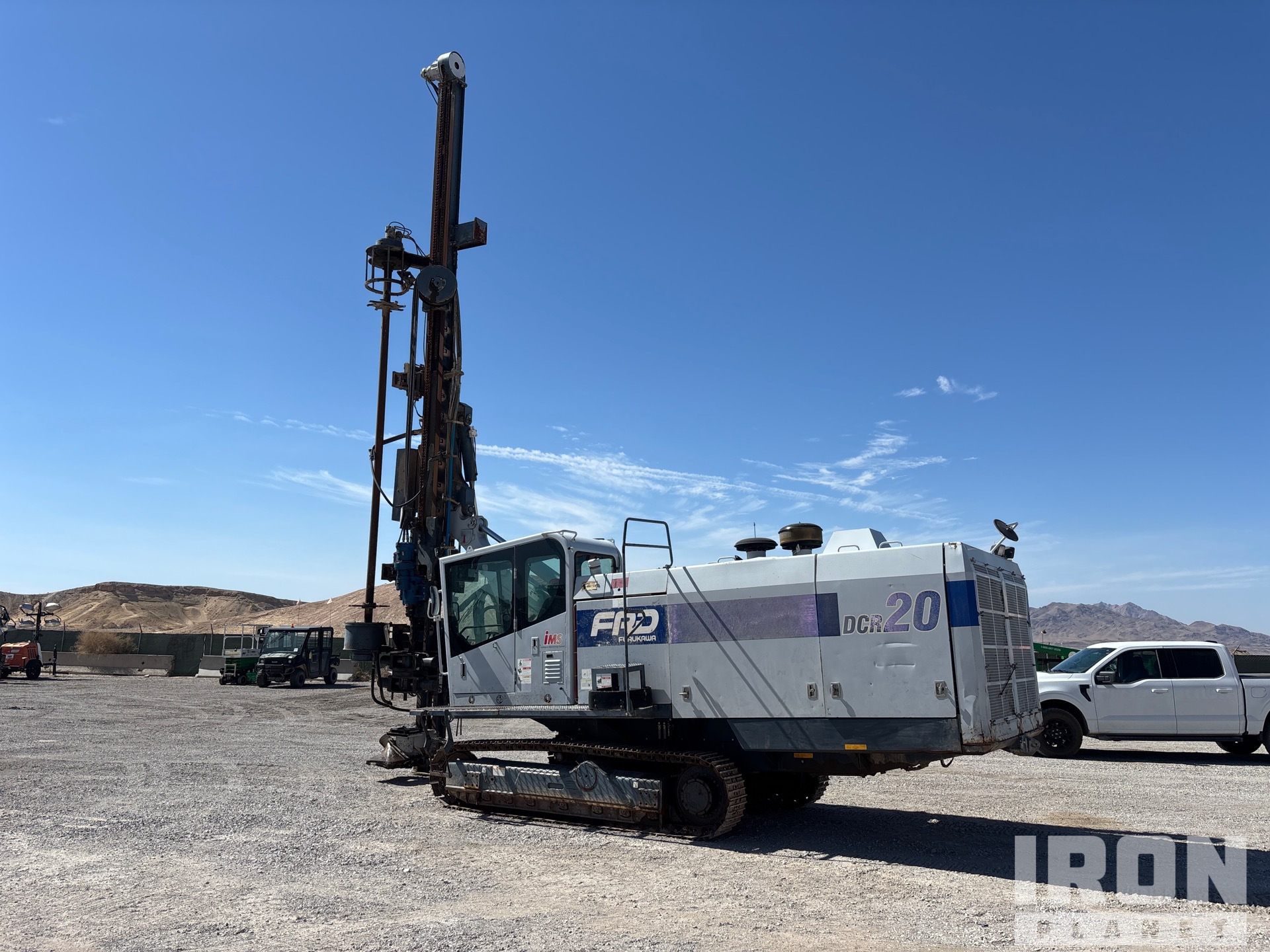

General Appearance
Serial Number / VIN
3212103
Hour Meter / Odometer
3418 hrs, Meter reading could not be obtained, Menu is in German-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Exterior Lights
Not operational
Safety
Travel Alarm
Inoperable
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Seats/Armrests
Steering Controls
Hydraulic Controls
Drivetrain Controls
Dash Console
Engine Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational
Gauges
Operational
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
No US EPA Label Present
Emission Label
Could not be found
A/C Compressor
Operational
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran. Did not run engine long due to the pressure build up and release happening with the air system
Drivetrain
Drive Motors
Final Drives
Limited Function Check (Drivetrain-Track)
The drivetrain was operational without a load.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulics)
Dripping leaks from hose
Hydraulic Motors
Boom Lift Cylinder(s)
Mast Angle Cylinders
Drifter Cylinder
Limited Function Check
The hydraulic system was operational.
Chassis
Boom Condition
Mast Condition
Main Frame
Bottom Covers
Thrust Chain / Sprockets
Hyd. Hose Carrier System
Vices
Mud Mixing System
Could not be operationally checked
Drill Rod Loading System
Could not be operationally checked
Drill Rod Racks
1 rod racks
Dust Collection System
Air Compressor
Not operationally checked, Constantly releasing pressure.
Limited Function Check
The main chassis components functioned when checked without a load.
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Shoes
Left Grouser Height
19 mm
Left Track Links
Left Carrier Rollers
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Shoes
Right Grouser Height
18 mm
Right Track Links
Right Carrier Rollers
Right Track Rollers
Right Idler
Right Sprocket
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Aug 06, 2026 |
| Silicon | 29.92 PPM |
| Tin | 1.07 PPM |
| Silver | 0 PPM |
| Aluminum | 11.71 PPM |
| Chromium | 1.23 PPM |
| Lead | 2.02 PPM |
| Copper | 9.72 PPM |
| Nickel | 0.28 PPM |
| Iron | 27.48 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
