81 Photos
2012 Metso ST272 Tracked Screen Plant
Located
Hawley, MN
Hawley, MN
Usage
799 hrs
799 hrs
Serial number
76475
76475
Loading...
ID number
#14967497
In yard
No
Features
2011 US EPA Label, Cat C4.4 4 Cylinder 116.9 kW 4.4 L Diesel Engine, Metso 13 ft 9 in x 9 ft 0 in Apron Feeder w/Hydraulic Fold Hopper Wings, 16 ft x 5 ft Double Deck Screen, 42 in Wide Feed Conveyor, 47 in Wide Under Screen Conveyor, 32 in Wide Left Discharge Conveyor, 32 in Wide Right Discharge Conveyor, 47 in Wide End Discharge Conveyor, Radio and Cable Remote Control, 400 mm Triple Grouser Track Shoes

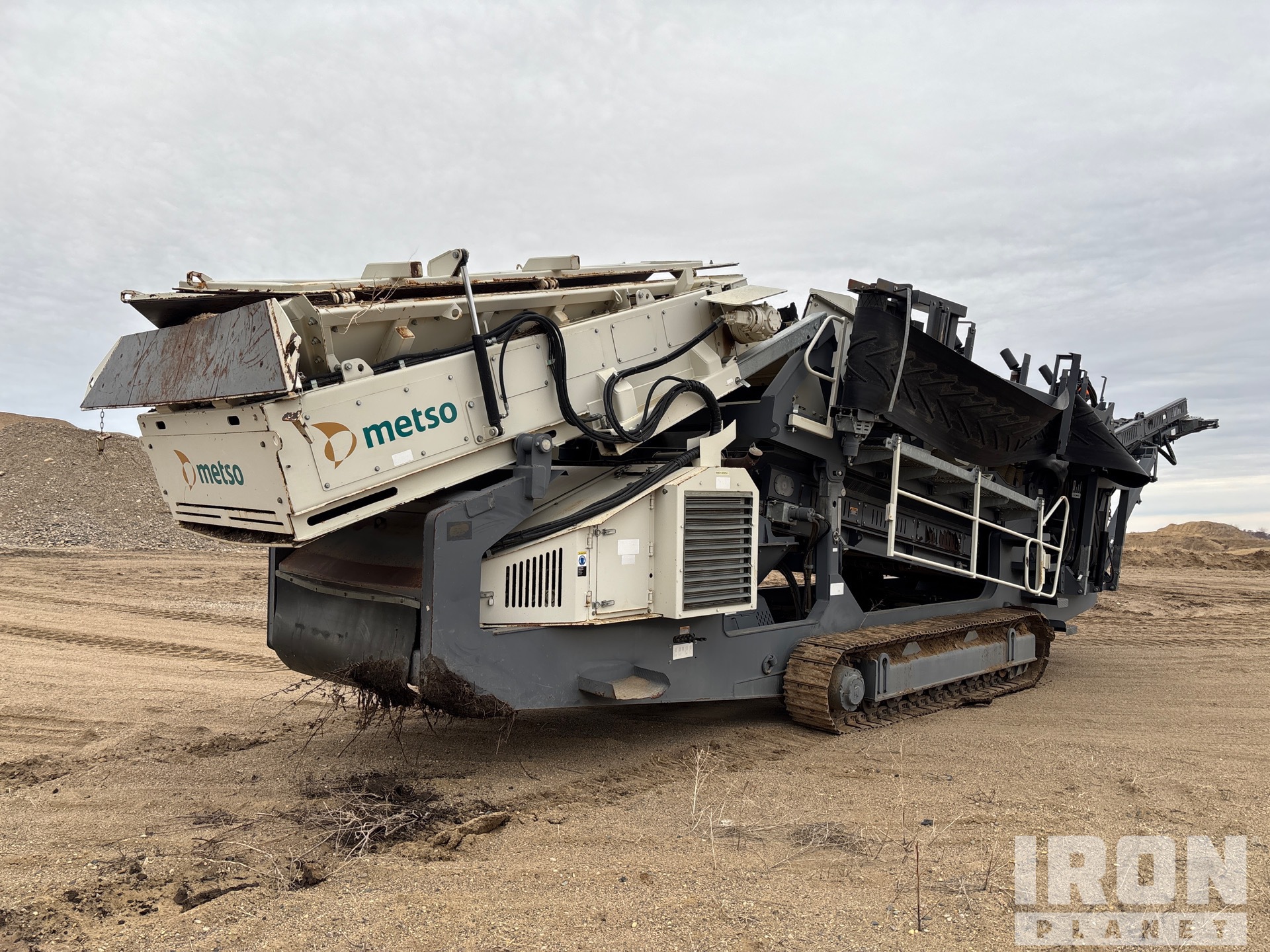

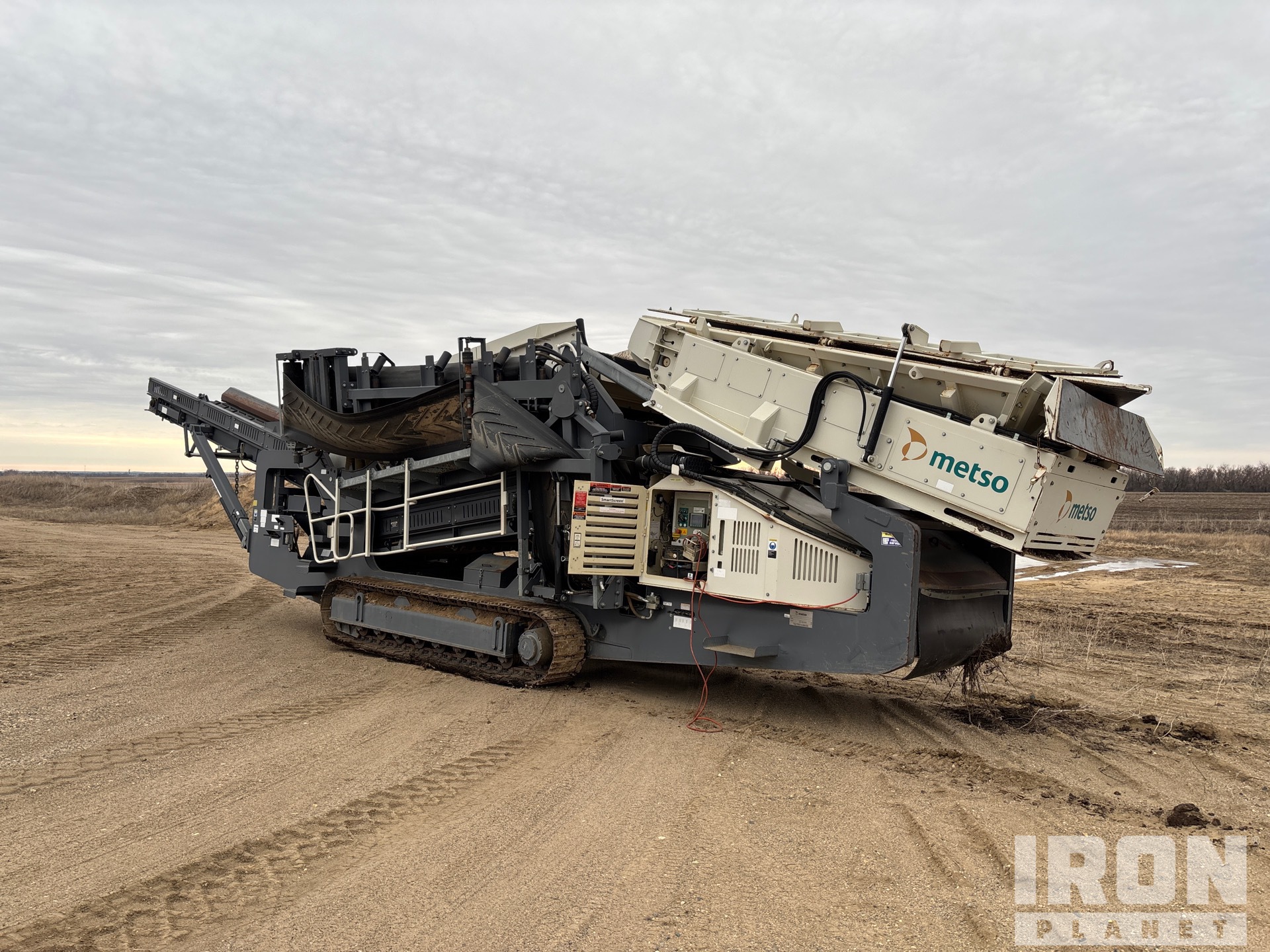

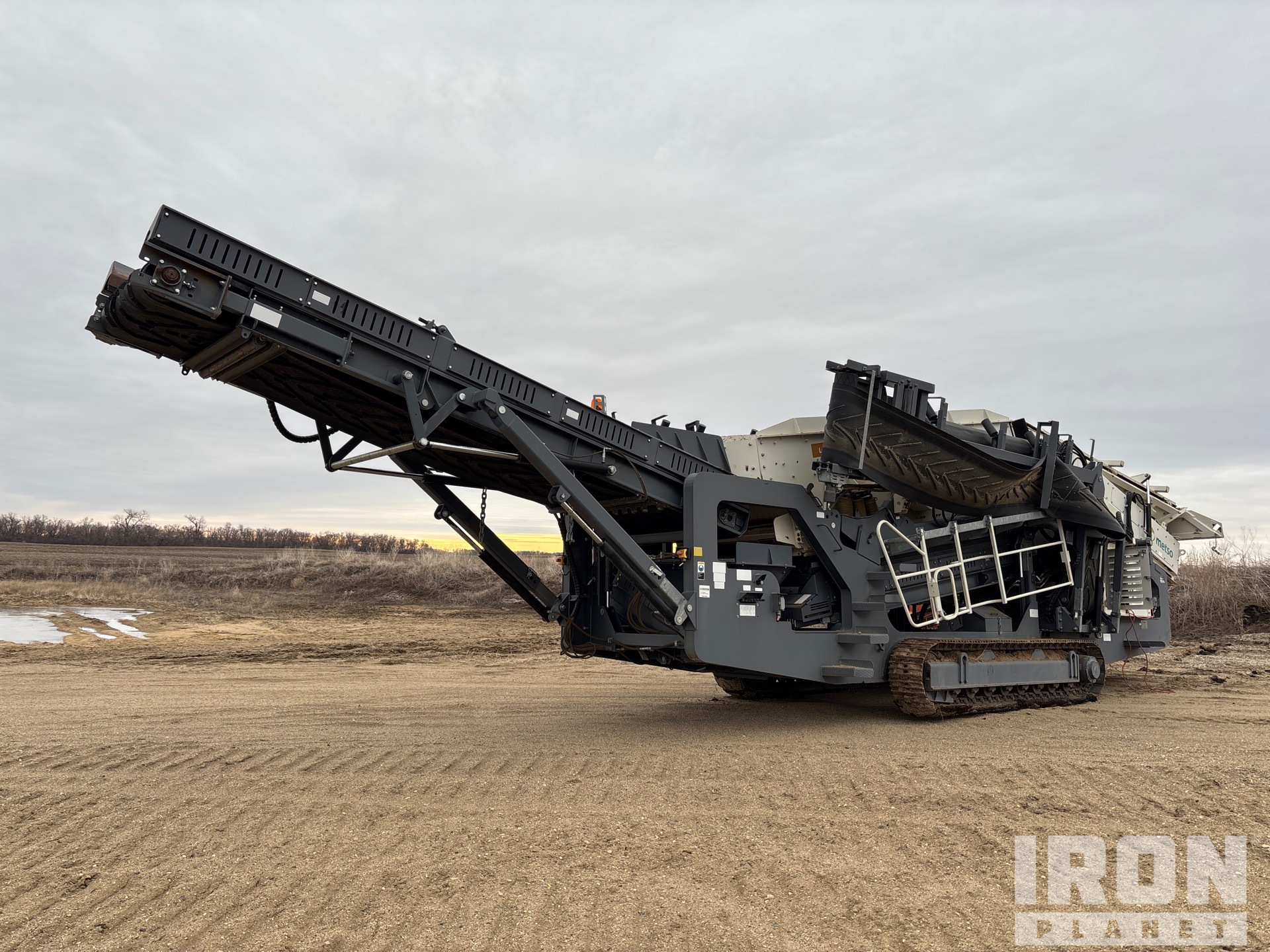

General Appearance

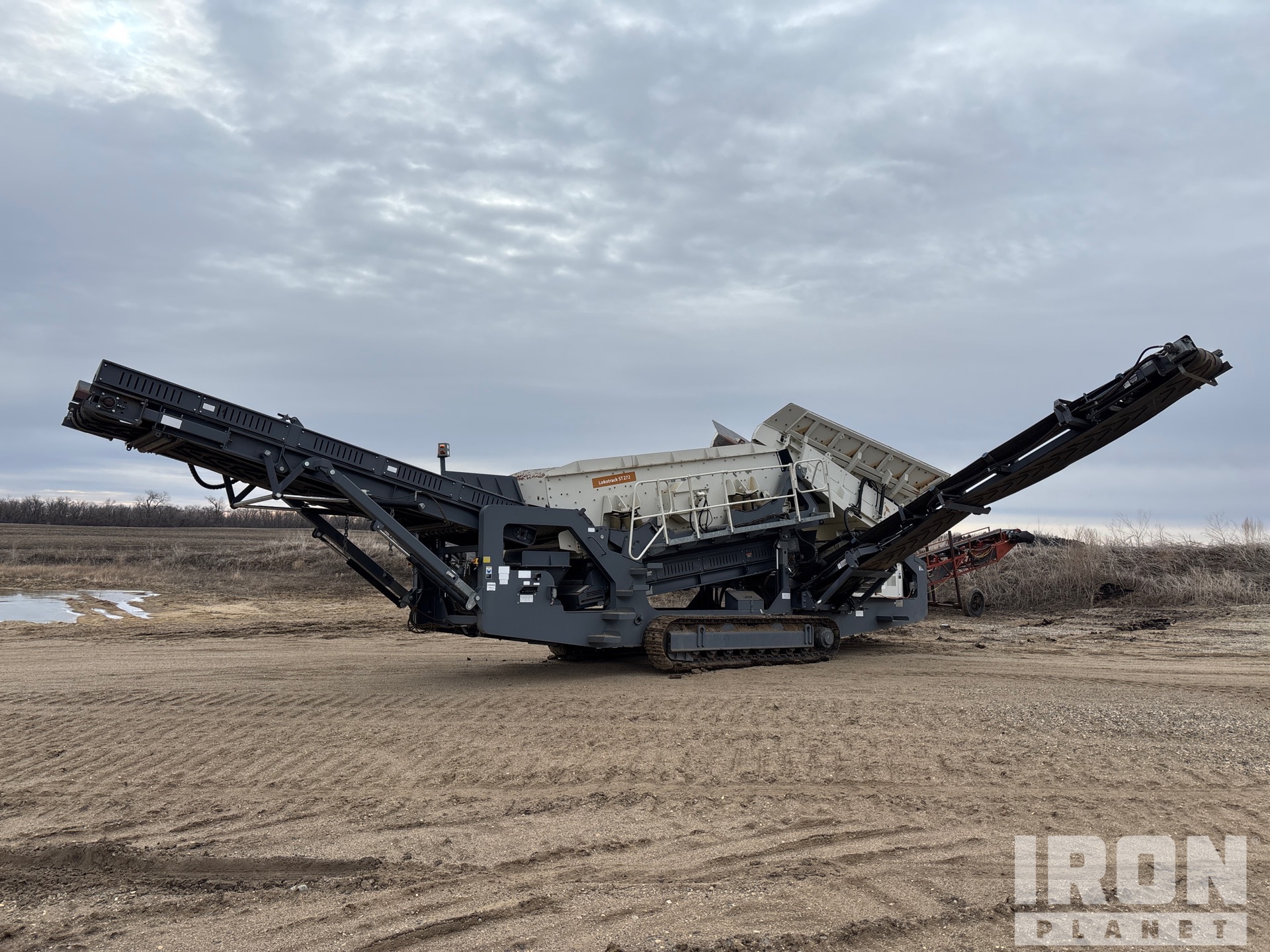

Featured Photo
Serial Number / VIN
76475
Hour Meter / Odometer
799 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Control Station
Gauges
Operational
Engine Controls
Crusher/Screen Controls
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
2011 US EPA Label
Emission Certification Label
US EPA certification label
Block Heater
No
Blow by @ idle (subjective visual observation)
Minor
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check (Engine)
The engine started and ran.
Hydraulics
Pumps (Hydraulics)
Dripping leak
Hydraulic Motors
Valves
Dripping leak
Hydraulic Tank
Hoses
Conveyor Cylinders
Power Travel Drive System
1 Travel Speed, Travels properly
Limited Function Check
The hydraulic system was operational.
Chassis
Feed Hopper
Length @ top: 13 ft 9 in, Width @ top: 9 ft
Feed Conveyor Condition
42 in wide feed belt
Feed Conveyor Frame
Feed Conveyor Drive Motor
Operational
Feed Conveyor Rollers
Feed Conveyor Head and Tail Pulley
Discharge Conveyor Condition
Some wear
Discharge Conveyor Drive Motor
Operational
Discharge Conveyor Rollers
Discharge Conveyor Head and Tail Pulley
Screen Deck
Incline screen, Number of decks: 2
Deck Frames / Wear Bars
Screen Cloth
Serviceable
Chute Condition
Serviceable
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
20 mm
Left Track Links
Left Track Bushings
Bushings have not been turned
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
20 mm
Right Track Links
Right Track Bushings
Bushings have not been turned
Right Track Rollers
Right Idler
Right Sprocket
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Apr 08, 2026 |
| Silicon | 7.75 PPM |
| Tin | 0.56 PPM |
| Silver | 0 PPM |
| Aluminum | 0.96 PPM |
| Chromium | 2.65 PPM |
| Lead | 1.29 PPM |
| Copper | 2.38 PPM |
| Nickel | 0.99 PPM |
| Iron | 28.33 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
