72 Photos
2012 McCloskey Tracked Impact Crusher Plant
Located
Grimes, IA
Grimes, IA
Serial number
80727
80727
Loading...
ID number
#14095564
In yard
No
Features
Cat 6 Cylinder Diesel Engine, Vibratory Grizzly Feeder Universal 4853 Impact Crusher, 24 in Wide Fines Discharge Conveyor, 48 in x 40 ft Crusher to Screen Conveyor, Eriez 30 in x 10 ft Cross Belt Magnet, Radio Remote Control, 20 in Triple Grouser Track Shoes

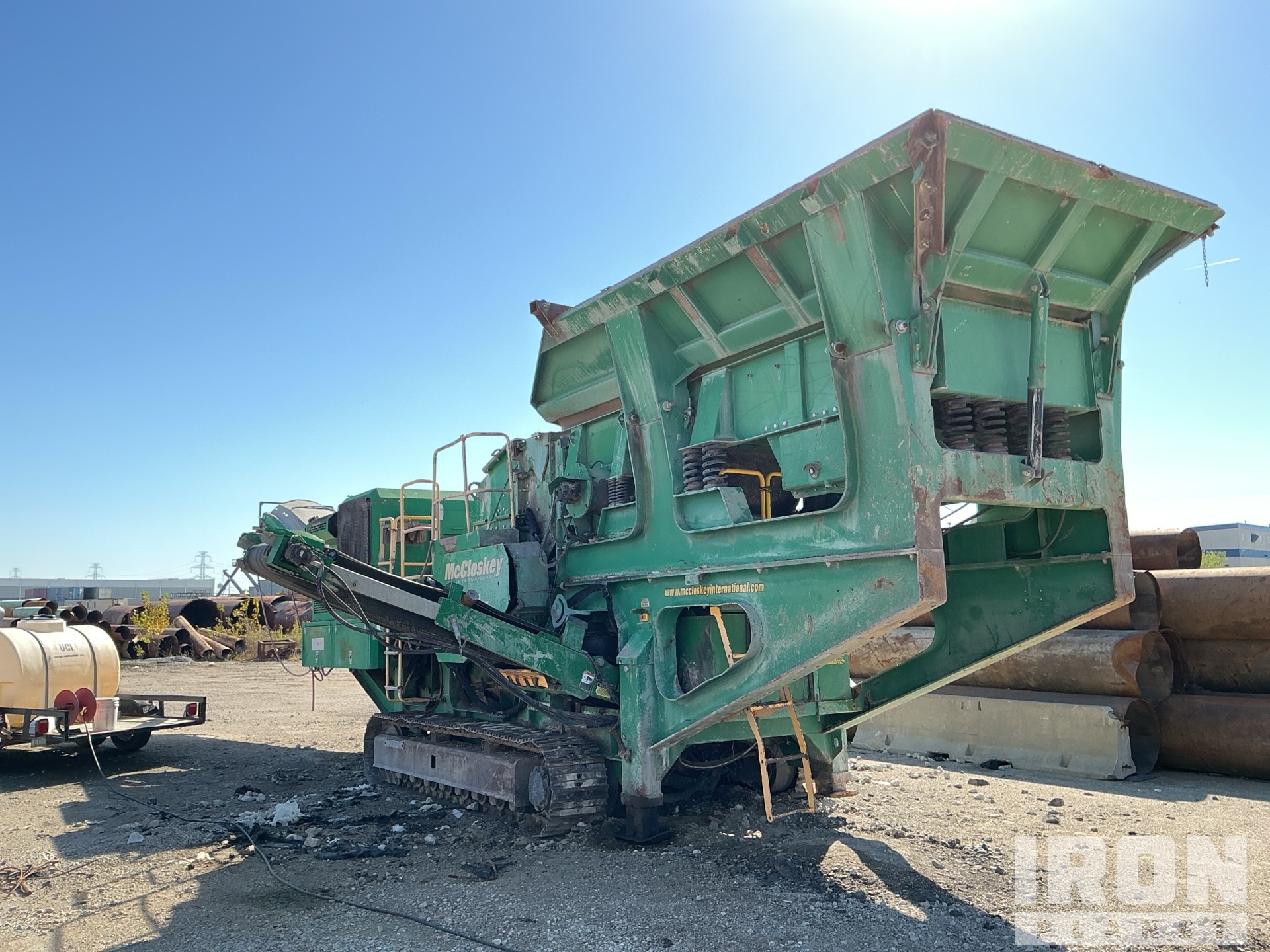

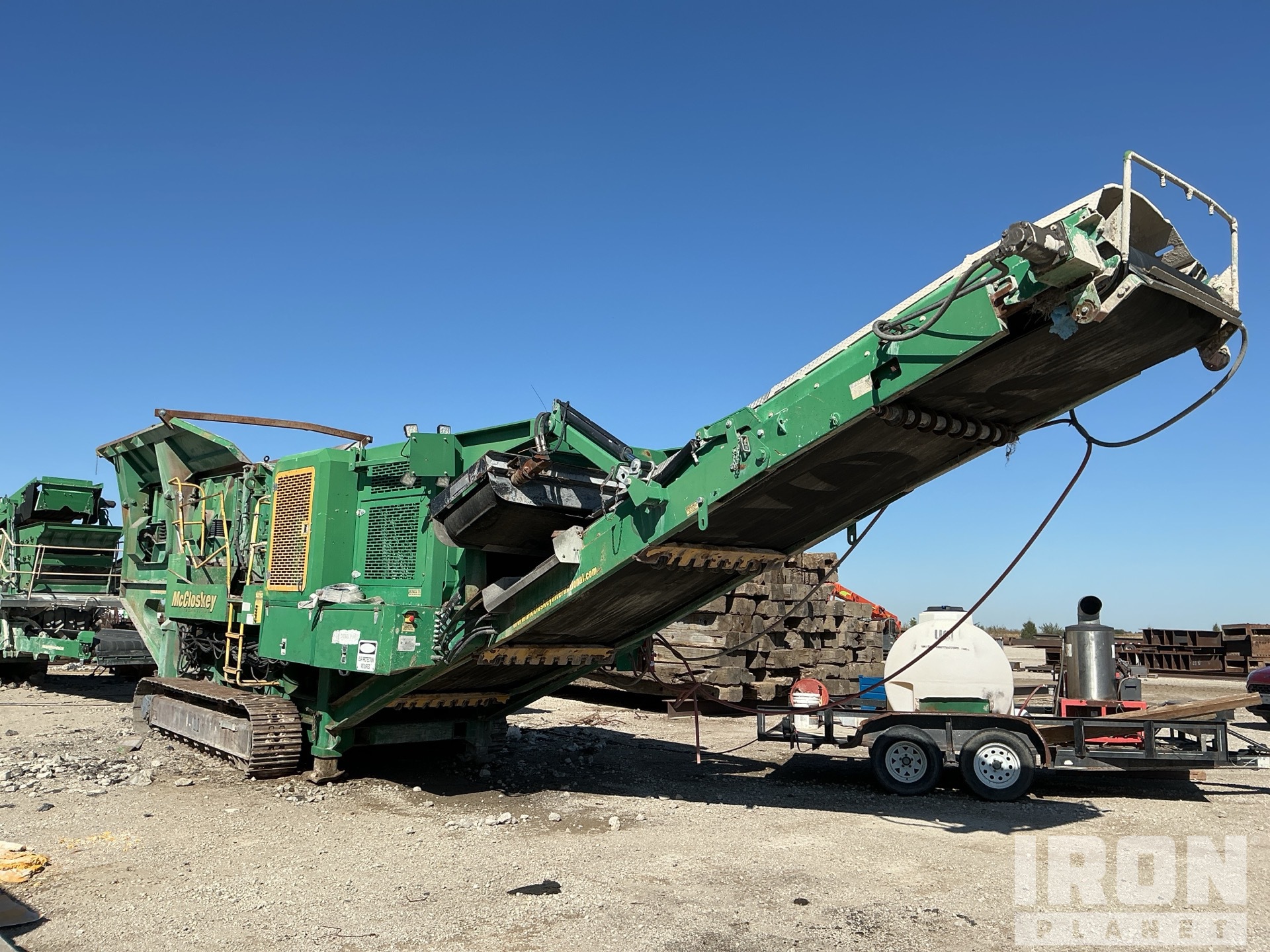

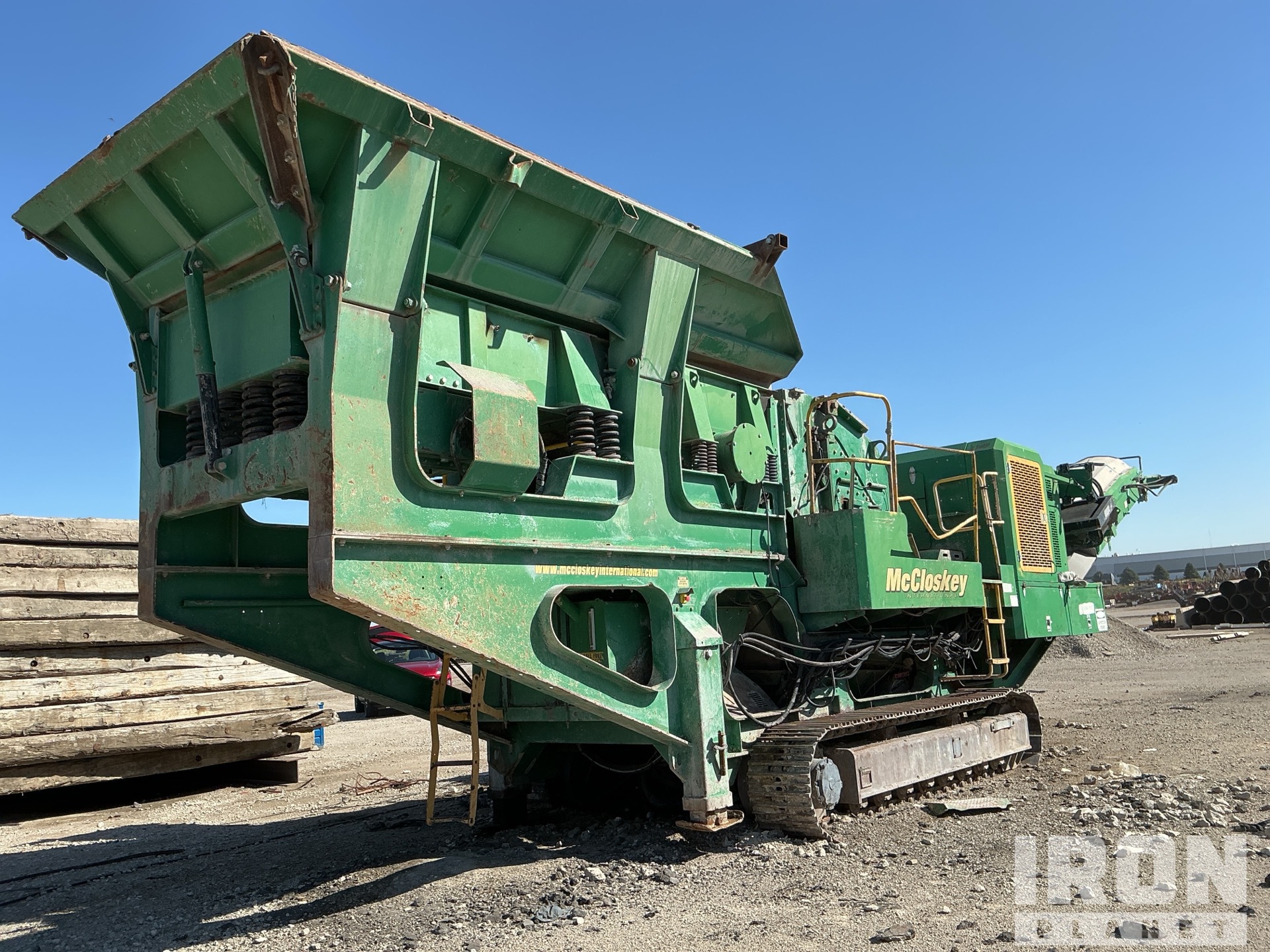

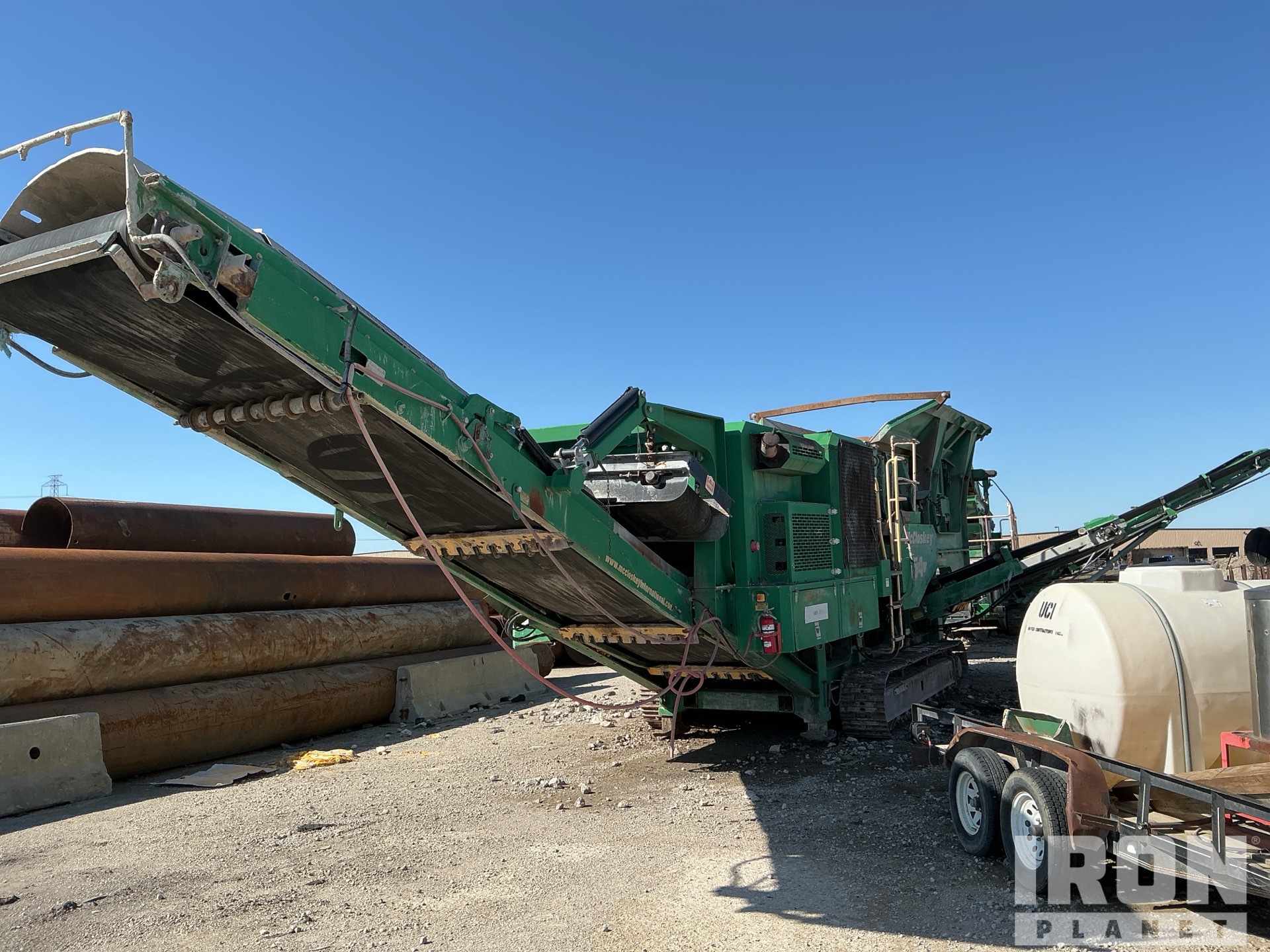

General Appearance
Serial Number / VIN
80727
CE Mark
No CE mark found
Hour Meter / Odometer
Control Station
Gauges
Operational
Engine Controls
Crusher/Screen Controls
Limited Function Check
The main components are in place and operational as noted.
Engine
Emission Certification Label
None found
Block Heater
No
Blow by @ idle (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check (Engine)
The engine started and ran.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses
Crusher Door Cylinders
Conveyor Cylinders
Stabilizer Jack Cylinders
Power Travel Drive System
Limited Function Check
The hydraulic system was operational.
Chassis
Feed Hopper
Length @ top: 10’, Width @ top: 4’, Grizzly length: 5’, Width between grizzly bars: 1 1/2”
Crusher Base Frame
Crusher Chamber Frame
Jaw, Blow Bar and Anvil Wear Surface
Crusher Drive System
VSI / HSI Crusher Chamber
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
23 mm
Left Track Links
Left Track Bushings
Bushings have not been turned
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
23 mm
Right Track Links
Right Track Bushings
Bushings have not been turned
Right Track Rollers
Right Idler
Right Sprocket
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Oct 14, 2025 |
| Silicon | 9.59 PPM |
| Tin | 3.92 PPM |
| Silver | 0 PPM |
| Aluminum | 1.78 PPM |
| Chromium | 0.32 PPM |
| Lead | 1.44 PPM |
| Copper | 21.8 PPM |
| Nickel | 0.18 PPM |
| Iron | 11.9 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
