2012 Broderson IC200-2H 30000 lb 4x2 Carry Deck Crane
Located
Houston, TX
Usage
5,719 hrs
Serial number
234910200
Loading...
Detailed equipment information
This lot is protected by IronClad Assurance
Buy with confidence knowing that this lot has been given a full and detailed inspection by a qualified inspector.
ID number
#13948681
In yard
No
Year
2012
Manufacturer
Model
Asset type
Serial number or VIN
234910200
Features
Anti Two-Block, Greer MG586 Load Moment Indicator, 5719 hrs Crane Operation, 4 Cylinder Diesel Engine, 12 ft Minimum 45 ft Maximum Boom Length, 15 ft to 60 ft Swingaway Jib, 204 lb 15 ton Capacity Johnson 2 Sheave Hook Block, 125 lb 5 ton Capacity Overhaul Ball
General Appearance

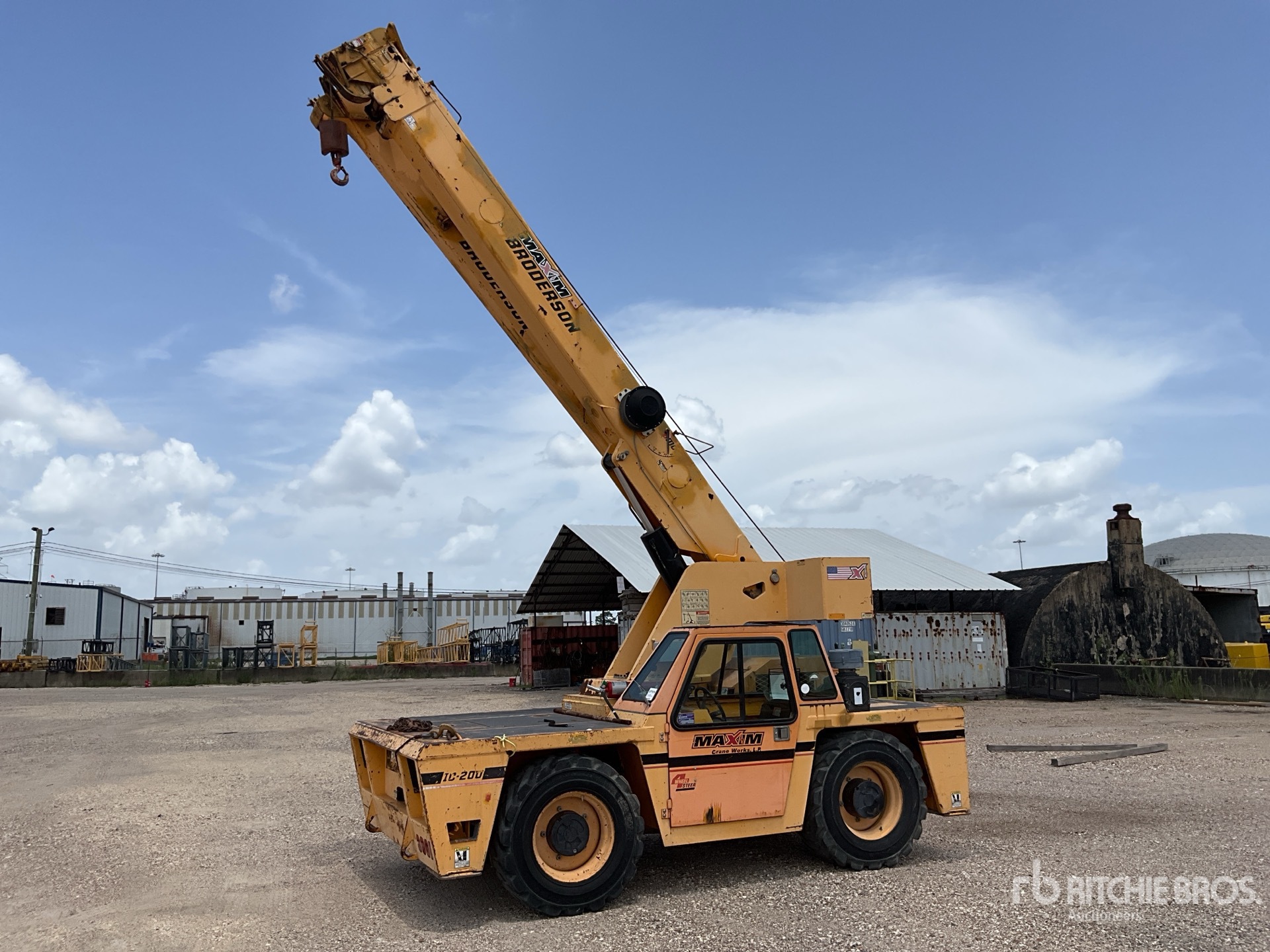

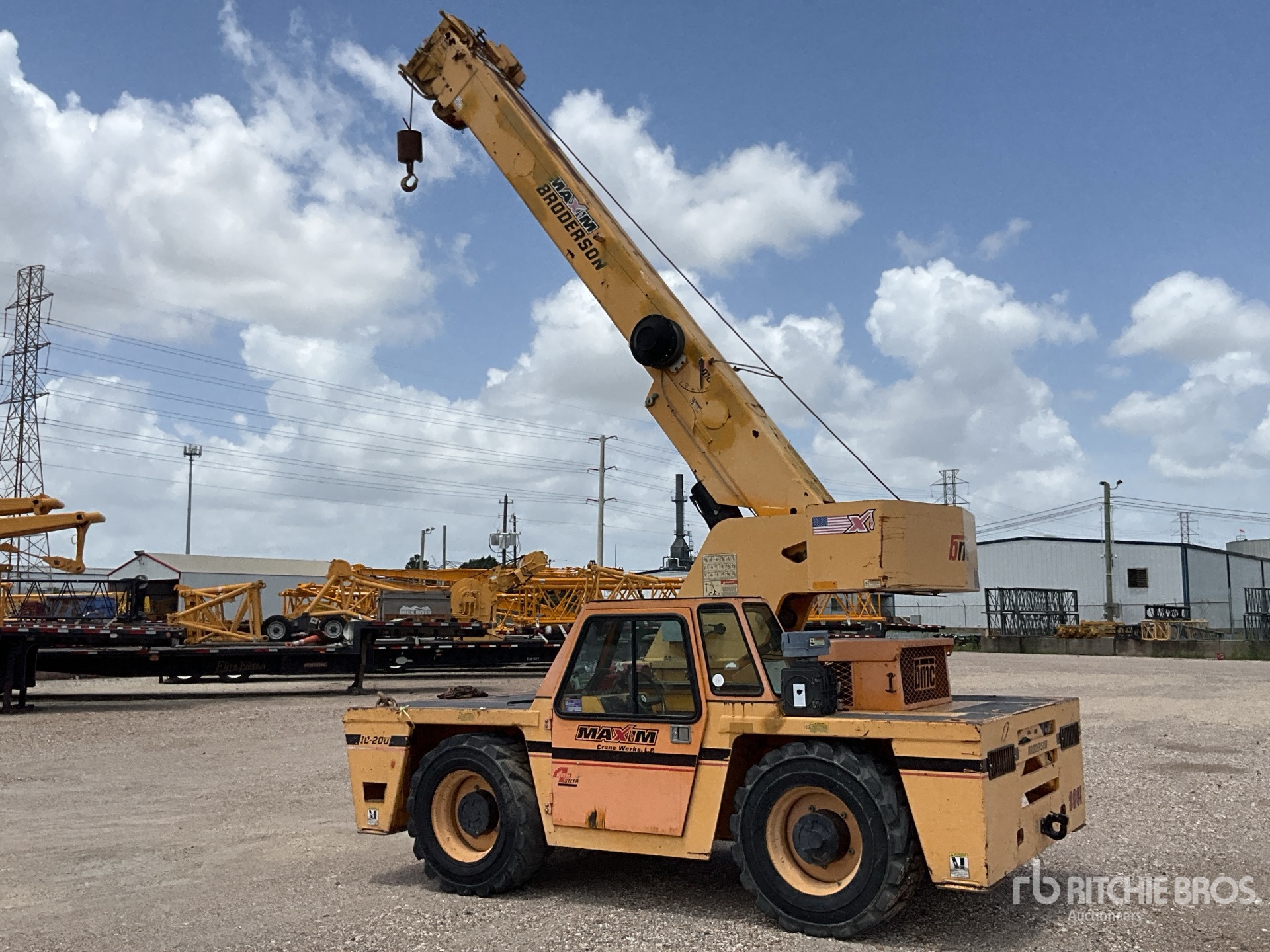

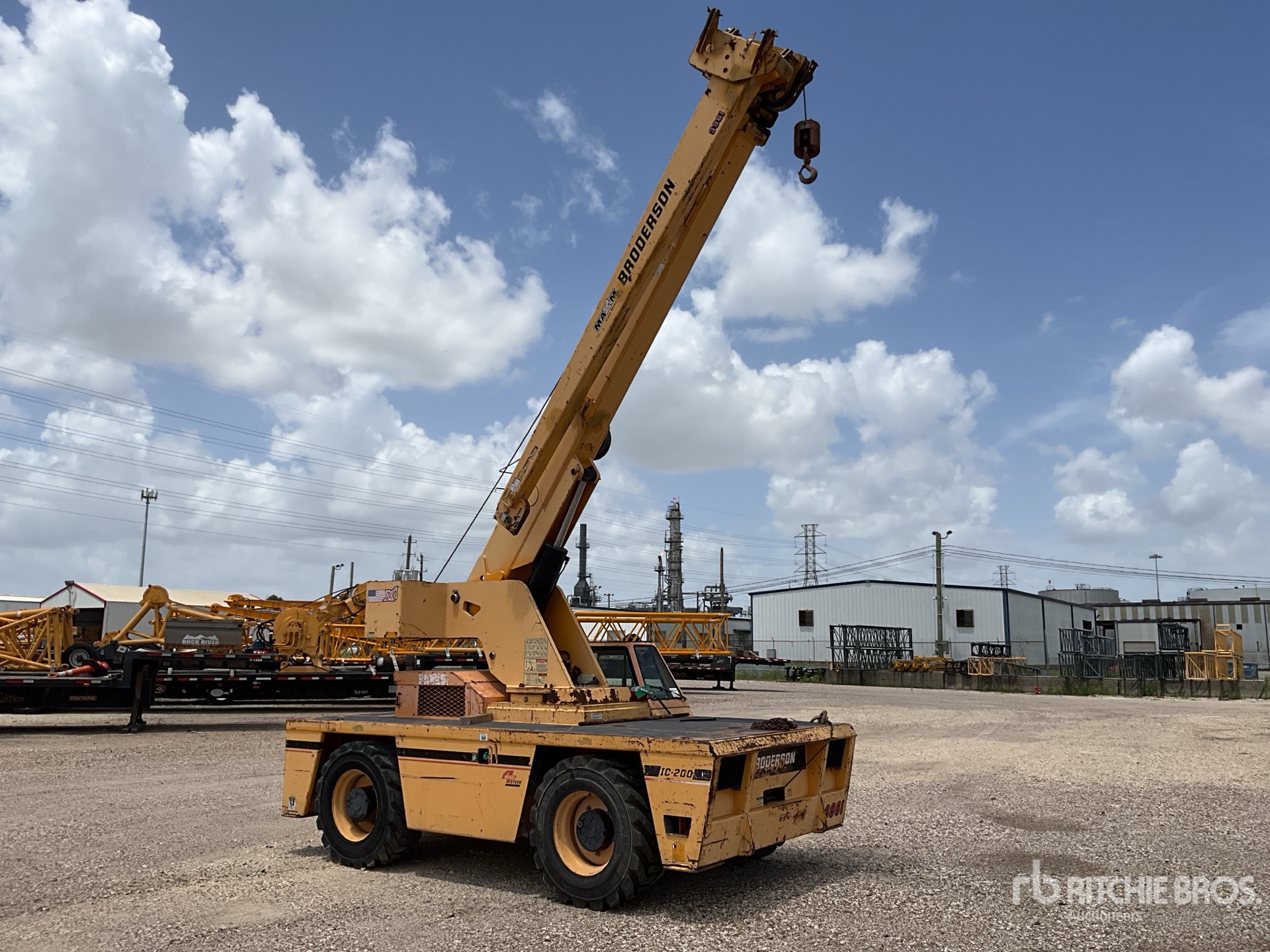

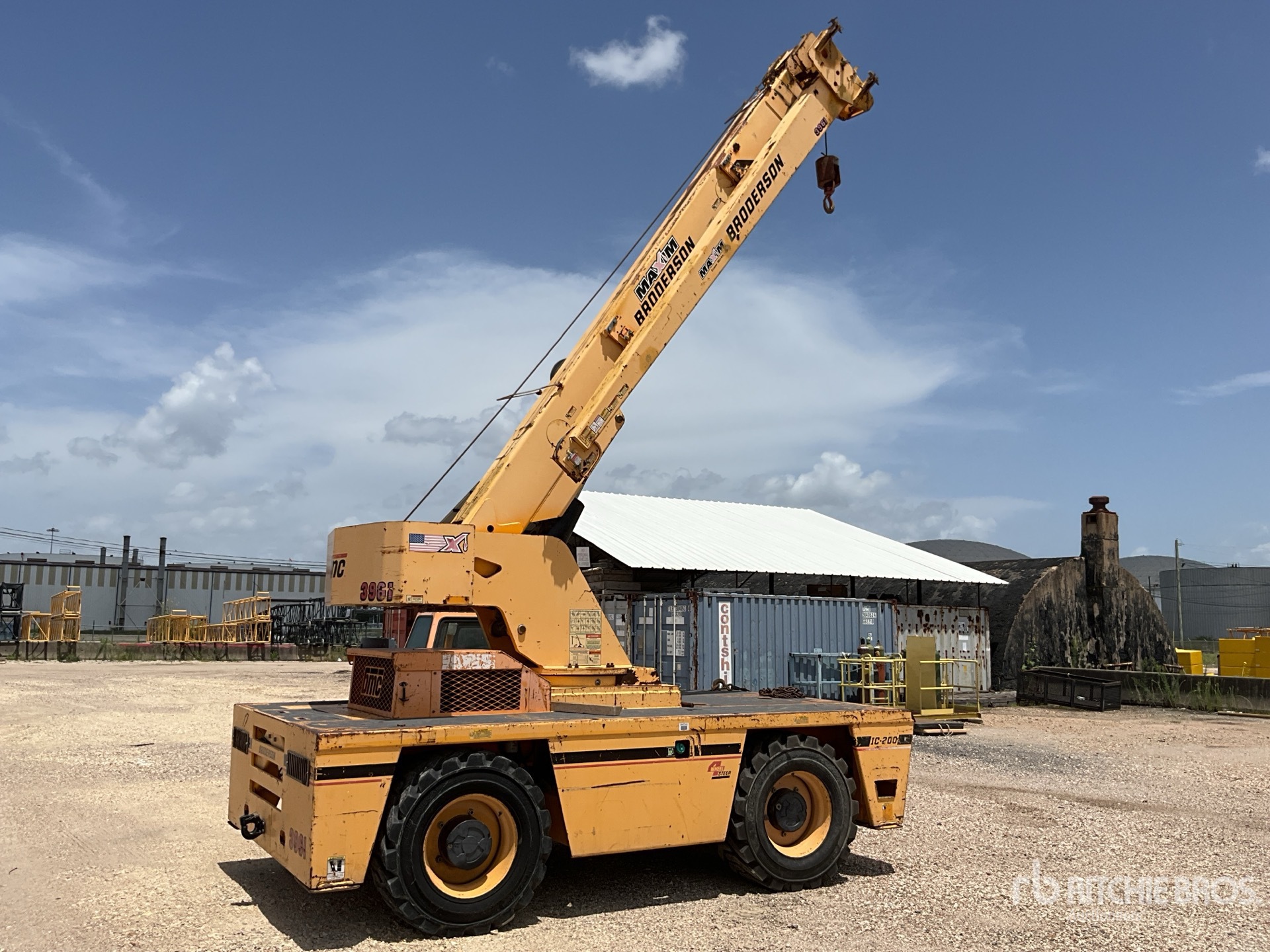

Picture, Left Front Corner
Picture, Left Rear Corner
Picture, Right Rear Corner
Picture, Right Front Corner
Serial Number / VIN
234910200
CE Mark
No CE mark found
Hour Meter / Odometer
5719 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Glass
Exterior Lights
Operational
Safety Certification Label
There is a safety certification label with a date of 7-12-24
Safety Certification Report
Safety Certification Report Available

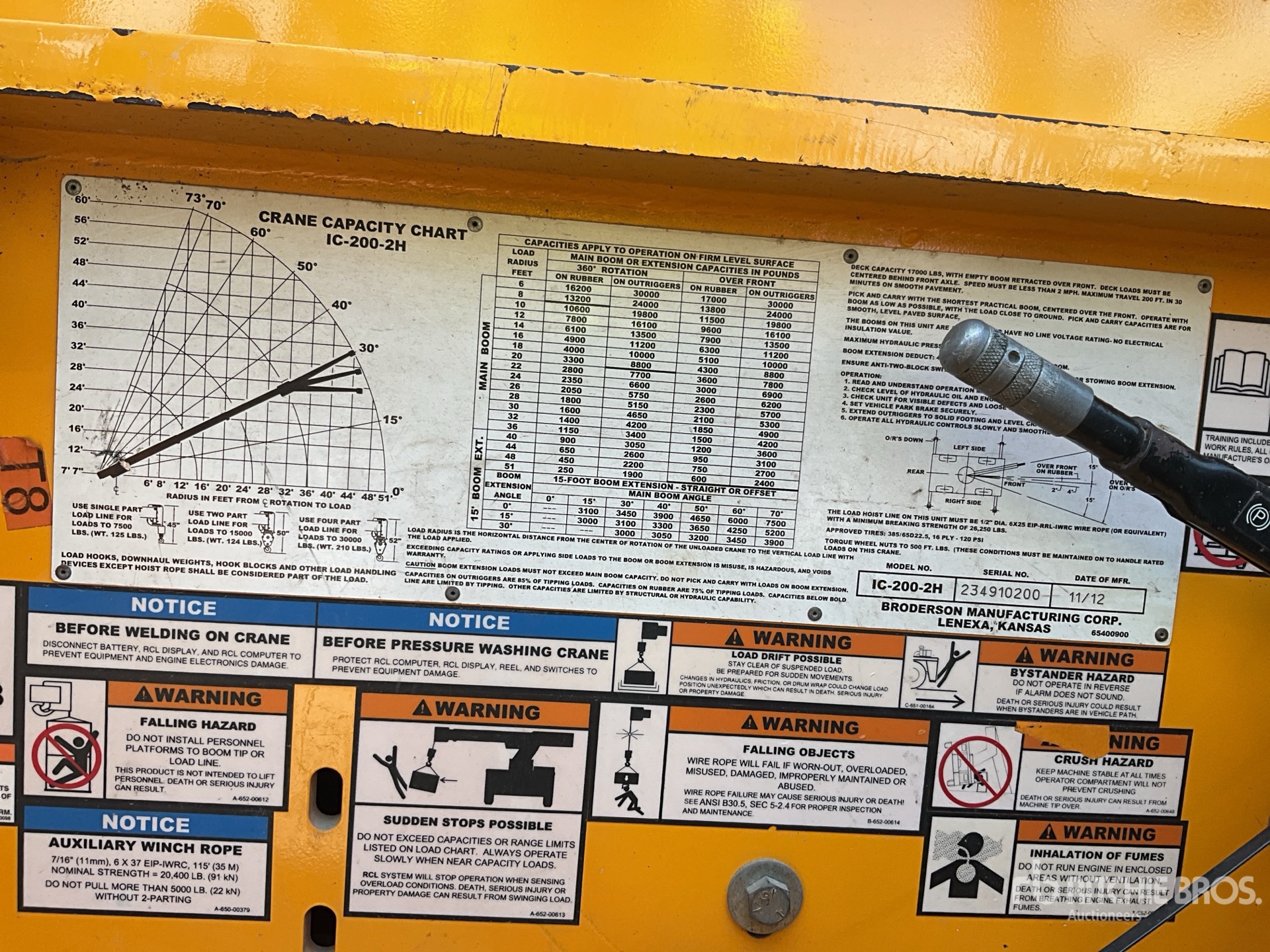

Load Chart
Yes
Safety
Travel Alarm
Operational
Horn
Inoperable
Seat Belts
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Upper Control Station
Hours of Crane Operation
5719 hrs Crane Operation
Control Station
Glass
No visible damage
Seats/Armrests
Load Moment Indicator
Operational, Powers On
Anti Two Block
Operational
Hydraulic Controls
Drivetrain Controls
Oil Pressure
No oil pressure indicator
Warning Lights
Operational
Gauges
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Blow-by (subjective visual observation)
Visible
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Transmission
Operational, Dripping leak
Front Drive Axle
Final Drives
Limited Function Check
The drivetrain was operational.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Wet
Hoses (Hydraulic)
Swing Motor
Main Hoist
Lift Cylinders
Telescopic Boom Cylinders
Cylinder Pins and Bushings
Limited Function Check
The hydraulic system was operational. The swivel is leaking.
Chassis
Steering Linkage
Steering Cylinders
Steering Wheel Play
Brake Type
Hydraulic
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Held against power
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Turntable Bearing
Frame Condition
Tire Size
All of the tires are the same size, 385/65D22.5 Front tires, LF OTR, LR OTR, RR OTR, RF OTR
Left Front Tire
Left Rear Tire
Right Rear Tire
Right Front Tire
Wheel Condition
Wheel Studs
Limited Function Check
The main chassis components were operational in a limited check.
Outrigger Cylinders
Outrigger Condition
Outrigger Beams
Outrigger Floats/Pads Condition
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Wear Pads
Boom Angle Indicator
Limited Function Check
The main crane components functioned when checked without a load.
Specialty
Jib
Main Load Block
Overhaul Ball
Counterweights
Additional information
