177 Photos

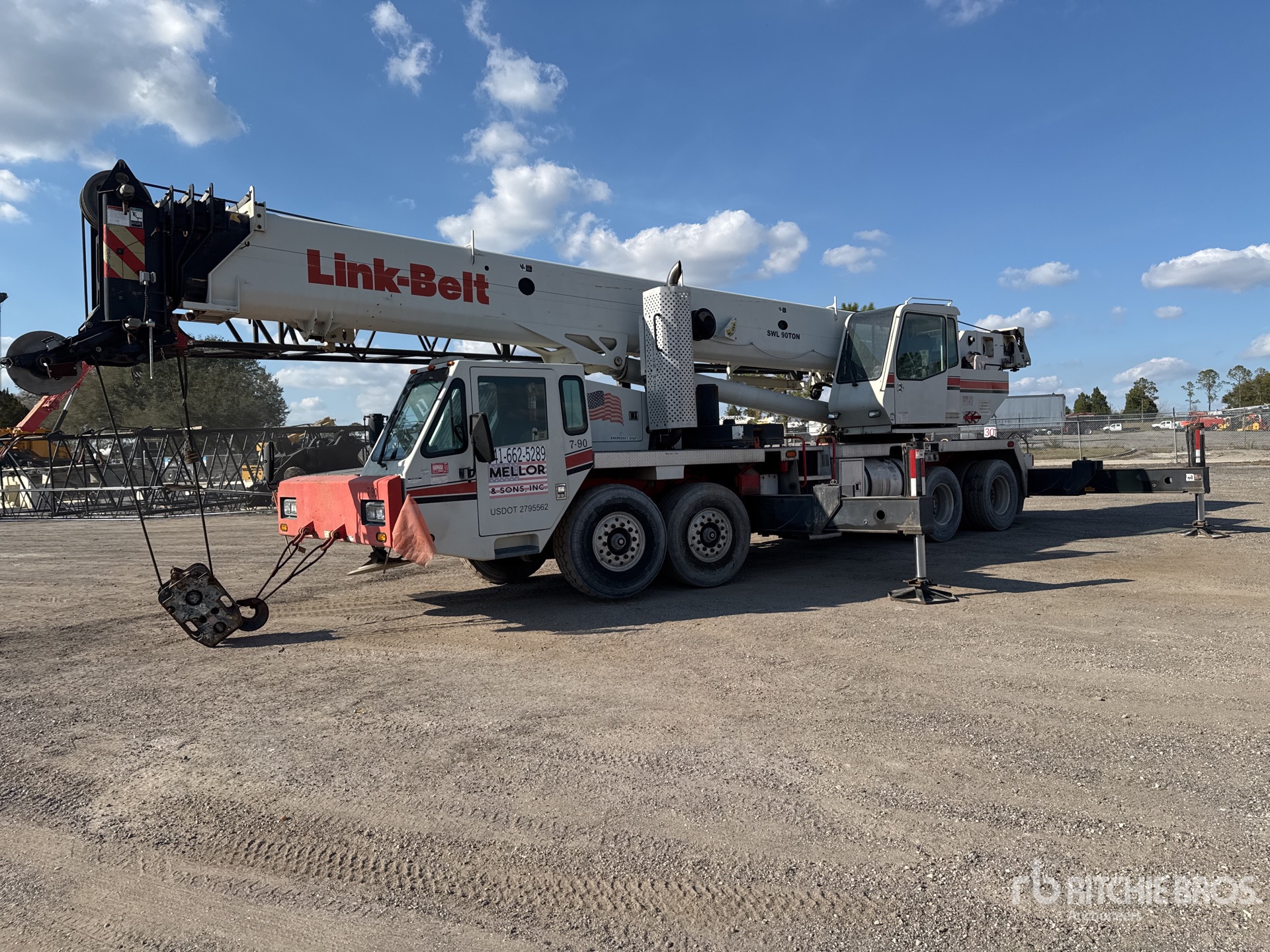

2010 Link-Belt HTC-8690 8 Hydraulic Truck Crane
Located
Davenport, FL
Serial number
1F9N3K018AL028634
Loading...
Inspection report:
A qualified Ritchie Bros. employee collected detailed equipment information and performed functional tests on the key components of this asset. You, or a proxy, may also inspect any items on site prior to bidding on auction day.
ID number
#12945261
In yard
Yes
Year
2010
Manufacturer
Model
Asset type
Serial number or VIN
1F9N3K018AL028634
Features
Automatic Transmission, Cat C13 6 Cylinder Diesel Carrier Engine, Rooster Sheave, Bifold Swingaway Jib, 5 Sheave Hook Block
Notes
TITLE IN TRANSIT, ITEM MUST REMAIN IN YARD UNTIL TITLE RECEIVED - BUYERS RESPONSIBILITY FOR REMOVAL OF THIS ITEM ; ADDITIONAL ITEM LOCATED AT CHECK IN BUILDING (KEY) KEY BOX TITLE IN TRANSIT, ITEM MUST REMAIN IN YARD UNTIL TITLE RECEIVED
General Appearance
Spin
Featured Photo
Picture, Left Front Corner
Picture, Left Rear Corner
Picture, Right Rear Corner
Picture, Right Front Corner
Serial Number / VIN
1F9N3K018AL028634
CE Mark
No CE mark found
Hour Meter / Odometer
Meter reading could not be obtained, Dash gauges not operational-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational, right front corner light inoperative/broken lights are not operational
Safety
Travel Alarm
Inoperable
Horn
Operational
Seat Belts
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Lower/Carrier Engine Hours
Not available gauge inoperative
Window Controls
Operational
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Operational
Engine Oil Pressure
Gauge inoperable
Warning Lights
Operational, Check engine light stays on
Gauges
all gauges inoperative gauges are inoperable
Gear Selector
Brake Control
Engine Brake
Not operationally checked
PTO Control
Electric engaged, Operational
Heater
Not operationally checked
Limited Function Check
The main components are in place and operational as noted.
Engine
Emission Label
No label
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Underbody
Transmission
Operational
PTO Pump
Operational
Steer Axle
Center Drive Axle
Rear Drive Axle
Axle Bump Stops
#2 axle bump stops bent
Limited Function Check - Carrier
The drivetrain was operational without a load.
Steering Linkage
Steering Wheel Play
Brake Type
Air
Brake Lines/Hoses
Park Brake
Held against power
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Suspension Air Bags
Frame Condition
Tire Condition
Wheel Condition
Wheel Studs
Hydraulics - Crane Carrier/Chassis
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulic)
Stabilizer Cylinders
Limited Function Check
The hydraulic system was operational.
Upper Control Station
Seat Belts
Operational
Horn
Operational
Exterior Lights
Operational, Right front corner lights are not operational
Chassis
Crane Superstructure
Main Boom Pins
Sheaves
Boom Head Section
Boom Angle Indicator
Turntable Bearing
Limited Function Check
The main crane components functioned when checked without a load.
Outrigger Beams
Outrigger Cylinders
Outrigger Pads
Crane Superstructure Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
No cable
Lift Cylinders
Telescopic Boom Cylinders
Limited Function Check
The hydraulic system was operational.
