91 Photos
2010 Grove RT880E 80 ton 4x4x4 Rough Terrain Crane
Located
Newnan, GA
Newnan, GA
Usage
12,322 hrs
12,322 hrs
Serial number
230976
230976
Loading...
Detailed equipment information
This lot is protected by IronClad Assurance
Buy with confidence knowing that this lot has been given a full and detailed inspection by a qualified inspector.
ID number
#15167719
In yard
Yes
Features
Air Conditioner, Tilt Cab, Anti Two-Block, PAT Load Moment Indicator, 12322.8 hrs Crane Operation, 2010 US EPA Label, Cummins QSB 6.7 6 Cylinder 275 hp 6.7 L Diesel Engine, 41.3 ft Minimum 128 ft Maximum Boom Length, Auxiliary Hoist, Rooster Sheave, 33 ft to 56 ft Bifold Swingaway Offset Jib, 1276 lb 82.7 ton Capacity Johnson 5 Sheave Hook Block, 365 lb 8.3 ton Capacity Overhaul Ball, 18000 lb Counterweight, Counterweight Removal System

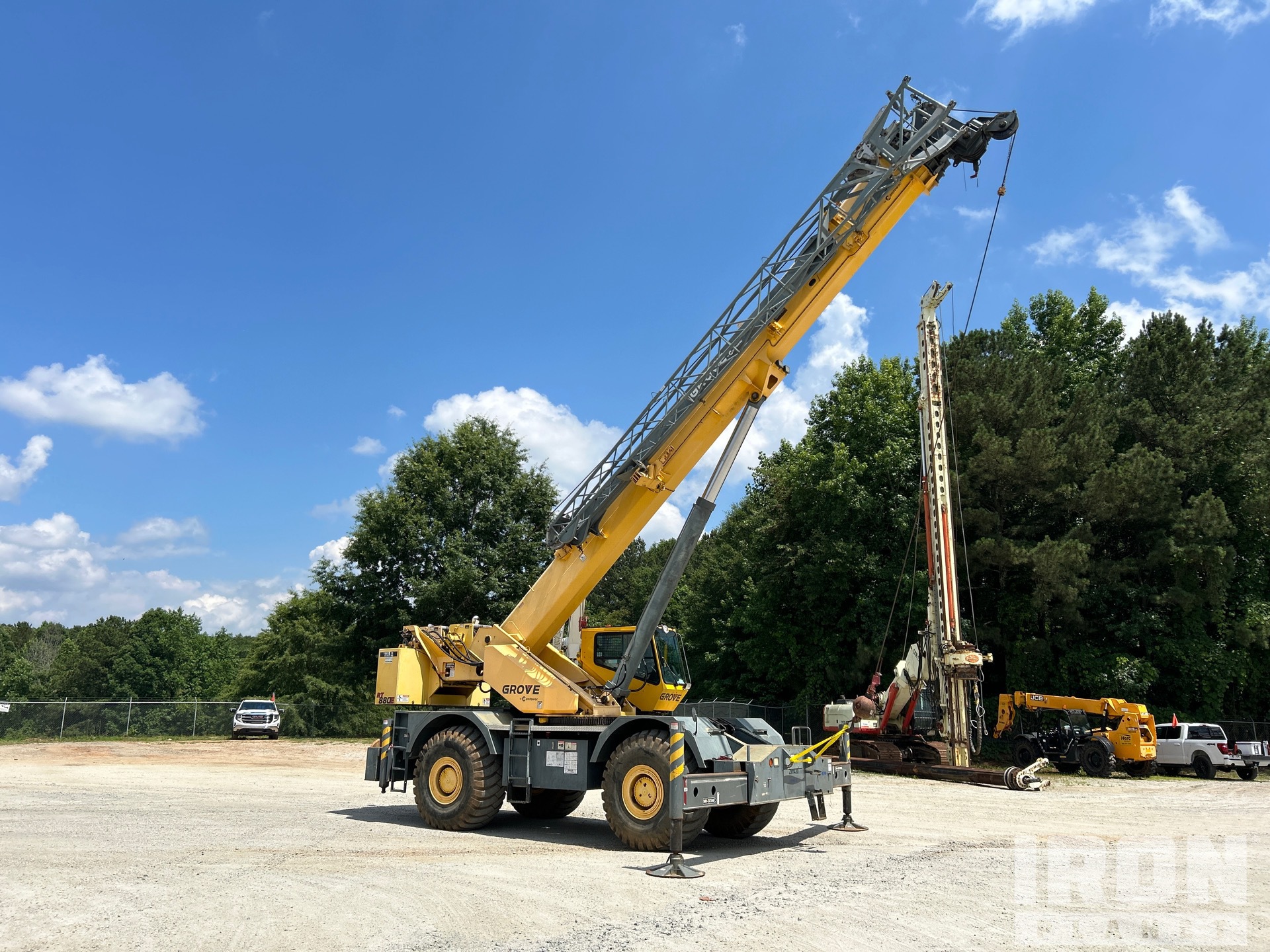

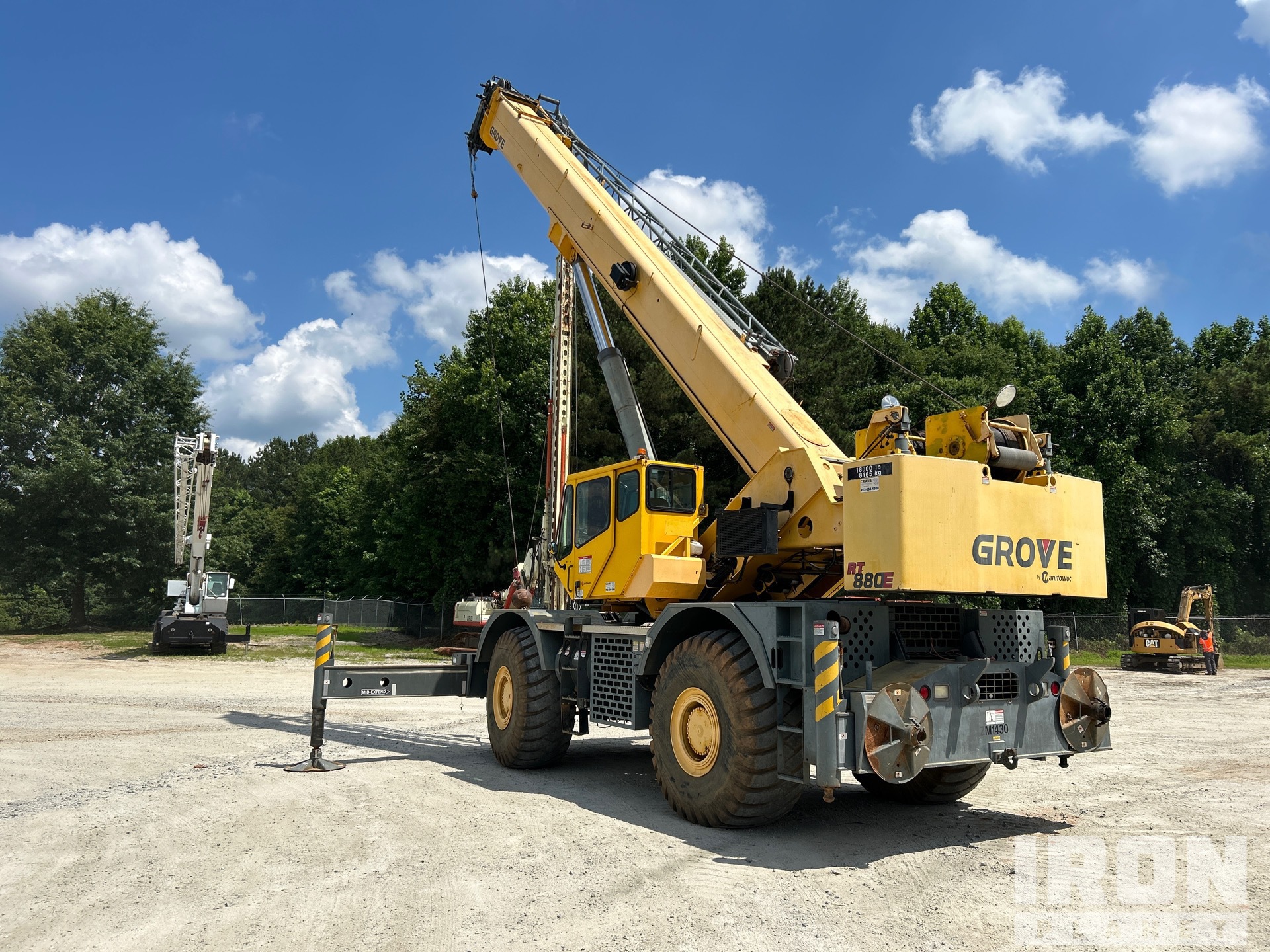

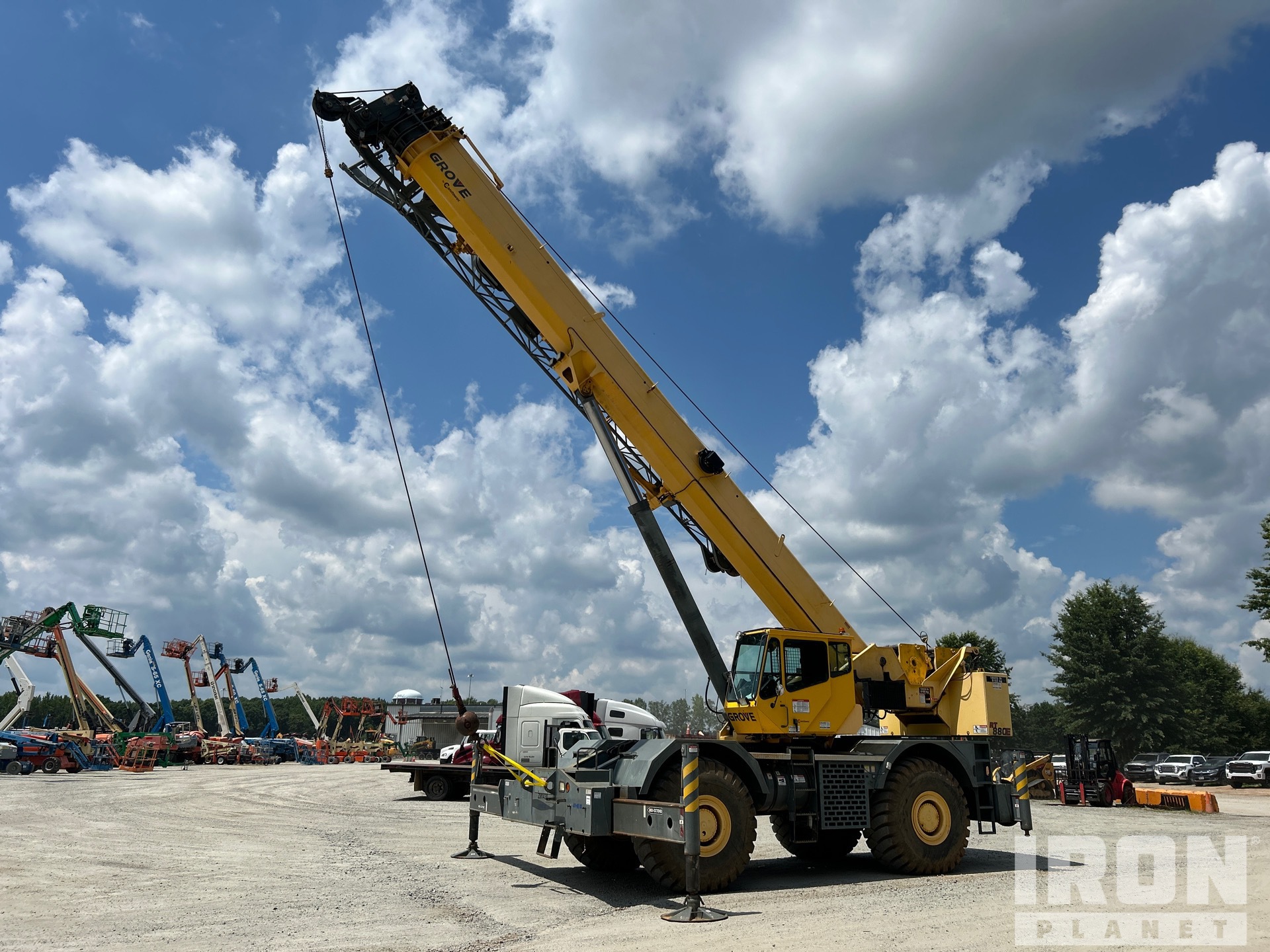

General Appearance

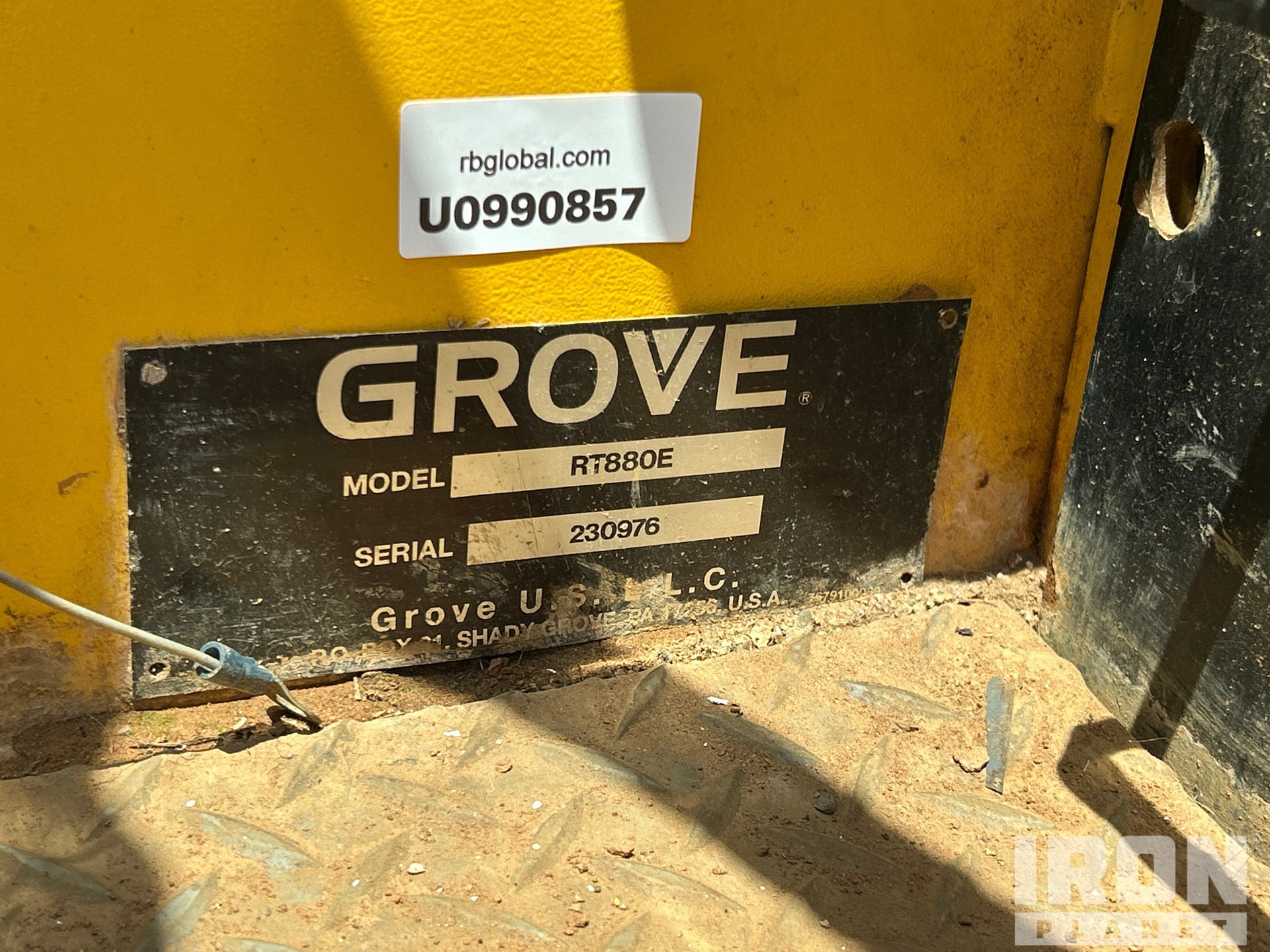

Serial Number / VIN
230976
CE Mark
No CE mark found
Hour Meter / Odometer
12322 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Safety Certification Label
There is a safety certification label with a date of 07/21
Safety Certification Report
Safety Certification Report Not Available
Load Chart
Yes
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Upper Control Station
Hours of Crane Operation
12322.8 hrs Crane Operation
Control Station
Mirrors
Glass
No visible damage
Seats/Armrests
Load Moment Indicator
Powers On, Not operationally checked with a load
Anti Two Block
Not operationally checked
Hydraulic Controls
Drivetrain Controls
Oil Pressure
No oil pressure indicator
Warning Lights
Operational
Gauges
Operational
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
2010 US EPA Label
Emission Label
A/C Compressor
Operational
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Transmission
Operational, Dripping leak
Front Drive Axle
Rear Drive Axle
Final Drives
Seepage.
Limited Function Check
The drivetrain was operational.
Hydraulics
Pumps (Hydraulics)
Operational, unable to access to check for leaks.
Hydraulic Motors
Valves
Dripping leak
Hydraulic Tank
Hoses (Hydraulic)
Dripping leaks underneath machine.
Swing Motor
Main Hoist
Auxiliary Hoist
Not attached, not operationally checked.
Lift Cylinders
Telescopic Boom Cylinders
Operational, unable to access to check for leaks.
Cylinder Pins and Bushings
Limited Function Check
The hydraulic system was operational.
Chassis
Steering Linkage
Steering Cylinders
Steering Wheel Play
Suspension Cylinders
Brake Type
Hydraulic
Master Cylinder/Brake Control
Brake Lines/Hoses
Leaks from hydraulic lines underneath machine.
Park Brake
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Turntable Bearing
Frame Condition
Tire Size
All of the tires are the same size, 29.5-25 Front tires
Left Front Tire
Wheel Condition
Wheel Studs
Limited Function Check
The main chassis components were operational in a limited check.
Outrigger Cylinders
Outrigger Condition
Outrigger Beams
Outrigger Floats/Pads Condition
Heavy wear
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Wear Pads
Boom Angle Indicator
Missing
Limited Function Check
The main crane components functioned when checked without a load.
Specialty
Jib
Main Load Block
Overhaul Ball
Counterweights
