113 Photos
2009 Link Belt RTC8065 65 ton 4x4x4 Rough Terrain Crane
Located
Fort Worth, TX
Fort Worth, TX
Usage
11,592 hrs
11,592 hrs
Serial number
J9J9-1357
J9J9-1357
Loading...
ID number
#15268264
In yard
No
Features
Air Conditioner, Anti Two-Block, Link Belt Load Moment Indicator, Cat C6.6 6 Cylinder Diesel Engine, 38 ft Minimum 115 ft Maximum Boom Length, Auxiliary Hoist, Rooster Sheave, 35 ft to 58 ft Bifold Swingaway Offset Jib, 1082 lb 60 lb Capacity Johnson 4 Sheave Hook Block, 351 lb 7.5 lb Capacity Overhaul Ball

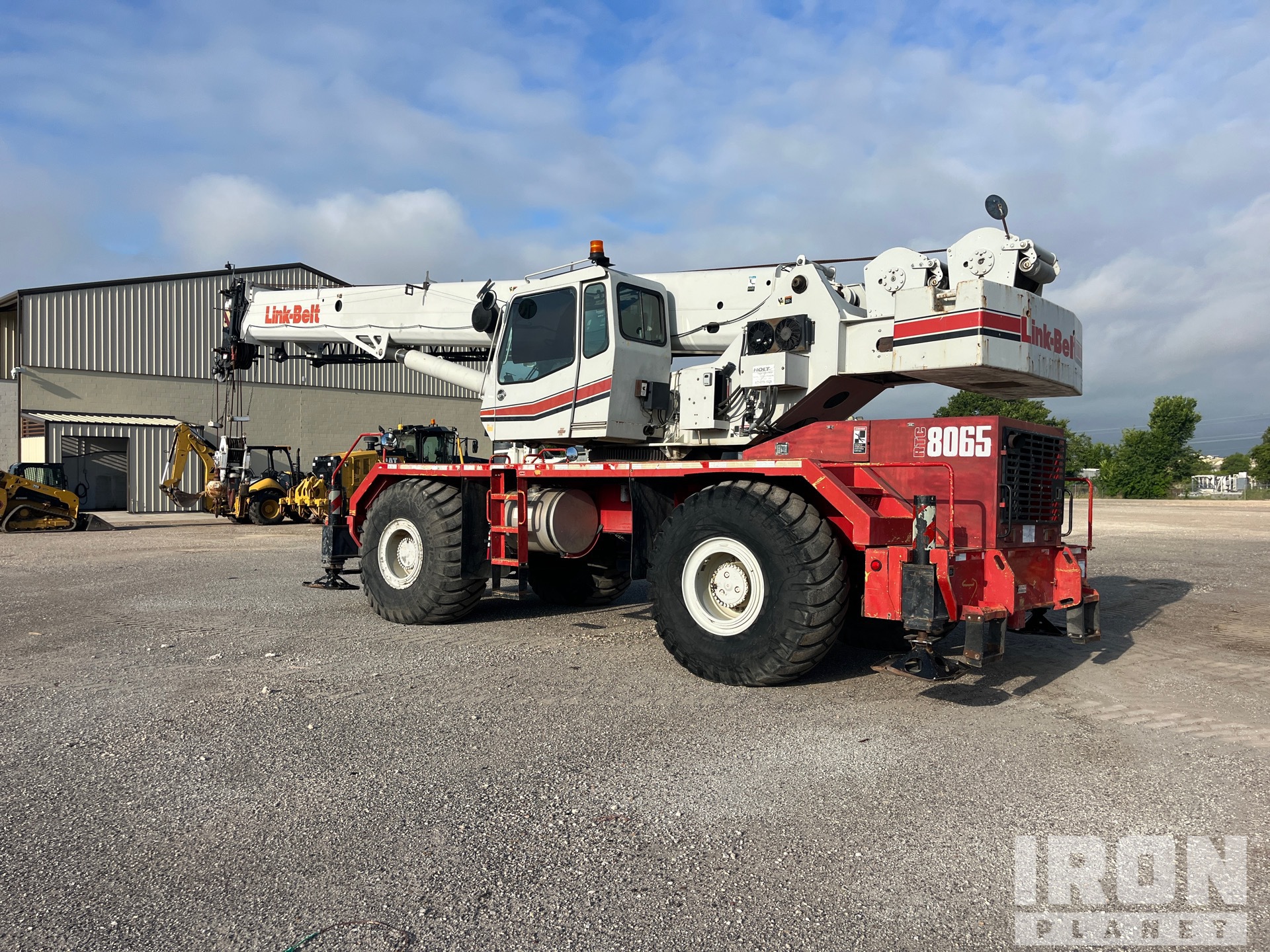

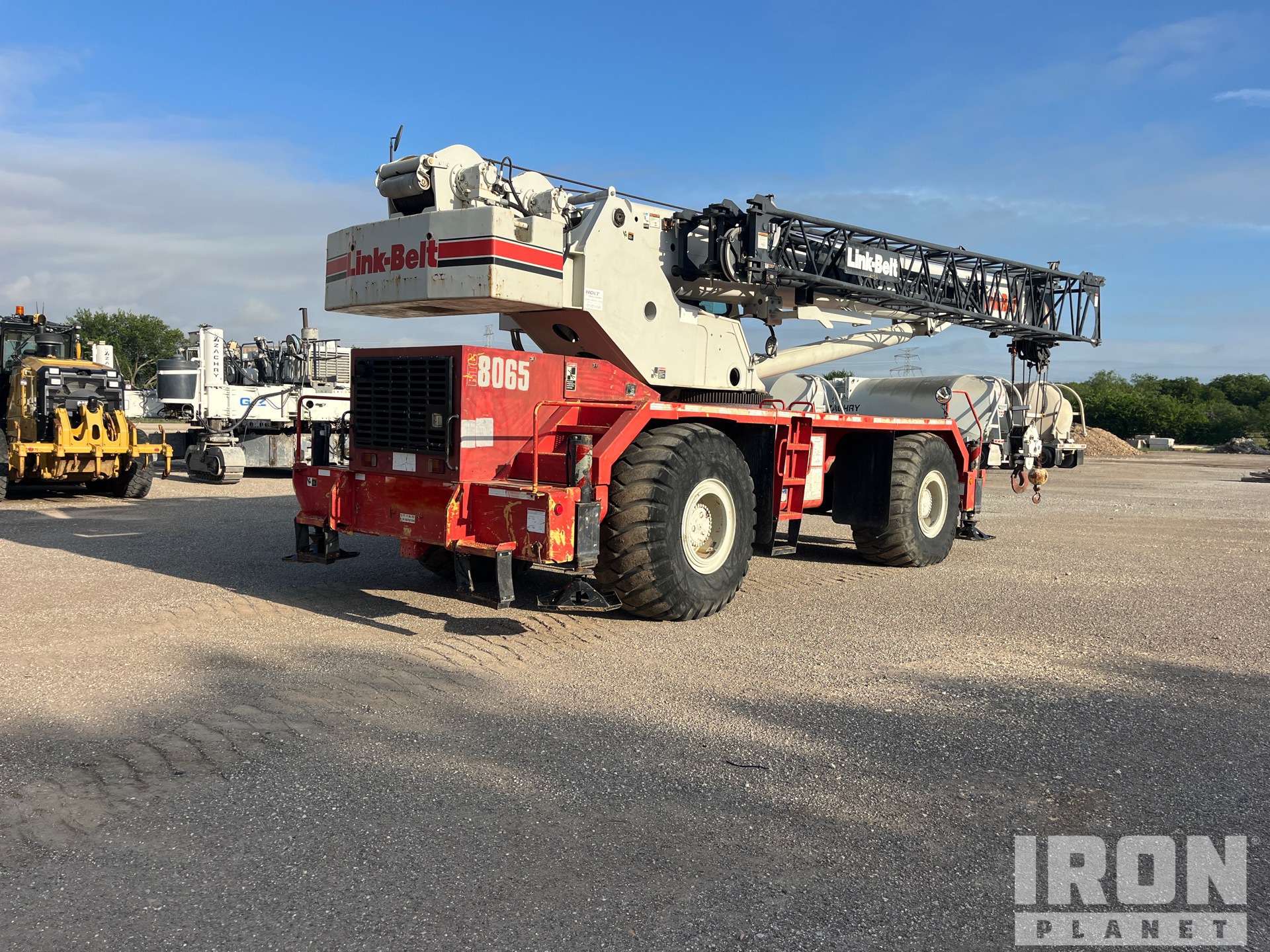

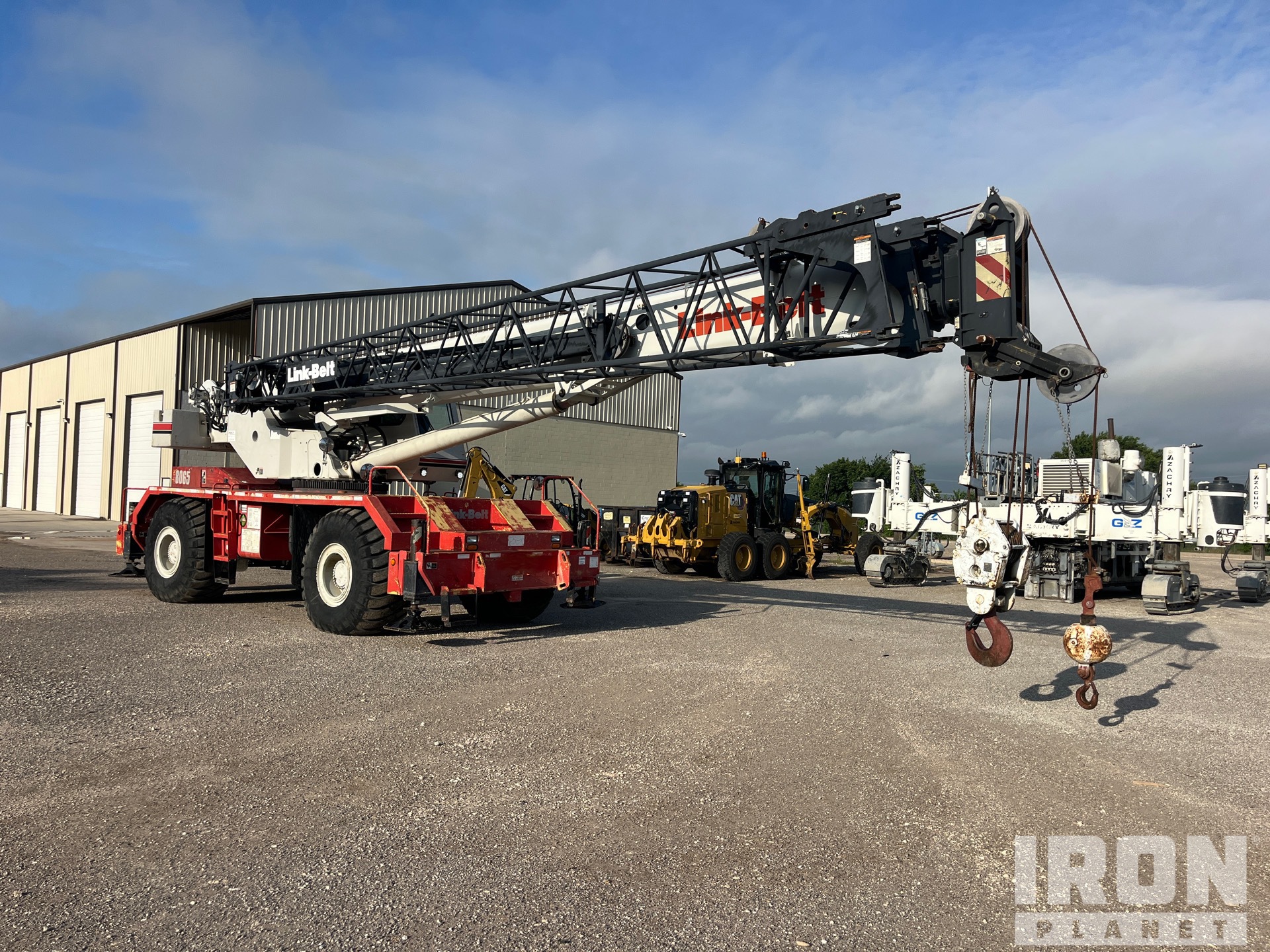

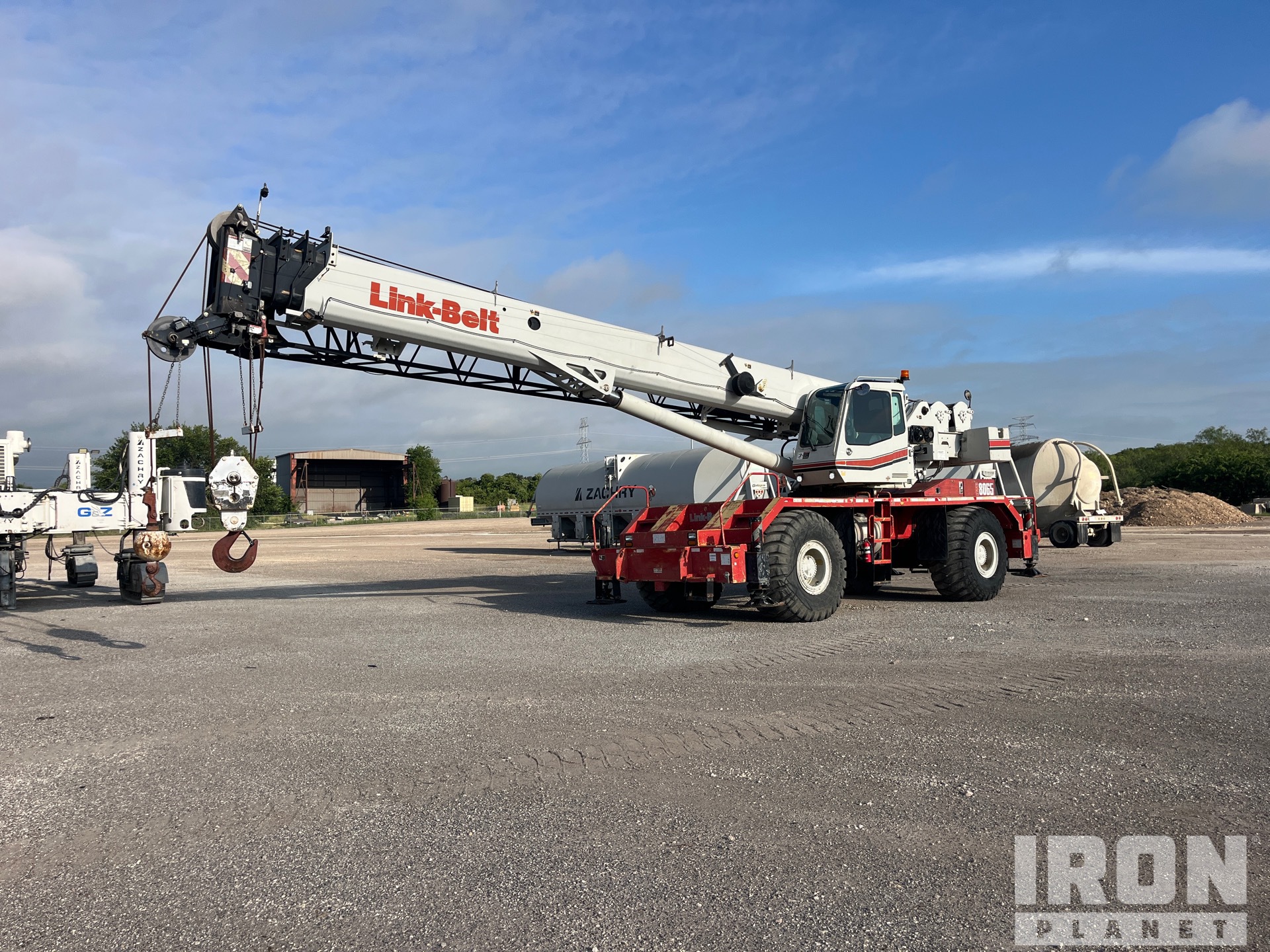

General Appearance
Serial Number / VIN
J9J9-1357
CE Mark
No CE mark found
Hour Meter / Odometer
11592 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational, Some not operational, 4 lights are not operational
Safety Certification Label
There is a safety certification label with a date of 8-15-26
Load Chart
Yes
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Upper Control Station
Control Station
Mirrors
Glass
No visible damage
Seats/Armrests
Load Moment Indicator
Operational
Anti Two Block
Operational
Hydraulic Controls
Drivetrain Controls
Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational
Gauges
Operational
Air Conditioner
Not operationally checked
Heater
Not operationally checked
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
No US EPA Label Present
Blow-by (subjective visual observation)
Minor
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Transmission
Operational
Front Drive Axle
Rear Drive Axle
Final Drives
Limited Function Check
The drivetrain was operational.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Lift Cylinders
Telescopic Boom Cylinders
Cylinder Pins and Bushings
Limited Function Check
The hydraulic system was operational.
Chassis
Steering Linkage
Steering Cylinders
Steering Wheel Play
Brake Type
Hydraulic
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Turntable Bearing
Frame Condition
Tire Size
All of the tires are the same size, 26.5-25 Front tires
Left Front Tire
Left Rear Tire
Right Rear Tire
Right Front Tire
Wheel Condition
Wheel Studs
Limited Function Check
The main chassis components were operational in a limited check.
Outrigger Cylinders
Outrigger Condition
Outrigger Beams
Outrigger Floats/Pads Condition
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Wear Pads
Boom Angle Indicator
Limited Function Check
The main crane components functioned when checked without a load.
Specialty
Jib
Main Load Block
Overhaul Ball
Counterweights
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Jun 10, 2026 |
| Silicon | 0.46 PPM |
| Tin | 0.77 PPM |
| Silver | 0 PPM |
| Aluminum | 0 PPM |
| Chromium | 0 PPM |
| Lead | 0.3 PPM |
| Copper | 0.06 PPM |
| Nickel | 0.59 PPM |
| Iron | 0 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
