2009 Link-Belt RTC-80100 Series II 100 ton 6x6x6 Rough Terrain Crane
Located
Newnan, GA
Newnan, GA
Usage
3,213 hrs
3,213 hrs
Serial number
J7J91475
J7J91475
Loading...
Detailed equipment information
This lot is protected by IronClad Assurance
Buy with confidence knowing that this lot has been given a full and detailed inspection by a qualified inspector.
ID number
#12719170
In yard
No
Features
Air Conditioner, Microguard Load Moment Indicator, 3213 hrs Crane Operation, International 6 Cylinder Diesel Engine, 40 ft Minimum 150 ft Maximum Boom Length, Auxiliary Hoist, Rooster Sheave, 31 ft to 55 ft Bifold Offset Jib, 1349 lb 80 ton Capacity Johnson 5 Sheave Hook Block, 698 lb 12 ton Capacity Overhaul Ball, 24000 lb Counterweight, Counterweight Removal System
Notes
***The LMI does not operate properly. The boom would not extend.***

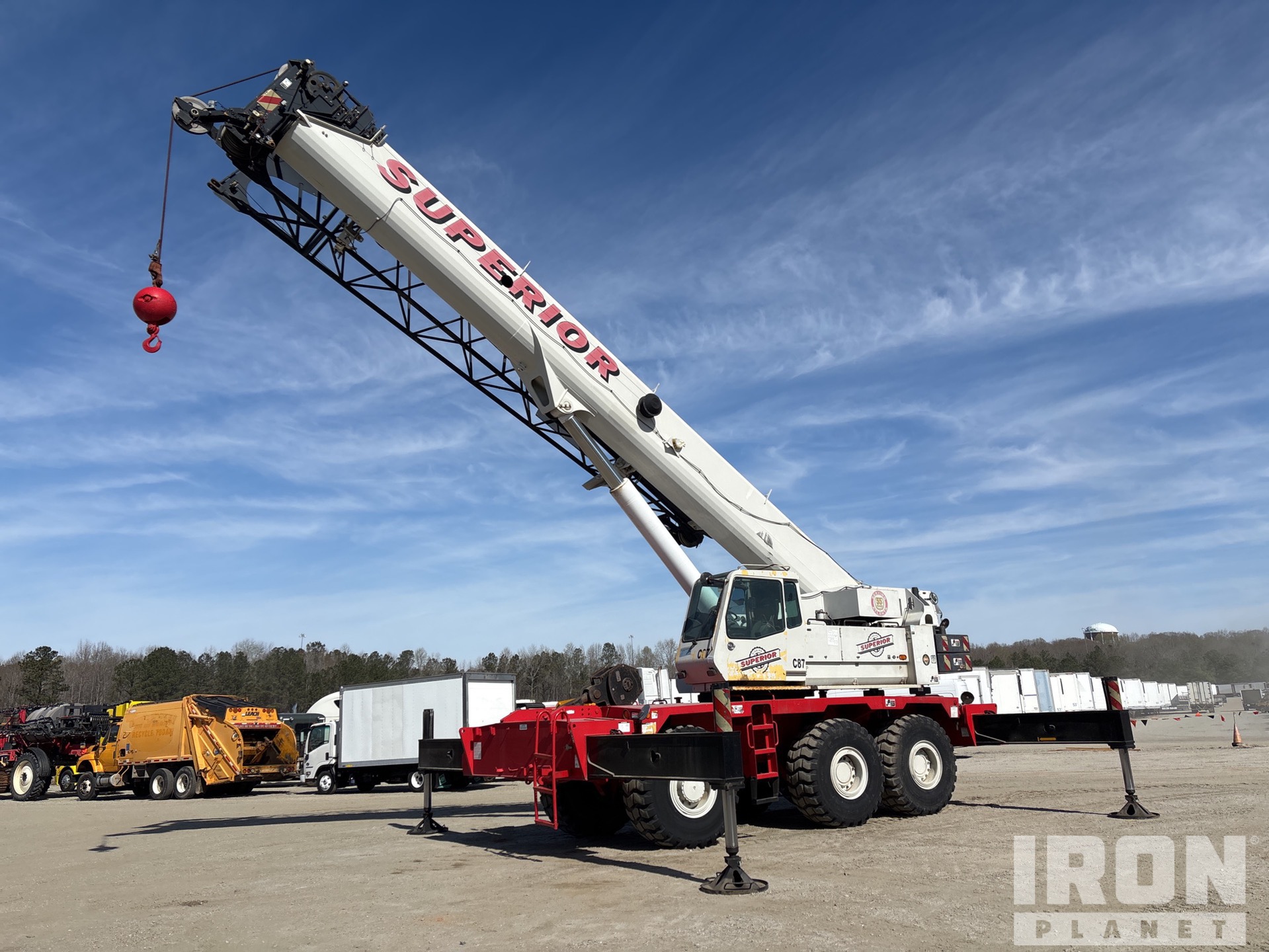

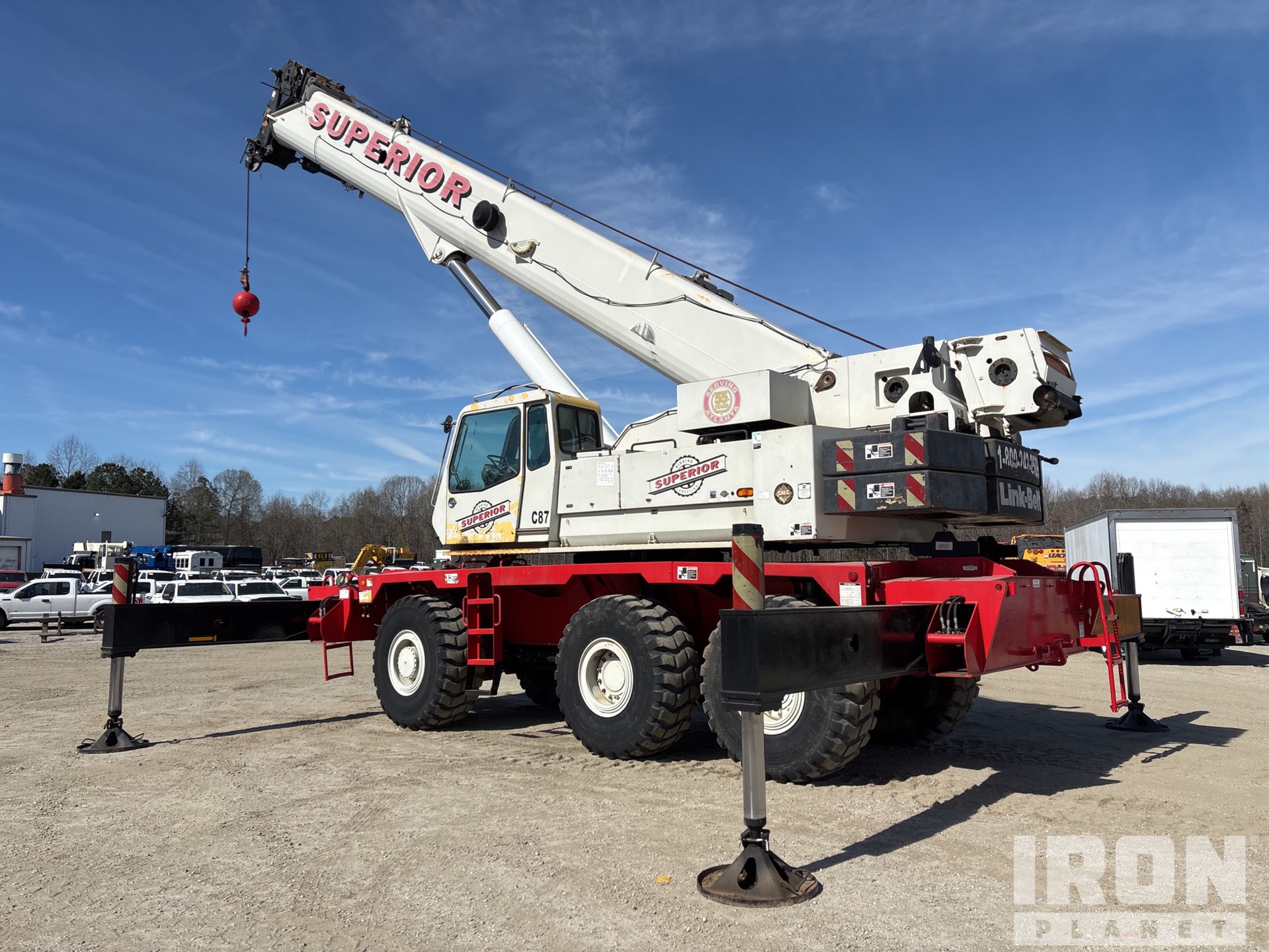

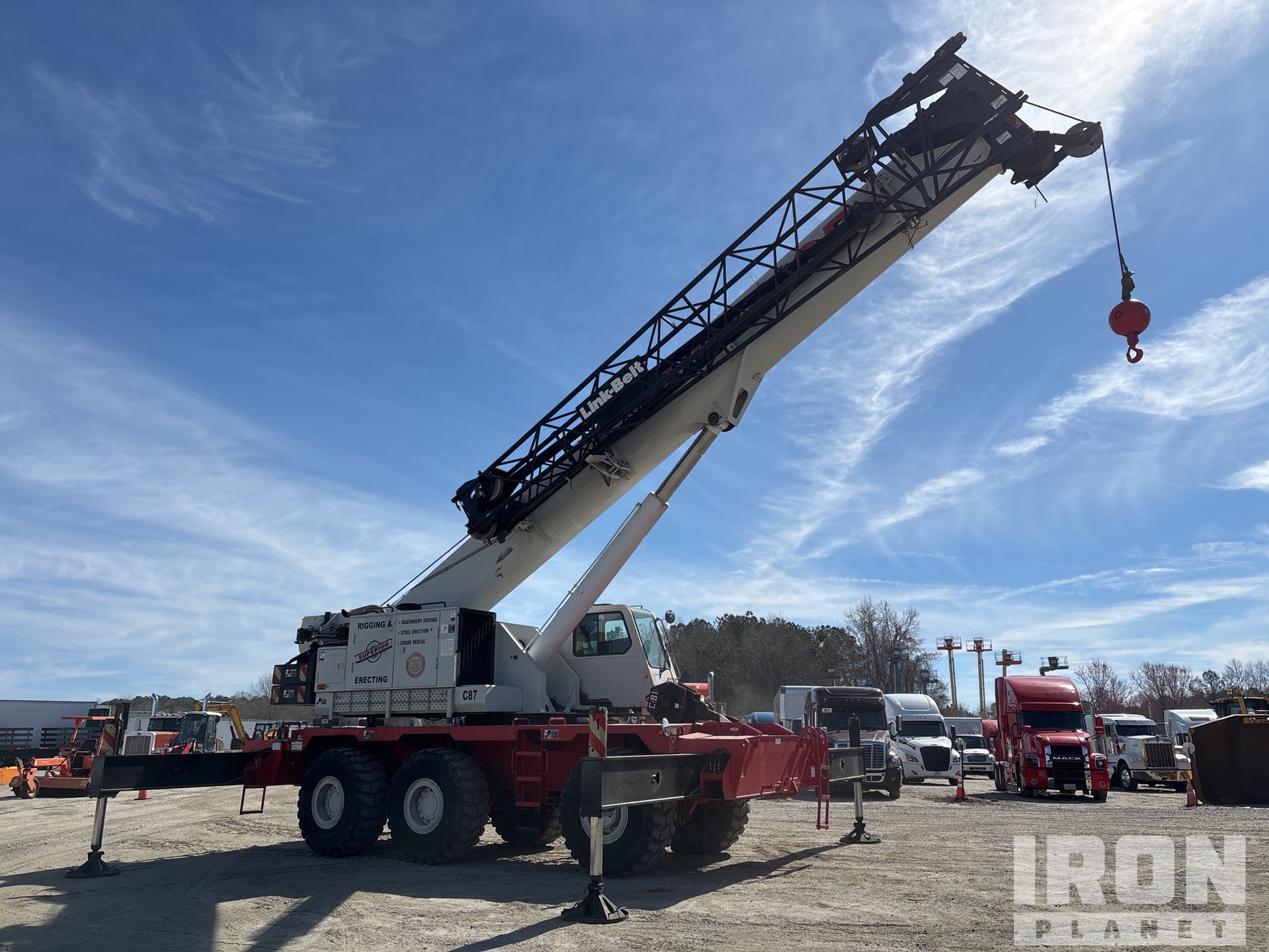

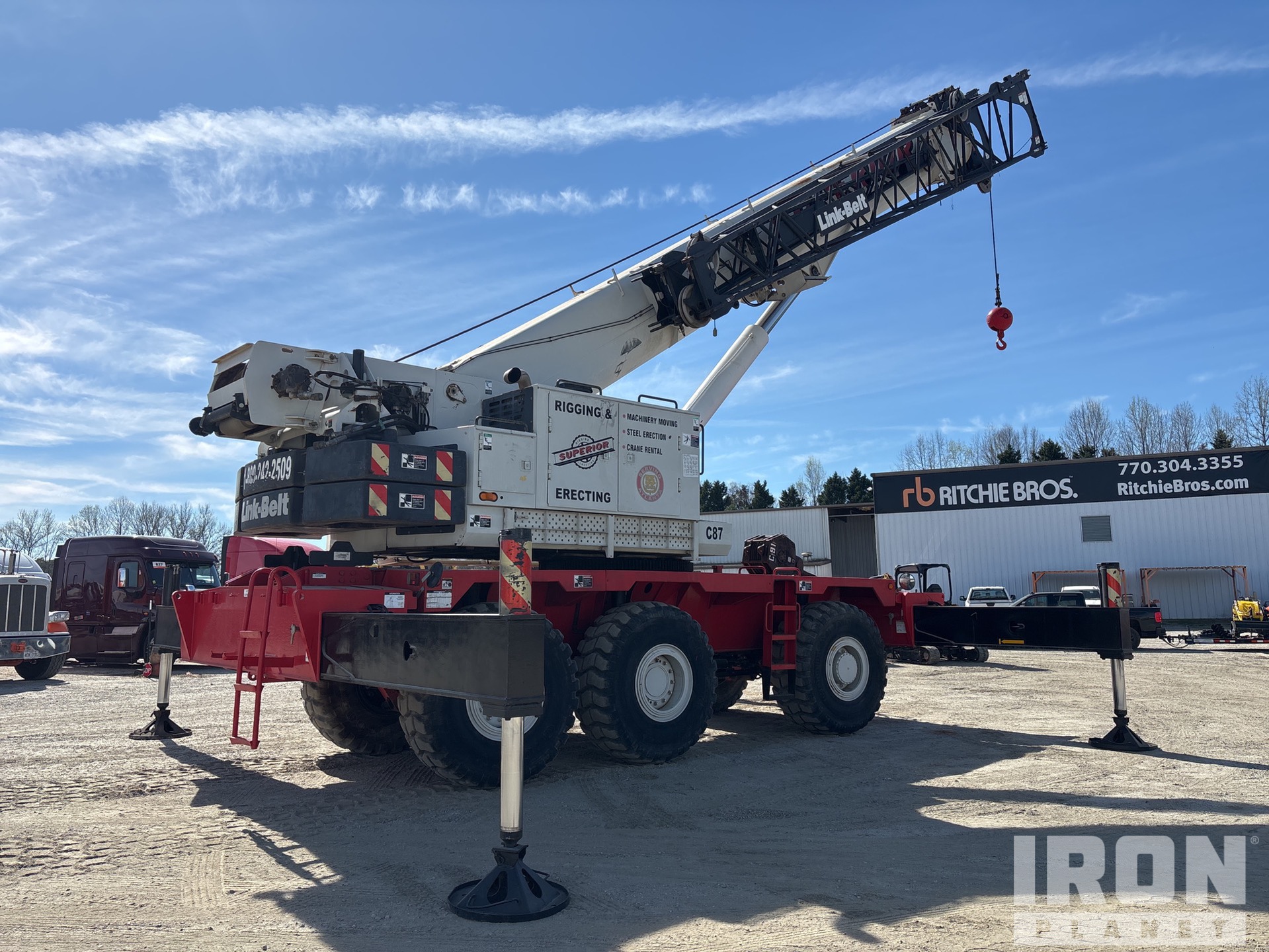

General Appearance
Serial Number / VIN
J7J91475
CE Mark
No CE mark found
Hour Meter / Odometer
3213 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Some not operational, front frame lights, right cab light lights are not operational
Safety Certification Label
There is a safety certification label with a date of 12/10/22
Safety Certification Report
Safety Certification Report Not Available
Load Chart
Yes
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Upper Control Station
Hours of Crane Operation
3213 hrs Crane Operation
Control Station
Mirrors
Glass
No visible damage
Seats/Armrests
Load Moment Indicator
Powers On, The LMI does not operate properly.
Hydraulic Controls
The boom would not extend. The boots are damaged.
Drivetrain Controls
Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational
Gauges
Operational
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted. The steering column boot is damaged. The steering is backwards, when turning the wheel left the crane steers right.
Engine
Emission Label
A/C Compressor
Operational
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
Oil Pan
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Limited Function Check
The engine started and ran. The engine is labored when the hydraulics are engaged.
Drivetrain
Transmission
Operational
Front Drive Axle
Rear Drive Axle
Final Drives
Limited Function Check
The drivetrain was operational.
Hydraulics
Pumps (Hydraulics)
Dripping leak
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Dripping leak
Main Hoist
Auxiliary Hoist
Lift Cylinders
Telescopic Boom Cylinders
Cylinder Pins and Bushings
Limited Function Check
The hydraulic system was operational. The engine is labored when the hydraulics are engaged.
Chassis
Steering Linkage
Steering Wheel Play
Brake Type
Air over hydraulic
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Stopped the machine while rolling
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Turntable Bearing
Frame Condition
Tire Size
All of the tires are the same size, 23.5R25 Front tires, LF Goodyear, LR Goodyear, RR Goodyear, RF Goodyear
Left Front Tire
Left Rear Tire
Right Rear Tire
Right Front Tire
Wheel Condition
Wheel Studs
Limited Function Check
The main chassis components were operational in a limited check.
Outrigger Cylinders
Dripping leak, The front left, rear right, front right, front right extending cylinders have a leak.
Outrigger Condition
Outrigger Beams
Outrigger Floats/Pads Condition
Heavy wear
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Boom Angle Indicator
Limited Function Check
The main crane components functioned when checked without a load.
Specialty
Jib
Main Load Block
Overhaul Ball
Counterweights
Oil Sample Analysis
Oil Sample Analysis
| engine | transmission | |
|---|---|---|
| date of analysis | Apr 10, 2025 | Apr 10, 2025 |
| Silicon | 2.72 PPM | 2.49 PPM |
| Tin | 2.04 PPM | 0.77 PPM |
| Silver | 0 PPM | 0.1 PPM |
| Aluminum | 1.74 PPM | 0.74 PPM |
| Chromium | 0.27 PPM | 0.91 PPM |
| Lead | 0.04 PPM | 1.08 PPM |
| Copper | 0.7 PPM | 2.71 PPM |
| Nickel | 0.64 PPM | 0.12 PPM |
| Iron | 17.72 PPM | 3.44 PPM |
| Glycol | NEG | N/A |
| Water | NEG | N/A |
| Fuel | <5% | N/A |
