183 Photos

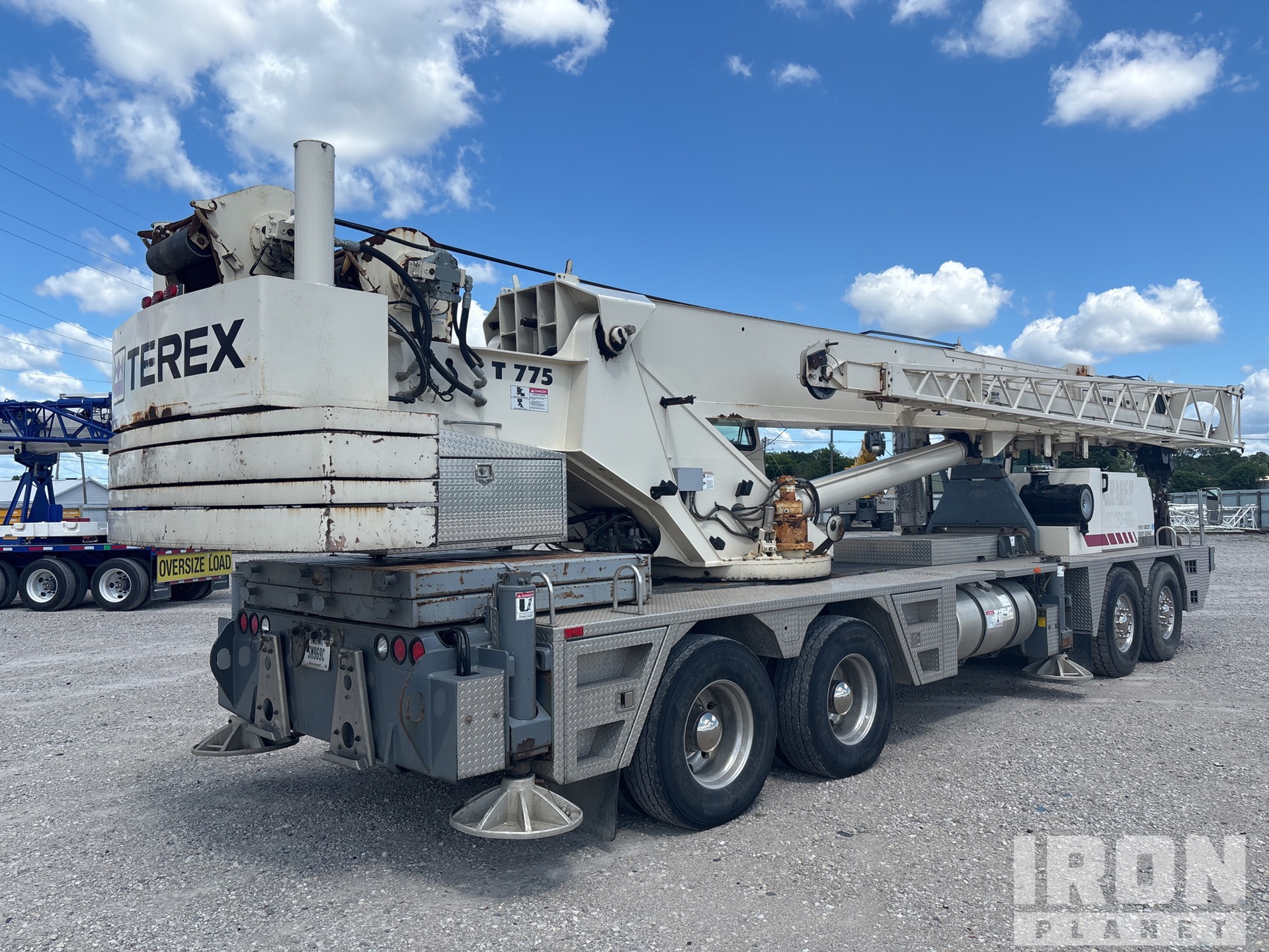

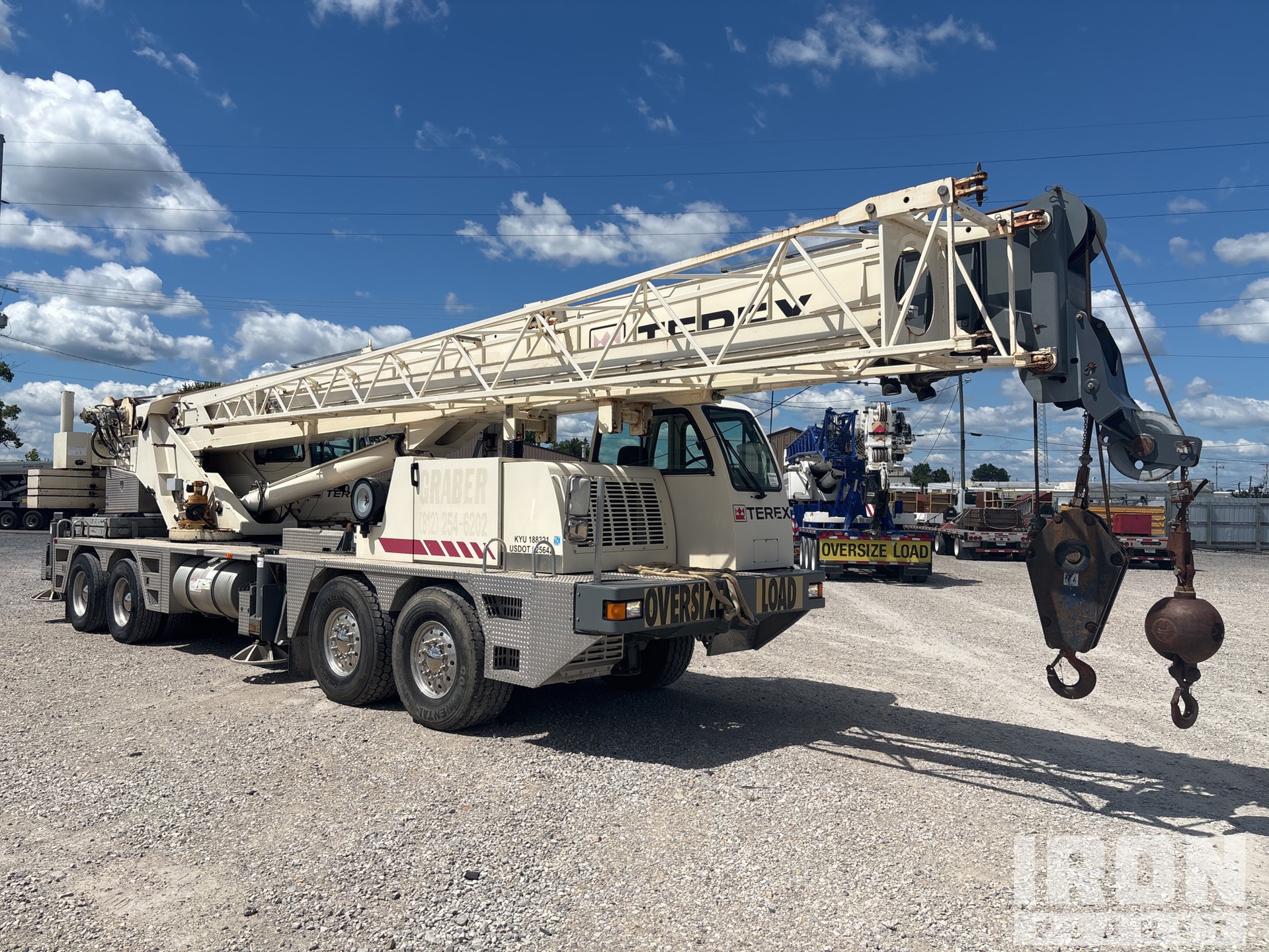

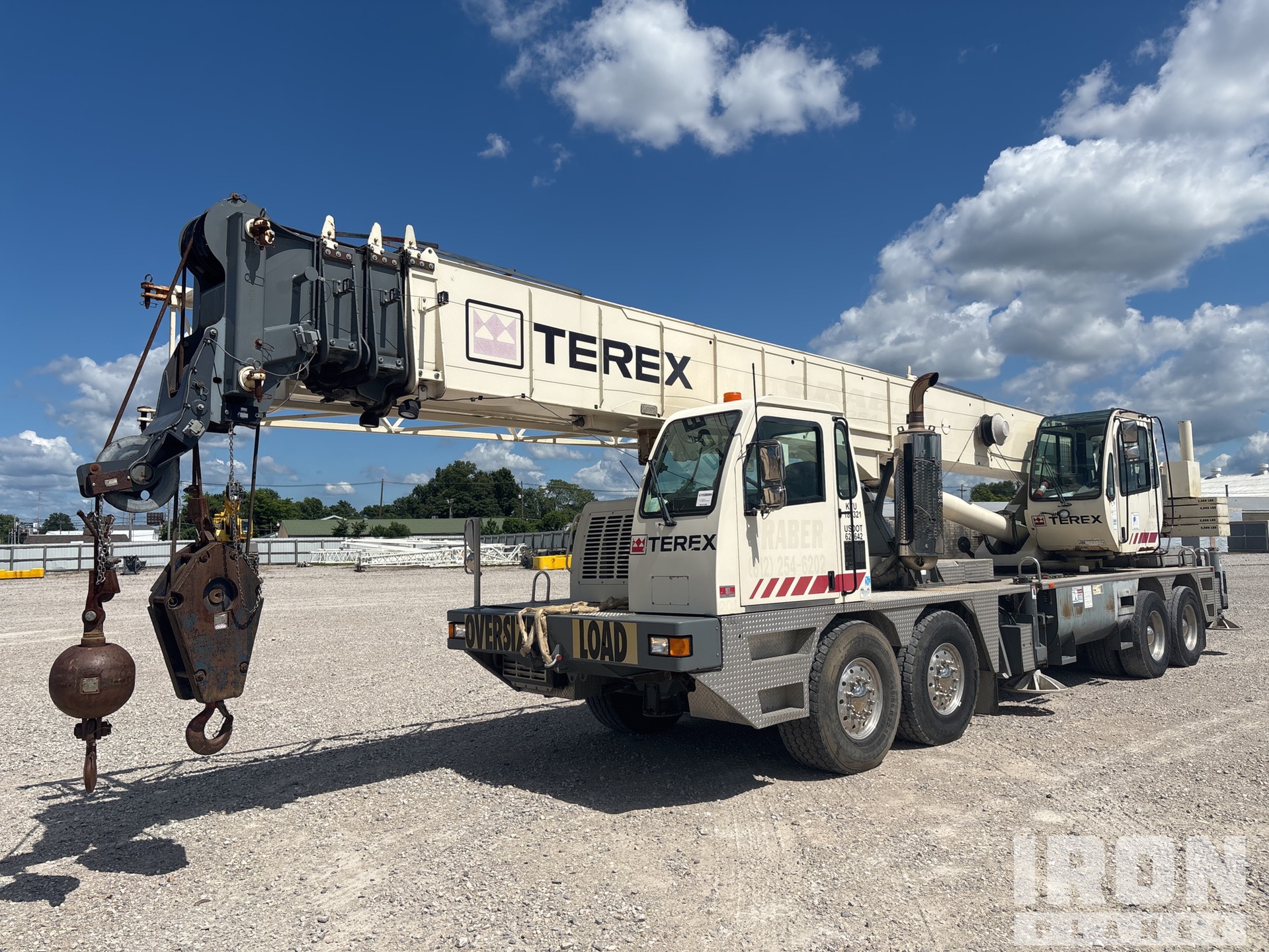

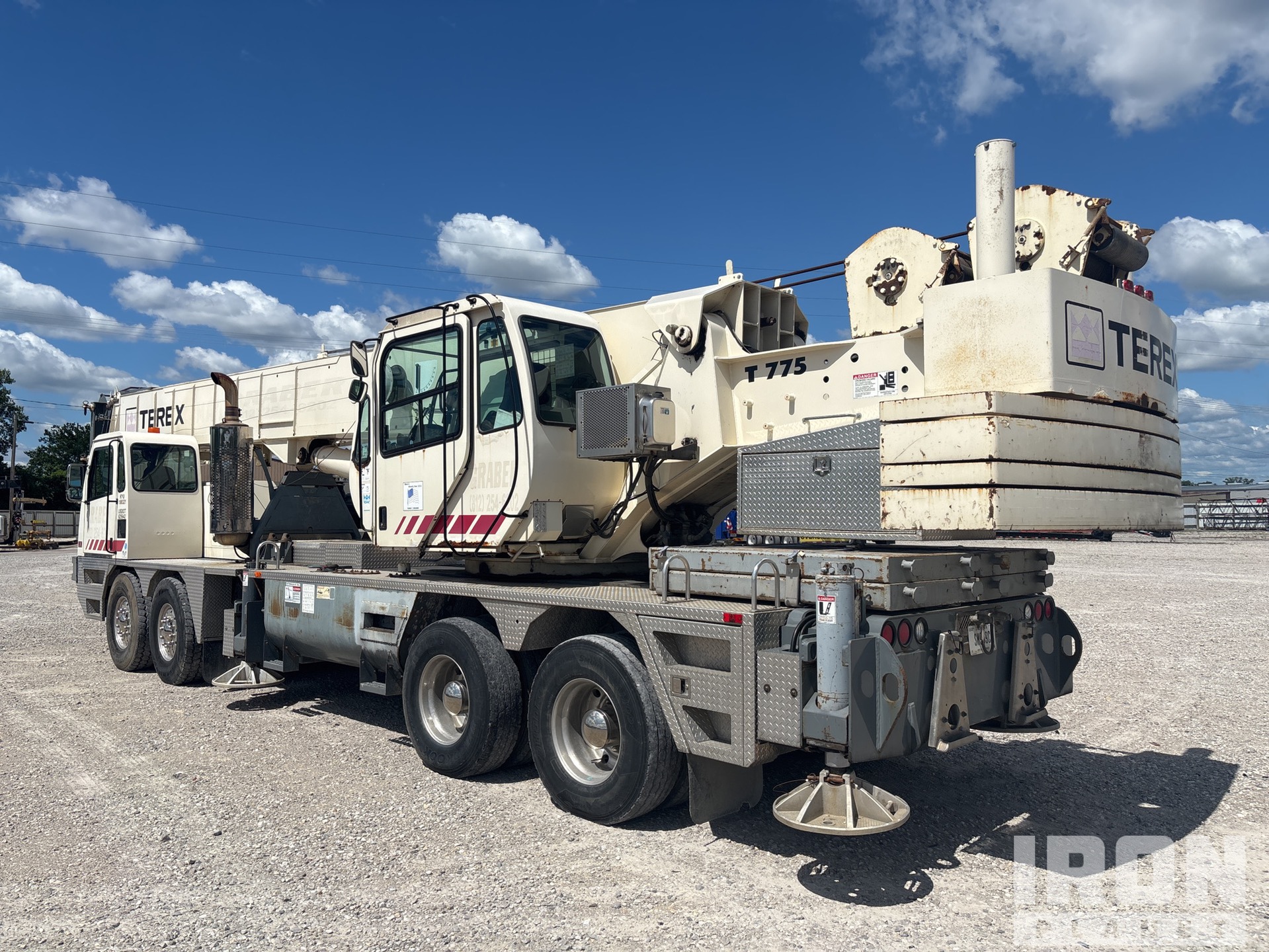

2008 Terex T775 75 ton 8x4x8 Hydraulic Truck Crane
Located
Evansville, IN
Evansville, IN
Usage
13,261 hrs
13,261 hrs
Serial number
15155
15155
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15516848
In yard
No
Features
Air Conditioner, Allison Automatic Transmission, 2008 US EPA Label, Detroit Series 60 6 Cylinder 14.0 L Diesel Carrier Engine, Air Conditioner, Greer RCI 510 Load Moment Indicator, 40 ft Minimum 126 ft Maximum Boom Length, Auxiliary Hoist, Rooster Sheave, 32 ft to 57 ft Swingaway Jib, 680 lb 25 ton Capacity Crosby 1 Sheave Hook Block, Overhaul Ball, 12000 lb Counterweight, Counterweight Removal System, Nelson CBC-20S - T/A Crane Dolly
Notes
<br><br>**No Title available. Bill of Sale will be provided upon request to convey ownership**
General Appearance
Serial Number / VIN
15155
Hour Meter / Odometer
13261 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Safety Certification Label
There is a safety certification label with a date of 06/24
Load Chart
Yes
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Mirrors
Window Controls
Operational
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Operational
Engine Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational
Gauges
Operational
Gear Selector
Brake Control
Engine Brake
Not operationally checked
ECM Miles
Reader will not display ECM mileage
Heater
Not operationally checked
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
2008 US EPA Label
Emission Label
Blow-by (subjective visual observation)
Video capture could not be performed
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
Front of engine, Rear of engine
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Underbody
Transmission
Operational, Dripping leak
Steer Axle
Center Drive Axle
Rear Drive Axle
Limited Function Check - Carrier
The drivetrain was operational without a load.
Steering Linkage
Steering Wheel Play
Brake Type
Air
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Held against power, Stopped the machine while rolling
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Suspension Air Bags
Frame Condition
Tire Condition
Wheel Condition
Wheel Studs
Hydraulics - Crane Carrier/Chassis
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulic)
Stabilizer Cylinders
Limited Function Check
The hydraulic system was operational.
Upper Control Station
Hour Meter Reading
14260 Hours-IronPlanet makes no guarantees as to actual hours/miles; we can only report what can be visually observed.
Seat Belts
Operational
Mirrors
No visible damage or missing components
Glass
Seats/Armrests
Horn
Operational
Safety Lock Out/Stop
Operational
Load Moment Indicator
Operational
Hydraulic Controls
Oil Pressure
The gauge registers in the operating range.
Exterior Lights
Operational
Warning Lights
Operational
Gauges
Operational
Hoist Brakes
Drum Rotation Indicator
Air Conditioner
Not operationally checked
Heater
Not operationally checked
Limited Function Check
The main components are in place and operational as noted.
Chassis
Crane Superstructure
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Wear Pads
Boom Angle Indicator
Turntable Bearing
Bottom Covers
Limited Function Check
The main crane components functioned when checked without a load.
Outrigger Beams
Outrigger Cylinders
Outrigger Pads
Crane Superstructure Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Lift Cylinders
Telescopic Boom Cylinders
Limited Function Check
The hydraulic system was operational.
Specialty
Jib
Main Load Block
Overhaul Ball
Counterweights
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Aug 07, 2026 |
| Silicon | 0.03 PPM |
| Tin | 0 PPM |
| Silver | 0 PPM |
| Aluminum | 3.91 PPM |
| Chromium | 1.04 PPM |
| Lead | 1 PPM |
| Copper | 0.77 PPM |
| Nickel | 0.34 PPM |
| Iron | 16.91 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
