169 Photos
2008 Liebherr LTM1130-5.1 155 ton 10x8x8 All Terrain Crane
Located
Nitro, WV
Nitro, WV
Usage
895,027 hrs
895,027 hrs
Serial number
66007
66007
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15701099
In yard
No
Features
Air Conditioner, ZF Automatic Transmission, 8680.2 hrs Carrier Engine, 2020 US EPA Label, Liebherr D846 A7 6 Cylinder Diesel Carrier Engine, Air Conditioner, Tilt Cab, Anti Two-Block, Liebherr LTM 1130 5.1 Load Moment Indicator, Liebherr Diesel Upper Engine, 42 ft Minimum 197 ft Maximum Boom Length, Auxiliary Hoist, Rooster Sheave, 35 ft to 108 ft Swingaway Jib, 992 lb 10 ton Capacity Lieberr 1 Sheave Hook Block, Overhaul Ball, 92600 lb Counterweight, Counterweight Removal System, T/A Crane Dolly
Notes
COMES WITH IRONCLAD ASSURANCE. SUBJECT TO WEST VIRGINIA SALES TAX.

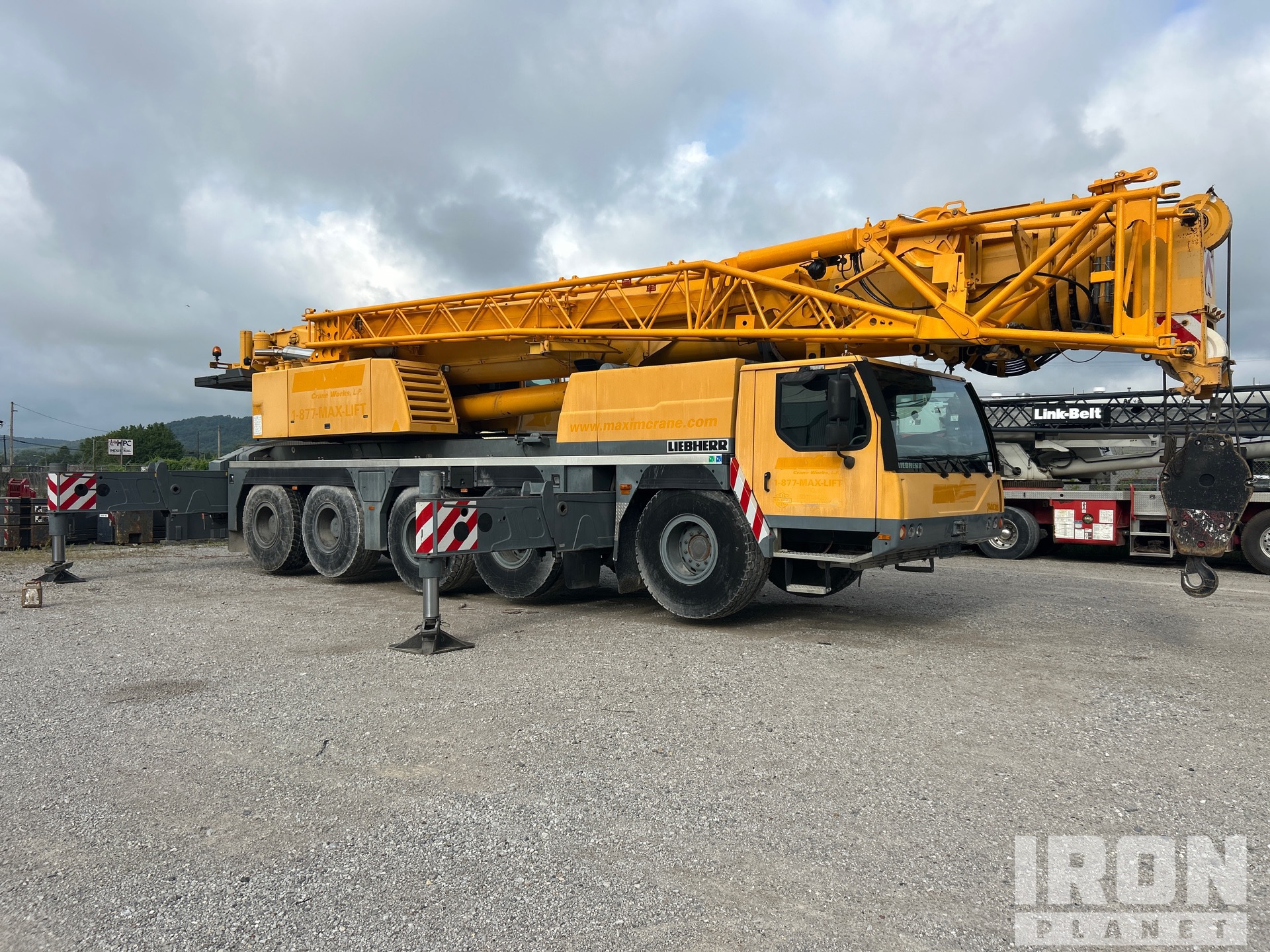

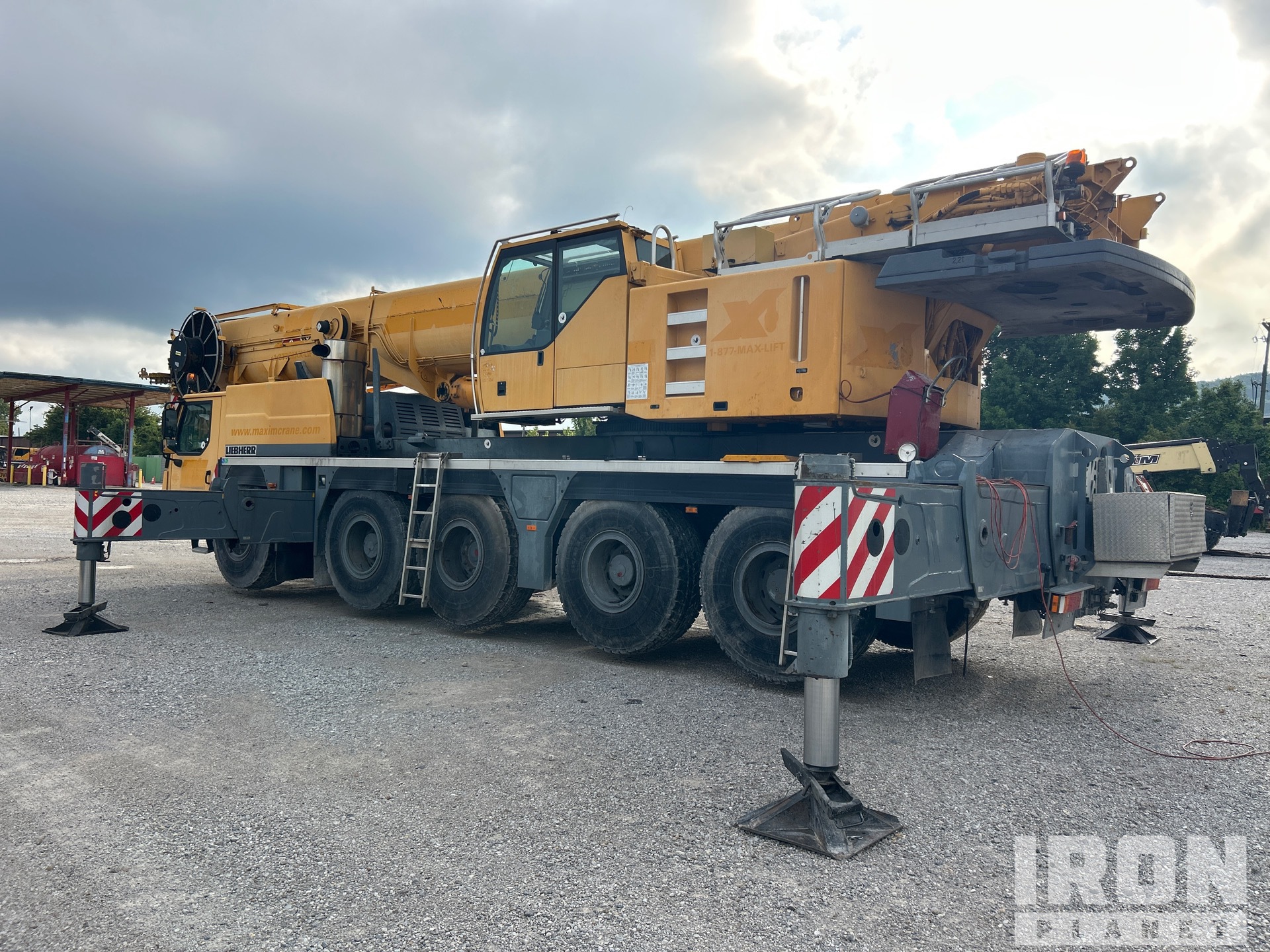

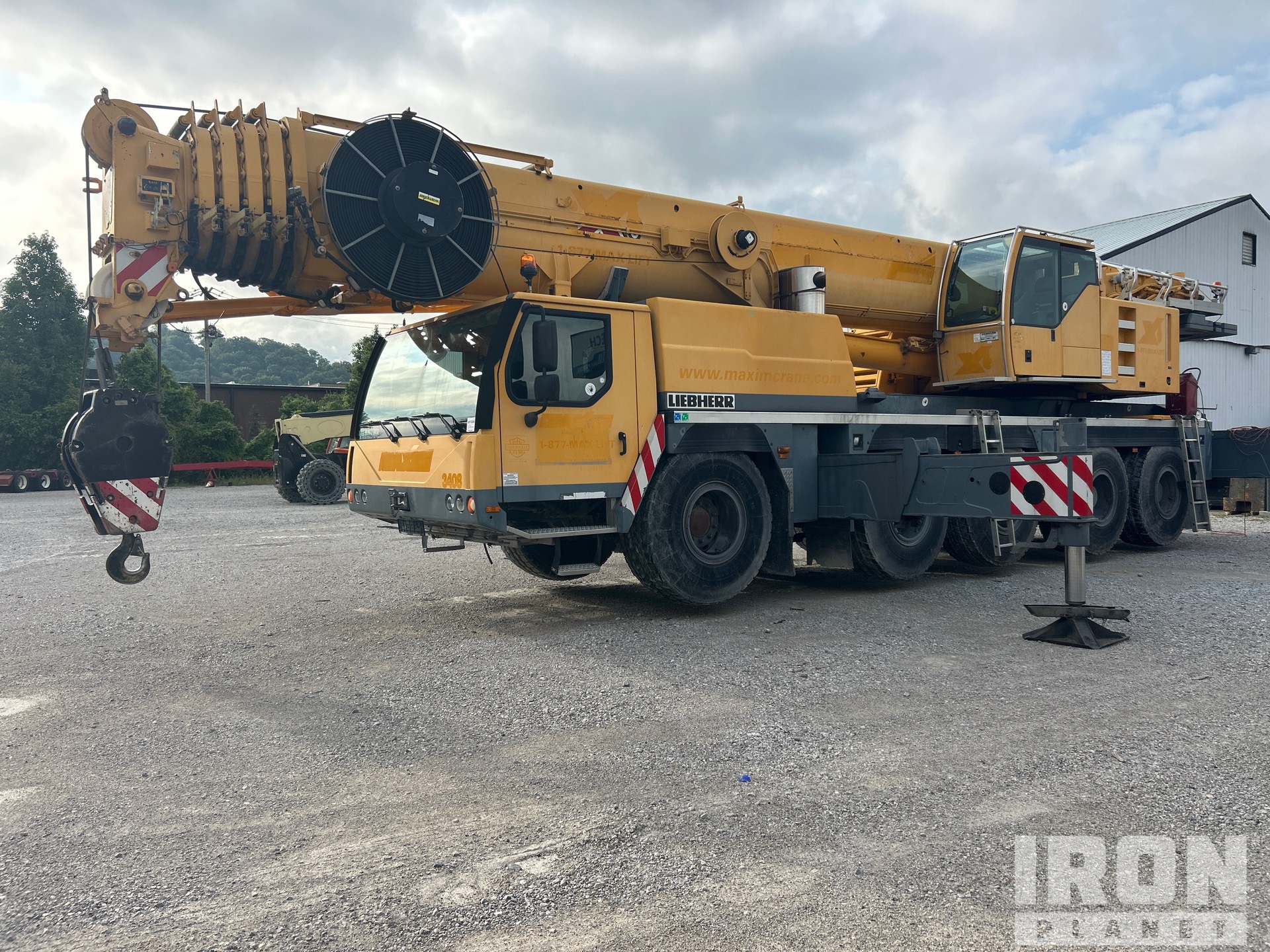

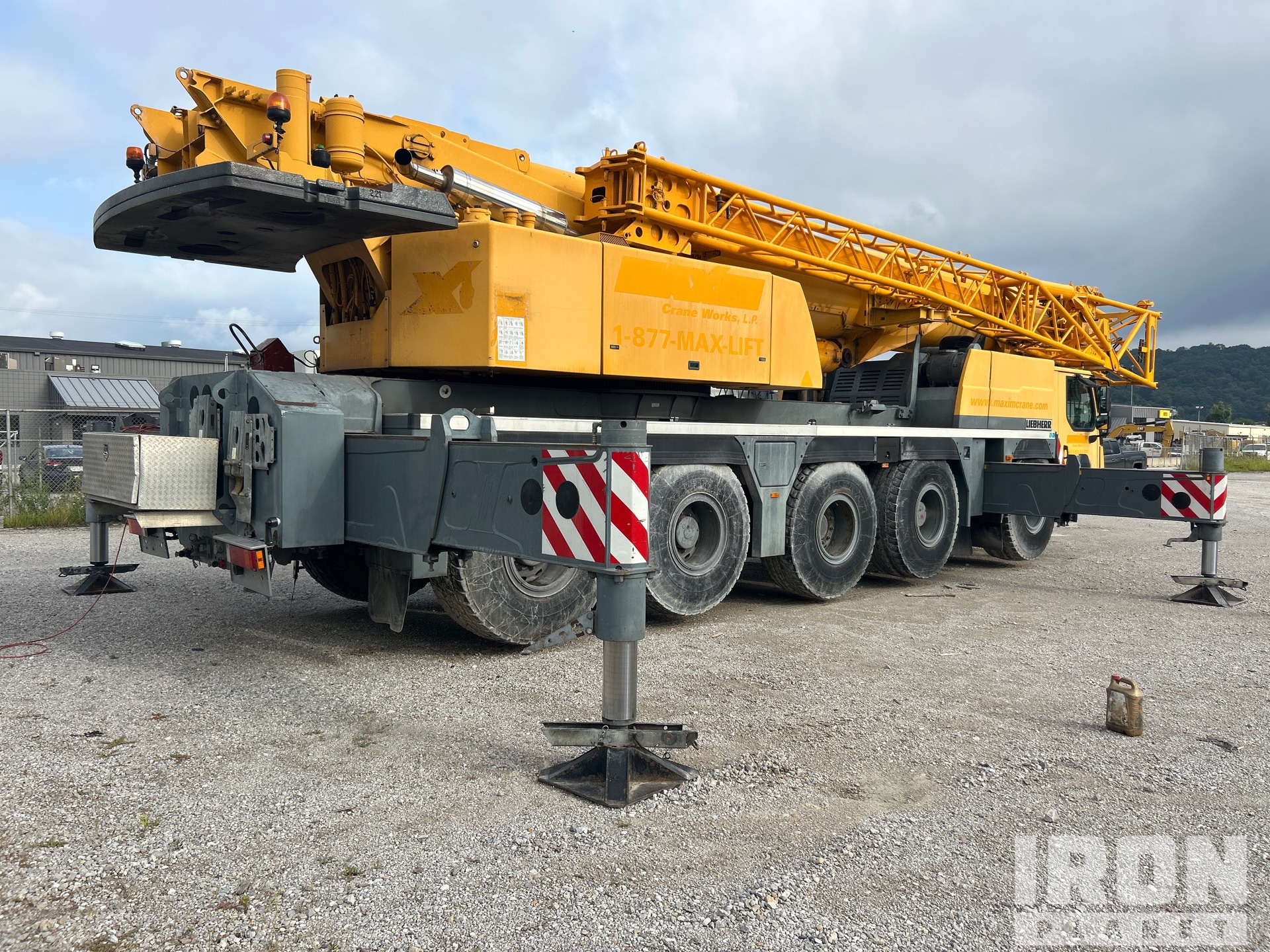

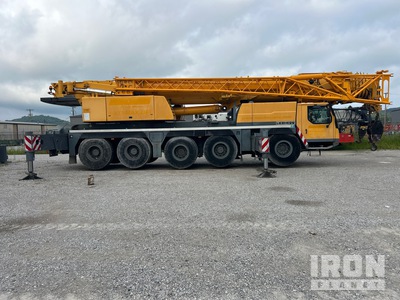

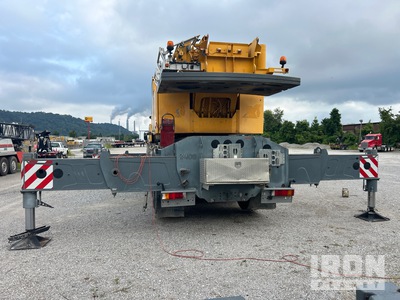

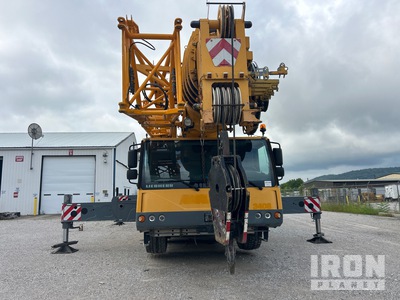

General Appearance
Serial Number / VIN
66007
Hour Meter / Odometer
895027 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Some not operational
Safety Certification Label
There is a safety certification label with a date of June 2025
Load Chart
Yes
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Lower/Carrier Engine Hours
8680.2 hrs Carrier Engine
Mirrors
Window Controls
Operational
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Operational
Engine Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational
Gauges
Operational
Gear Selector
Brake Control
PTO Control
Air engaged, Operational
Air Conditioner
Operational
Heater
Not operationally checked
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
2020 US EPA Label
Emission Label
Blow-by (subjective visual observation)
Minor
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Underbody
Transmission
Operational
PTO Pump
Operational
Steer Axle
Front Drive Axle
Center Drive Axle
Rear Drive Axle
Final Drives
Limited Function Check - Carrier
The drivetrain was operational without a load.
Steering Linkage
Steering Wheel Play
Brake Type
Air
Master Cylinder/Brake Control
Soft pedal
Brake Lines/Hoses
Park Brake
Held against power
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Springs/Hangers Condition
Frame Condition
Cross Members
Tire Condition
Wheel Condition
Wheel Studs
Hydraulics - Crane Carrier/Chassis
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulic)
Stabilizer Cylinders
Limited Function Check
The hydraulic system was operational.
Upper Control Station
Hour Meter Reading
15775.8 Hours-IronPlanet makes no guarantees as to actual hours/miles; we can only report what can be visually observed.
Glass
Seats/Armrests
Load Moment Indicator
Not operationally checked
Anti Two Block
Operational
Hydraulic Controls
Oil Pressure
The fault indicator remains on after engine is started.
Exterior Lights
Warning Lights
Operational
Gauges
Operational
Hoist Brakes
Drum Rotation Indicator
Operational
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Upper Engine
Emission Certification Label
Not legible
A/C Compressor
Operational
Starter
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Right Side
Limited Function Check (Engine)
The engine started and ran.
Chassis
Crane Superstructure
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Wear Pads
Turntable Bearing
Bottom Covers
Limited Function Check
The main crane components functioned when checked without a load.
Outrigger Beams
Outrigger Cylinders
Outrigger Pads
Crane Superstructure Hydraulics
Hydraulic Motors
Swing Motor
Main Hoist
Auxiliary Hoist
Lift Cylinders
Telescopic Boom Cylinders
Specialty
Jib
Main Load Block
Overhaul Ball
Counterweights
