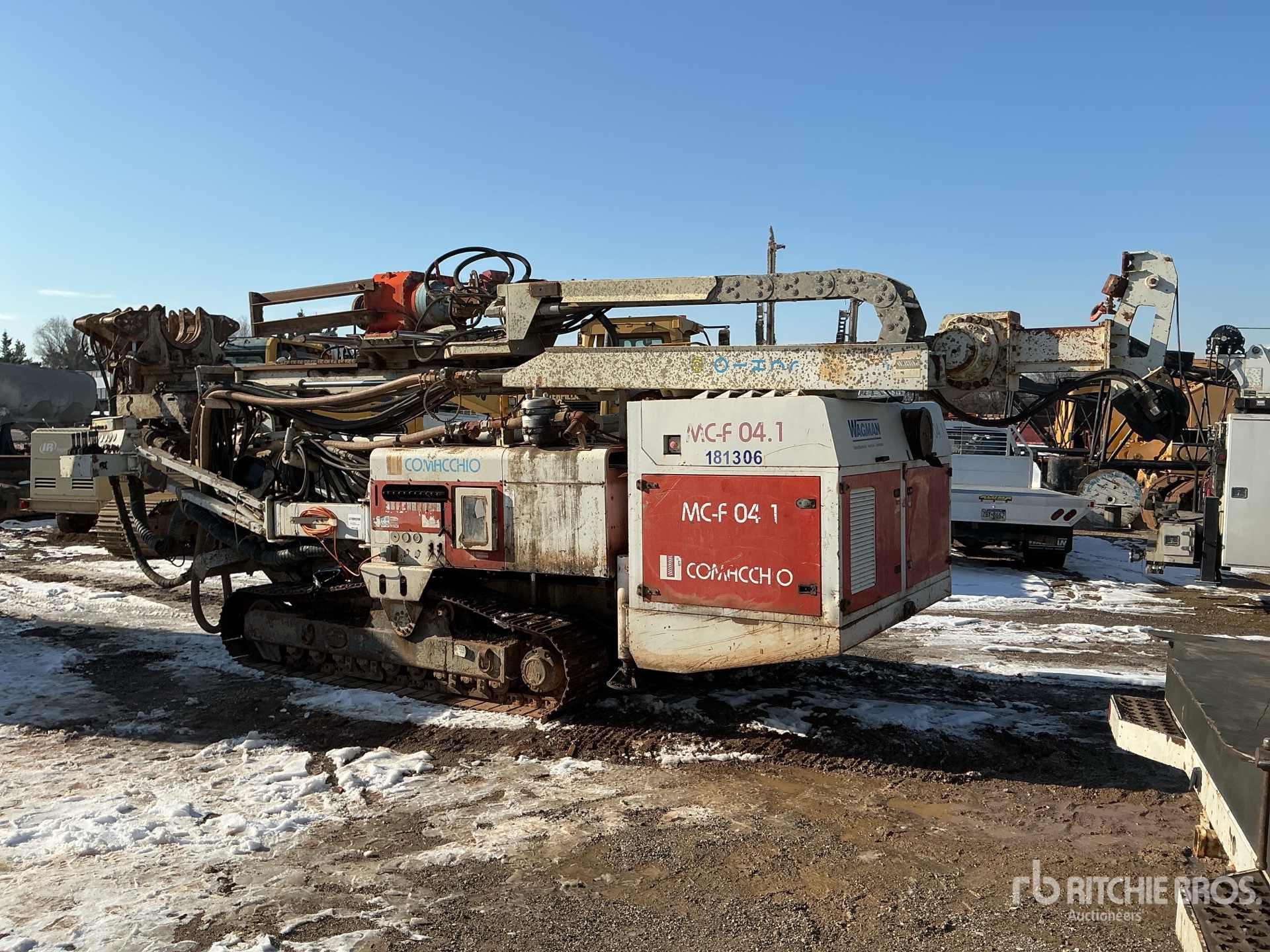

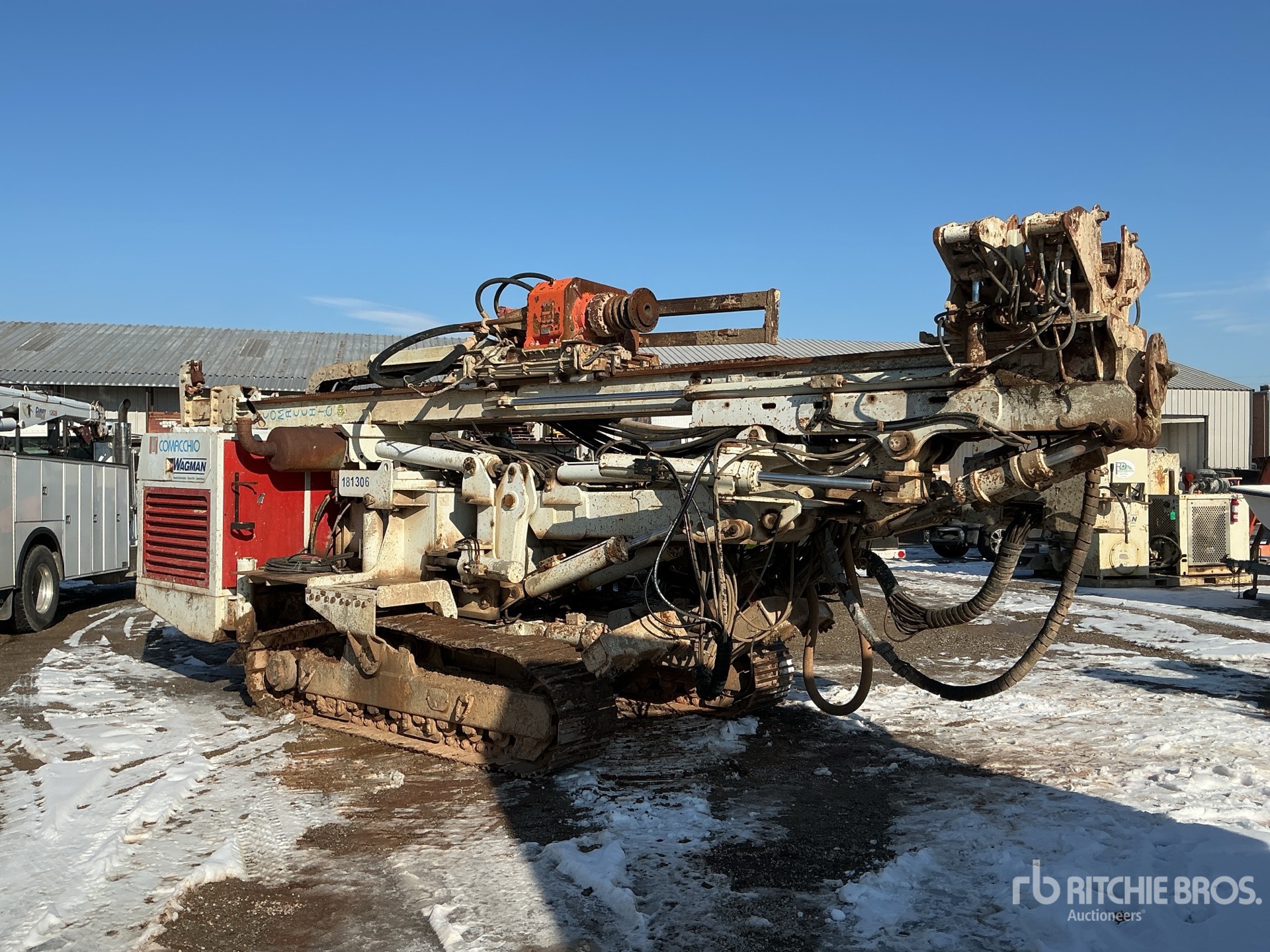

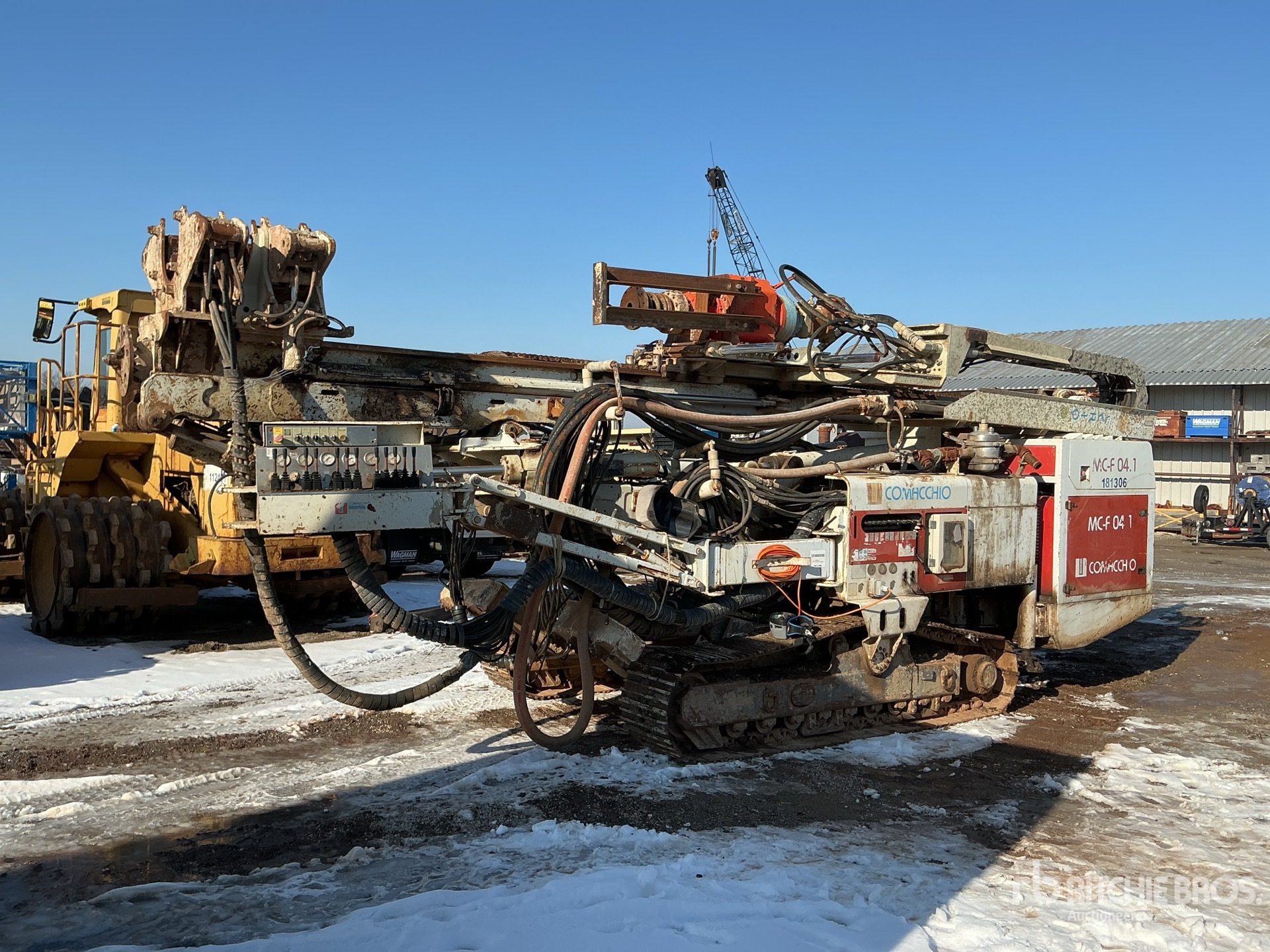

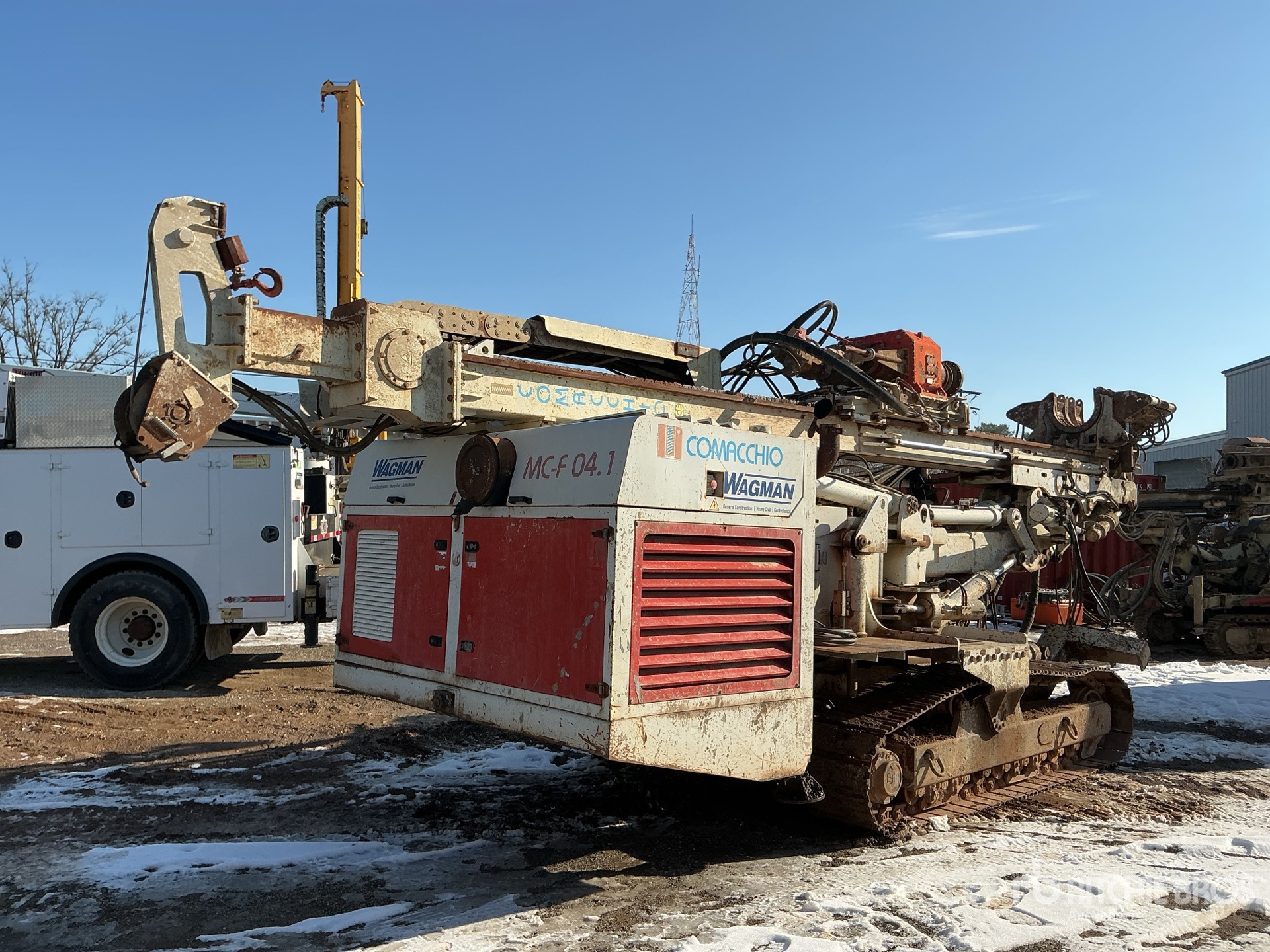

2008 Comacchio MC-F04.1 Blasthole Drill
Located
York, PA
Serial number
1300
Loading...
Detailed equipment information
This lot is protected by IronClad Assurance
Buy with confidence knowing that this lot has been given a full and detailed inspection by a qualified inspector.
ID number
#14489042
In yard
No
Year
2008
Manufacturer
Model
Asset type
Serial number or VIN
1300
Features
US EPA Label, Deutz TDC 2013 L06 2V 6 Cylinder 188 kW Diesel Engine, Comacchio Hammer, 18 in Triple Grouser Track Shoes
Chassis
Boom Condition
Mast Condition
Main Frame
Bottom Covers
Thrust Chain / Sprockets
Kelly Drive Gear Box
Kelly Slide Wear Plates
Hyd. Hose Carrier System
The carrier is bent.
Vices
The vice assembly has heavy movement.
Limited Function Check
The main components were operational with movement as indicated, The main components were operational with damage as noted..
General Appearance
Picture, Left Front Corner
Picture, Left Rear Corner
Picture, Right Rear Corner
Picture, Right Front Corner

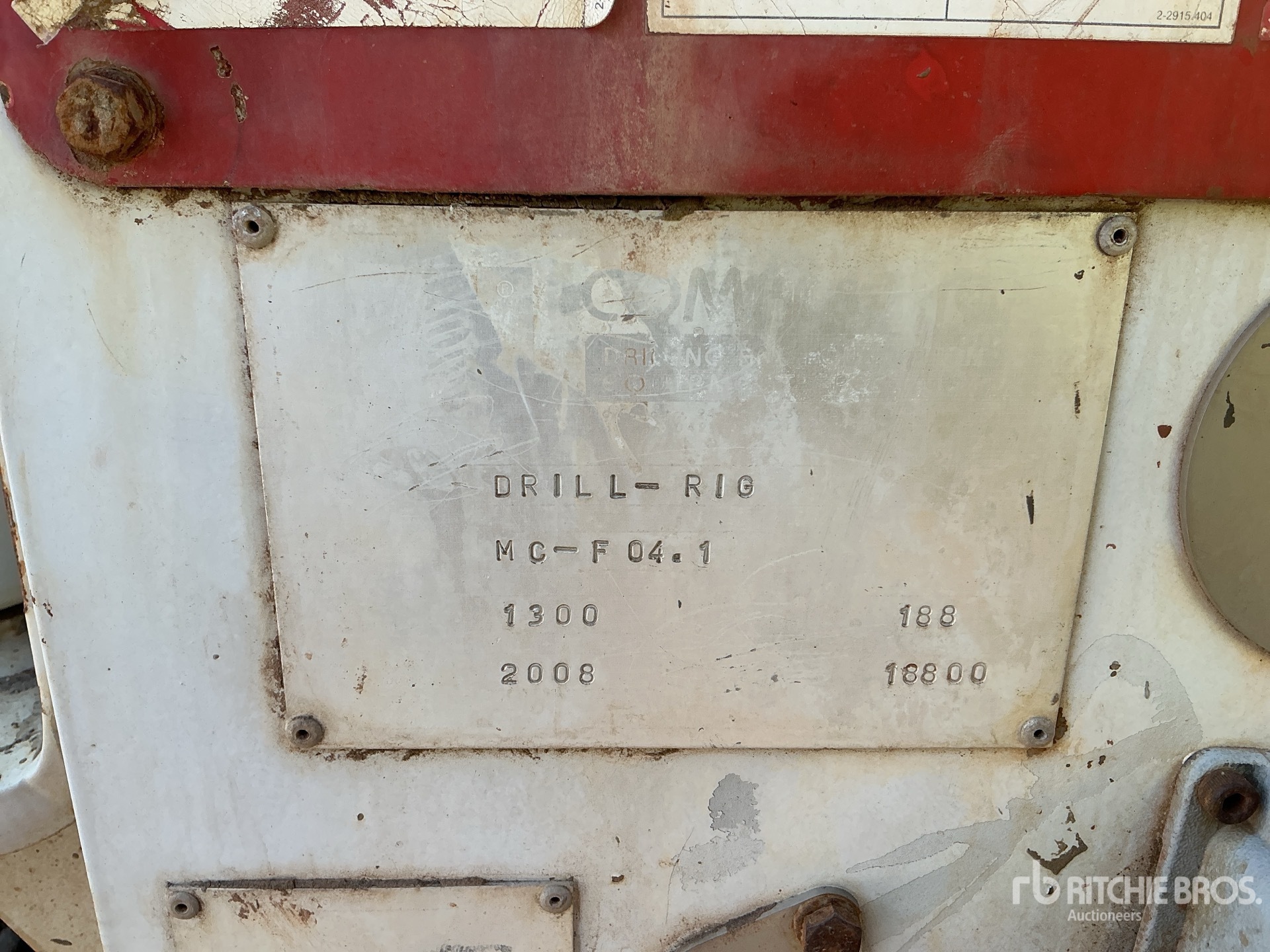

Serial Number / VIN
1300, The serial number is not legible. This unit may be difficult to export.
Hour Meter / Odometer
SEE REPORT 602 Hours; The age and condition of the Dill indicates more hours than shown on the hours meter.-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Safety
Horn
Inoperable
Safety Lock Out/Stop
Operational
Control Station
Hydraulic Controls
Drivetrain Controls
Dash Console
Engine Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational
Gauges
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Emission Label
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Drive Motors
Dripping Leak, The left drive motor has a dripping leak.
Final Drives
Limited Function Check (Drivetrain-Track)
The drivetrain was operational without a load.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Low fluid level
Hoses (Hydraulics)
This item has several hoses throughout that have dripping leaks.
Hydraulic Motors
Boom Lift Cylinder(s)
Dripping leak on the left cylinder, Dripping leak on the right cylinder
Stabilizer Cylinders
The right cylinder has a dripping leak.
Mast Angle Cylinders
Dripping leak on the right cylinder
Limited Function Check
The hydraulic system was operational. Dripping leaks from various cylinders.
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Shoes
Left Grouser Height
16 mm
Left Track Links
Left Carrier Rollers
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Shoes
Right Grouser Height
16 mm
Right Track Links
Right Carrier Rollers
Right Track Rollers
Right Idler
Right Sprocket
Oil Sample Analysis
Oil Sample Analysis
| engine | hydraulic | |
|---|---|---|
| date of analysis | Dec 23, 2025 | Dec 23, 2025 |
| Silicon | 1.21 PPM | 2.42 PPM |
| Tin | 2.16 PPM | 0.48 PPM |
| Silver | 0 PPM | 0 PPM |
| Aluminum | 0.24 PPM | 0 PPM |
| Chromium | 0.94 PPM | 0 PPM |
| Lead | 0.88 PPM | 1.67 PPM |
| Copper | 2.36 PPM | 3.5 PPM |
| Nickel | 1.06 PPM | 1.1 PPM |
| Iron | 20.42 PPM | 1.41 PPM |
| Glycol | NEG | N/A |
| Water | NEG | N/A |
| Fuel | <5% | <5% |
