2007 Manitowoc 10000 100 ton Lattice-Boom Crawler Crane
Located
Elberfeld, IN
Usage
15,132 hrs
Serial number
1094
Loading...
Detailed equipment information
This lot is protected by IronClad Assurance
Buy with confidence knowing that this lot has been given a full and detailed inspection by a qualified inspector.
ID number
#12212419
In yard
No
Year
2007
Manufacturer
Model
Asset type
Serial number or VIN
1094
Features
Air Conditioner, Anti Two-Block, Load Moment Indicator, 2007 US EPA Label, 100 ft Boom, Self Erecting, Auxiliary Hoist, Rooster Sheave, McKissick 4 Sheave Hook Block, 757 lb 19 ton Overhaul Ball, 35.5 in Single Grouser Track Shoes
General Appearance
Picture, Left Front Corner

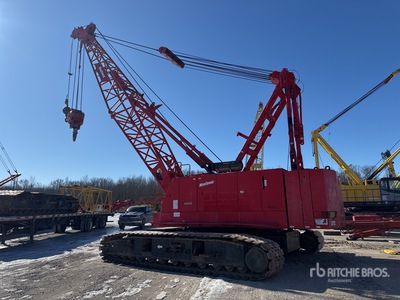

Picture, Left Rear Corner

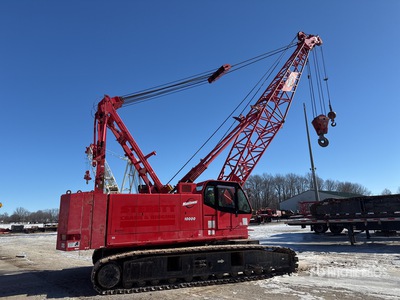

Picture, Right Rear Corner

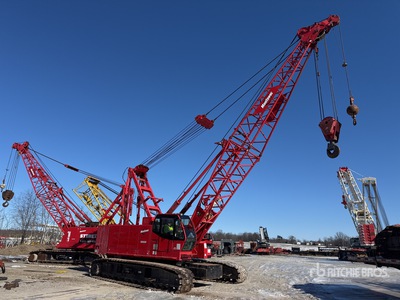

Picture, Right Front Corner
Serial Number / VIN
1094, The serial number is not legible. This unit may be difficult to export.
Hour Meter / Odometer
15132 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Load Chart
No
Safety Certification Label
There is a safety certification label with a date of August 24
Safety Certification Report
Safety Certification Report Available
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Not operational
Safety
Travel Alarm
Inoperable
Horn
Inoperable
Seat Belts
Not equipped
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Control Station - Upper
Mirrors
Glass
No visible damage
Seats/Armrests
Load Moment Indicator
Not operationally checked with a load.
Controls Hydraulic or Air
Load Charts
None found
Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Inoperable
Gauges
Gauges did not move during inspection
Hoist Brakes
Drum Rotation Indicator
Operational
Air Conditioner
The ambient temperature is too cold to check.
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
2007 US EPA Label
Emission Label
A/C Compressor
In place; ambient temperature too cold to check operation
Blow-by (subjective visual observation)
Visible
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Drive Motors
Final Drives
Dripping Leak, Left side is dripping where drive motor and final drive meet
Limited Function Check (Drivetrain-Crawler Crane)
The drivetrain functioned properly without a load.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Oil is not visible in sight glass
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Limited Function Check
The hydraulic system was operational.
Crane Superstructure
Hoist Drums
Hydraulic Operation
Boom Drums
Hydraulic Operation
Main Boom Pins
Pendant Line (Boom Tension Line)
Cable Type
Point Sheaves
Boom Point Section
Gantry/Mast
Boom Stops
Main Boom Chords
Boom Length
100 ft overall length, 20 ft tip section, 2 Sections, 60 ft Length, 20 ft base section
Boom Angle Indicator
Turntable Bearing
Bottom Covers
Swing Drive
Operational
Limited Function Check
The main chassis components functioned when checked without a load.
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
Left Track Links
Left Track Bushings
Left Carrier Rollers
Left Track Rollers
4th roller from the back has a dripping oil leak
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
Right Track Links
Right Track Bushings
Right Carrier Rollers
Right Track Rollers
Right Idler
Right Sprocket
Specialty
Main Load Block
Minor wear
Overhaul Ball
Counterweights
Oil Sample Analysis
Oil Sample Analysis
| engine | hydraulic | |
|---|---|---|
| date of analysis | Jan 31, 2025 | Jan 31, 2025 |
| Silicon | 1.66 PPM | 3.05 PPM |
| Tin | 0.76 PPM | 0.3 PPM |
| Silver | 0 PPM | 0.53 PPM |
| Aluminum | 0.75 PPM | 0.47 PPM |
| Chromium | 0 PPM | 0 PPM |
| Lead | 0 PPM | 0.68 PPM |
| Copper | 0.42 PPM | 16.9 PPM |
| Nickel | 1.38 PPM | 0.84 PPM |
| Iron | 1.65 PPM | 2.67 PPM |
| Glycol | NEG | N/A |
| Water | NEG | N/A |
| Fuel | <5% | <5% |
