155 Photos

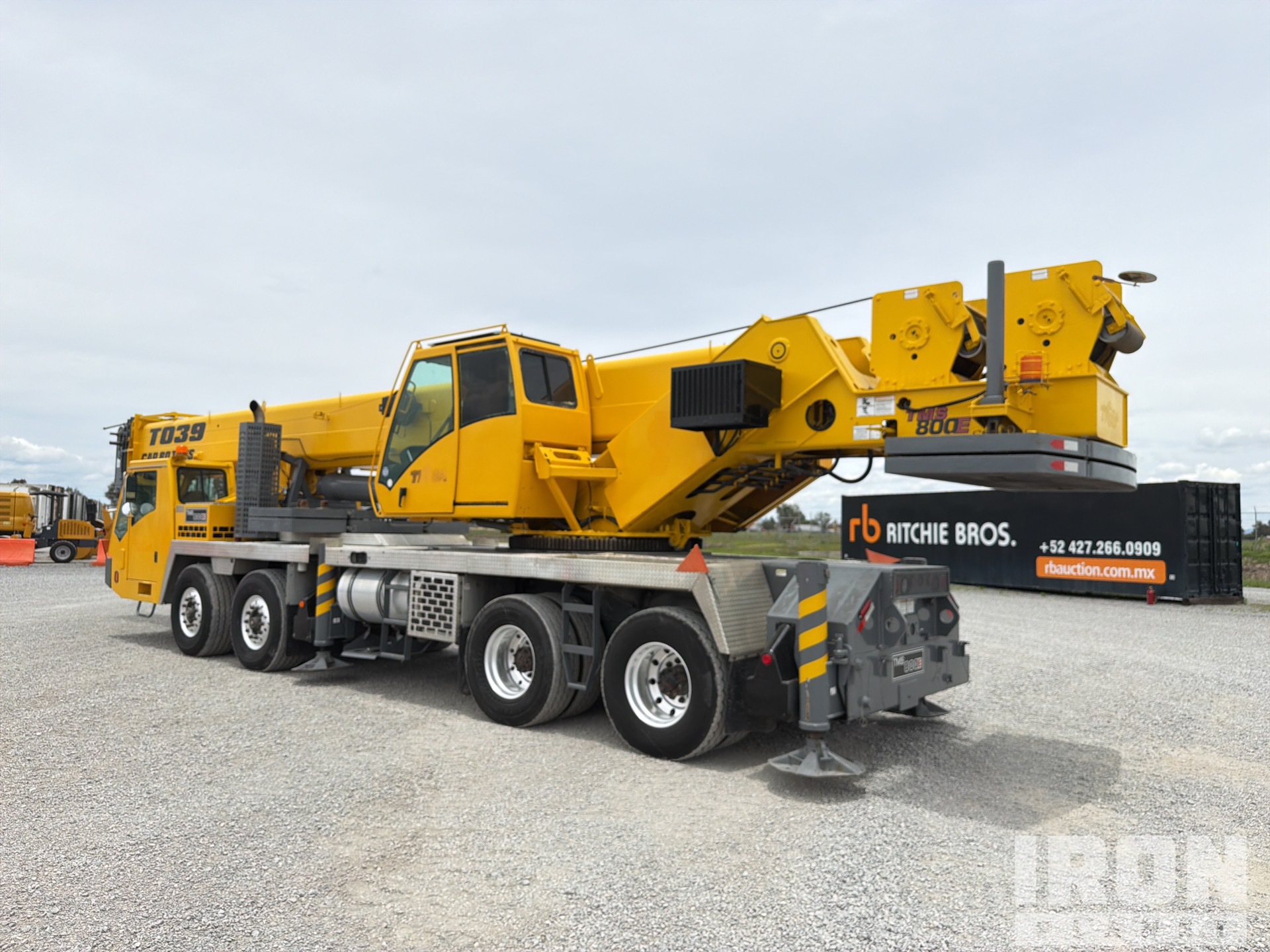

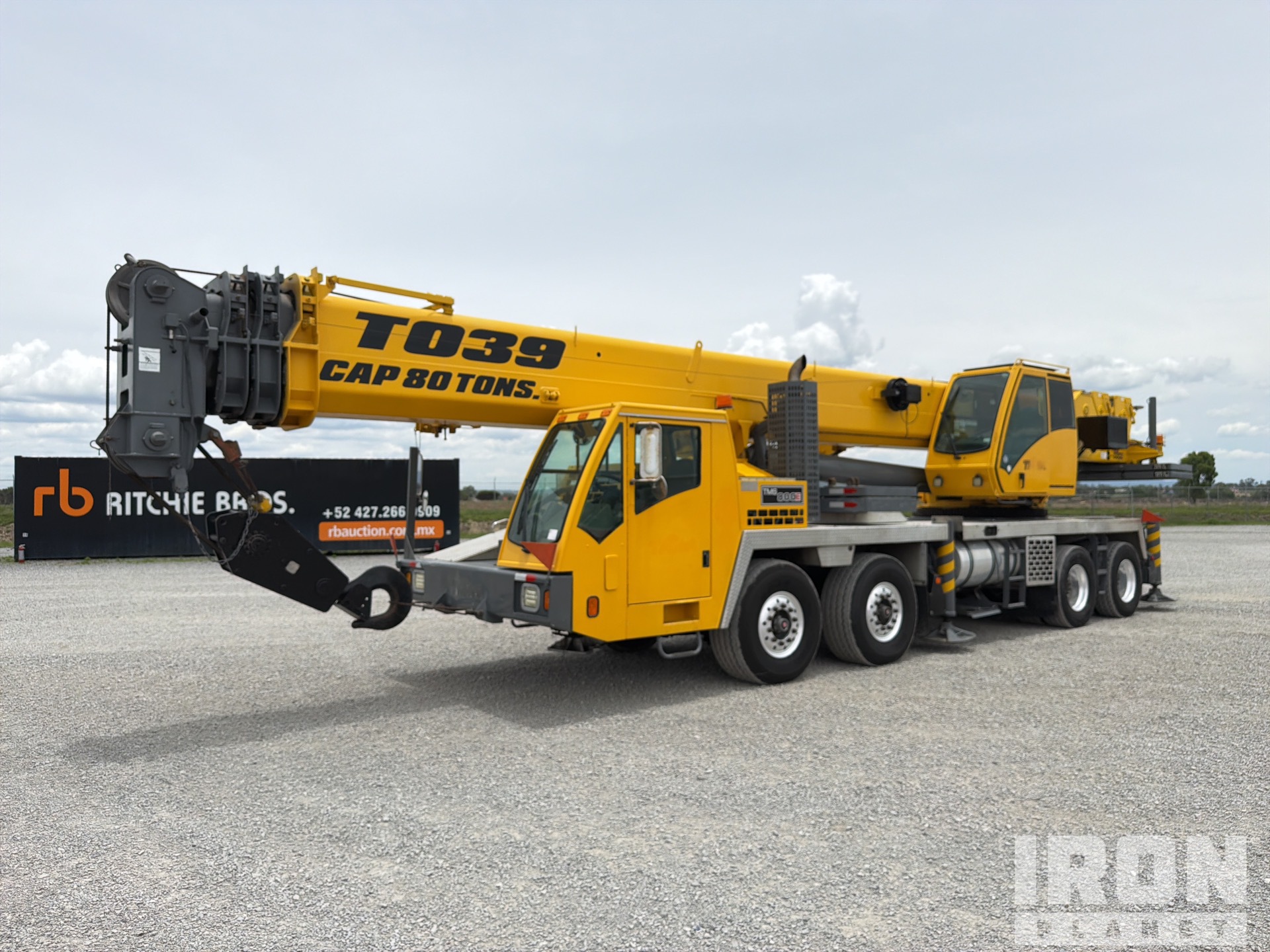

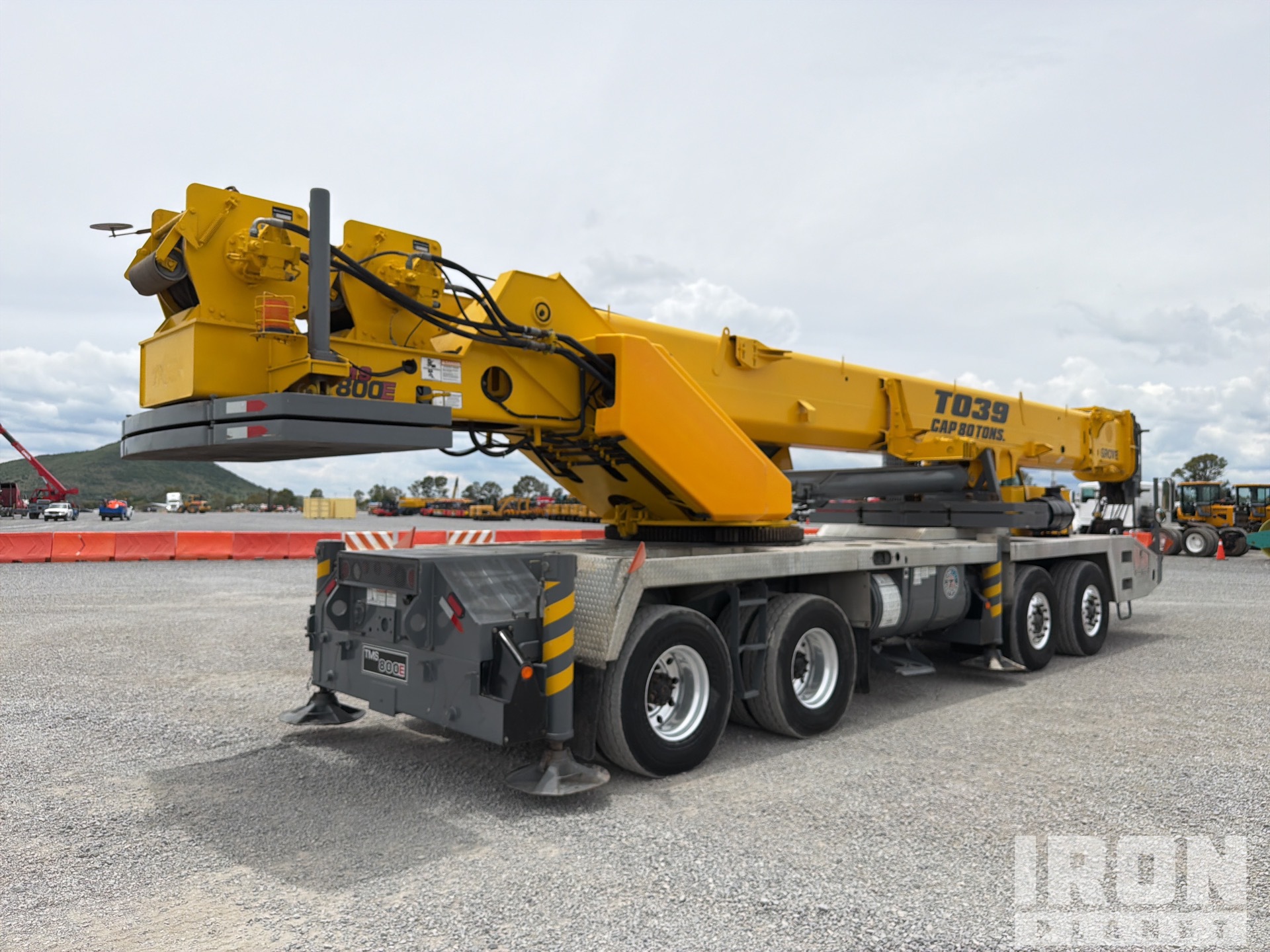

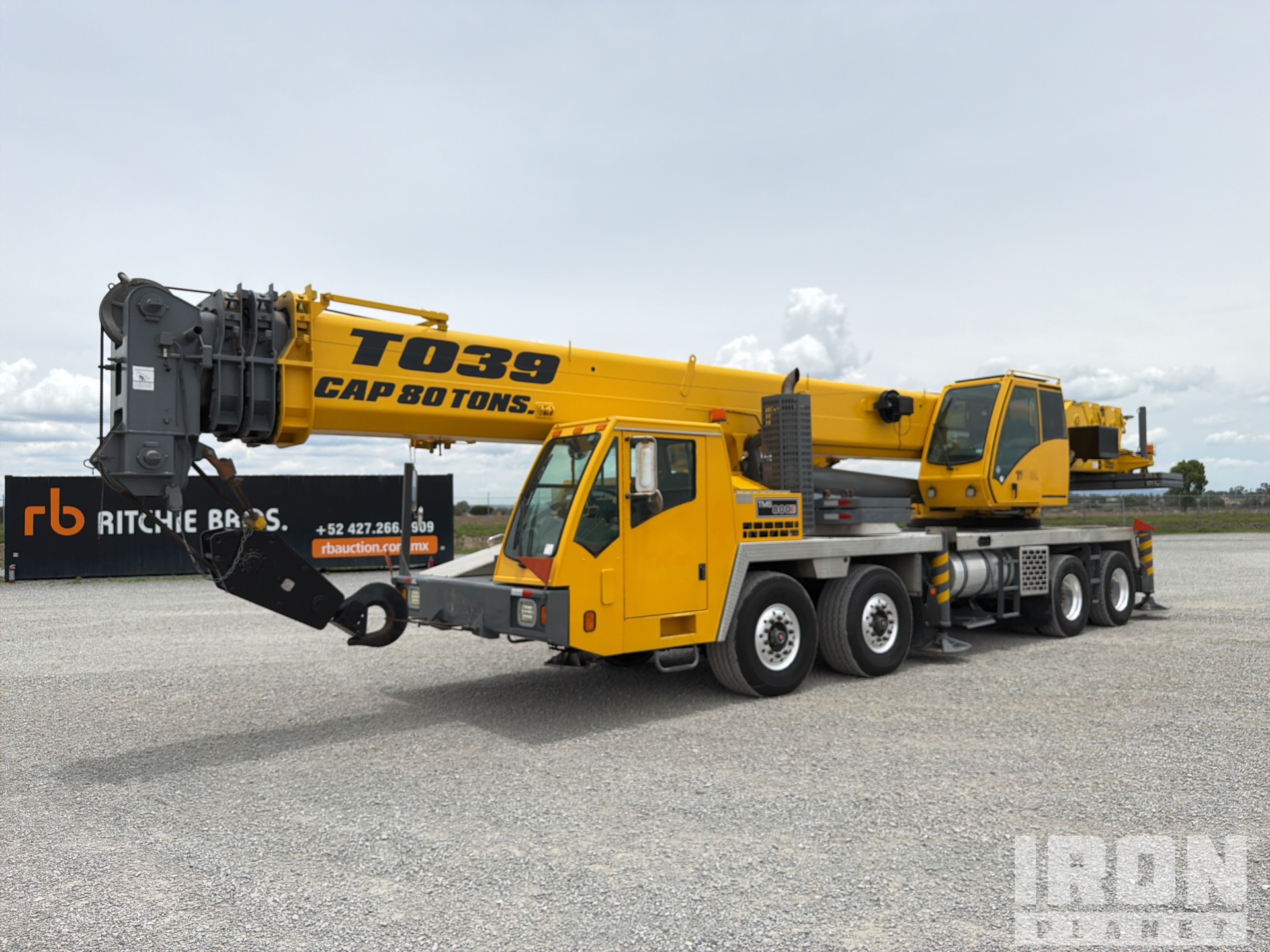

2007 Grove 8480GE 70 ton 8x4x4 Hydraulic Truck Crane
Located
Polotitlán De La Ilustración, MEX, MEX
Polotitlán De La Ilustración, MEX, MEX
Usage
74,245 mi
74,245 mi
Serial number
227715
227715
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15443555
In yard
Yes
Features
13 Speed Manual Transmission, Cummins ISMc 6 Cylinder Diesel Carrier Engine, Anti Two-Block, Hirschmann Load Moment Indicator, 41 ft Minimum 128 ft Maximum Boom Length, 1275 lb 70 ton Capacity McKissick 4 Sheave Hook Block, 8 ton Counterweight, Counterweight Removal System
Notes
Sin suceptibilidad de plaqueo estatal o federal<br><br> This equipment does not have EPA certification; please check for any restrictions that may apply for importing it into the United States // Este equipo no cuenta con certificación EPA, revise las restricciones que pueda tener para importarlo a Estados Unidos<br><br>
General Appearance
Featured Photo
Serial Number / VIN
227715
Hour Meter / Odometer
74245 mi-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Safety Certification Label
There is a safety certification label with a date of 01/29/2024
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Not operational
Safety
Travel Alarm
Inoperable
Horn
Inoperable
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Mirrors
Window Controls
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Inoperable, Inoperable
Engine Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational
Gauges
Operational
Gear Selector
Brake Control
Engine Brake
Does not respond to controls
Clutch
Engages
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
No US EPA Label Present
Blow-by (subjective visual observation)
Minor
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran with smoke that mostly cleared.
Underbody
Transmission
Clutch
Engages
PTO Pump
Operational
Steer Axle
Center Drive Axle
Rear Drive Axle
Limited Function Check - Carrier
The drivetrain was operational without a load.
Final Drives
Steering Wheel Play
Brake Type
Air
Brake Lines/Hoses
Park Brake
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Wheel Condition
Wheel Studs
Steering Linkage
Master Cylinder/Brake Control
Suspension Air Bags
Frame Condition
Tire Condition
Hydraulics - Crane Carrier/Chassis
Hydraulic Tank
Hoses (Hydraulic)
Stabilizer Cylinders
Limited Function Check
The hydraulic system was operational.
Upper Control Station
Hour Meter Reading
15632 Hours-IronPlanet makes no guarantees as to actual hours/miles; we can only report what can be visually observed.
Seat Belts
Operational
Glass
Seats/Armrests
Horn
Inoperable
Safety Lock Out/Stop
Operational
Load Moment Indicator
Operational
Anti Two Block
Inoperable
Hydraulic Controls
Oil Pressure
The fault indicator remains on after engine is started.
Exterior Lights
Not operational
Warning Lights
Operational, stop LMI light stays on
Gauges
Operational, volts, temp gauges are inoperable
Limited Function Check
The main components are in place and operational as noted.
Chassis
Crane Superstructure
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Boom Angle Indicator
Not equipped
Turntable Bearing
Limited Function Check
The main crane components functioned when checked without a load.
Outrigger Beams
Outrigger Cylinders
Outrigger Pads
Crane Superstructure Hydraulics
Hydraulic Motors
Valves
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Lift Cylinders
Telescopic Boom Cylinders
Limited Function Check
The hydraulic system was operational.
Specialty
Main Load Block
Counterweights
