137 Photos
2006 Powerscreen Horizon 6203 Tracked Screen Plant
Located
Louisville, KY
Serial number
12500298
Loading...
Detailed equipment information
This lot is protected by IronClad Assurance
Buy with confidence knowing that this lot has been given a full and detailed inspection by a qualified inspector.
ID number
#12820038
In yard
No
Year
2006
Manufacturer
Model
Asset type
Serial number or VIN
12500298
Features
Deutz TCD2012L062V 6 Cylinder 192 hp Diesel Engine, 19 ft 9 in x 5 ft 11 in Triple Deck Screen, 55 in Wide Feed Conveyor, 36 in Wide Fines Discharge Conveyor, 35 in Wide Left Discharge Conveyor, 36 in Wide Right Discharge Conveyor, 55 in Wide End Discharge Conveyor, 20 in Triple Grouser Track Shoes

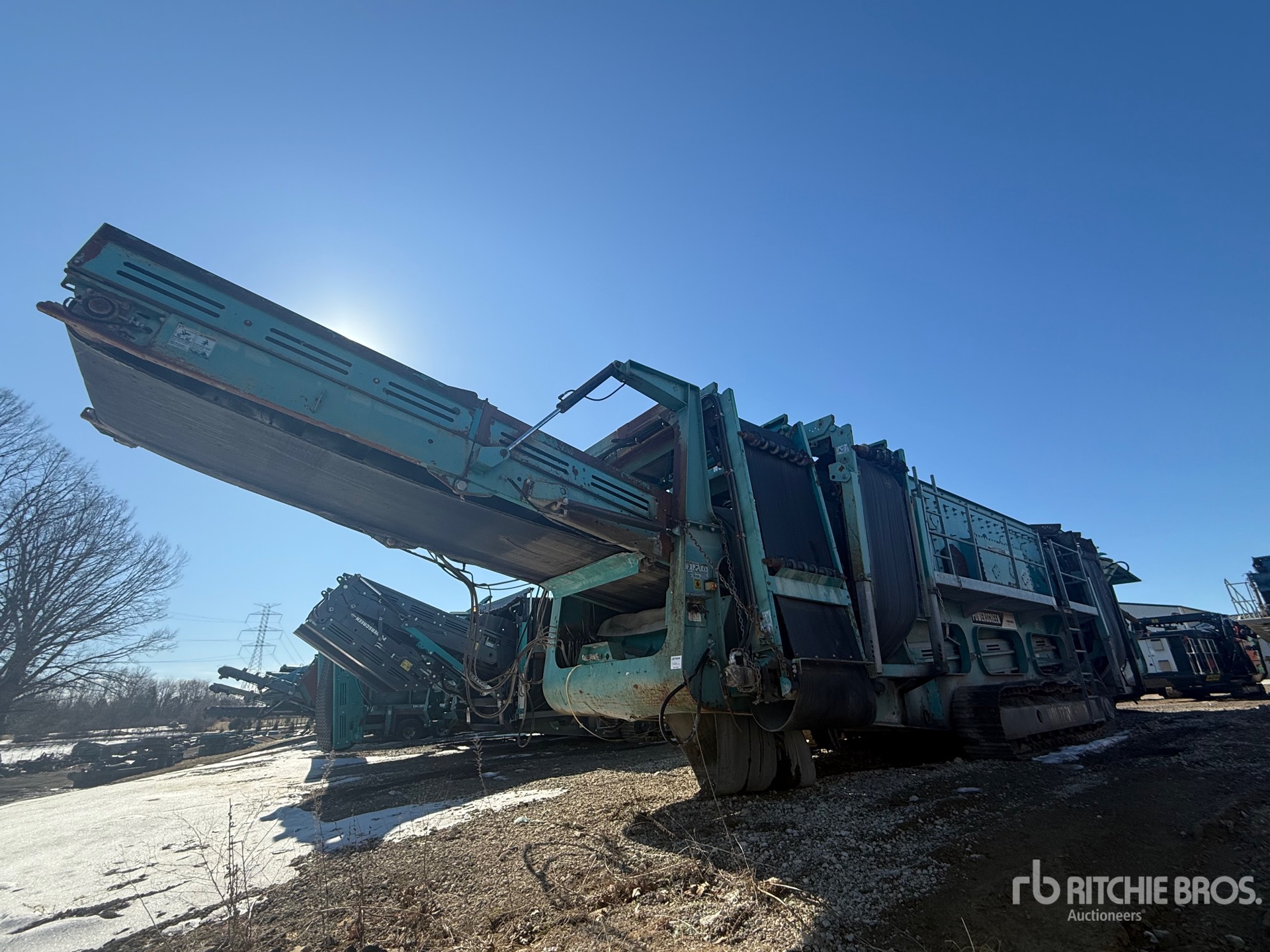

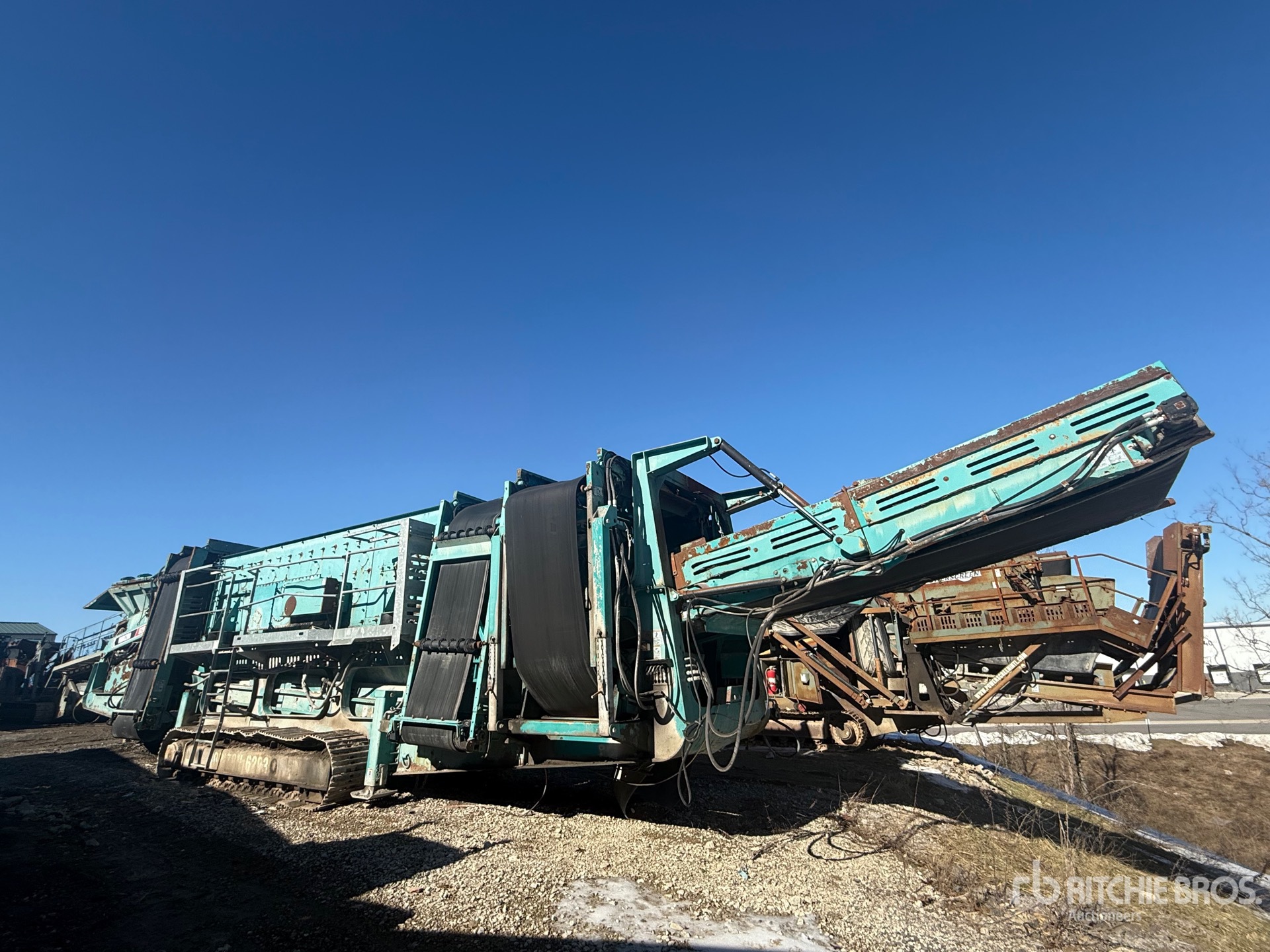

General Appearance
Picture, Left Front Corner
Picture, Left Rear Corner
Picture, Right Rear Corner
Picture, Right Front Corner

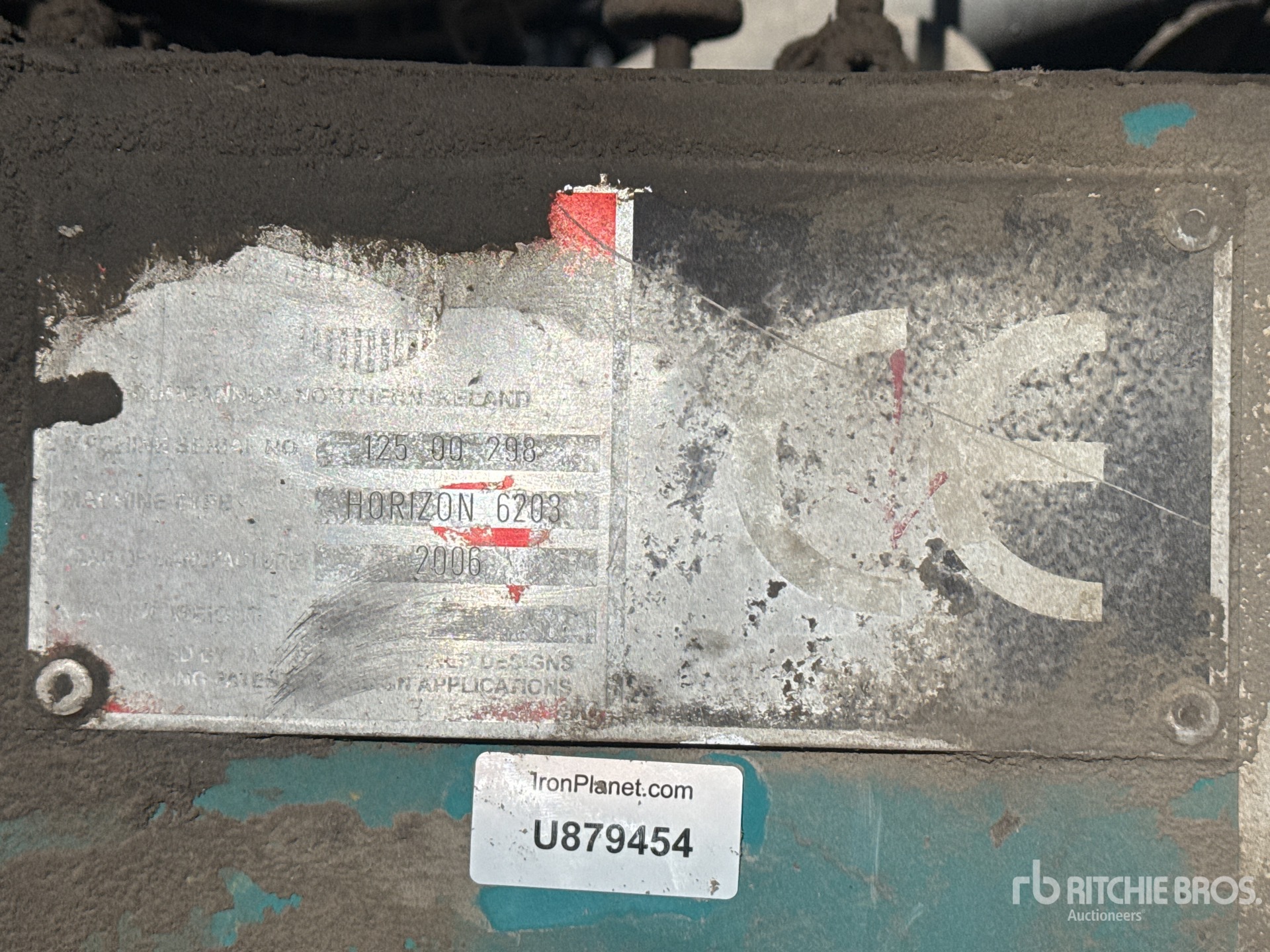

Serial Number / VIN
12500298
CE Mark
CE Marked
Hour Meter / Odometer
SEE REPORT 2597 Hours; The age and condition of the Screen indicates more hours than shown on the hours meter.-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Control Station
Engine Controls
Crusher/Screen Controls
Not operationally checked
Limited Function Check
The item was not operational. The main components could not be operationally checked.
Electrical
Disconnect Switch
Not operationally checked
Cables and Connections
Engine
Emission Certification Label
None found
Starter
Not operationally checked
Exhaust System
Radiator
Engine - Left Side
Engine - Right Side
Limited Function Check (Engine)
The engine could not be started.
Hydraulics
Pumps (Hydraulics)
Dripping leak
Hydraulic Motors
Not operationally checked
Valves
Hydraulic Tank
Hoses
Crusher Door Cylinders
Conveyor Cylinders
The left rear conveyor cylinder is disconnected and has a bent ear. The left front conveyor has (2) cylinders disconnected and has a broken ear.
Stabilizer Jack Cylinders
Both of the left side jacks are removed and are lying on top of the screens.
Limited Function Check
The hydraulic system could not be operationally checked.
Chassis
Feed Conveyor Condition
51 in wide feed belt
Undercarriage
Left Roller Frame
The left track rub on the frame.
Left Track Tensioner
Left Track Pads
Left Grouser Height
24 mm
Left Track Links
Left Track Bushings
Bushings have not been turned
Left Carrier Rollers
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
24 mm
Right Track Links
Right Track Bushings
Bushings have not been turned
Right Carrier Rollers
Right Track Rollers
Right Idler
Right Sprocket
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Feb 12, 2025 |
| Silicon | 1.79 PPM |
| Tin | 1.36 PPM |
| Silver | 0 PPM |
| Aluminum | 1.03 PPM |
| Chromium | 0 PPM |
| Lead | 1.24 PPM |
| Copper | 1.97 PPM |
| Nickel | 1.1 PPM |
| Iron | 2.39 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
