2005 Grove GMK5240 240 ton 10x8x10 All Terrain Crane
Located
Jessup, PA
Jessup, PA
Usage
6,929 km
6,929 km
Serial number
W092005805WG12292
W092005805WG12292
Loading...
ID number
#15536431
In yard
No
Features
Air Conditioner, Allison Transmission, 2004 US EPA Label, Mercedes-Benz 15.9 L Diesel Carrier Engine, Air Conditioner, Tilt Cab, Anti Two-Block, Grove EKS 4 Load Moment Indicator, Mercedes-Benz Diesel Upper Engine, Auxiliary Hoist, 125 ft Jib, 1531 lb 75 ton Capacity Hook Block, 12 ton Capacity Overhaul Ball, 154300 lb Counterweight, Counterweight Removal System
Notes
<br><br>**Title may not be available for up to 25 business days after auction.**

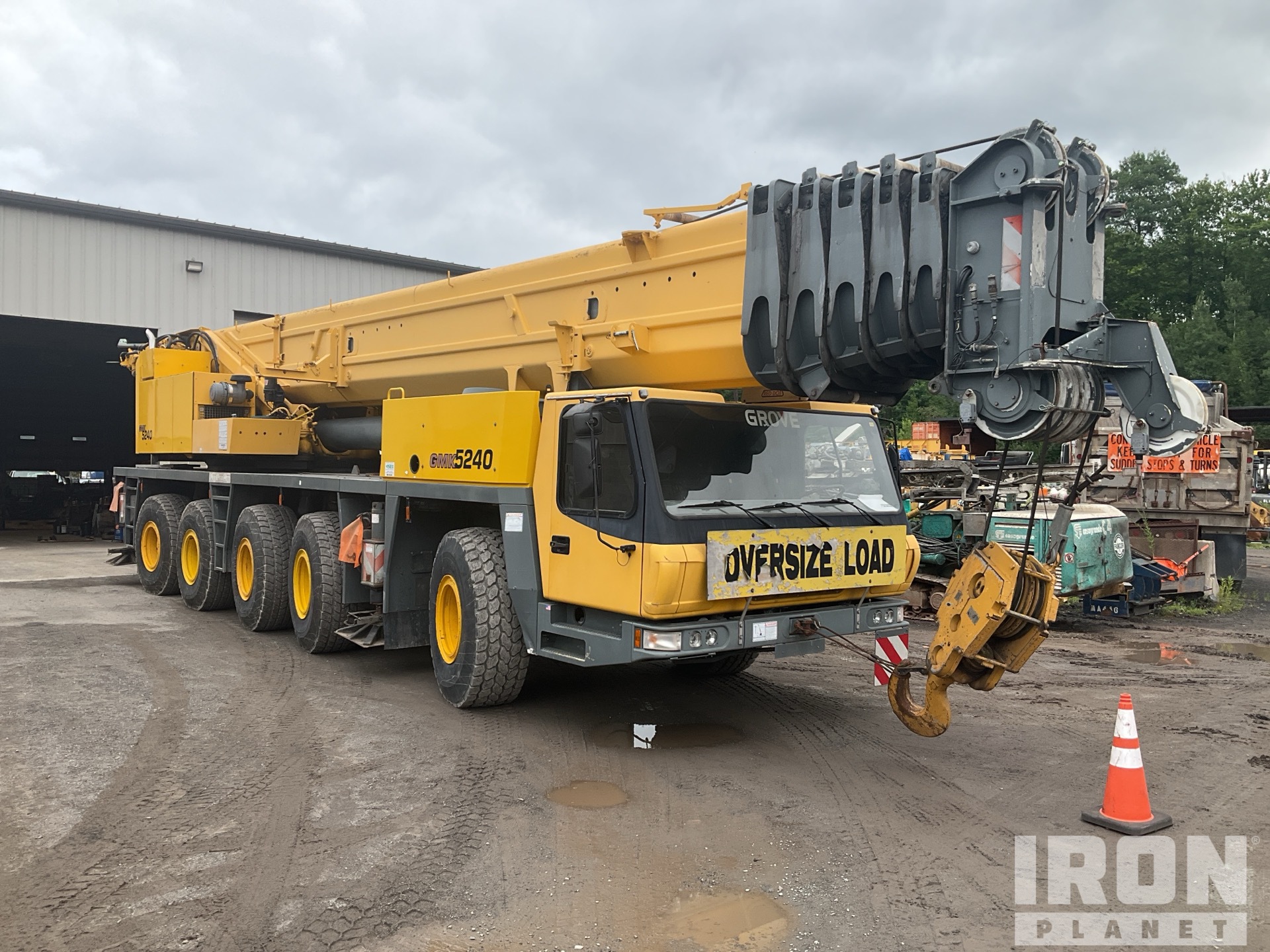

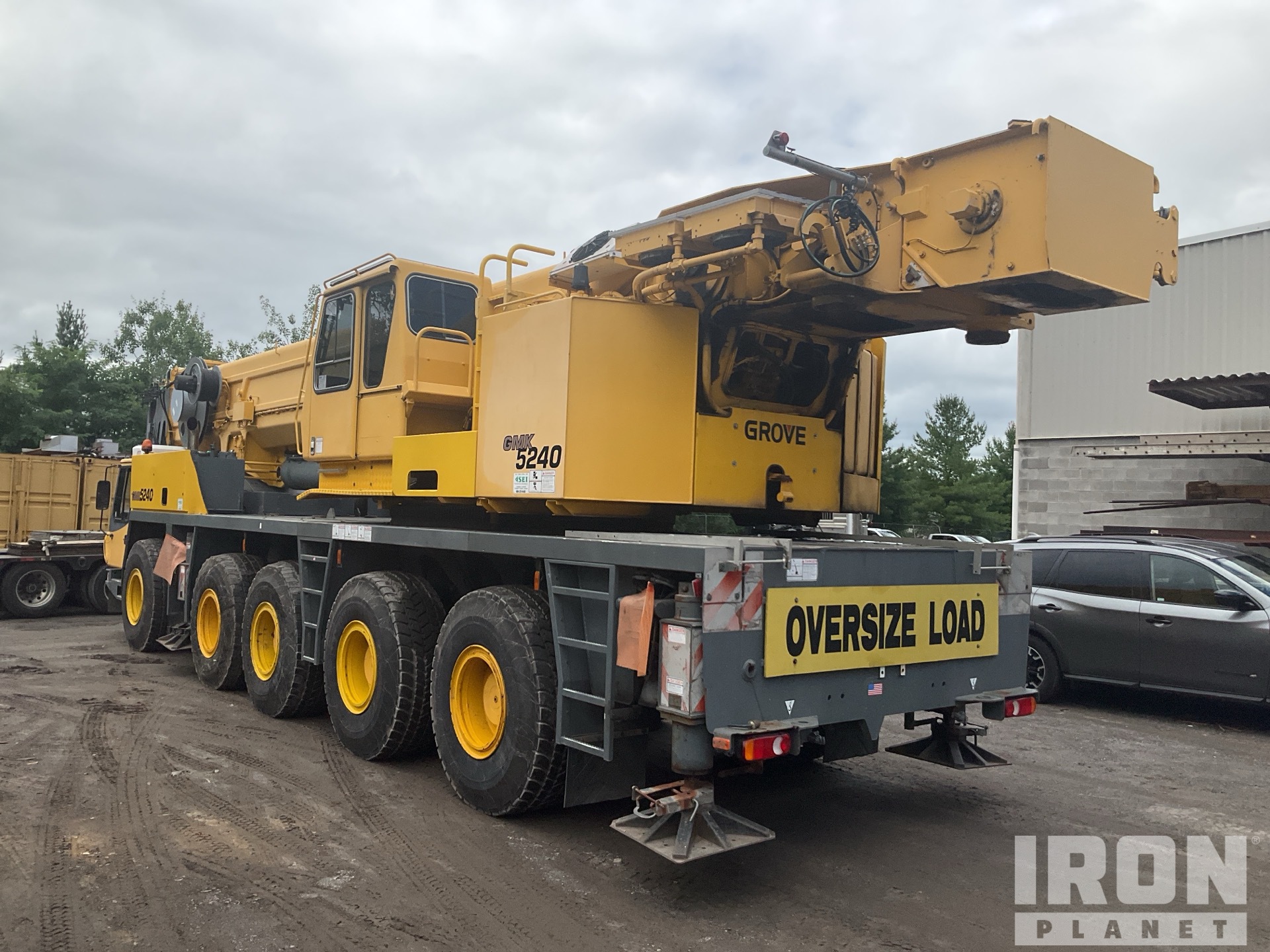

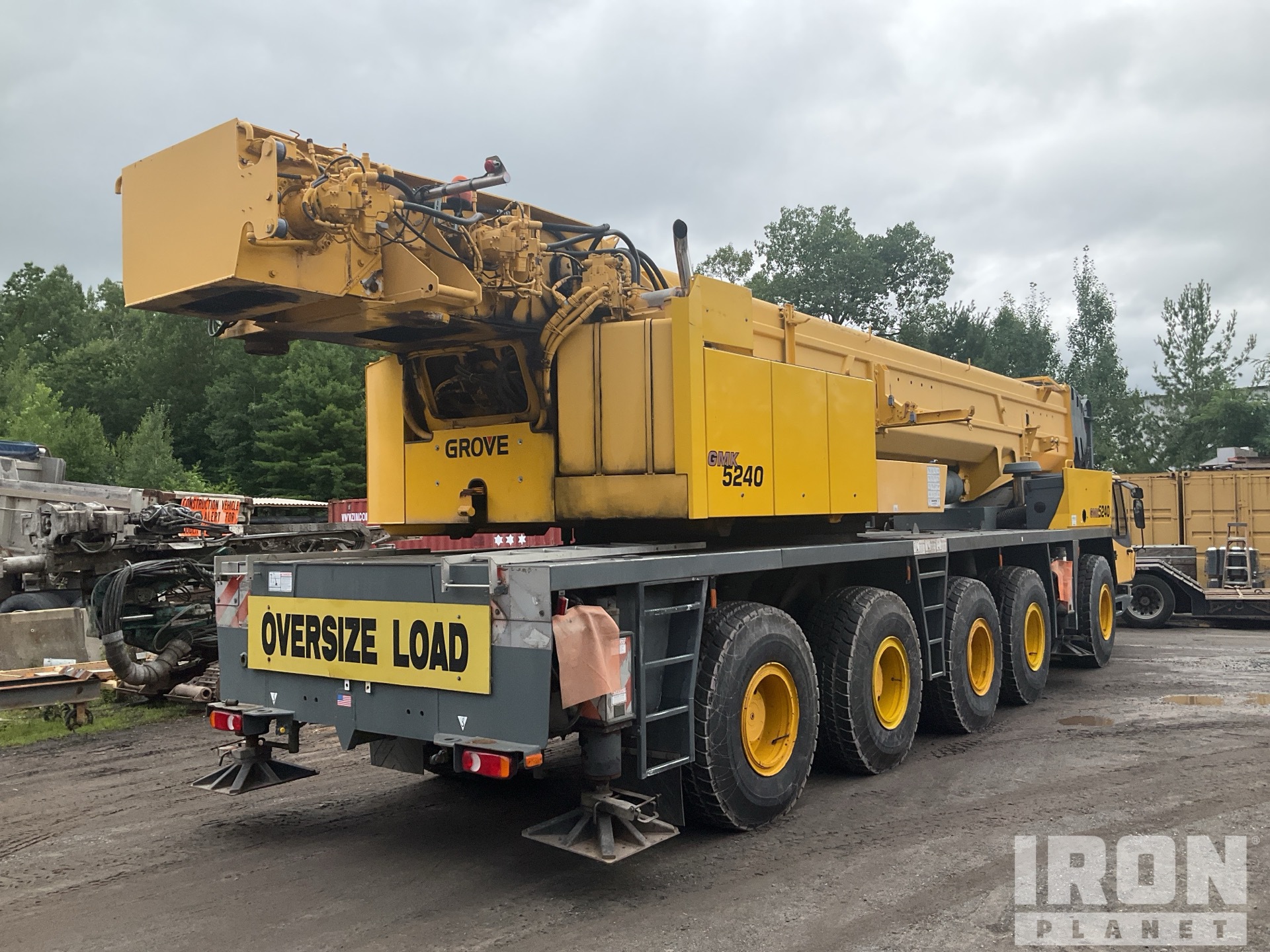

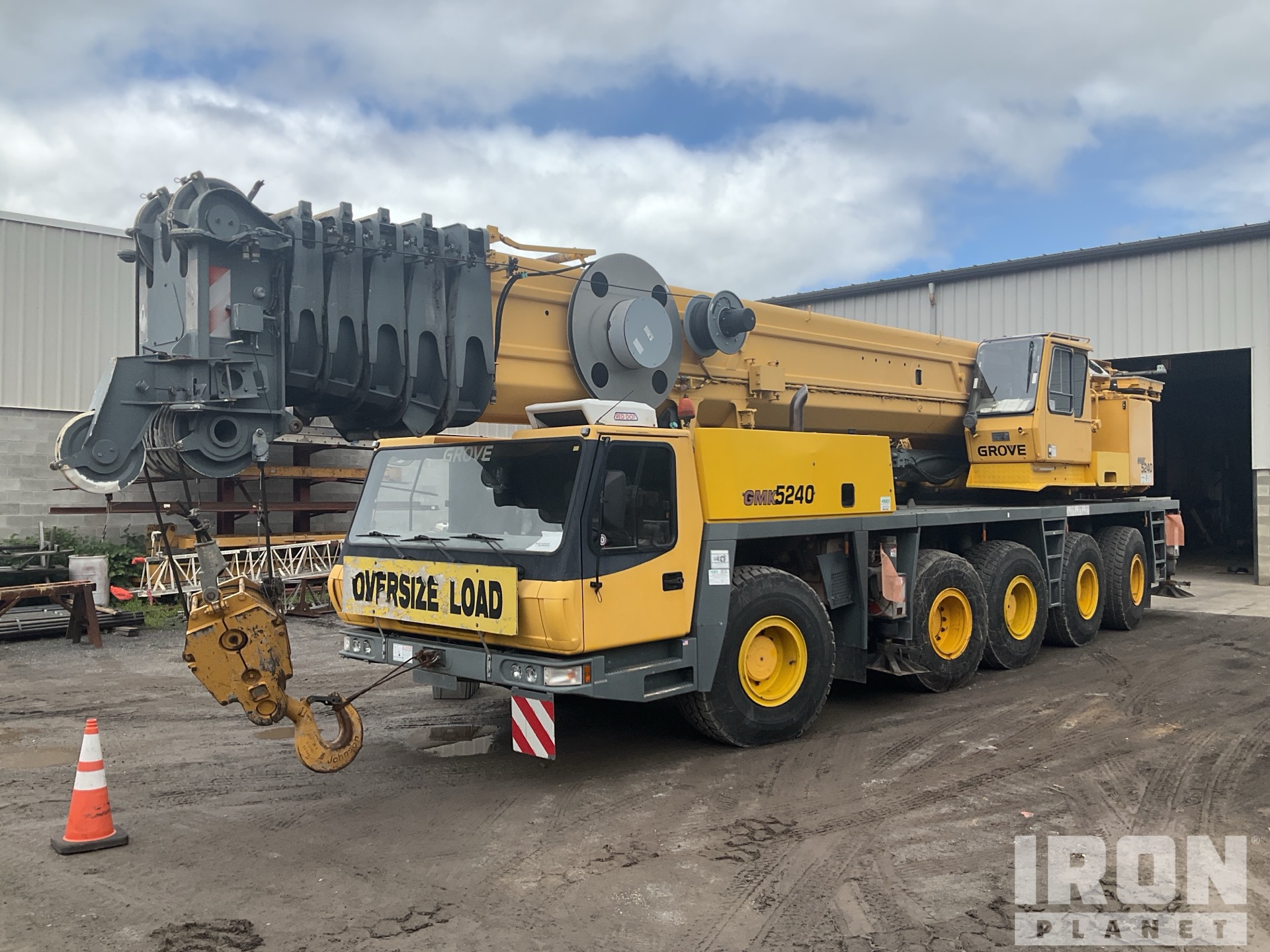

General Appearance
Serial Number / VIN
W092005805WG12292
Unit Serial Number
CE Mark
No CE mark found
Hour Meter / Odometer
6929 km-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Safety Certification Label
There is a safety certification label with a date of 3/27/25
Safety Certification Report
Safety Certification Report Available
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Mirrors
Window Controls
Operational Sliding window
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Operational
Engine Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational
Gauges
Operational
Gear Selector
Brake Control
Engine Brake
Not operationally checked
Air Conditioner
Inoperable
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
Other 2004 US EPA Label
A/C Compressor
Compressor will not engage
Blow-by (subjective visual observation)
Minor
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Underbody
Transmission
Operational, Limited test of transmission
Retarder
Electric: Retarder, Exhaust: Retarder
Steer Axle
Front Drive Axle
Center Drive Axle
Rear Drive Axle
Final Drives
Limited Function Check - Carrier
The drivetrain was operational without a load.
Steering Linkage
Steering Wheel Play
Brake Type
Air
Brake Lines/Hoses
Park Brake
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Springs/Hangers Condition
Frame Condition
Automatic Lube System
Yes
Tire Condition
Wheel Condition
Wheel Studs
Hydraulics - Crane Carrier/Chassis
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulic)
Stabilizer Cylinders
Limited Function Check
The hydraulic system was operational.
Upper Control Station
Hour Meter Reading
2777.35 Hours-IronPlanet makes no guarantees as to actual hours/miles; we can only report what can be visually observed.
Seat Belts
Operational
Glass
Seats/Armrests
Horn
Operational
Safety Lock Out/Stop
Operational
Load Moment Indicator
Operational
Anti Two Block
Not operationally checked
Hydraulic Controls
Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Exterior Lights
Operational
Warning Lights
Operational
Gauges
Operational
Drum Rotation Indicator
Operational
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Upper Engine
Emissions Status
No US EPA Label Present
Emission Certification Label
None found
A/C Compressor
Operational
Blow by @ idle (subjective visual observation)
Minor
Starter
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check (Engine)
The engine started and ran.
Chassis
Crane Superstructure
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Wear Pads
Boom Angle Indicator
Turntable Bearing
Bottom Covers
Limited Function Check
The main crane components functioned when checked without a load.
Outrigger Beams
Outrigger Cylinders
Outrigger Pads
Crane Superstructure Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Not operationally checked
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Lift Cylinders
Telescopic Boom Cylinders
Limited Function Check
The hydraulic system was operational.
Specialty
Jib
Main Load Block
Overhaul Ball
Counterweights
