128 Photos
2004 Komatsu D65EX-15 Crawler Dozer
Located
Cedar bluff, VA
Cedar bluff, VA
Usage
4,536 hrs
4,536 hrs
Serial number
67389
67389
Loading...
Detailed equipment information
A qualified Ritchie Bros. employee collected detailed equipment information and performed functional tests on the key components of this asset. You, or a proxy, may also inspect any items on site prior to bidding on auction day.
ID number
#12639402
In yard
No
Year
2004
Manufacturer
Model
Asset type
Serial number or VIN
67389
Features
Enclosed Cab, Air Conditioner, 2004 US EPA Label, 138 in Wide Semi-U Blade w/ Single Tilt, Carco 70A Winch, 26 in Single Grouser Track Shoes, EQUIPMENT-FROM-GASCO-DRILLING-INC
General Appearance

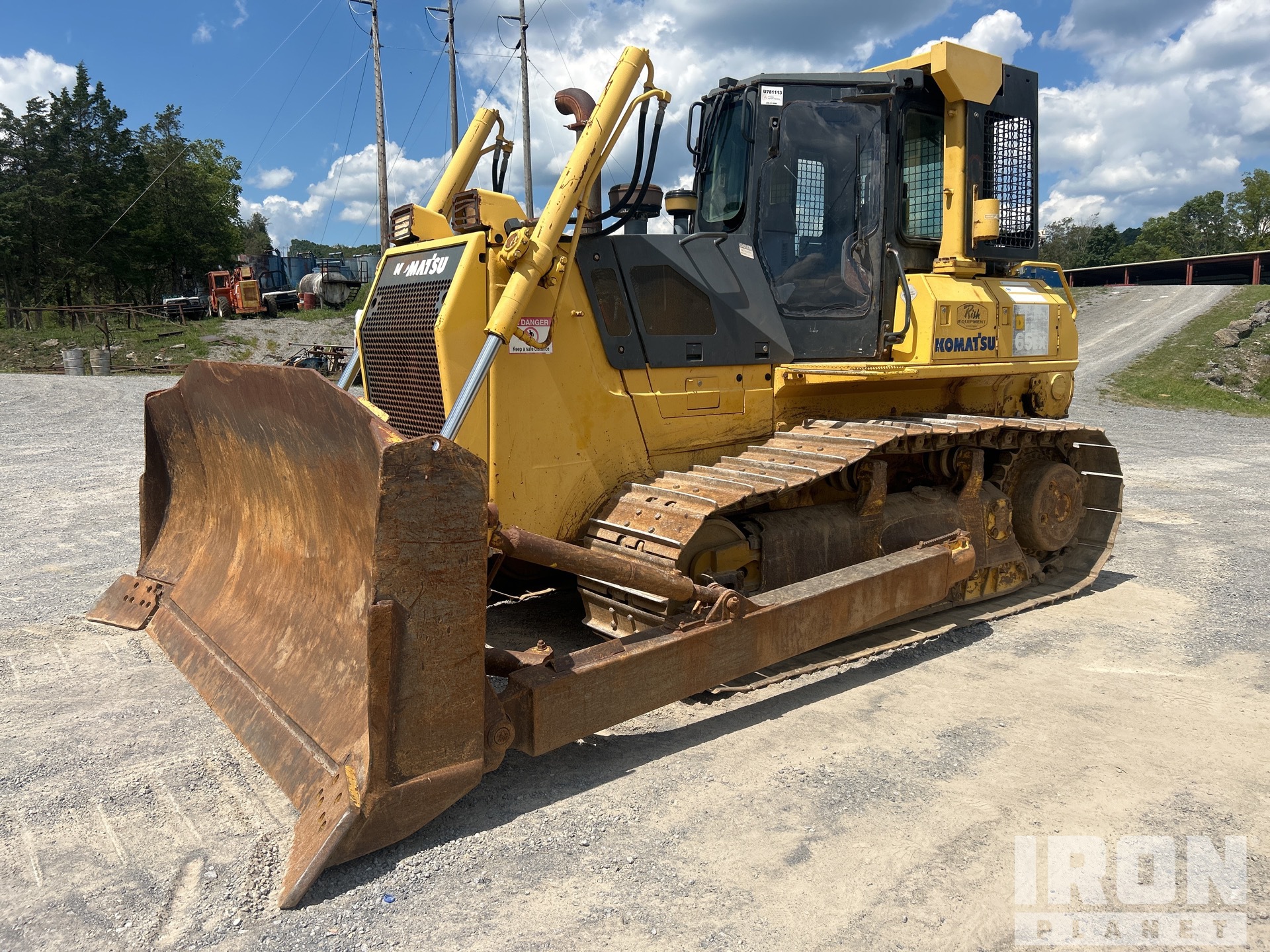

Picture, Left Front Corner

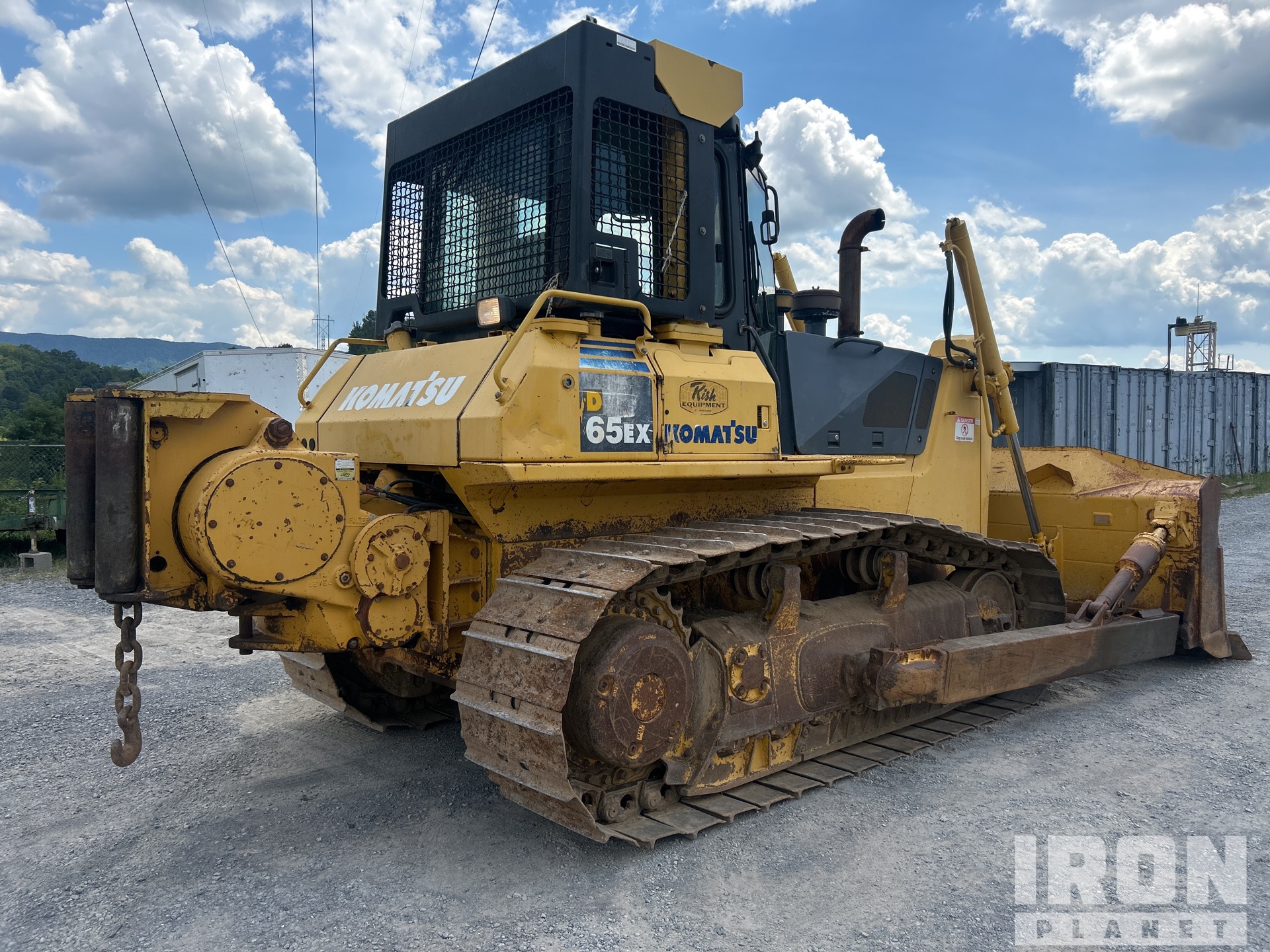

Picture, Left Rear Corner
Picture, Right Rear Corner

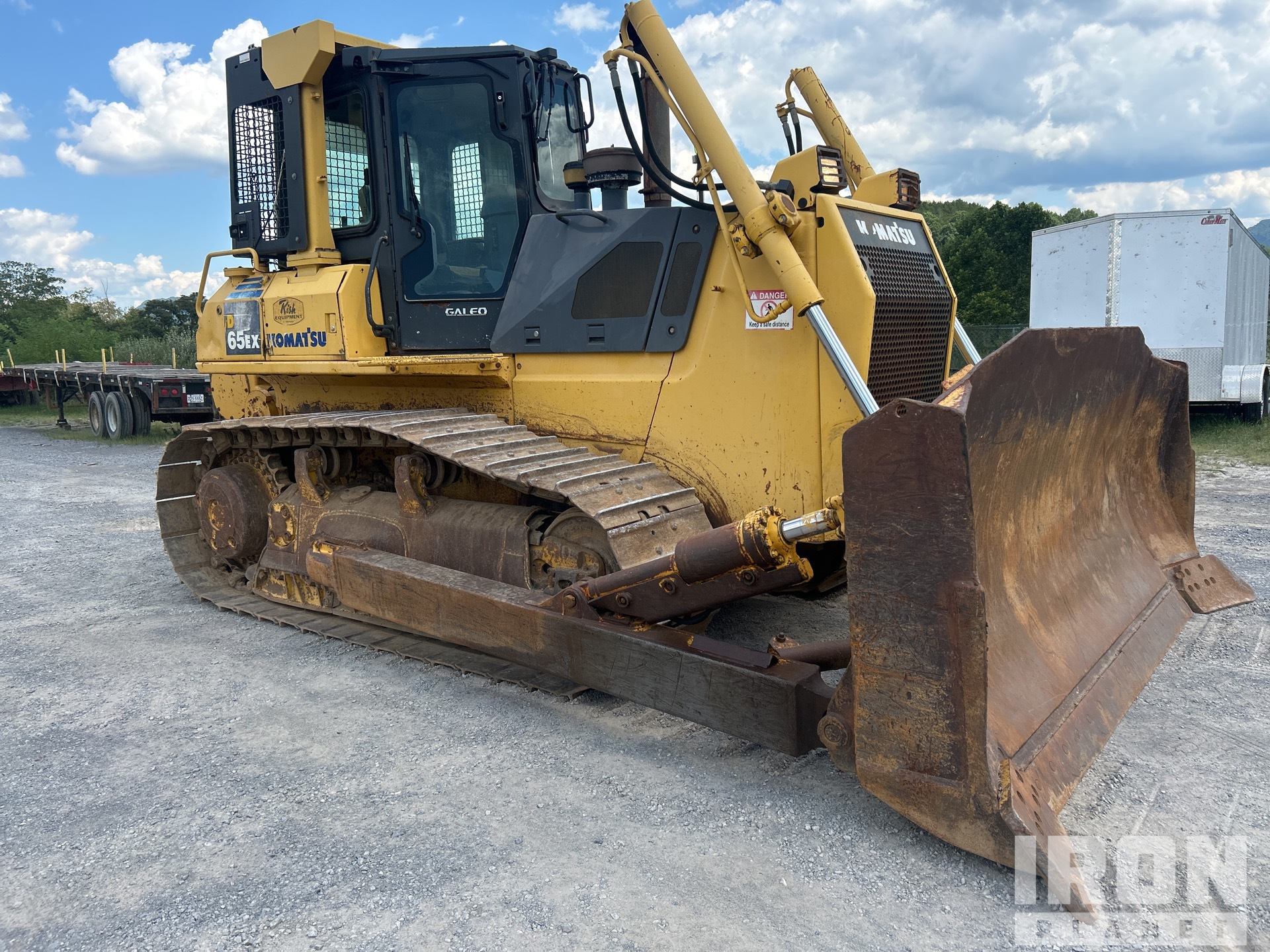

Picture, Right Front Corner

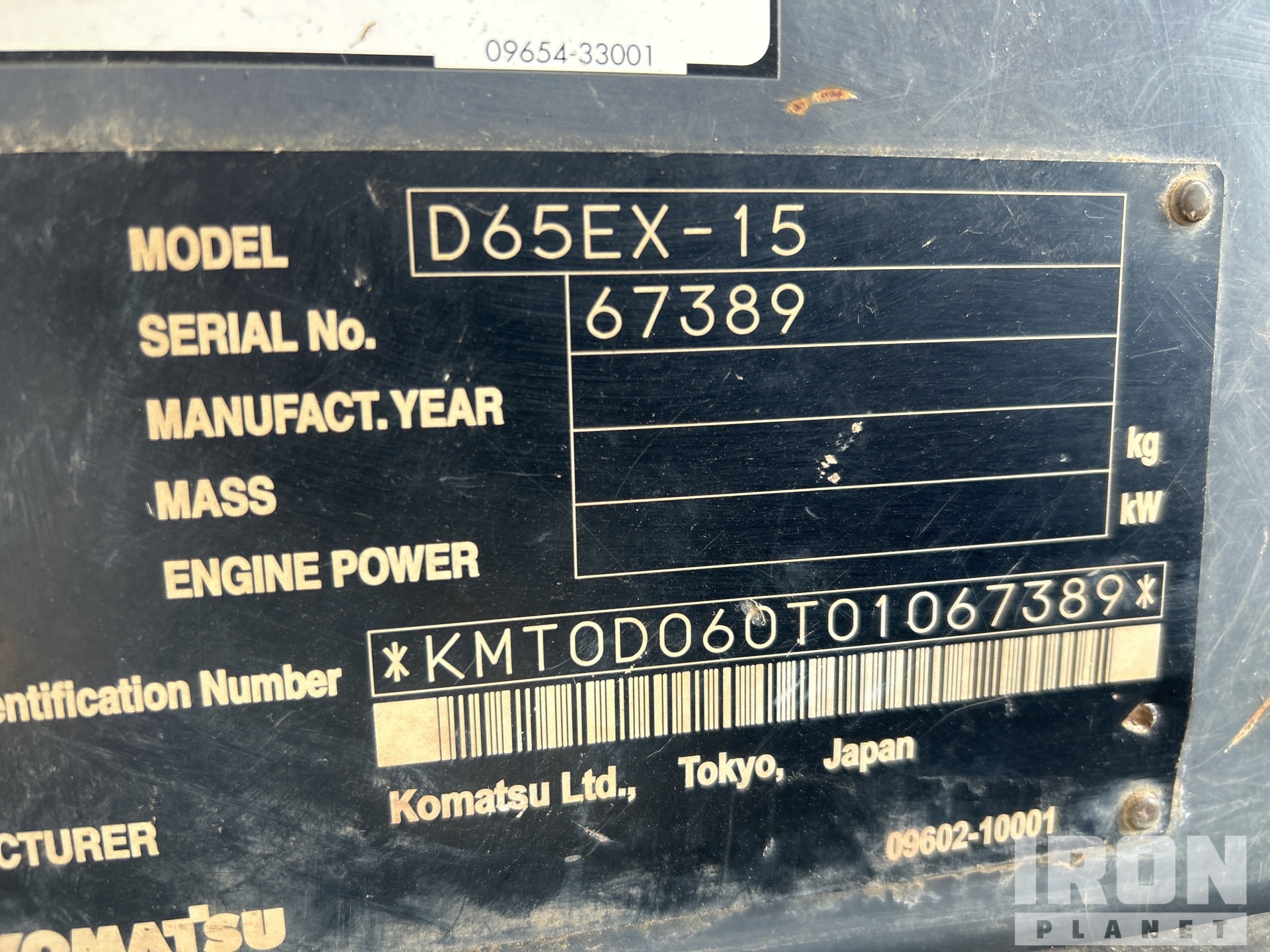

Serial Number / VIN
67389
CE Mark
CE Marked
Hour Meter / Odometer
4536 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Left door glass is not OEM
Exterior Lights
Operational
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Seats/Armrests
Mirrors
Steering Controls
Hydraulic Controls
Auxiliary Hydraulic Control
Drivetrain Controls
Dash Console
Engine Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational
Gauges
Operational
Air Conditioner
Operational
Heater
Not operationally checked
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
2004 US EPA Label
Emission Label
A/C Compressor
Operational
Blow-by (subjective visual observation)
Minor
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Transmission
Operational
Service Brakes
Drive Motors
Final Drives
Limited Function Check (Drivetrain-Track)
The drivetrain was operational without a load.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulics)
Auxiliary Hydraulic Plumbing
Operational
Blade Lift Cylinders
Blade Tilt Cylinders
Limited Function Check
The hydraulic system was operational.
Chassis
Blade Condition
All blade/push arm pin/bushing are very loose
Blade Cutting Edge Condition
Reversible-turned
Winch
Operational
Push Arm/C-Frame Condition
Worn
Push Arm Pivot/C-FrameTrunnions
Heavy movement
Tilt Linkage Pins and Bushings
Heavy movement
Blade Trunnions/bushings
Heavy movement
Limited Function Check (dozer)
The main components were operational with movement as indicated., All the blade/push arm pin/bushing are very loose.
Frame Condition
Belly Pans
Specialty
Undercarriage
Pivot Shafts
Equalizer Bar Pivot Points
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
36 mm
Left Track Links
Left Track Bushings
Bushings have not been turned
Left Carrier Rollers
Left Track Rollers
Left Front Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Bent
Right Grouser Height
34 mm
Right Track Links
Right Track Bushings
Bushings have not been turned
Right Carrier Rollers
Right Track Rollers
Right Front Idler
Right Sprocket
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Aug 22, 2024 |
| Silicon | 9.05 PPM |
| Tin | 0 PPM |
| Silver | 0 PPM |
| Aluminum | 2.21 PPM |
| Chromium | 0.51 PPM |
| Lead | 1.8 PPM |
| Copper | 5.98 PPM |
| Nickel | 0.3 PPM |
| Iron | 28.34 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
