170 Photos
2003 Viper 302 Portable Screen Plant
Located
Galveston, TX
Galveston, TX
Serial number
SAS0003022M0GG313
SAS0003022M0GG313
Loading...
ID number
#14780172
In yard
No
Features
2003 US EPA Label, Deutz BF4M 1012 C 4 Cylinder 96 hp 3.1 L Diesel Engine, Belt Feeder w/Grizzly Double Deck Screen, 28 in Wide Feed Conveyor, 24 in Wide Left Discharge Conveyor, 24 in Wide Right Discharge Conveyor, 30 in Wide End Discharge Conveyor, 24 in Over Screen Conveyor, T/A Carrier

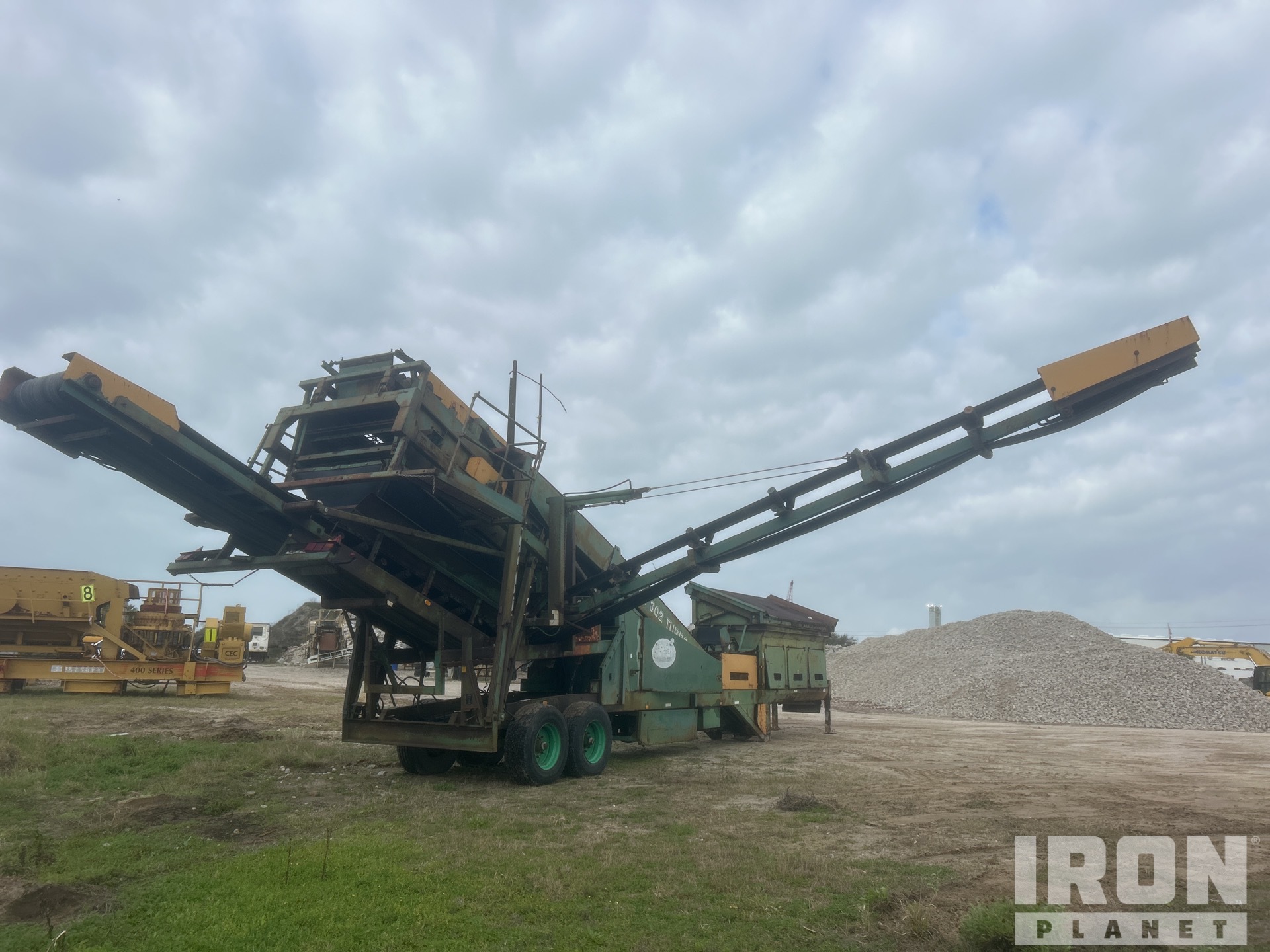

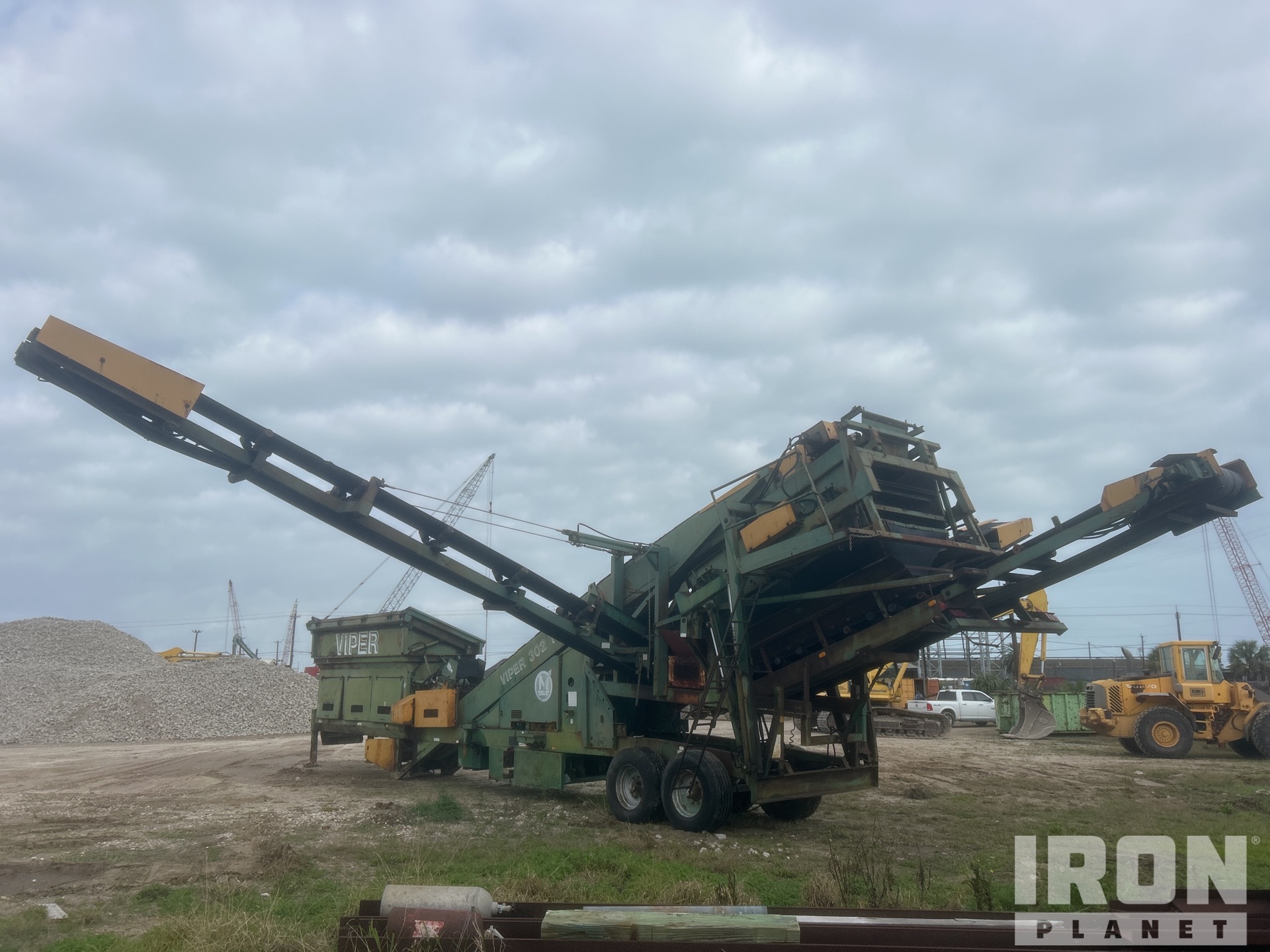

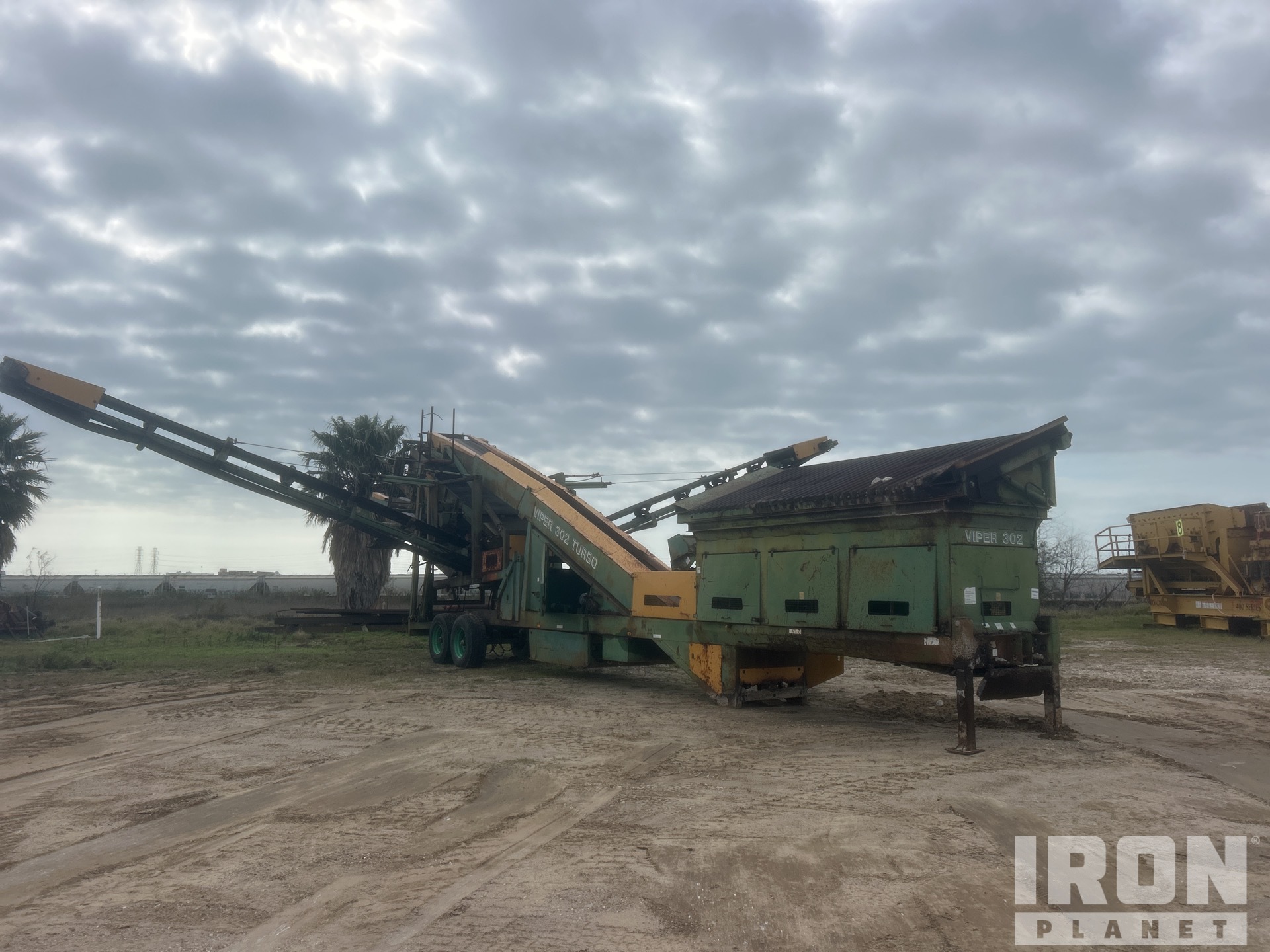

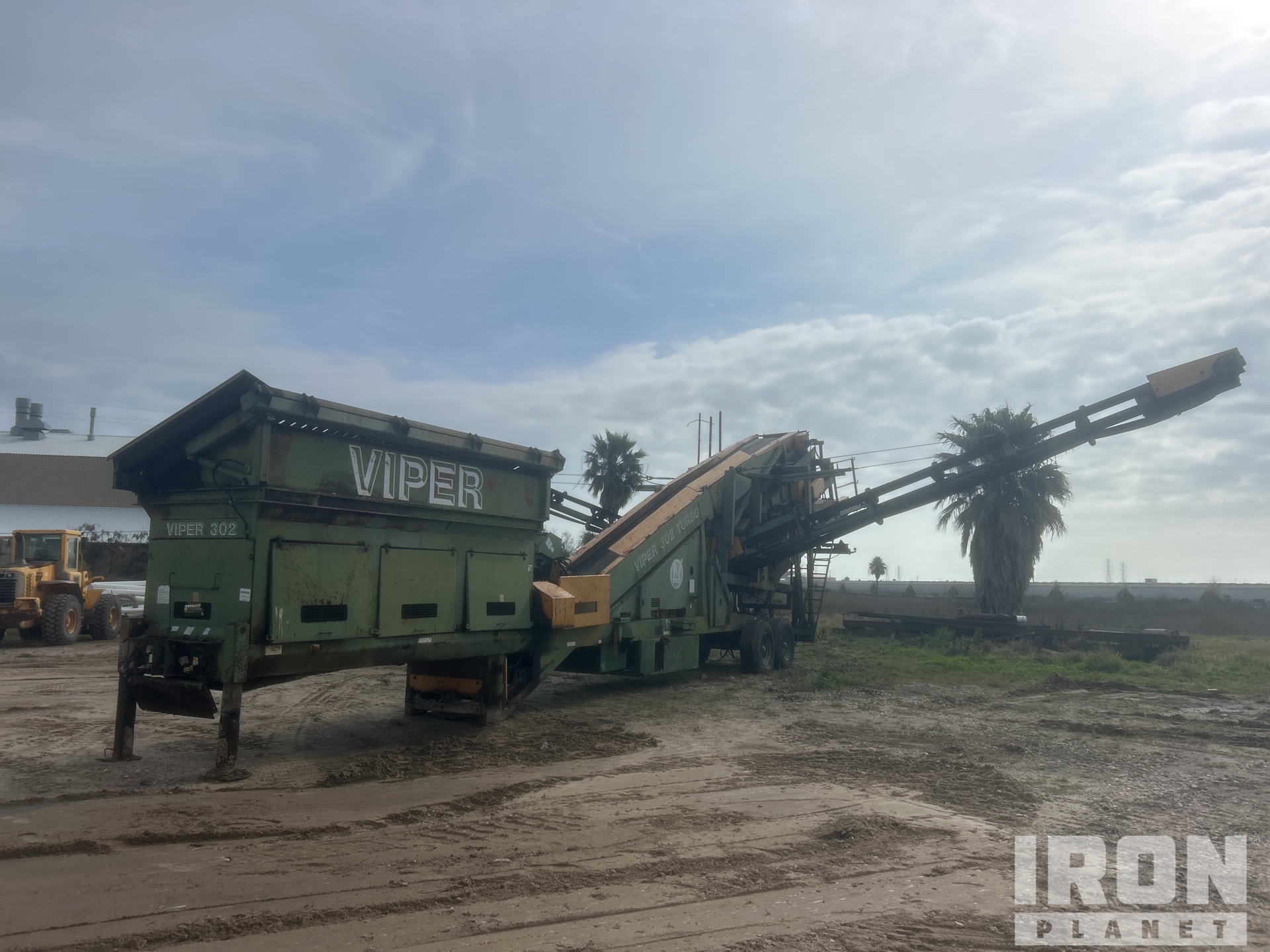

General Appearance
Serial Number / VIN
SAS0003022M0GG313
Hour Meter / Odometer
Meter inoperable-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Control Station
Gauges
Operational
Engine Controls
Crusher/Screen Controls
Limited Function Check
The main components are in place and operational as noted.
Engine
Emission Certification Label
US EPA certification label
Blow by @ idle (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check (Engine)
The engine started and ran.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses
The hoses are dry rotten throughout the unit.
Conveyor Cylinders
Limited Function Check
The hydraulic system was operational.
Chassis
Feed Hopper
Length @ top: 14 ft, Width @ top: 4 ft 8, Grizzly length: 14 ft, Width between grizzly bars: 4 inch
Feed Conveyor Condition
30 in wide feed belt
Feed Conveyor Frame
Feed Conveyor Rollers
Discharge Conveyor Condition
Discharge Conveyor Rollers
Discharge Conveyor Head and Tail Pulley
Screen Deck
Number of decks: 2
Deck Frames / Wear Bars
Carrier
Axle Condition
Trailer Brakes
Not operationally checked
Brake Lines/Hoses
Not operationally checked
Limited Function Check
The main chassis components could not be operated.
Tire Size
All of the tires are the same size, 385/65r22.5 Front tires, LF Sumitono, LR Fallen, RR Michelin, RF Michelin
Tire Condition
Tread Depth
LF 17 /32", LR 17 /32", RR 13 /32", RF 17 /32"
Wheel Condition
Wheel Studs
Springs/Hangers Condition
Tongue/ Hitch Condition
The tongue has rust damage.
Lights/Wiring Condition
Not operationally checked
Marker Lights Functional
Not operationally checked
Brake Lights Functional
Not operationally checked
Turn Signals Functional
Not operationally checked
License Plate Light Functional
No
Frame Rails/ Main Beams Condition
Landing Gear / Tongue Jack
