132 Photos
2003 Manitowoc 222.222 Series B 100 ton Lattice-Boom Crawler Crane
Located
Hinckley, OH
Hinckley, OH
Usage
656 hrs
656 hrs
Serial number
2221108
2221108
Loading...
ID number
#14904550
In yard
No
Features
Air Conditioner, Anti Two-Block, 196585 3-30-01 Load Moment Indicator, 160 ft Boom, Auxiliary Hoist, 3rd Drum, Rooster Sheave, 1000 lb 1 Sheave 72000 lb Hook Block, 63300 lb Counterweight, 37 in Smooth Track Shoes, Expandable Width Tracks

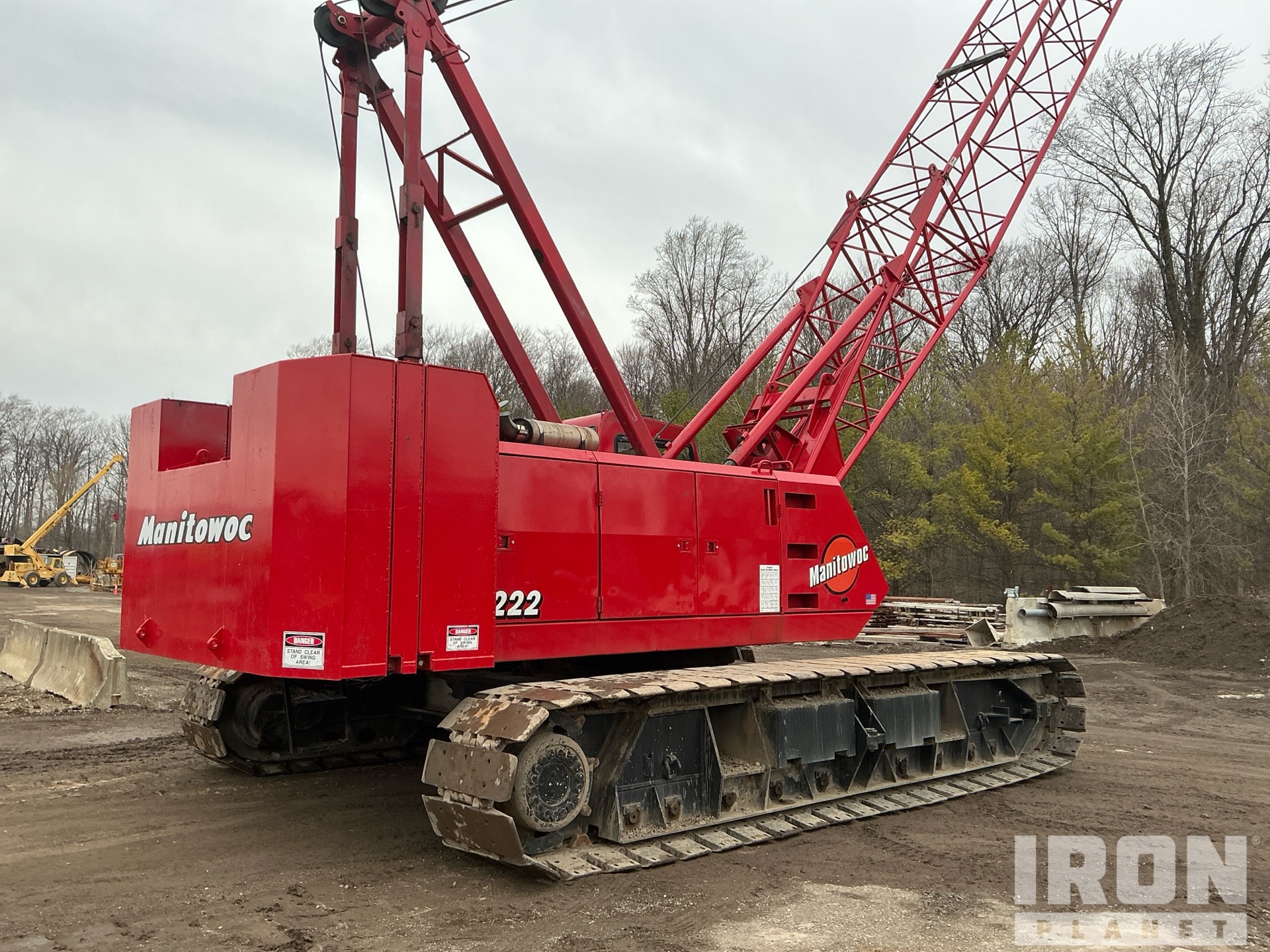

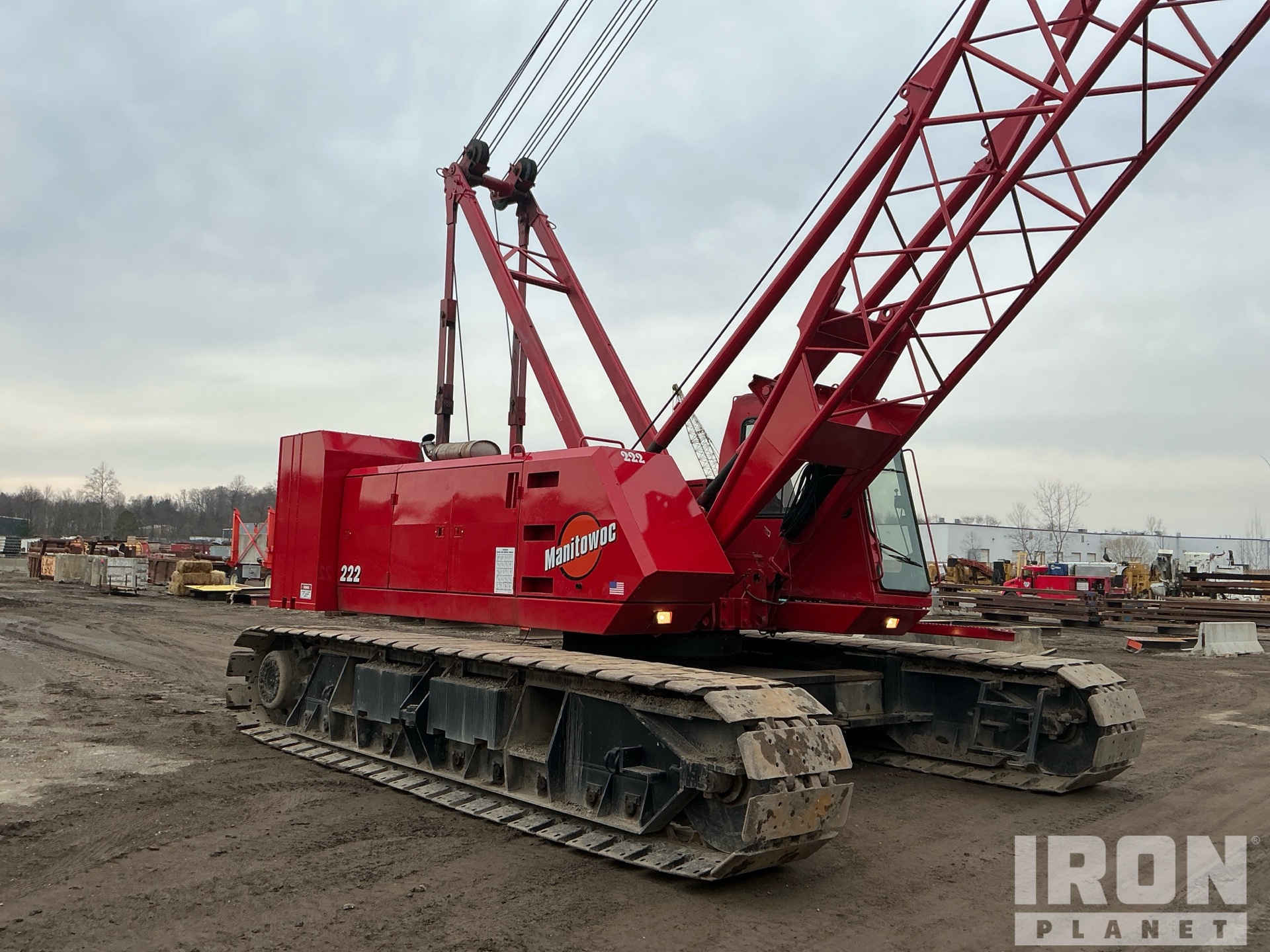

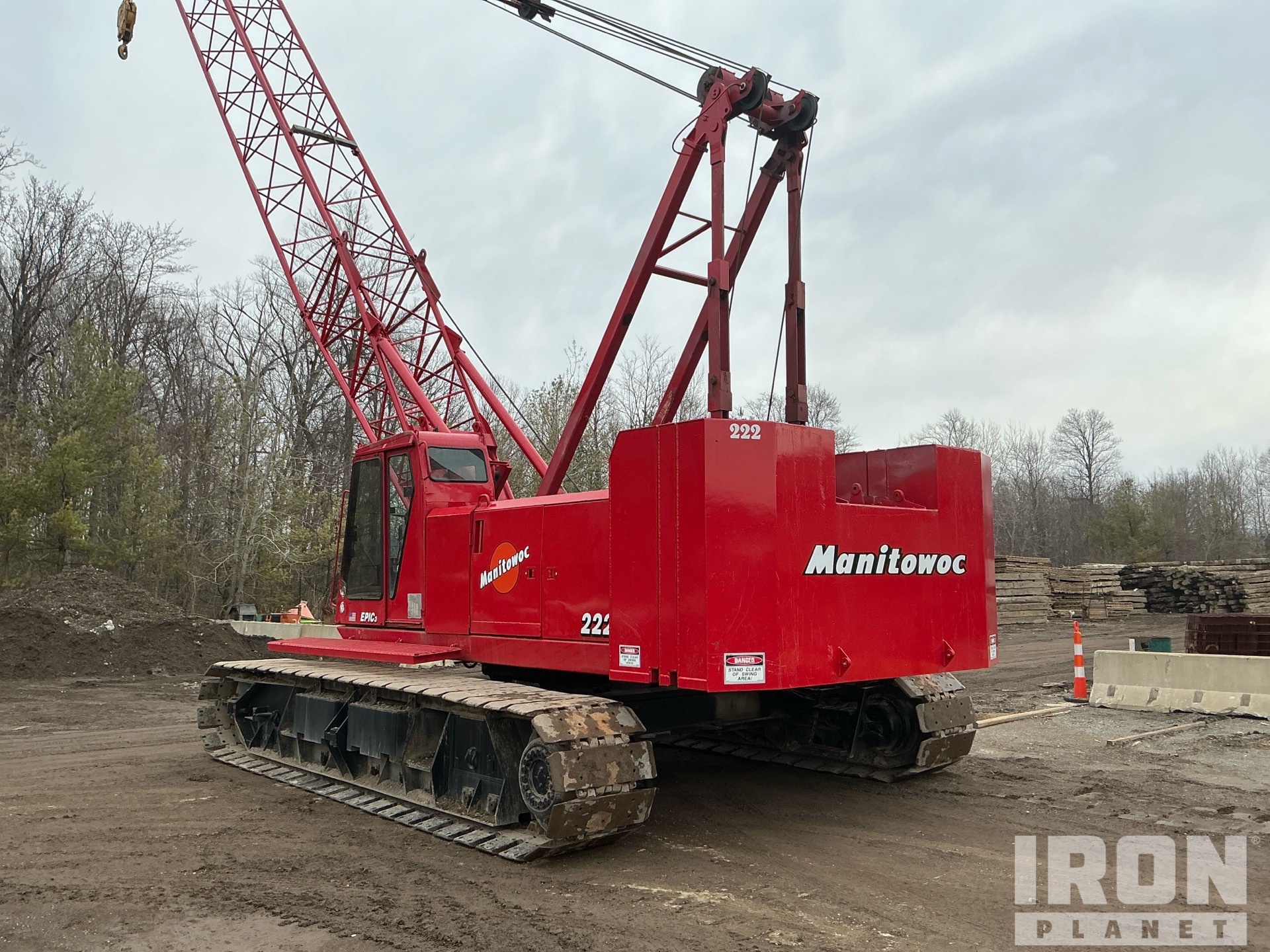

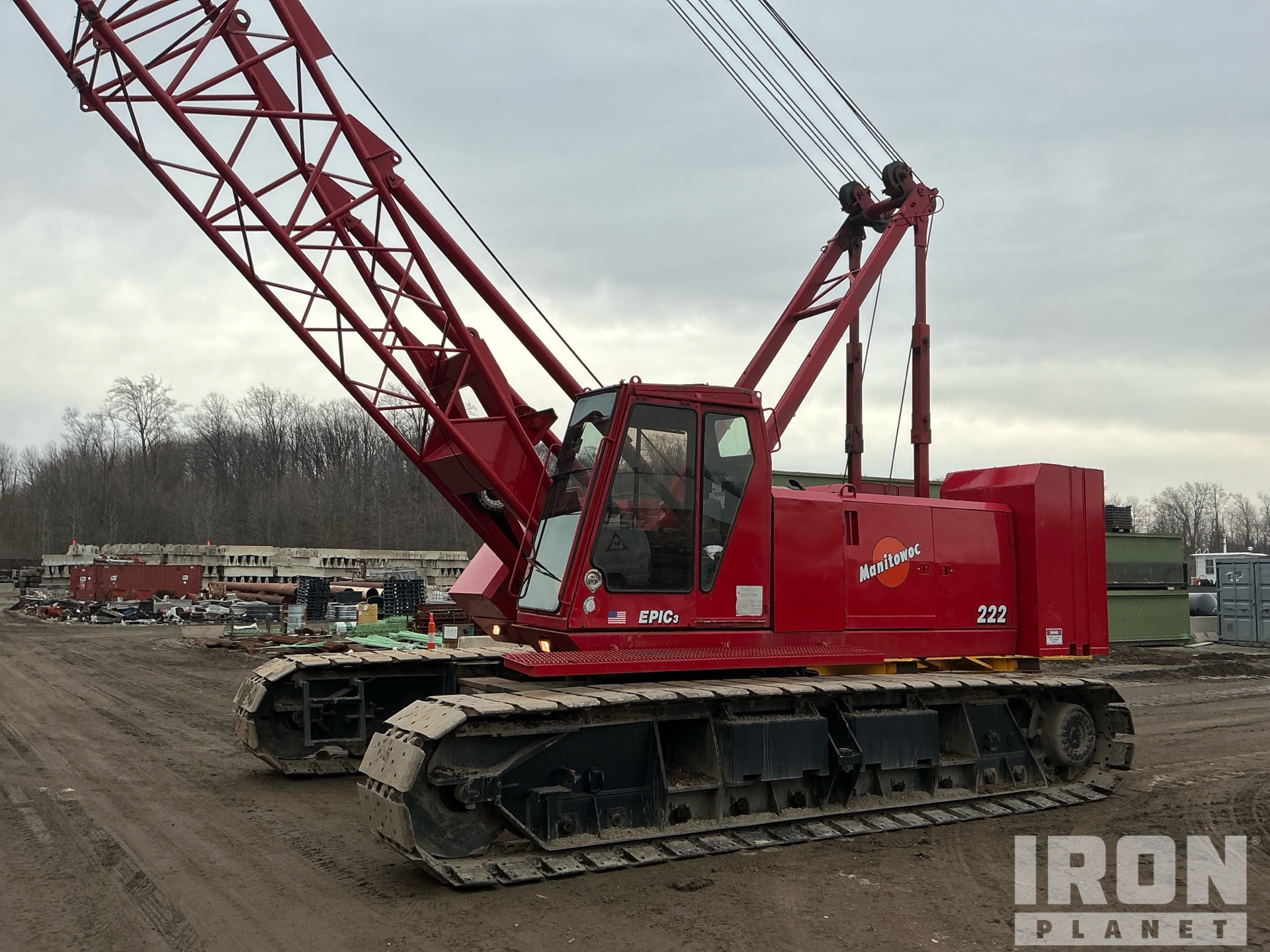

General Appearance
Serial Number / VIN
2221108
CE Mark
No CE mark found
Hour Meter / Odometer
656 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Indication of Additional Hours
There is an hour meter replacement/change label that has the following reading on it: 10000
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Safety Certification Label
There was no safety certification label located on the machine.
Load Chart
Yes
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Not equipped
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Control Station - Upper
Mirrors
Glass
No visible damage
Seats/Armrests
Armrest Torn
Load Moment Indicator
Not operationally checked with a load.
Controls Hydraulic or Air
Hydraulic
Load Charts
Chart book in cab
Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational
Gauges
Operational
Hoist Brakes
Drum Rotation Indicator
Operational
Air Conditioner
The ambient temperature is too cold to check.
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
No US EPA Label Present
Emission Label
A/C Compressor
In place; ambient temperature too cold to check operation
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks Collection LH Side/ Block
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Drive Chains/Sprockets
Drive Motors
Final Drives
Limited Function Check (Drivetrain-Crawler Crane)
The drivetrain functioned properly without a load.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Limited Function Check
The hydraulic system was operational.
Crane Superstructure
Hoist Drums
Hydraulic Operation
Boom Drums
Hydraulic Operation
Main Boom Pins
Pendant Line (Boom Tension Line)
Cable Type
Point Sheaves
Boom Point Section
Gantry/Mast
Boom Stops
Main Boom Chords
Boom Length
160 ft overall length, (2) 40’ , (3) 20’ (2) 10’
Boom Angle Indicator
Turntable Bearing
Bottom Covers
Swing Drive
Operational
Limited Function Check
The main chassis components functioned when checked without a load.
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Track Links
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Track Links
Right Track Rollers
Right Idler
Right Sprocket
Specialty
Main Load Block
Third Drum
Counterweights
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Mar 30, 2026 |
| Silicon | 0 PPM |
| Tin | 0 PPM |
| Silver | 0 PPM |
| Aluminum | 0 PPM |
| Chromium | 0 PPM |
| Lead | 1.24 PPM |
| Copper | 0 PPM |
| Nickel | 0.03 PPM |
| Iron | 1.35 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
