99 Photos
2002 Irock RD15 Portable Impact Crusher Plant
Located
Jamestown, TN
Jamestown, TN
Serial number
PAR1001
PAR1001
2002 Irock RD15 Portable Impact Crusher Plant
Jamestown, TN
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15991179
In yard
No
Features
Cat 3406 6 Cylinder Diesel Engine, Vibratory Grizzly Feeder Simplicity 44 in Jaw Crusher, Simplicity 14 ft x 5 ft Triple Deck Screen, 42 in Wide Under Crusher Conveyor, 42 in Crusher to Screen Conveyor, 30 in x 80 ft Addition 50 ft Right Side Return Conveyor Conveyor, 36 in x 6 ft Cross Belt Magnet, Tri/A Carrier, Spring Suspension, Hydraulic Leveling, Addition 50 ft Right Side Return Conveyor

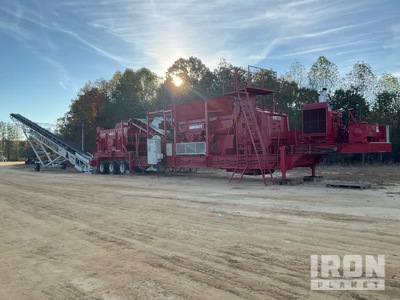

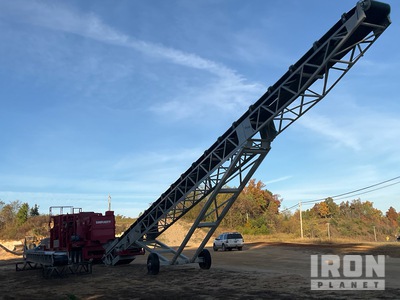

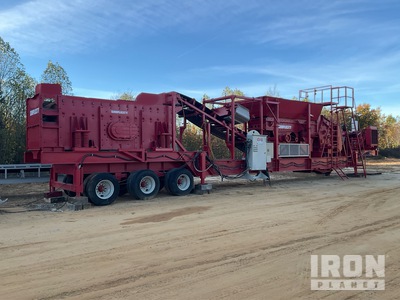

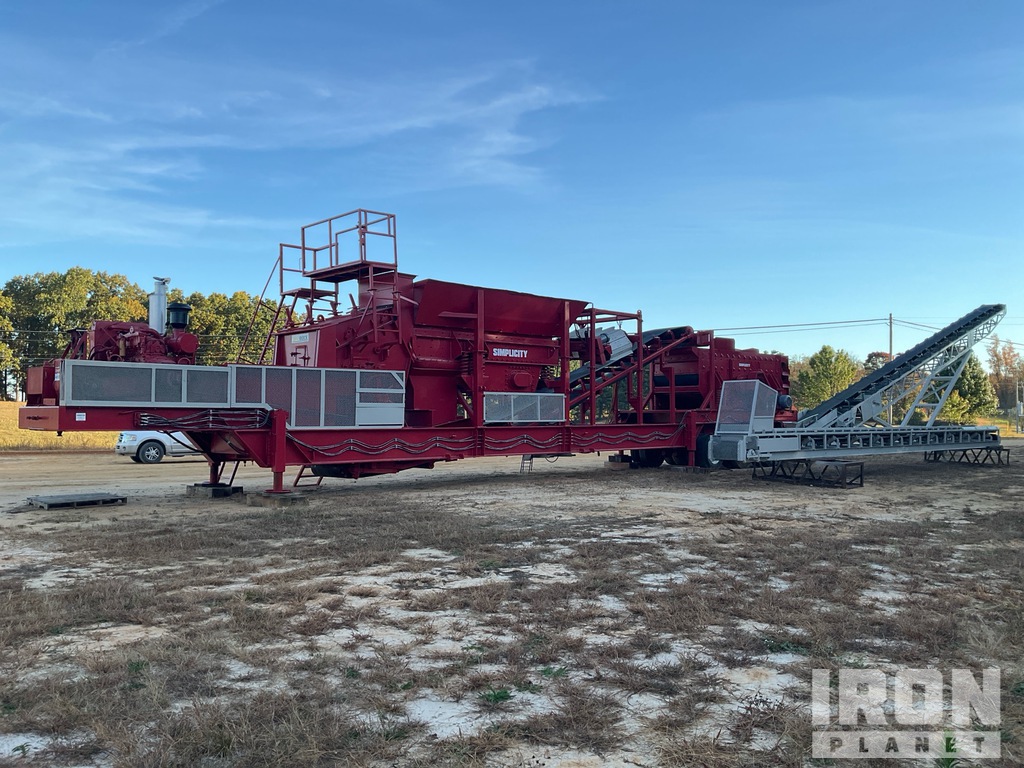

General Appearance
(8)
Serial Number / VIN
PAR1001
Hour Meter / Odometer
Hr meter has been replaced-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Control Station
(5)
Gauges
Operational
Engine Controls
Crusher/Screen Controls
Limited Function Check
The main components are in place and operational as noted.
Electrical
(9)
Electric Motors
Operational
Cables and Connections
Engine
(9)
Emission Certification Label
None found
Blow by @ idle (subjective visual observation)
Minor
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check (Engine)
The engine started and ran.
Hydraulics
(7)
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses
Crusher Door Cylinders
Stabilizer Jack Cylinders
Limited Function Check
The hydraulic system was operational.
Chassis
(43)
Crusher Base Frame
Crusher Chamber Frame
Jaw, Blow Bar and Anvil Wear Surface
Crusher Drive System
Screen Deck
Flat screen, Number of decks: 2
Deck Frames / Wear Bars
Carrier
(18)
Axle Condition
Trailer Brakes
Not operationally checked
Brake Lines/Hoses
Tire Size
11-22.5 Rear tires
Tire Condition
Tread Depth
LF 12 /32", LR 15 /32", LMI 12 /32", LMO 12 /32", LRI 12 /32", LRO 12 /32", RRI 9 /32", RRO 10 /32", RMI 10 /32", RMO 7 /32", RR 10 /32", RF 10 /32"
Wheel Condition
Wheel Studs
Springs/Hangers Condition
Tongue/ Hitch Condition
No visible damage
Frame Rails/ Main Beams Condition
No visible damage
