239 Photos

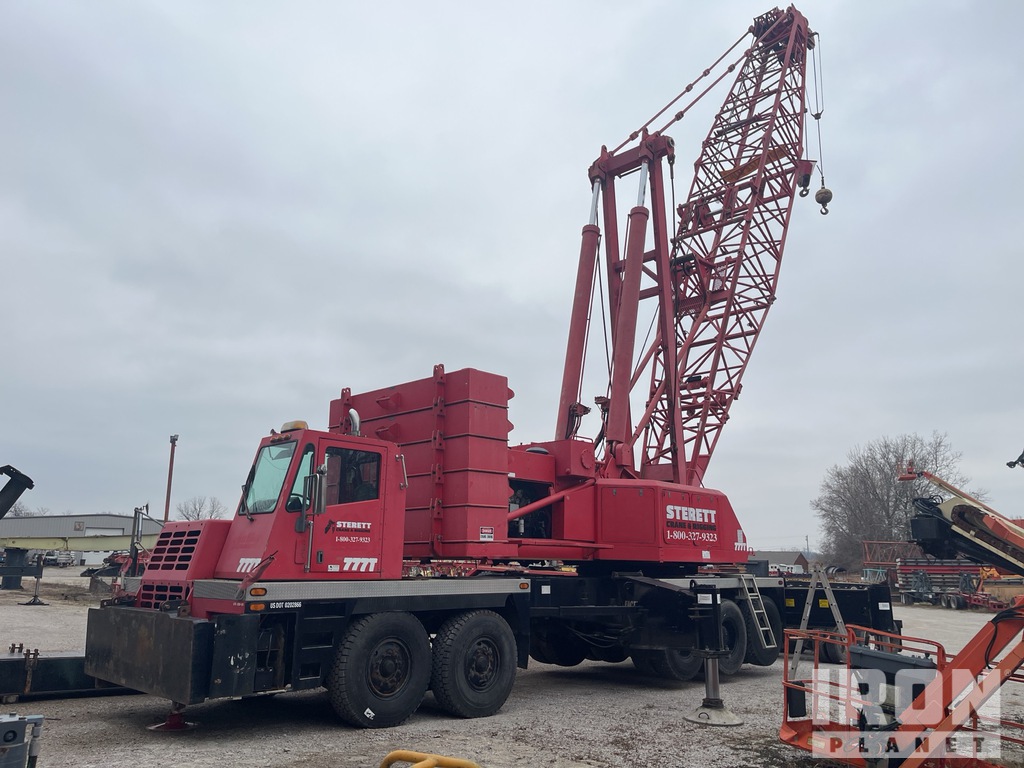

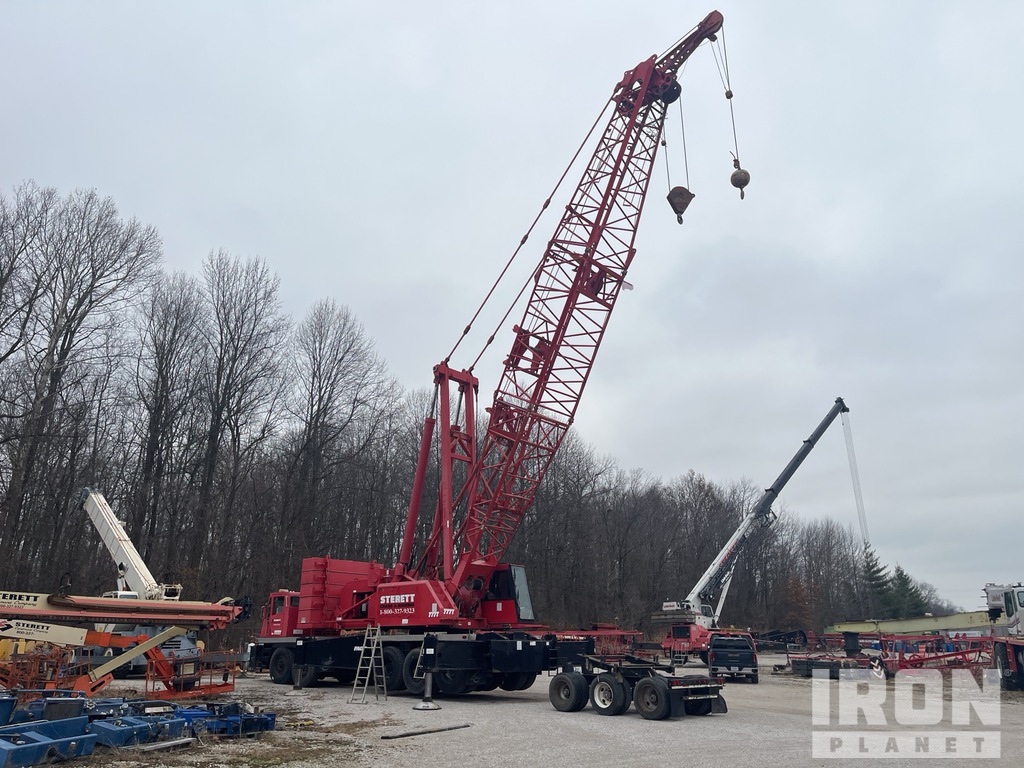

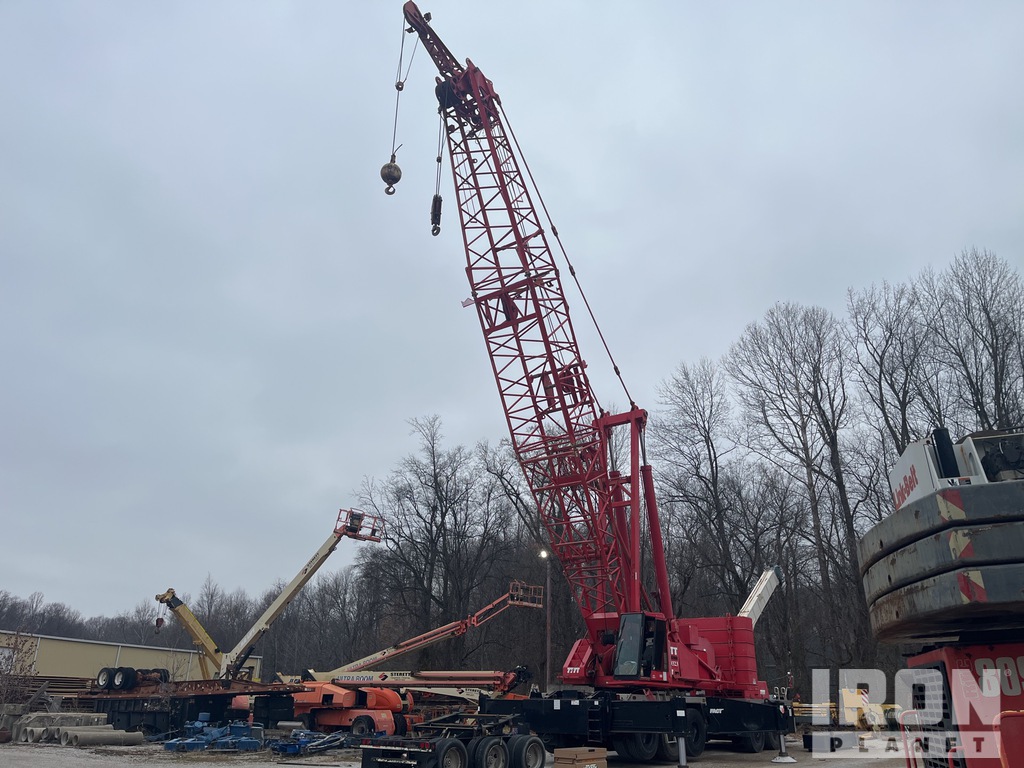

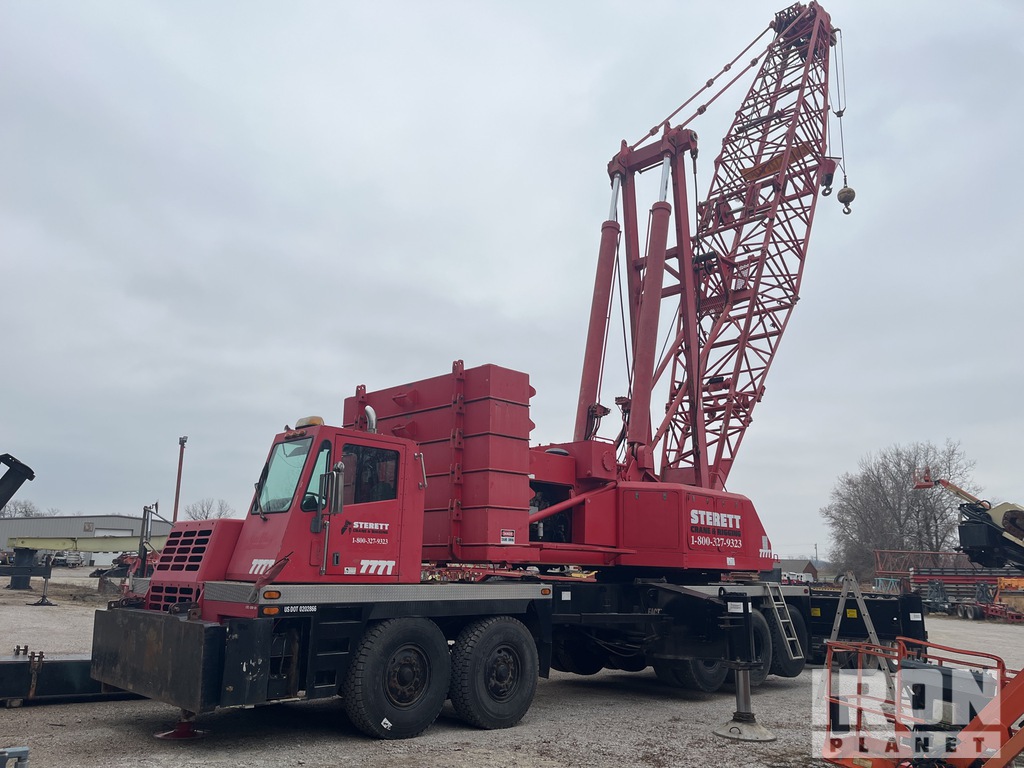

1999 Manitowoc 777T 182 ton Lattice-Boom Truck Crane
Located
Owensboro, KY
Usage
13,645 mi (21,960 km)
Serial number
7779022
Loading...
Detailed equipment information
This lot is protected by IronClad Assurance
Buy with confidence knowing that this lot has been given a full and detailed inspection by a qualified inspector.
ID number
#12212205
In yard
No
Year
1999
Manufacturer
Model
Asset type
Serial number or VIN
7779022
Features
Allison Automatic Transmission, 2923 hrs Carrier Engine, Detroit Series 60 Diesel Carrier Engine, Air Conditioner, Anti Two-Block, Manitowoc Load Moment Indicator, Cummins 8.3 L Diesel Upper Engine, 270 ft Boom, 80 ft Fixed Jib, Auxiliary Hoist, Rooster Sheave, 120400 lb Counterweight
Notes
NO TITLE AVAILABLE ; THIS ASSET WILL BE SOLD WITH BILL OF SALE AND BANKRUPTCY DOCUMENTS ONLY
General Appearance
Featured Photo
Picture, Left Front Corner
Picture, Left Rear Corner
Picture, Right Rear Corner
Picture, Right Front Corner
Serial Number / VIN
7779022
Hour Meter / Odometer
13645 mi-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Safety Certification Label
There is a safety certification label with a date of 06/23
Safety Certification Report
Safety Certification Report Available
Load Chart
Yes
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Lower/Carrier Engine Hours
2923 hrs Carrier Engine
Seats/Armrests
Mirrors
Steering Controls
Hydraulic Controls
Drivetrain Controls
Dash Console
Engine Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational
Gauges
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
A/C Compressor
Operational
Blow-by (subjective visual observation)
Minor
Starter
Operational
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Underbody
Transmission
Front Drive Axle
Center Drive Axle
Rear Drive Axle
Axle Bump Stops
Final Drives
Carrier Chassis
Frame Condition
Cross Members
Tire Size
Tire Condition
Outrigger Beams
Outrigger Cylinders
Outrigger Pads
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Limited Function Check
The hydraulic system could not be operationally checked.
Control Station - Upper
Glass
No visible damage
Load Moment Indicator
Not operationally checked with a load.
Controls Hydraulic or Air
Load Charts
Chart book in cab
Oil Pressure
The fault indicator shuts off after the engine oil pressure rises. The gauge registers in the operating range.
Hoist Brakes
Drum Rotation Indicator
Air Conditioner
The ambient temperature is too cold to check.
Heater
Operational
Upper Engine
A/C Compressor
Blow by @ idle (subjective visual observation)
Minor
Starter
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check (Engine)
The engine started and ran.
Crane Superstructure
Hoist Drums
Hoist and Boom Clutches
Main Boom Pins
Pendant Line (Boom Tension Line)
Point Sheaves
Boom Point Section
Gantry/Mast
Boom Stops
Main Boom Chords
Boom Length
270 ft overall length, 23 ft 1 in tip section, 7 Sections, 270 ft Length, 15 ft base section
JIB Length
80 ft overall length, 15 ft base section, 15 ft tip section, ( 3 ) 50 ft Center boom sections
Boom Angle Indicator
Turntable Bearing
Swing Drive
Limited Function Check
The main chassis components functioned when checked without a load.
Specialty
Jib
Main Load Block
Minor wear
Overhaul Ball
Counterweights
