170 Photos
2001 Terex RT335-1 35 ton 4x4x4 Rough Terrain Crane
Located
Trevose, PA
Trevose, PA
Usage
6,707 hrs
6,707 hrs
Serial number
12309
12309
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#16063918
In yard
No
Features
Anti Two-Block, Greer A450251 Load Moment Indicator, 2000 US EPA Label, Cummins B5.9C 152 hp 5.9 L Diesel Engine, 30 ft Minimum 94 ft Maximum Boom Length, 685 lb 40 ton Capacity Koehring 4 Sheave Hook Block, Overhaul Ball, 10000 lb Counterweight

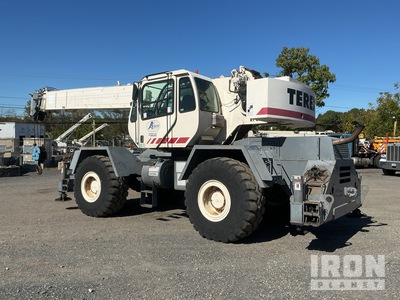

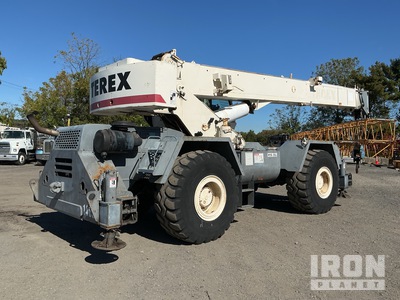

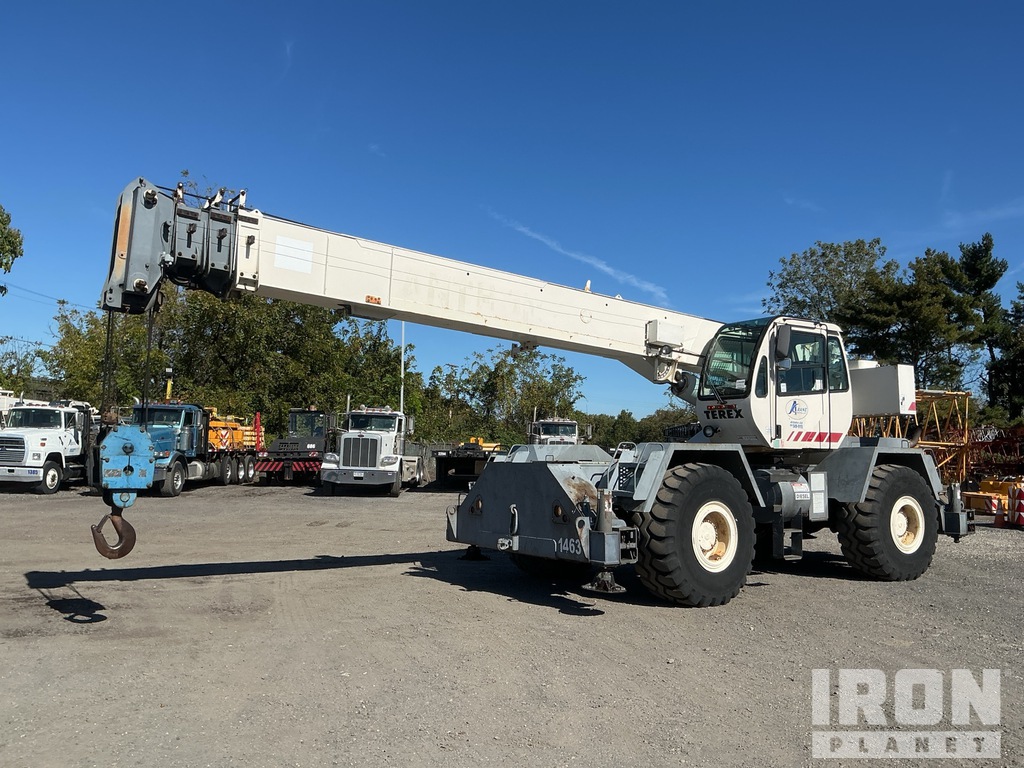

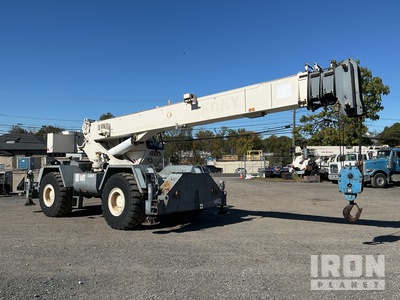

General Appearance
(35)
Serial Number / VIN
12309
Hour Meter / Odometer
6707 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Indication of Additional Hours
There is an hour meter replacement/change label that has the following reading on it: 1908
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Some not operational
Safety Certification Label
There is a safety certification label with a date of 7/28/25
Safety Certification Report
Safety Certification Report Not Available
Load Chart
Yes
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Control Station
(20)
Mirrors
Seats/Armrests
Load Moment Indicator
Powers On, Not operationally checked with a load
Anti Two Block
Operational
Hydraulic Controls
Drivetrain Controls
Oil Pressure
The gauge registers in the operating range.
Warning Lights
Drum Rotation Indicator
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
(13)
Emissions Status
Other 2000 US EPA Label
Emission Label
Blow-by (subjective visual observation)
Minor
Starter
Operational
Exhaust System
The turbo inlet pipe is completely rusted off.
Radiator
Oil Leaks
Oil Pan
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
(10)
Transmission
Operational, Dripping leak
Front Drive Axle
Dripping Leak, The left and right hubs have a leak.
Rear Drive Axle
Dripping Leak, The left and right hubs have a leak.
Final Drives
Limited Function Check
The drivetrain was operational.
Hydraulics
(18)
Pumps (Hydraulics)
Dripping leak
Valves
Hydraulic Tank
Low fluid level
Hoses (Hydraulic)
Swing Motor
Main Hoist
Lift Cylinders
Telescopic Boom Cylinders
Limited Function Check
The hydraulic system was operational.
Chassis
(62)
Steering Linkage
Steering Cylinders
Dripping leak on the left cylinder
Steering Wheel Play
Suspension Cylinders
Oil seepage from both cylinders.
Brake Type
Air
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Stopped the machine while rolling
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Turntable Bearing
Frame Condition
Tire Size
All of the tires are the same size, 23.5R25 Front tires
Left Front Tire
Left Rear Tire
Right Rear Tire
Right Front Tire
Wheel Condition
Wheel Studs
Limited Function Check
The main chassis components were operational in a limited check.
Outrigger Cylinders
The left front cylinder has heavy dripping leak when activated.
Outrigger Condition
Outrigger Beams
Outrigger Floats/Pads Condition
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Wear Pads
Boom Angle Indicator
Limited Function Check
The main crane components functioned with wear and damage.
Specialty
(12)
Main Load Block
Overhaul Ball
Counterweights
