159 Photos

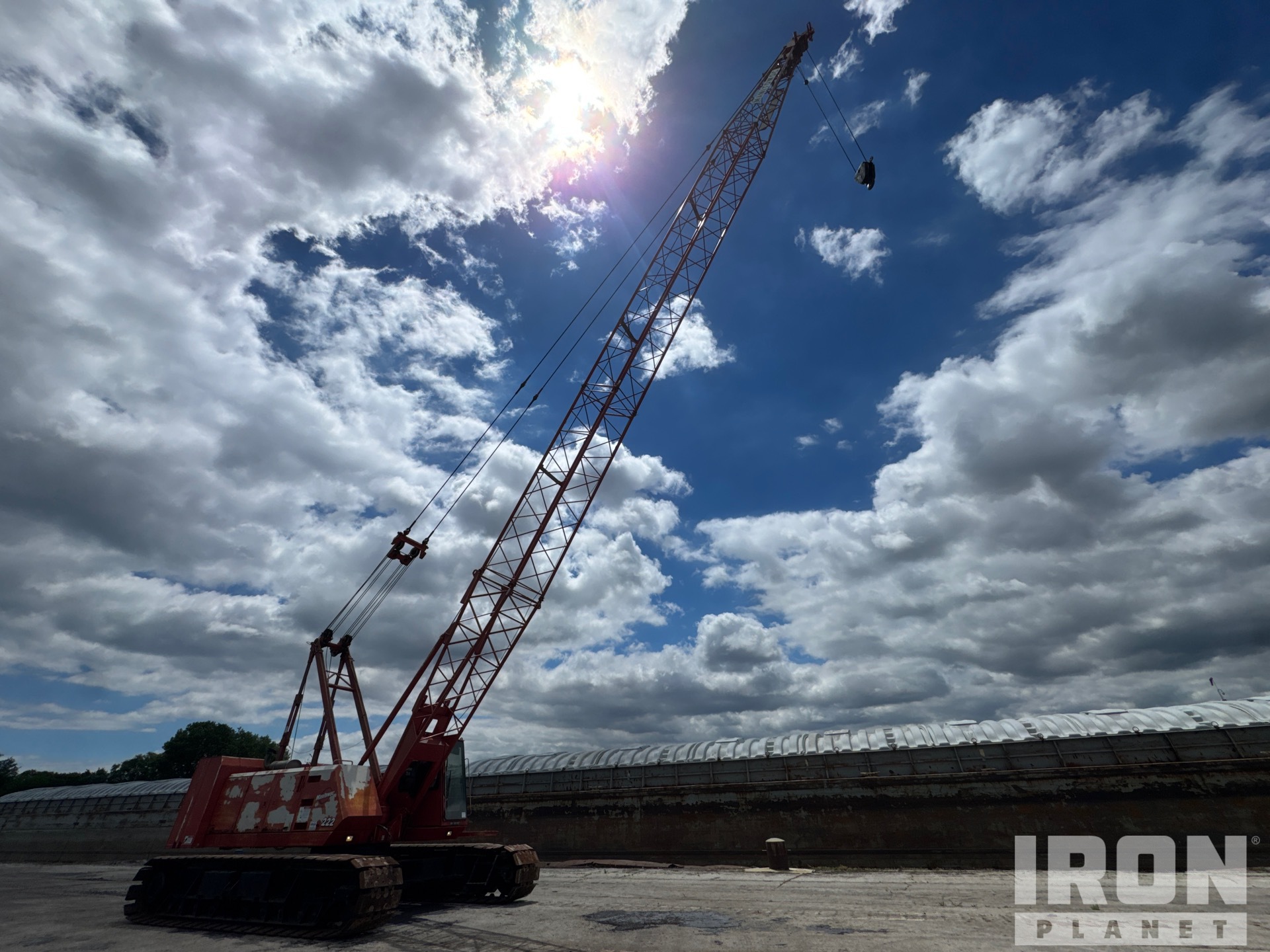

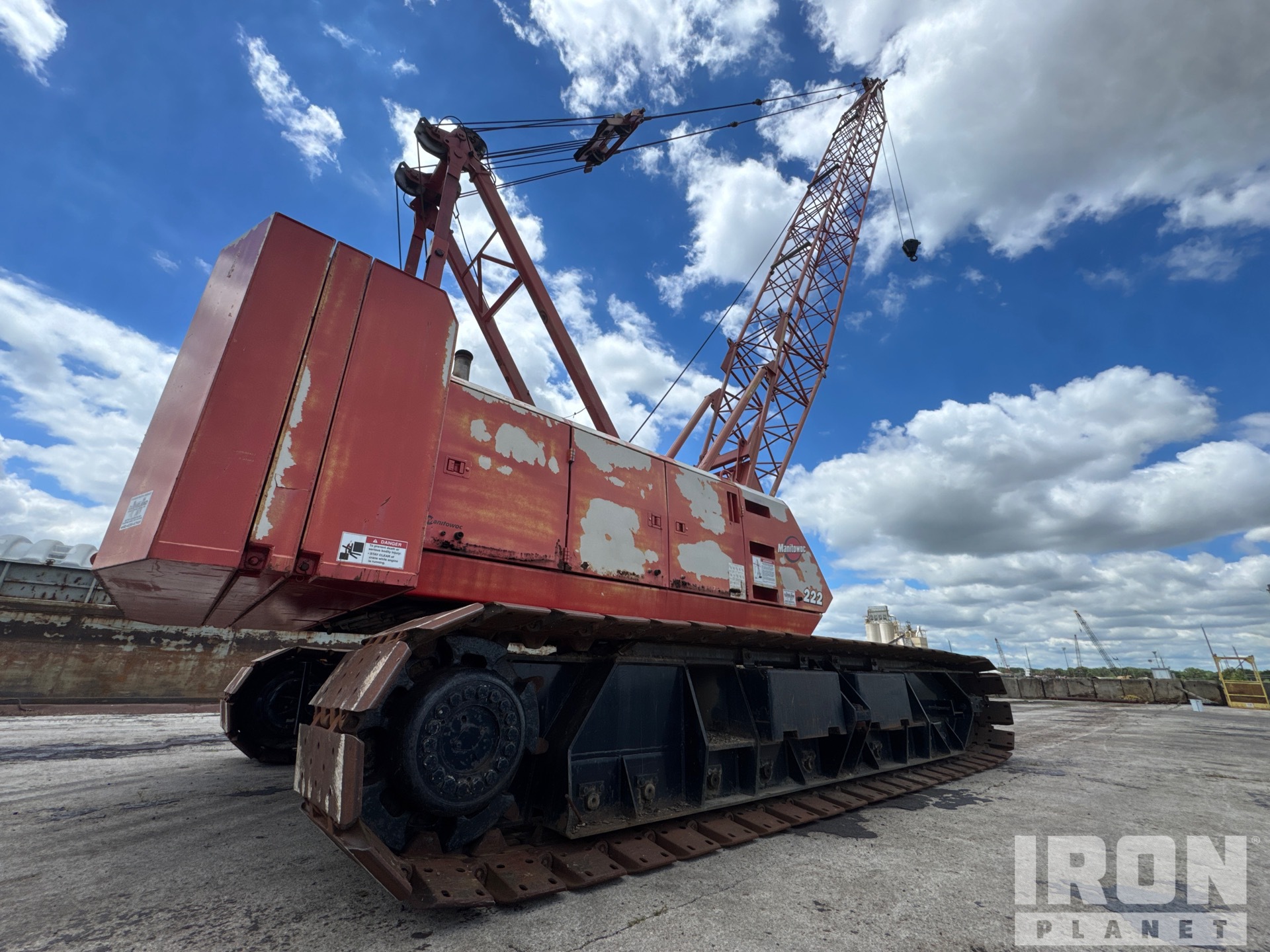

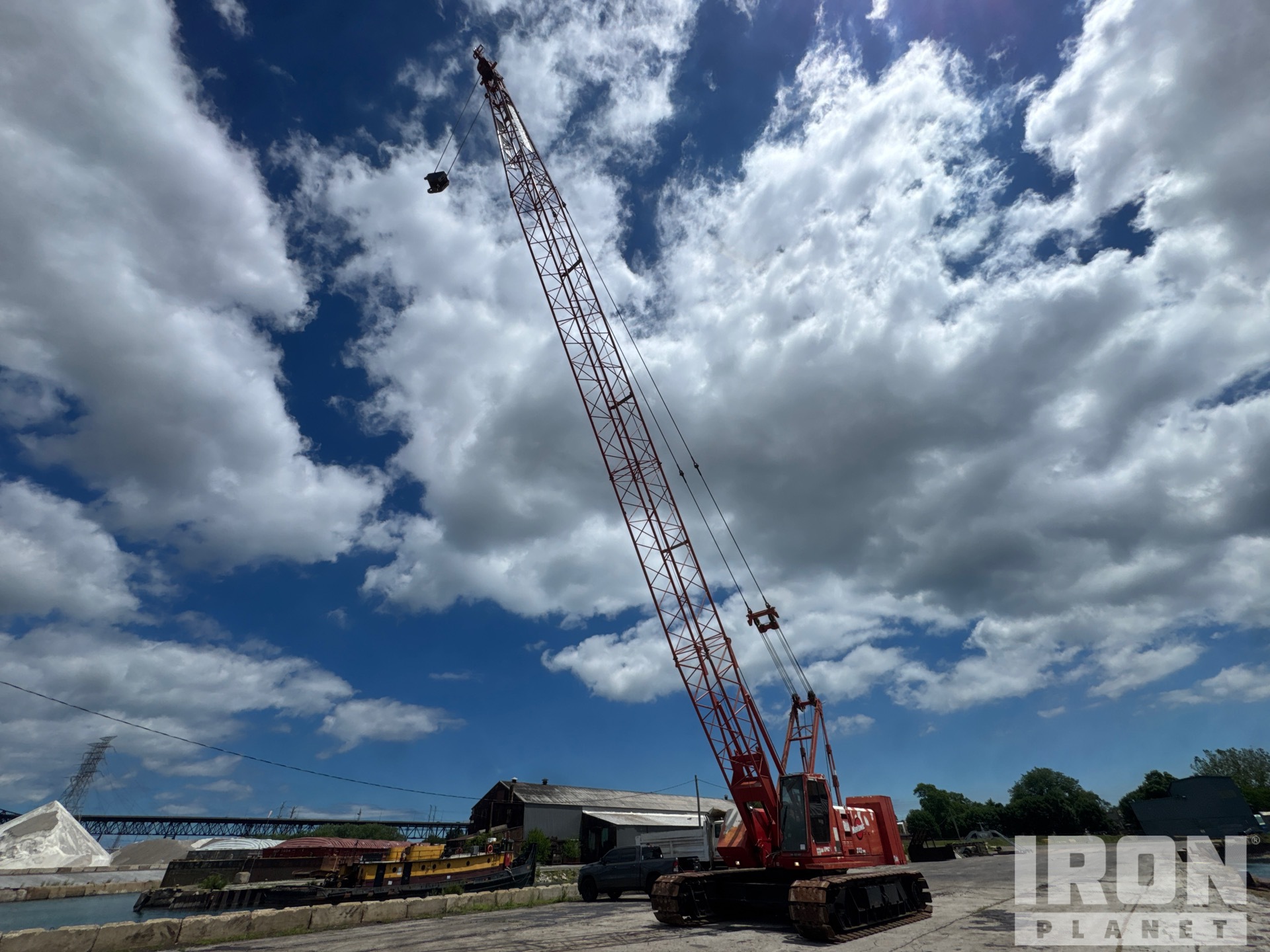

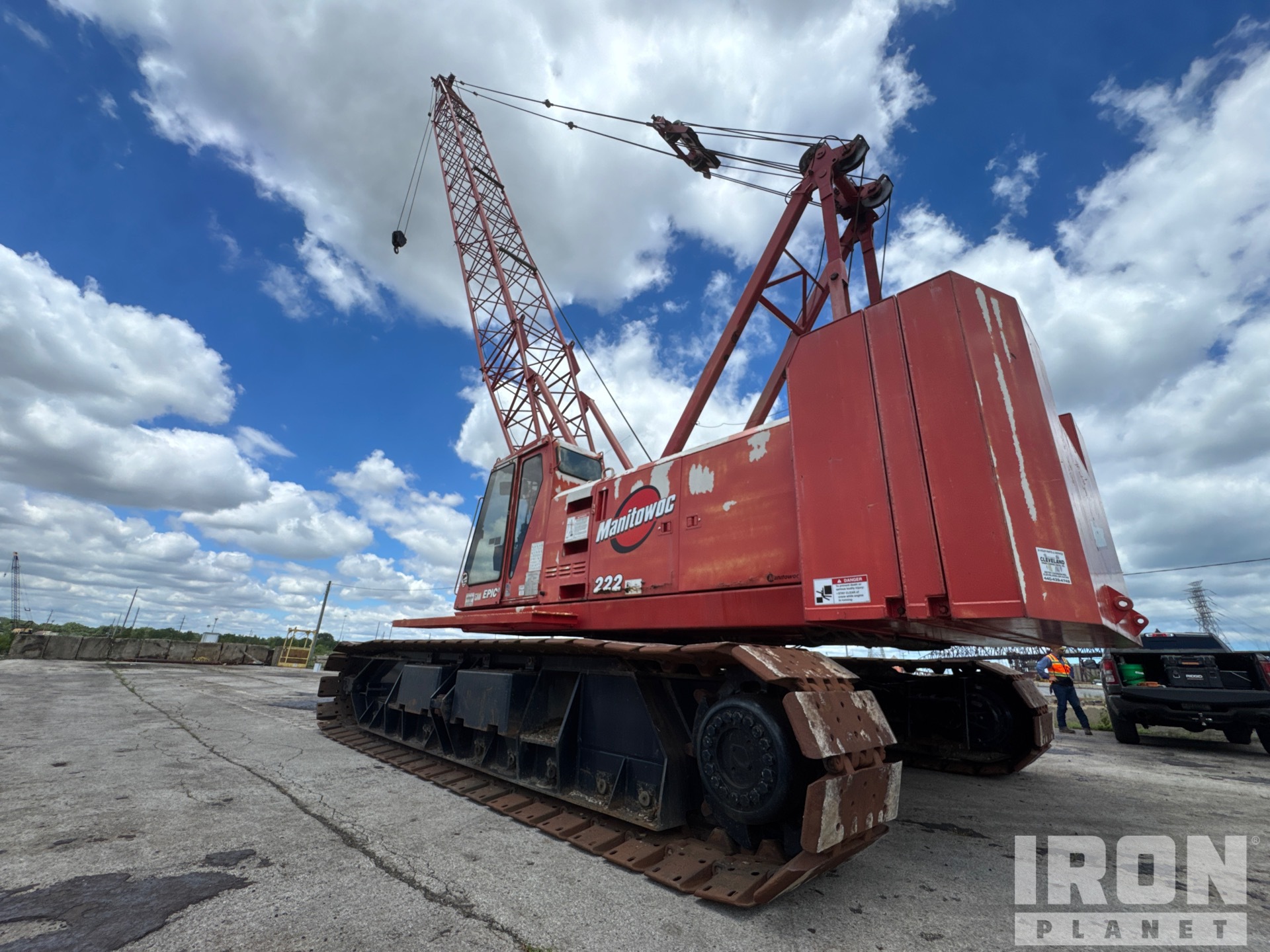

2000 Manitowoc 222 100 ton Lattice-Boom Crawler Crane
Located
Chicago, IL
Chicago, IL
Usage
4,227 hrs
4,227 hrs
Serial number
2221057
2221057
Loading...
ID number
#15365167
In yard
No
Features
Air Conditioner, Anti Two-Block, MANITOWAC 4x40 Bootstrap Load Moment Indicator, Tier 1, 2014 US EPA Label, 100 ft Boom, Auxiliary Hoist, 3rd Drum, 1135 lb 1 Sheave 40 t Hook Block, 77300 lb Counterweight, 36 in Smooth Track Shoes, Expandable Width Tracks
General Appearance
Serial Number / VIN
2221057
Hour Meter / Odometer
4227 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Safety Certification Label
Safety Certification Label not legible.
Safety Certification Report
Safety Certification Report Available
Load Chart
Yes
Safety
Horn
Operational
Seat Belts
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Control Station - Upper
Glass
No visible damage
Seats/Armrests
Load Moment Indicator
Not operationally checked with a load., Manitowac, 4x40 BOOTSTRAP
Controls Hydraulic or Air
Load Charts
Chart book in cab
Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational
Gauges
Operational
Hoist Brakes
Air Conditioner
Inoperable
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
2014 US EPA Label
Emission Label
A/C Compressor
Belt missing
Blow-by (subjective visual observation)
Significant
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Service Brakes
Drive Chains/Sprockets
Drive Motors
Final Drives
Limited Function Check (Drivetrain-Crawler Crane)
The drivetrain functioned properly without a load.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Limited Function Check
The hydraulic system was operational.
Crane Superstructure
Hoist Drums
Hydraulic Operation
Hoist and Boom Clutches
Main Boom Pins
Pendant Line (Boom Tension Line)
Cable Type
Point Sheaves
Boom Point Section
Gantry/Mast
Boom Stops
Main Boom Chords
Boom Length
100 ft overall length, 2 Sections, 40 ft Length, 20 ft base section, Boom tip 20 ft, Boom base 20 ft, First section 20 ft, Second section 40 ft
Boom Angle Indicator
Turntable Bearing
Bottom Covers
Hook Rollers
Swing Drive
Operational
Limited Function Check
The main chassis components functioned when checked without a load.
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Track Links
Left Track Bushings
Rotating Bushings
Left Carrier Rollers
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Track Links
Right Track Bushings
Rotating Bushings
Right Carrier Rollers
Right Track Rollers
Right Idler
Right Sprocket
Specialty
Main Load Block
Third Drum
Counterweights
Oil Sample Analysis
Oil Sample Analysis
| engine | hydraulic | |
|---|---|---|
| date of analysis | Jun 26, 2026 | Jun 26, 2026 |
| Silicon | 5.47 PPM | 0 PPM |
| Tin | 1.61 PPM | 1.19 PPM |
| Silver | 0 PPM | 0.05 PPM |
| Aluminum | 8.78 PPM | 0 PPM |
| Chromium | 1.09 PPM | 0 PPM |
| Lead | 2.93 PPM | 2.04 PPM |
| Copper | 100.35 PPM | 7.69 PPM |
| Nickel | 3.69 PPM | 0.01 PPM |
| Iron | 378.79 PPM | 5.53 PPM |
| Glycol | NEG | N/A |
| Water | NEG | N/A |
| Fuel | <5% | <5% |
