111 Photos
2000 Link-Belt ATC822 22 ton 4x4 All Terrain Crane
Located
Tulsa, OK
Tulsa, OK
Usage
2,083 mi
2,083 mi
Serial number
71J0-2171
71J0-2171
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#14733483
In yard
No
Features
Air Conditioner, ZF Automatic Transmission, 1805.9 hrs Carrier Engine, Cummins 6 Cylinder Diesel Carrier Engine, Anti Two-Block, Micro Guard 434 Load Moment Indicator, 27 ft Minimum 70 ft Maximum Boom Length, Auxiliary Hoist, Rooster Sheave, 27 ft to 44 ft Bifold Swingaway Offset Jib, 484 lb 20 ton Capacity Johnson 3 Sheave Hook Block, 210 lb Overhaul Ball, 3000 lb Counterweight

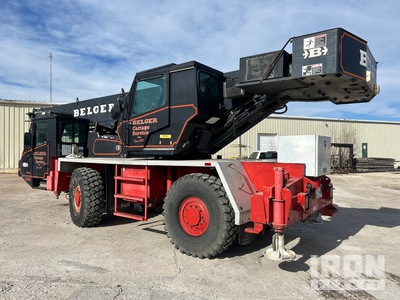

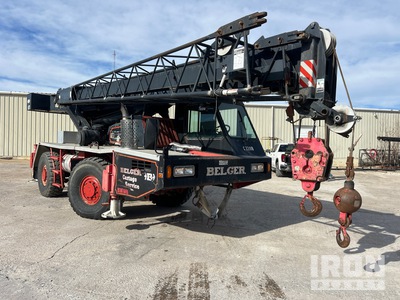

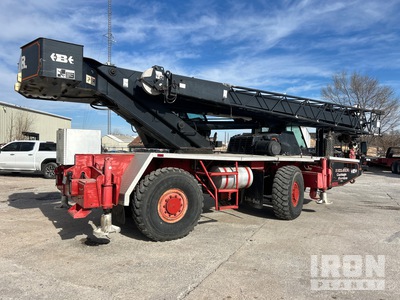

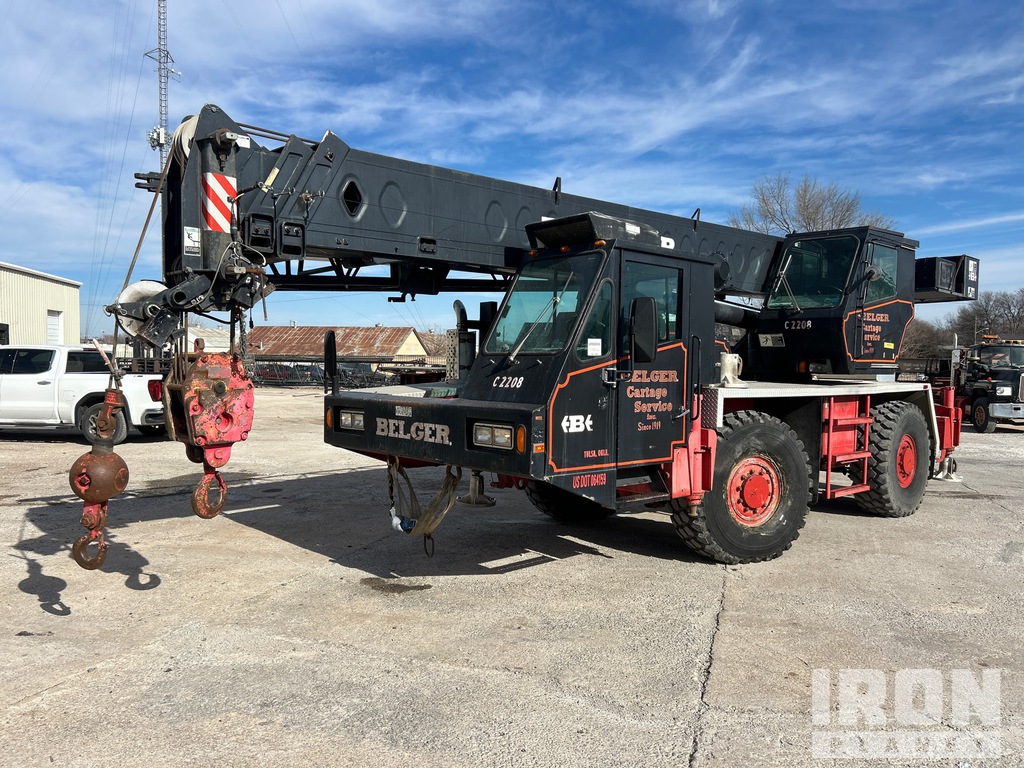

General Appearance
(22)
Serial Number / VIN
71J0-2171
CE Mark
No CE mark found
Hour Meter / Odometer
2083 mi-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Safety Certification Label
There is a safety certification label with a date of 4-30-26
Safety Certification Report
Safety Certification Report Available
Load Chart
Yes
Safety
(1)
Horn
Operational
Seat Belts
Inoperable
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
(16)
Lower/Carrier Engine Hours
1805.9 hrs Carrier Engine
Mirrors
Window Controls
Operational
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Operational
Engine Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational
Gauges
Operational
Gear Selector
Brake Control
PTO Control
Cable engaged, Operational
Air Conditioner
Operational
Heater
Inoperable
Limited Function Check
The main components are in place and operational as noted.
Engine
(11)
A/C Compressor
Operational
Blow-by (subjective visual observation)
Minor
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Underbody
(19)
Transmission
Operational
PTO Pump
Operational
Steer Axle
Rear Drive Axle
Axle Bump Stops
Final Drives
Limited Function Check - Carrier
The drivetrain was operational without a load.
Steering Linkage
Steering Wheel Play
Brake Type
Air
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Stopped the machine while rolling
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Springs/Hangers Condition
Frame Condition
Cross Members
Tire Condition
Wheel Condition
Wheel Studs
Hydraulics - Crane Carrier/Chassis
(4)
Pumps (Hydraulics)
Valves
Dripping leak
Hydraulic Tank
Hoses (Hydraulic)
Puddle forming leak
Stabilizer Cylinders
Limited Function Check
The hydraulic system was operational.
Upper Control Station
(14)
Mirrors
Passenger side damaged mirror
Glass
Seats/Armrests
Safety Lock Out/Stop
Load Moment Indicator
Powers On, Not operationally checked with a load
Anti Two Block
Operational, Whipline weight was missing.
Hydraulic Controls
Oil Pressure
The gauge registers in the operating range.
Exterior Lights
Warning Lights
Operational
Gauges
Operational
Drum Rotation Indicator
Operational
Heater
Not operationally checked, Diesel heater
Limited Function Check
The main components are in place and operational as noted.
Chassis
(2)
Crane Superstructure
(12)
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Wear Pads
Turntable Bearing
Bottom Covers
Limited Function Check
The main crane components functioned when checked without a load.
Outrigger Beams
Outrigger Cylinders
Outrigger Pads
Crane Superstructure Hydraulics
(6)
Hydraulic Motors
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Lift Cylinders
Telescopic Boom Cylinders
Specialty
(4)
Jib
Main Load Block
Overhaul Ball
Counterweights
