153 Photos
2000 Grove TMS875C 75 Ton Hydraulic Truck Crane
Located
Redlands, CA
Redlands, CA
Usage
97,229 mi
97,229 mi
Serial number
476TS875CYS221727
476TS875CYS221727
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15681141
In yard
No
Features
Eaton Fuller 8LL Manual Transmission, 1185 hrs Carrier Engine, 2000 US EPA Label, Cummins ISM 400 6 Cylinder 10.8 L Diesel Carrier Engine, Anti Two-Block, PAT DS350 Load Moment Indicator, 35 ft Minimum 138 ft Maximum Boom Length, Auxiliary Hoist, Rooster Sheave, 876 lb 45 ton Capacity 3 Sheave Hook Block, 560 lb 10 ton Capacity Overhaul Ball, 18000 lb Counterweight
Notes
<br><br>**We do not guarantee current registration or that this item will meet local emission requirements. Titles/titling docs may be delayed due to extended processing times at DMV**

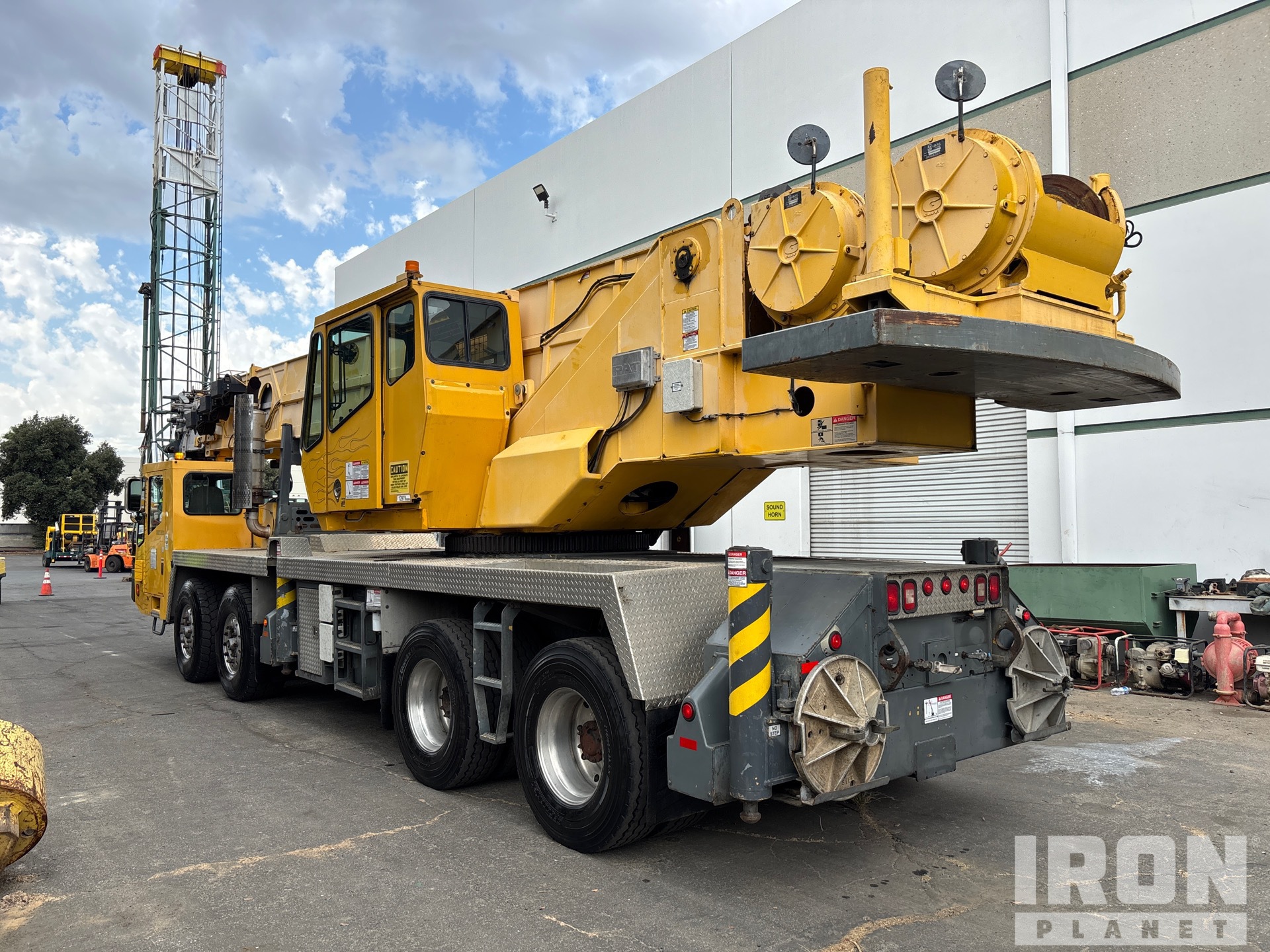

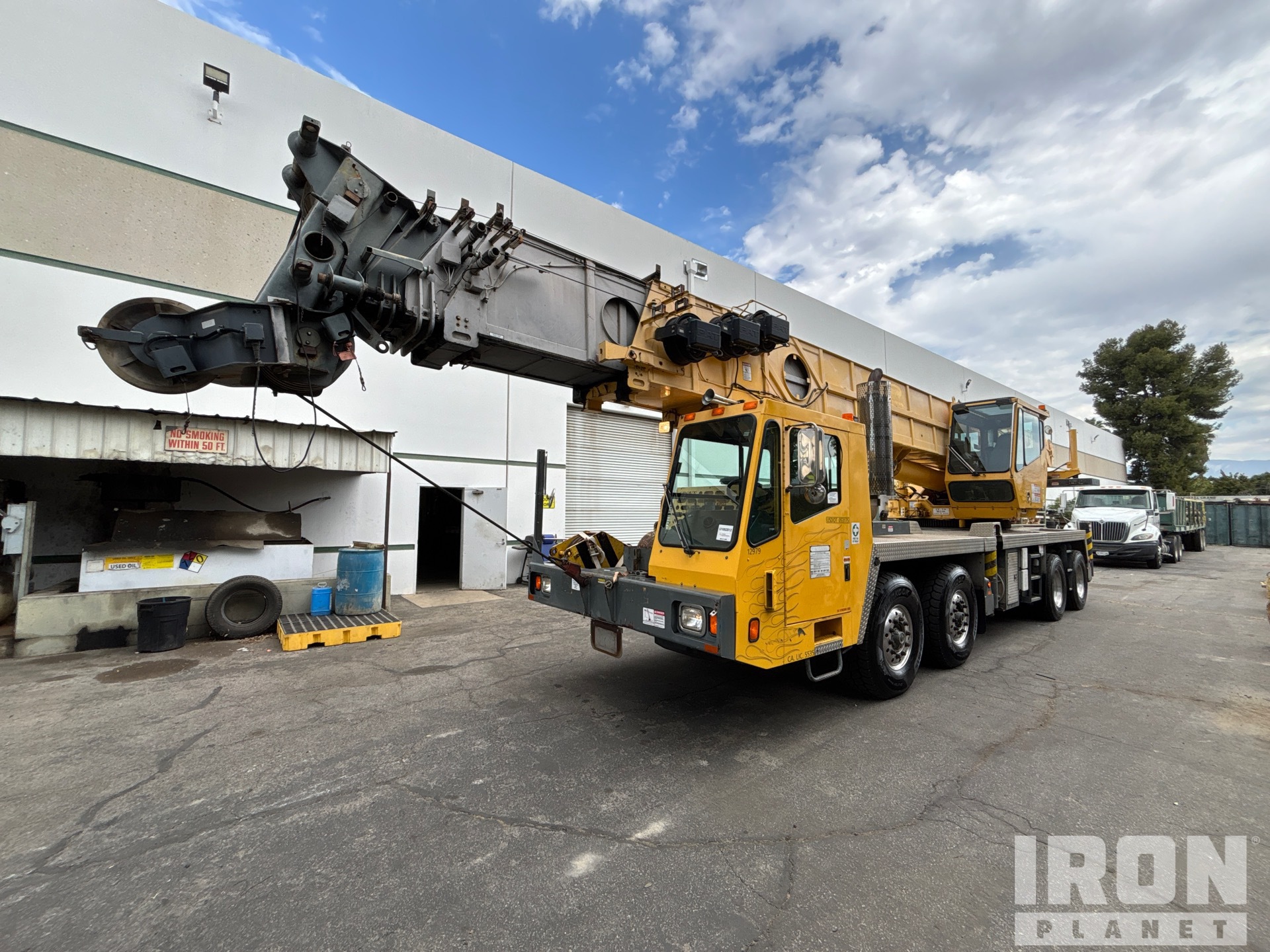

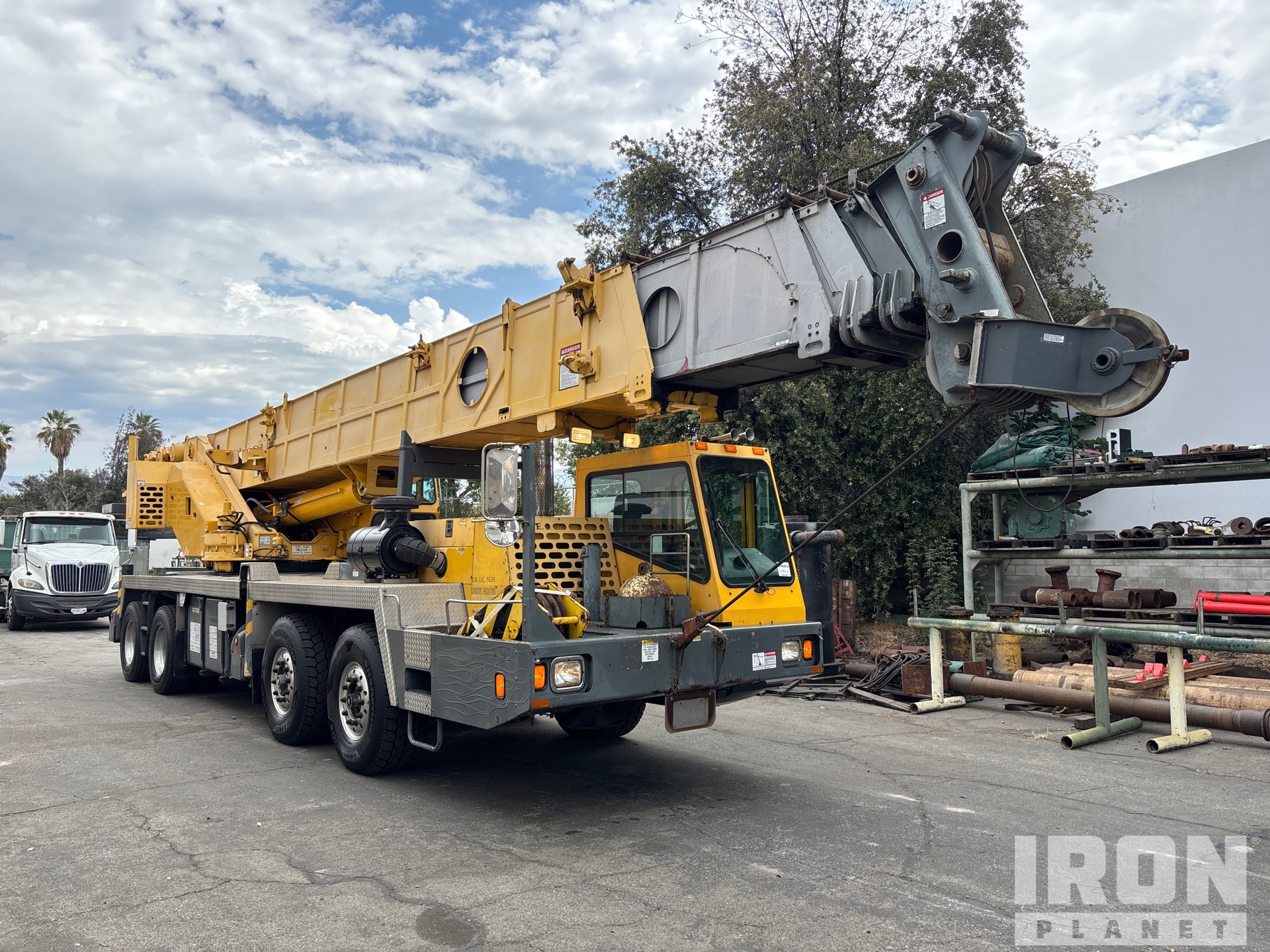

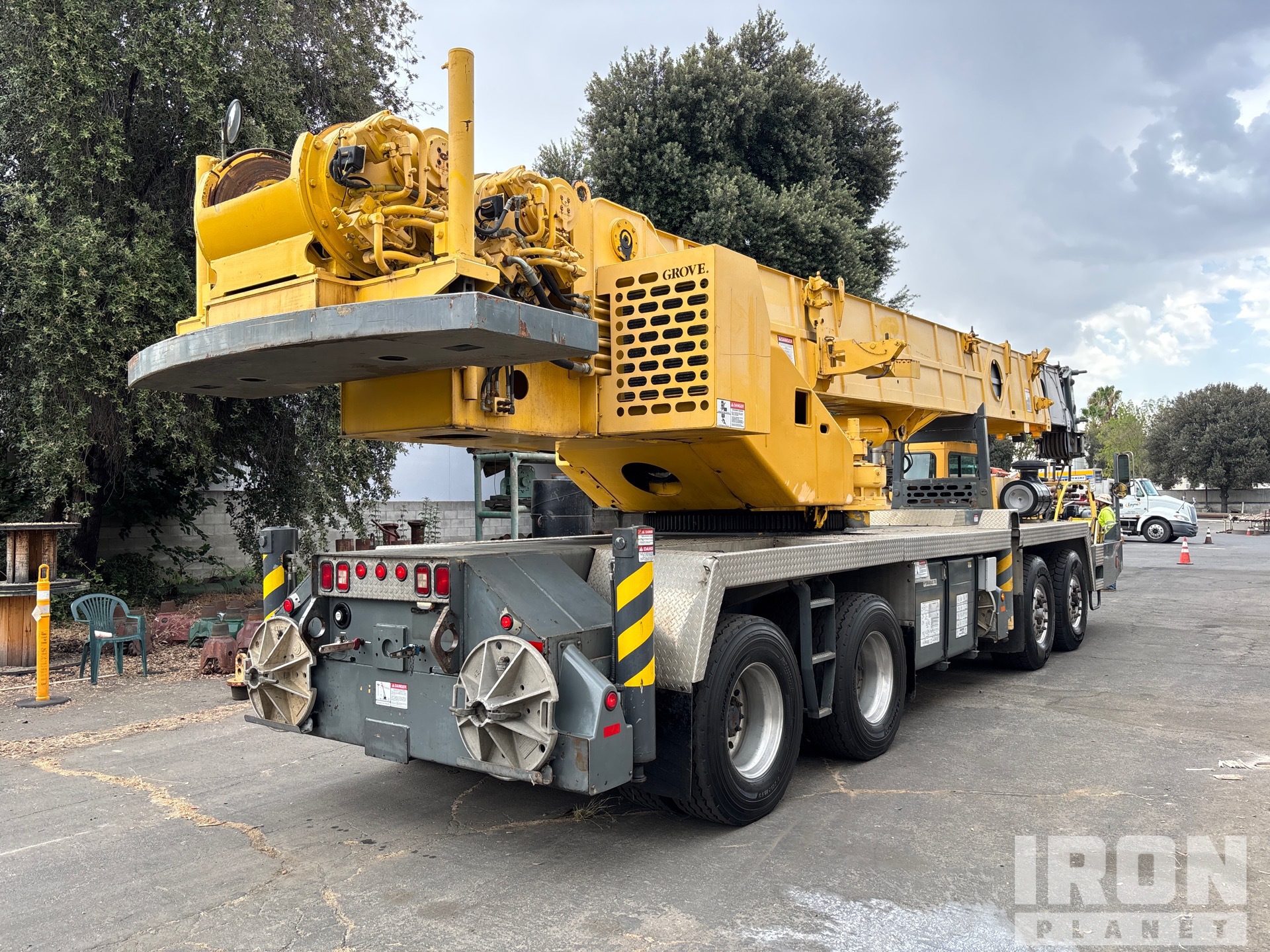

General Appearance
Serial Number / VIN
476TS875CYS221727
Hour Meter / Odometer
97229 mi-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Safety Certification Label
There is a safety certification label with a date of 8/1/2023
Safety Certification Report
Safety Certification Report Available
Load Chart
Yes
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Lower/Carrier Engine Hours
1185 hrs Carrier Engine
Mirrors
Window Controls
Operational
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Operational
Engine Oil Pressure
The needle on the gauge is inoperable moves too fast to get accurate reading
Warning Lights
Operational
Gauges
Operational, Oil pressure gauge needle is moving too fast gauges are inoperable
Gear Selector
Brake Control
Engine Brake
Not operationally checked
PTO Control
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
Other 2000 US EPA Label
Emission Label
Blow-by (subjective visual observation)
Visible
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
Side of engine, Oil Pan, Front cover
Fuel Leaks
Fuel line
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Underbody
Transmission
Operational, Fluid accumulation
PTO Pump
Operational
Steer Axle
Front Drive Axle
Rear Drive Axle
Axle Bump Stops
In place
Final Drives
Limited Function Check - Carrier
The drivetrain was operational without a load.
Steering Linkage
Steering Wheel Play
Brake Type
Air
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Held against power
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Springs/Hangers Condition
Frame Condition
Tire Condition
Wheel Condition
Wheel Studs
Hydraulics - Crane Carrier/Chassis
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulic)
Limited Function Check
The hydraulic system was operational.
Upper Control Station
Hour Meter Reading
1185 Hours-IronPlanet makes no guarantees as to actual hours/miles; we can only report what can be visually observed.
Mirrors
No visible damage or missing components
Glass
Seats/Armrests
Load Moment Indicator
Powers On, Not operationally checked with a load
Anti Two Block
Operational
Hydraulic Controls
Oil Pressure
Gauge inoperable
Warning Lights
Operational
Gauges
Operational, Oil pressure gauges are inoperable
Drum Rotation Indicator
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Chassis
Crane Superstructure
Main Boom Pins
Main Boom Sections
Cracked 4th telescopic section underside
Sheaves
Boom Head Section
Wear Pads
Boom Angle Indicator
Electronic
Turntable Bearing
Limited Function Check
The main crane components functioned when checked without a load.
Outrigger Beams
Outrigger Cylinders
Outrigger Pads
Crane Superstructure Hydraulics
Hydraulic Motors
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Lift Cylinders
Telescopic Boom Cylinders
Specialty
Main Load Block
Overhaul Ball
Counterweights
