230 Photos
2000 Grove GMK5210 210 ton 10x8x10 All Terrain Crane
Located
Memphis, TN
Memphis, TN
Usage
129,690 km
129,690 km
Serial number
W09180580YW612053
W09180580YW612053
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#16008857
In yard
No
Features
Air Conditioner, ZF 4 Automatic Transmission, 5272 hrs Carrier Engine, Mercedes-Benz OM502 8 Cylinder Diesel Carrier Engine, Air Conditioner, No DEF, Mercedes-Benz Diesel Upper Engine, 45 ft Minimum 196 ft Maximum Boom Length, Rooster Sheave, 24 ft to 124 ft Jib, 900 lb Grove 3 Sheave Hook Block, Overhaul Ball, 80 ton Counterweight

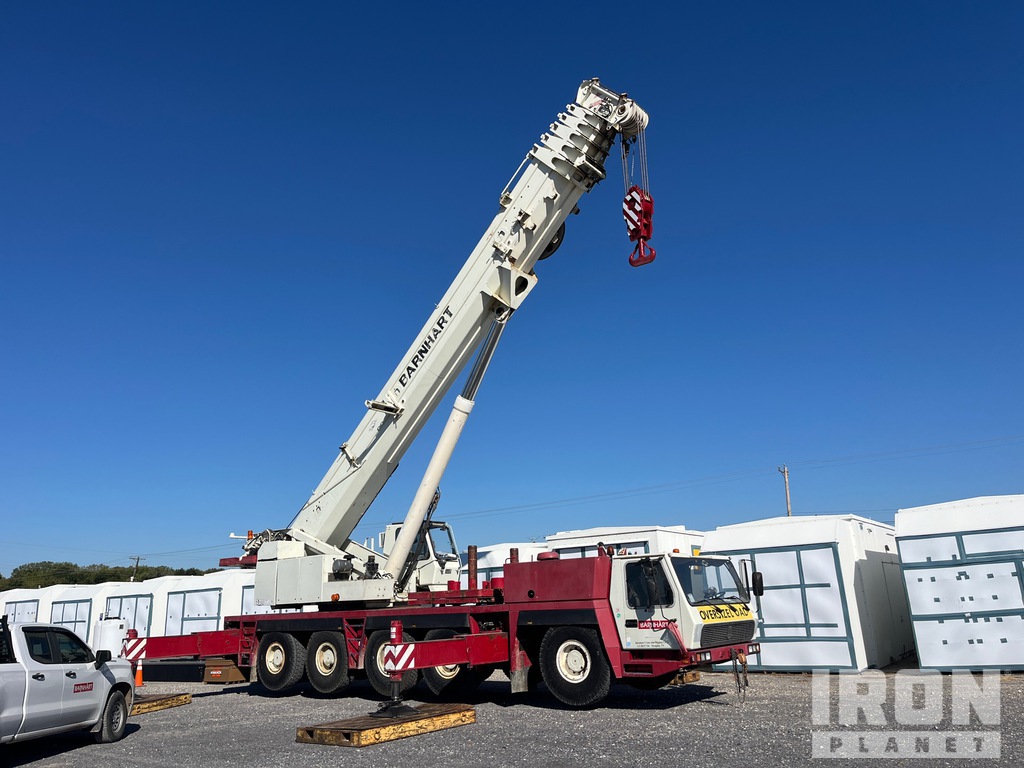

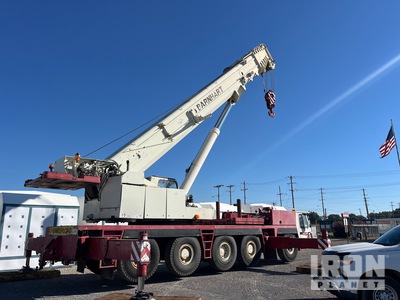

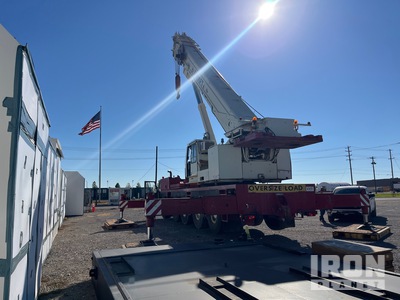

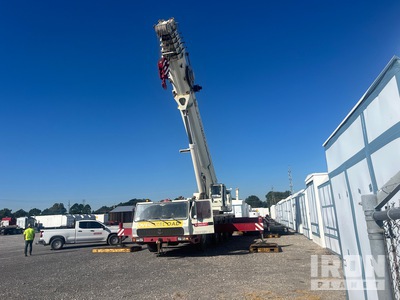

General Appearance
(30)
Featured Photo
Serial Number / VIN
W09180580YW612053
Hour Meter / Odometer
129690 km, Meter inoperable-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
1X chip
Exterior Lights
Not operational, No headlights
Safety Certification Label
There is a safety certification label with a date of July 3 2020, No other sticker found other than outdated
Safety Certification Report
Safety Certification Report Available, Not in Vehicle
Load Chart
Yes
Safety
Travel Alarm
Not operationally checked
Horn
Operational, Operational
Seat Belts
Operational, Operation
Safety Lock Out/Stop
Operational Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
(14)
Lower/Carrier Engine Hours
5272 hrs Carrier Engine
Mirrors
Window Controls
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Operational
Engine Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational
Gauges
Operational, Speedometer not tested
Gear Selector
Not operationally tested, Unit is lifted and stationary
Brake Control
Not operationally tested
ECM Miles
Could not obtain
Air Conditioner
Inoperable
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
(16)
Emissions Status
No EPA label found
A/C Compressor
Compressor will not engage Not visible
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Air Compressor
Operational, Not visible
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran. Just have noise coming from right side lifter, noise or exhaust gasket leak unknown
Underbody
(49)
Transmission
Not operationally tested
Steer Axle
Front Drive Axle
Center Drive Axle
Rear Drive Axle
Axle Bump Stops
Final Drives
Limited Function Check - Carrier
The drivetrain could not be operationally checked.
Steering Linkage
Steering Wheel Play
Brake Type
Air
Master Cylinder/Brake Control
Not operationally tested
Brake Lines/Hoses
Not operationally checked
Park Brake
Not operationally tested
Limited Function Check - Brakes
The brakes were not operationally checked.
Springs/Hangers Condition
Hydraulic suspension, no springs or airbags
Frame Condition
Cross Members
Automatic Lube System
Yes
Tire Condition
Wheel Condition
Wheel Studs
Hydraulics - Crane Carrier/Chassis
(15)
Pumps (Hydraulics)
Not visible
Valves
Hydraulic Tank
Hoses (Hydraulic)
Stabilizer Cylinders
Limited Function Check
The hydraulic system was operational. Tested and functions and all directions
Upper Control Station
(17)
Hour Meter Reading
4344.21 Hours, Is there indication of more hours/miles than shown on the meter? No-IronPlanet makes no guarantees as to actual hours/miles; we can only report what can be visually observed.
Mirrors
No visible damage or missing components
Glass
Seats/Armrests
Safety Lock Out/Stop
Load Moment Indicator
Operational, Not operationally checked with a load
Hydraulic Controls
Oil Pressure
The gauge registers in the operating range. Warning light only warning, light only
Warning Lights
Operational
Gauges
Operational
Air Conditioner
Inoperable
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Upper Engine
(12)
Emission Certification Label
None found
A/C Compressor
Compressor will not engage, AC runs off electrical system
Blow by @ idle (subjective visual observation)
No noticeable vapor or pressure
Starter
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Not visible
Engine - Right Side
Limited Function Check (Engine)
The engine started and ran.
Chassis
(4)
Crane Superstructure
(38)
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Wear Pads
Not visible
Turntable Bearing
Bottom Covers
Limited Function Check
The main crane components functioned when checked without a load.
Outrigger Beams
Outrigger Cylinders
Outrigger Pads
Crane Superstructure Hydraulics
(20)
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Lift Cylinders
Telescopic Boom Cylinders
Internal
Specialty
(15)
Jib
Main Load Block
Overhaul Ball
Counterweights
