110 Photos
1998 Manitowoc 222B 100 ton Lattice-Boom Crawler Crane
Located
Boonville, MO
Usage
4,803 hrs
Serial number
2380305
Loading...
Detailed equipment information
This lot is protected by IronClad Assurance
Buy with confidence knowing that this lot has been given a full and detailed inspection by a qualified inspector.
ID number
#13056690
In yard
No
Year
1998
Manufacturer
Model
Asset type
Serial number or VIN
2380305
Features
Air Conditioner, Load Moment Indicator, 1997 US EPA Label, 140 ft Boom, Self Erecting, Auxiliary Hoist, 3rd Drum, Rooster Sheave, McKissick 1732 lb 4 Sheave 80 ton Hook Block, 650 lb 15 ton Overhaul Ball, Counterweight Removal System, 36 in Track Shoes, Expandable Width Tracks
General Appearance

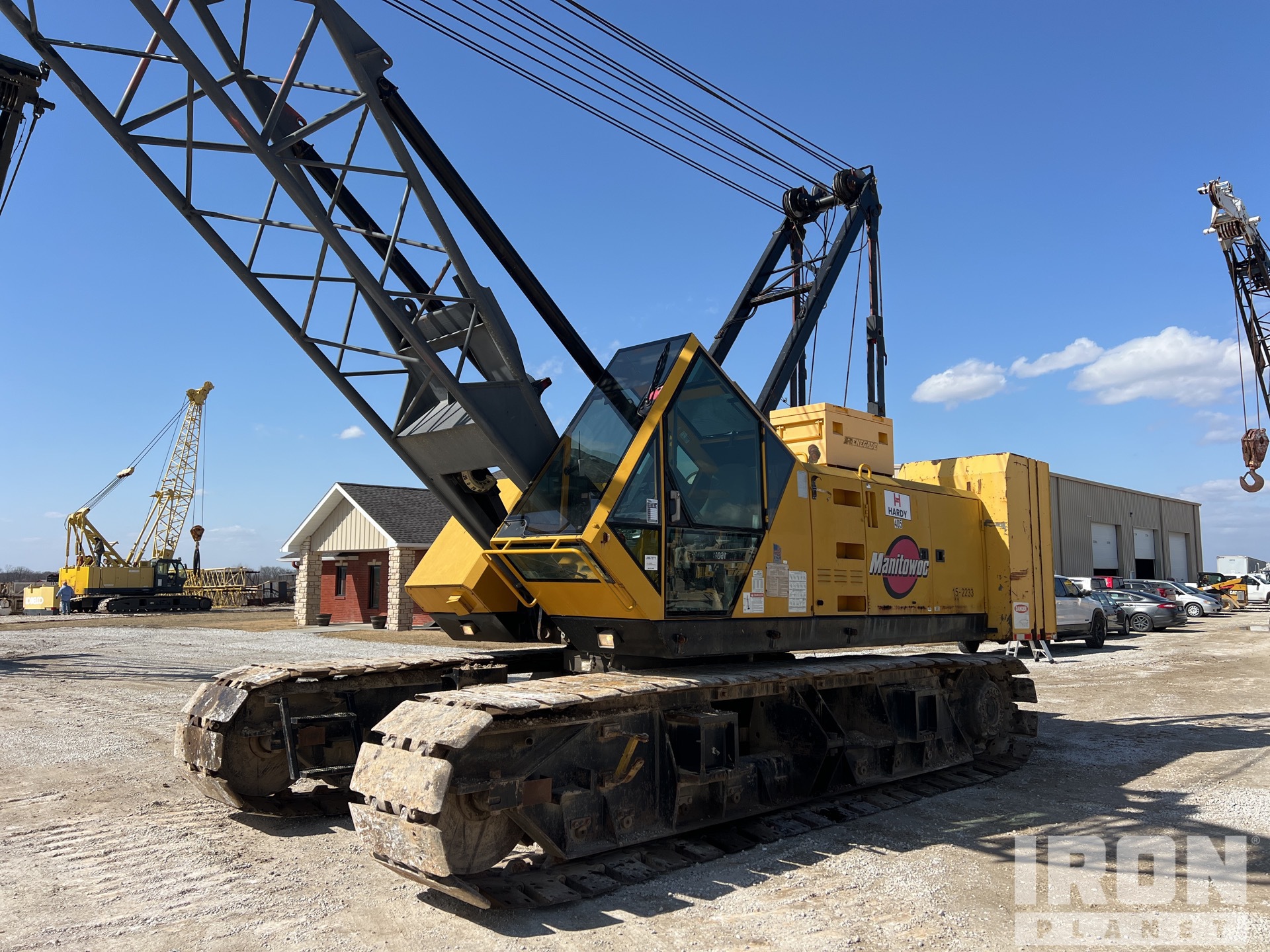

Picture, Left Front Corner

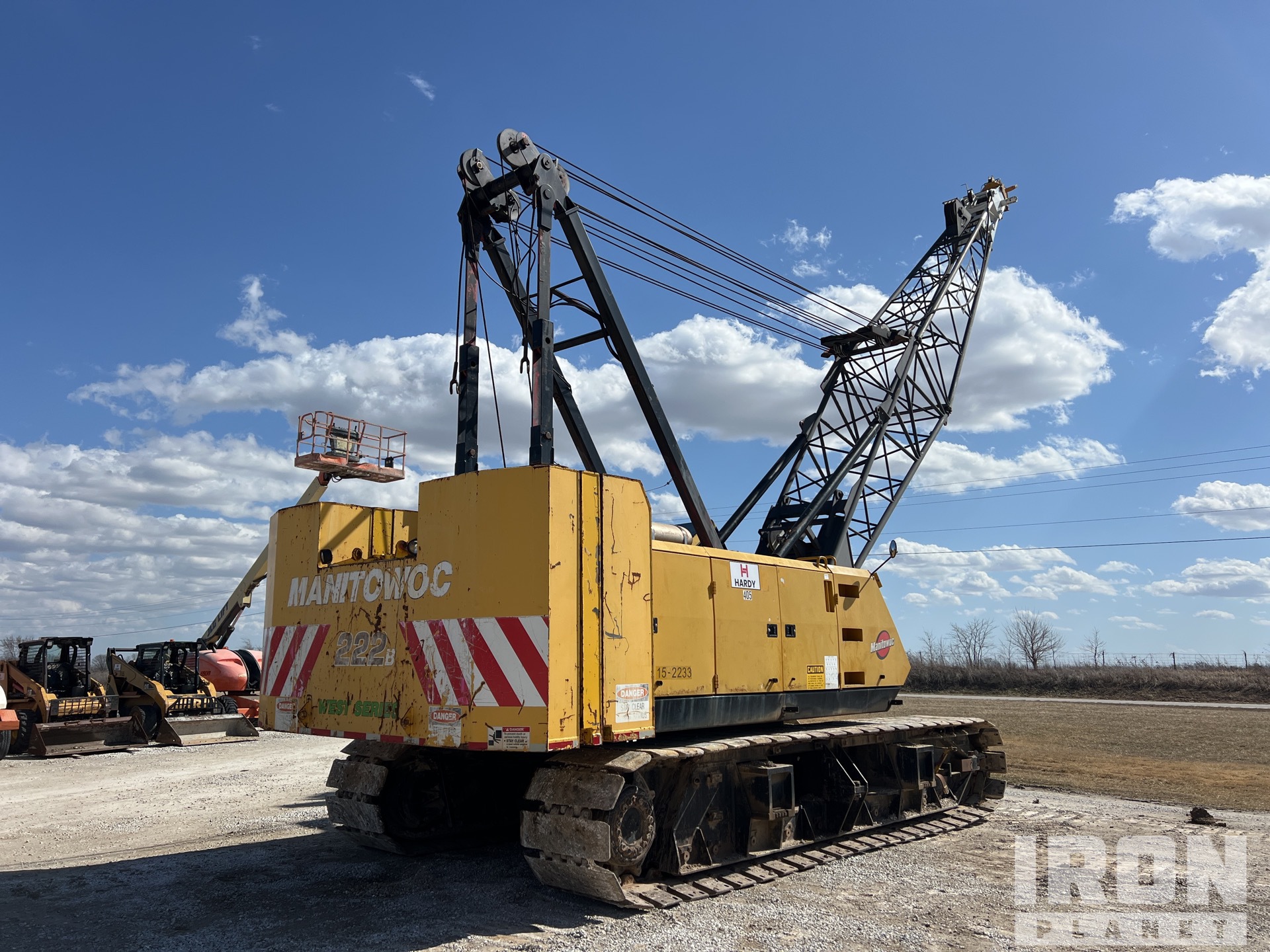

Picture, Left Rear Corner

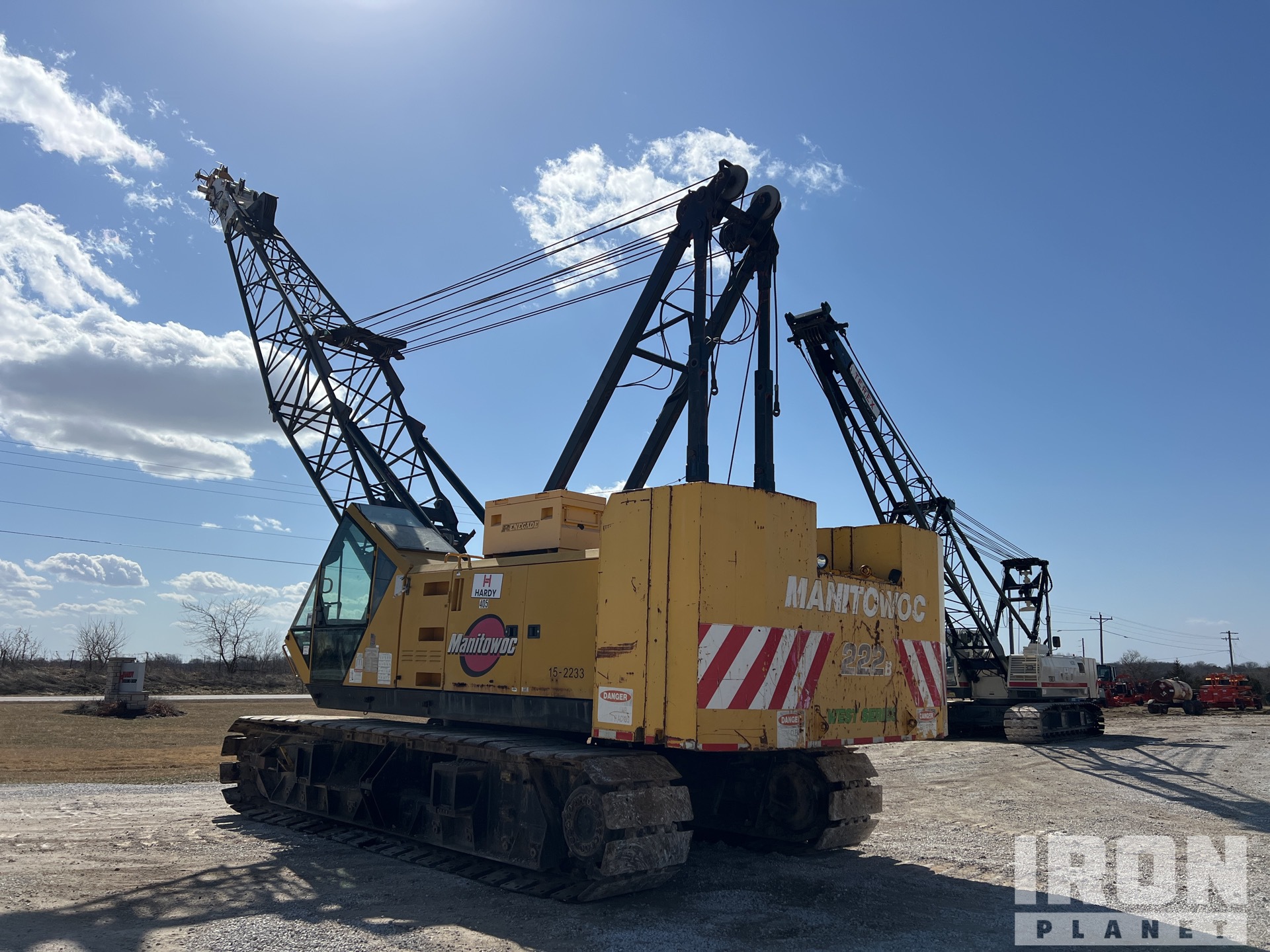

Picture, Right Rear Corner
Picture, Right Front Corner

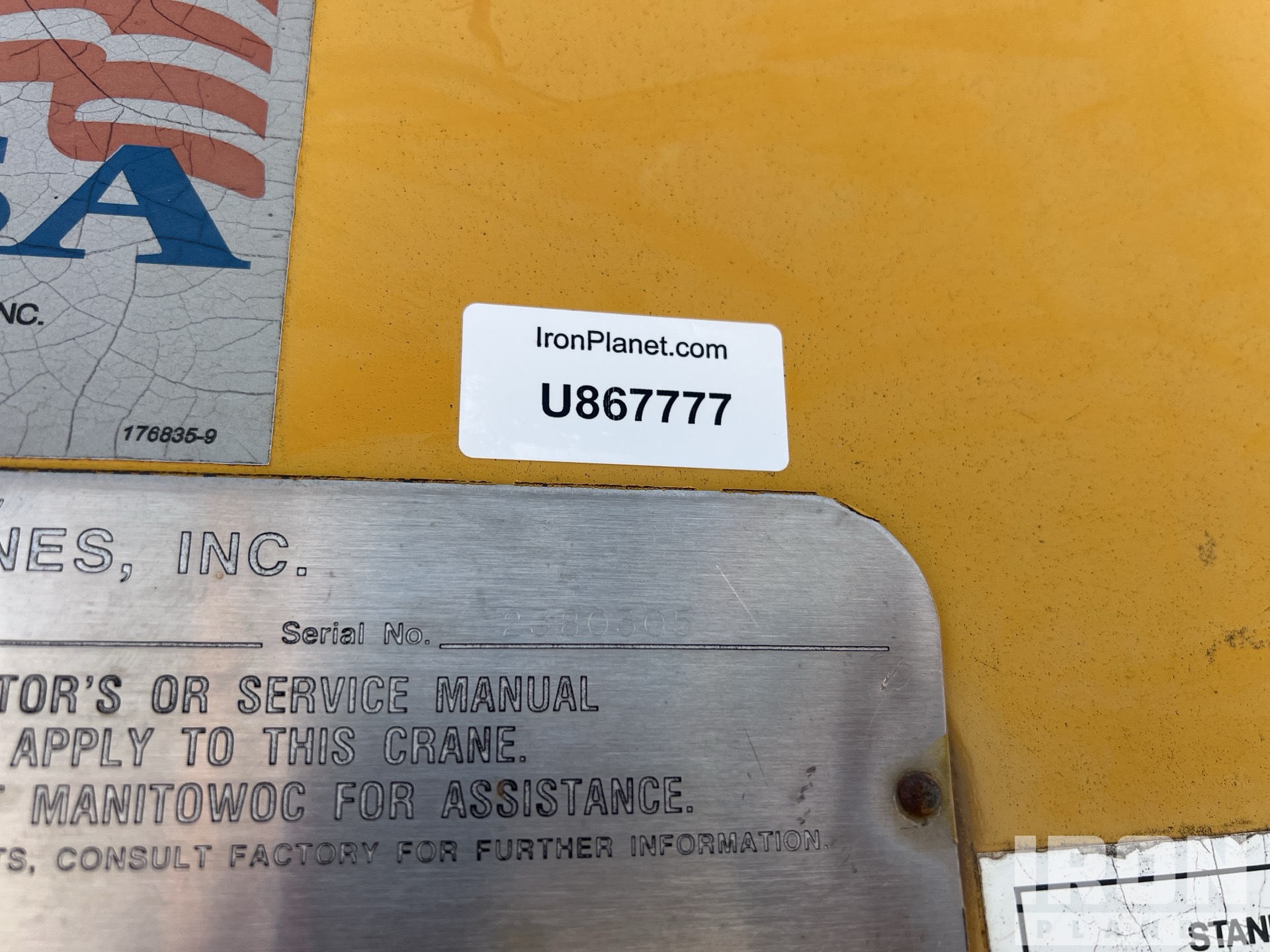

Serial Number / VIN
2380305
CE Mark
No CE mark found
Hour Meter / Odometer
4803 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Some not operational, Rear lights are not operational
Safety Certification Label
There is a safety certification label with a date of 11.16.24
Safety Certification Report
Safety Certification Report Available
Load Chart
Yes
Safety
Travel Alarm
Inoperable
Horn
Operational
Seat Belts
Not equipped
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station - Upper
Mirrors
Glass
Front bottom glass is cracked.
Seats/Armrests
Load Moment Indicator
Not operationally checked with a load., Manitowoc
Controls Hydraulic or Air
Load Charts
Chart book in cab
Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational
Gauges
Operational
Hoist Brakes
Not operationally checked.
Air Conditioner
Inoperable
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
1997 US EPA Label
Emission Label
A/C Compressor
Compressor will not engage
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
Rear of engine, Oil Pan
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Couldn’t access for picture.
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Drive Motors
Final Drives
Limited Function Check (Drivetrain-Crawler Crane)
The drivetrain functioned properly without a load.
Hydraulics
Pumps (Hydraulics)
Dripping leak
Hydraulic Motors
Dripping leak
Valves
Dripping leak
Hydraulic Tank
Dripping leak
Hoses (Hydraulic)
Leaking
Swing Motor
Main Hoist
Not operationally checked.
Auxiliary Hoist
Not operationally checked.
Limited Function Check
The hydraulics that could be operationally checked was operational. Expandable width track cylinders leaking.
Crane Superstructure
Hoist Drums
Hydraulic Operation, Not operationally checked.
Boom Drums
Hydraulic Operation, Not operationally checked.
Hoist and Boom Clutches
Not operationally checked. Leaking
Main Boom Pins
Pendant Line (Boom Tension Line)
Cable Type
Point Sheaves
Boom Point Section
Gantry/Mast
Boom Stops
Main Boom Chords
Not rigged.
Boom Length
130 ft overall length, 20 ft tip section, 20 ft base section, 2-40ft 1-20ft
Boom Angle Indicator
Turntable Bearing
Bottom Covers
Swing Drive
Operational
Limited Function Check
The main chassis components functioned when checked without a load.
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
60 mm
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
60 mm
Right Track Rollers
Right Idler
Right Sprocket
Specialty
Main Load Block
Not rigged.
Overhaul Ball
Not rigged.
Third Drum
Disconnected
Counterweights
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Mar 28, 2025 |
| Silicon | 3.94 PPM |
| Tin | 0 PPM |
| Silver | 0 PPM |
| Aluminum | 0.9 PPM |
| Chromium | 0.24 PPM |
| Lead | 0.83 PPM |
| Copper | 0.29 PPM |
| Nickel | 0.07 PPM |
| Iron | 6.23 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
