105 Photos

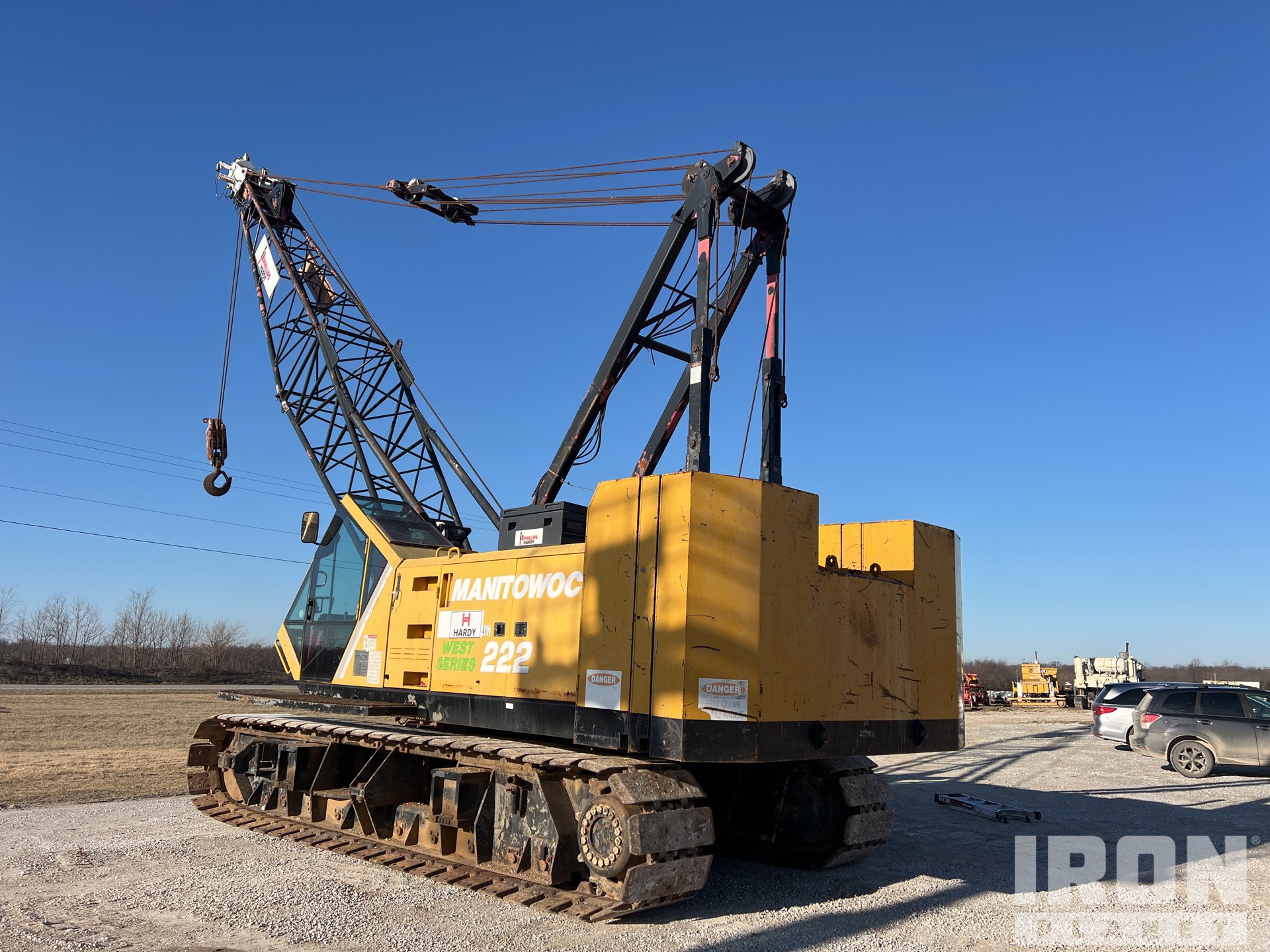

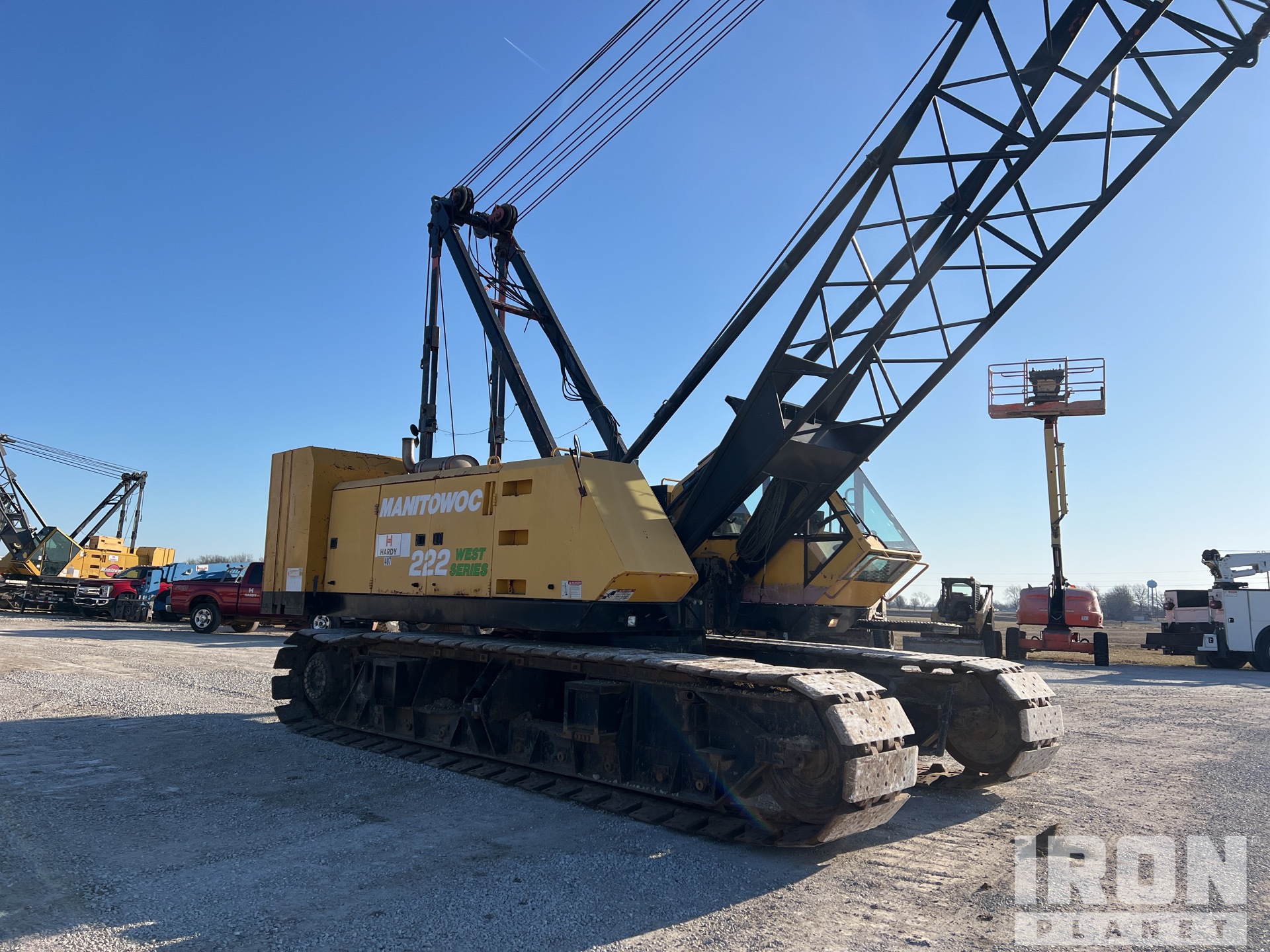

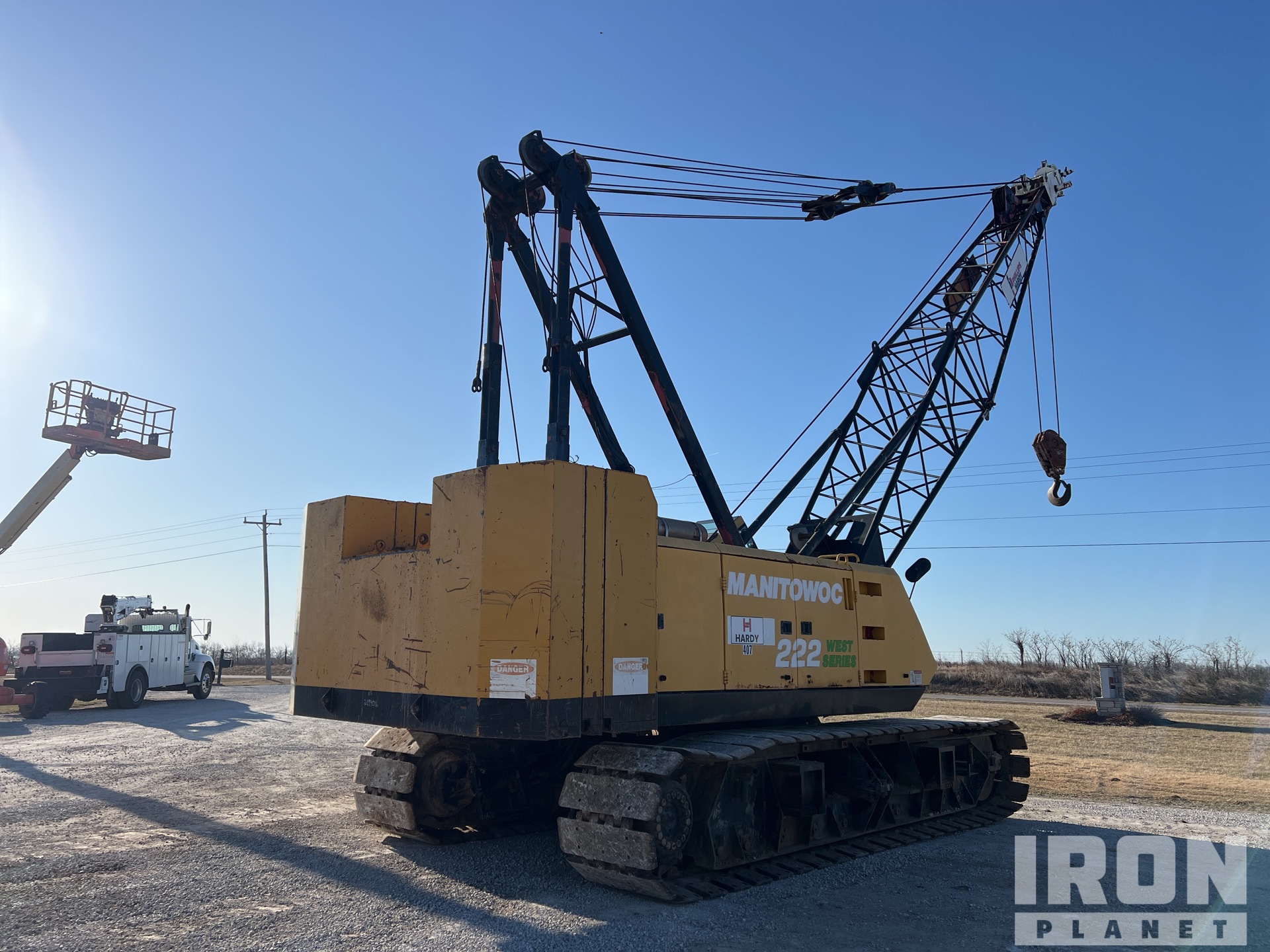

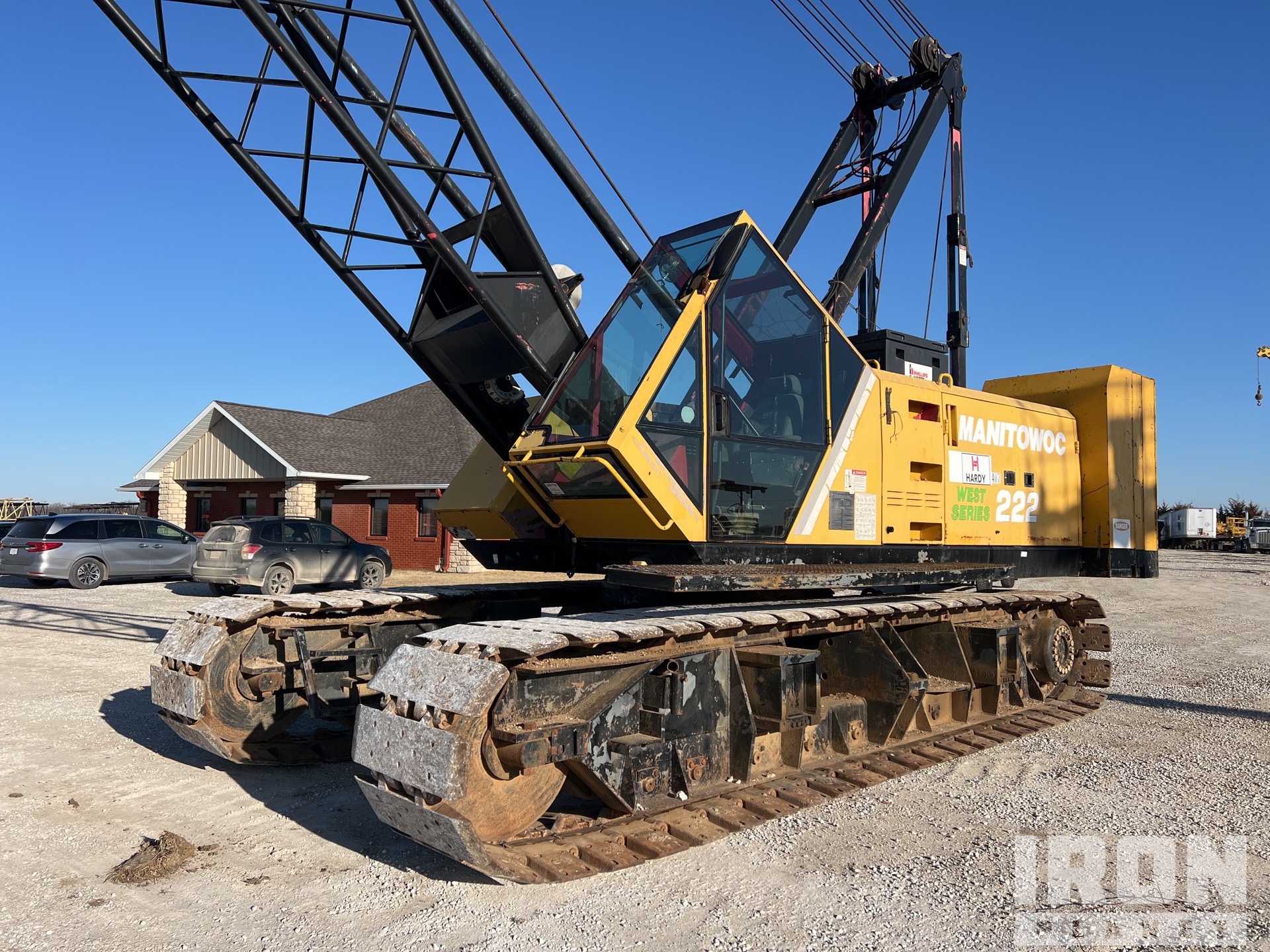

1997 Manitowoc 222 100 ton Lattice-Boom Crawler Crane
Located
Boonville, MO
Usage
9,492 hrs
Serial number
2370905
Loading...
Detailed equipment information
This lot is protected by IronClad Assurance
Buy with confidence knowing that this lot has been given a full and detailed inspection by a qualified inspector.
ID number
#13056691
In yard
No
Year
1997
Manufacturer
Model
Asset type
Serial number or VIN
2370905
Features
Air Conditioner, Load Moment Indicator, 1997 US EPA Label, 150 ft Boom, Self Erecting, Auxiliary Hoist, 3rd Drum, Rooster Sheave, Gunnebo Johnson 1110 lb 2 Sheave 50 ton Hook Block, 715 lb 10 ton Overhaul Ball, Counterweight Removal System, 36 in Track Shoes, Expandable Width Tracks
General Appearance
Picture, Left Front Corner
Picture, Left Rear Corner
Picture, Right Rear Corner
Picture, Right Front Corner

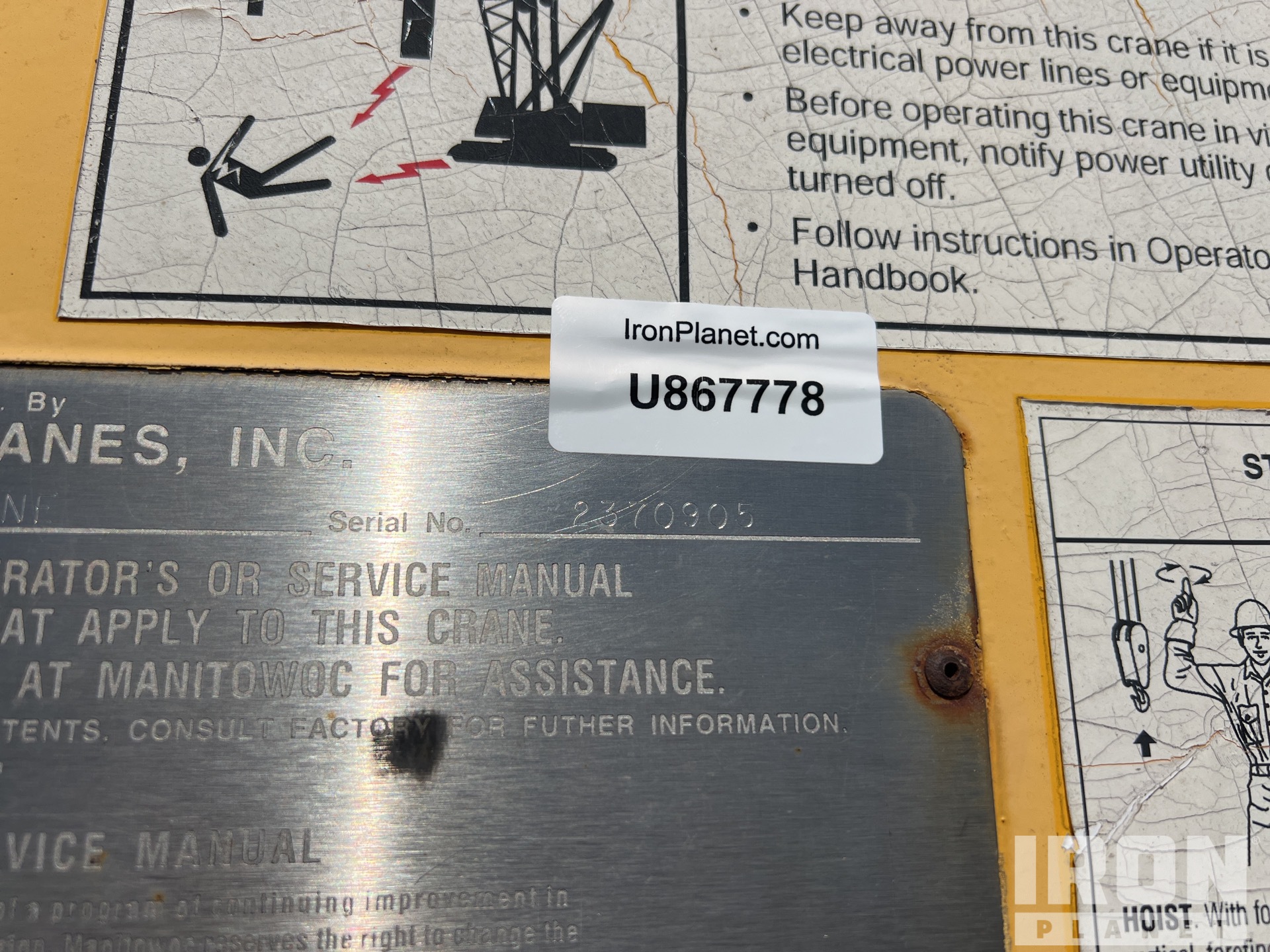

Serial Number / VIN
2370905
CE Mark
No CE mark found
Hour Meter / Odometer
9492 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Exterior Lights
Some not operational, Right front lights are not operational
Safety Certification Label
There is a safety certification label with a date of 11.16.22
Safety Certification Report
Safety Certification Report Available
Load Chart
Yes
Safety
Travel Alarm
Inoperable
Horn
Operational
Seat Belts
Not equipped
Current Safety Manual
Current Operator/Maintenance Manual
Control Station - Upper
Mirrors
Glass
No visible damage
Seats/Armrests
Load Moment Indicator
Not operationally checked with a load., Manitowoc
Controls Hydraulic or Air
Load Charts
Chart book in cab
Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational
Gauges
Operational
Hoist Brakes
Drum Rotation Indicator
Operational
Air Conditioner
Inoperable
Heater
Inoperable
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
1997 US EPA Label
Emission Label
A/C Compressor
In place; ambient temperature too cold to check operation
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
Oil Pan
Fuel Leaks
Injector lines leaking.
Cooling System Leaks
No dripping leaks
Engine - Left Side
Couldn’t access for picture.
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Drive Motors
Final Drives
Limited Function Check (Drivetrain-Crawler Crane)
The drivetrain functioned properly without a load.
Hydraulics
Pumps (Hydraulics)
Dripping leak
Hydraulic Motors
Dripping leak
Valves
Dripping leak
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Limited Function Check
The hydraulic system was operational.
Crane Superstructure
Hoist Drums
Hydraulic Operation
Boom Drums
Hydraulic Operation
Hoist and Boom Clutches
Main Boom Pins
Pendant Line (Boom Tension Line)
Cable Type
Point Sheaves
Boom Point Section
Gantry/Mast
Boom Stops
Main Boom Chords
Boom Length
150 ft overall length, 20 ft tip section, 4 Sections, 20 ft base section, 2-40ft 1-20ft 1-10ft
Boom Angle Indicator
Turntable Bearing
Bottom Covers
Swing Drive
Operational
Limited Function Check
The main chassis components functioned when checked without a load.
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
60 mm
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
60 mm
Right Track Rollers
Right Idler
Right Sprocket
Specialty
Main Load Block
Overhaul Ball
Not rigged.
Third Drum
Disconnected
Counterweights
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Apr 07, 2025 |
| Silicon | 2.94 PPM |
| Tin | 0.8 PPM |
| Silver | 0 PPM |
| Aluminum | 0.11 PPM |
| Chromium | 0.16 PPM |
| Lead | 0.23 PPM |
| Copper | 1.95 PPM |
| Nickel | 0 PPM |
| Iron | 3.99 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
