157 Photos
1997 Link-Belt HTC8670 70 ton 8x4 Hydraulic Truck Crane
Located
Wichita, KS
Wichita, KS
Usage
19,271 hrs
19,271 hrs
Serial number
F2I7-6254
F2I7-6254
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15132934
In yard
No
Features
Eaton Fuller Manual Transmission, 19271 hrs Carrier Engine, US EPA Label, Detroit Series 60 6 Cylinder 11.1 L Diesel Carrier Engine, Air Conditioner, Microguard 534 Load Moment Indicator, 38 ft Minimum 115 ft Maximum Boom Length, Auxiliary Hoist, Rooster Sheave, 36 ft to 61 ft Bifold Swingaway Offset Jib, 1375 lb 30 lb Capacity Johnson 5 Sheave Hook Block, 356 lb 12 lb Capacity Overhaul Ball, 16000 lb Counterweight, Counterweight Removal System, T/A Boom Dolly
Notes
***Item will continue to accrue hours, as it is still in use***
**No title is available. A Bill of Sale will be provided to convey ownership upon request**

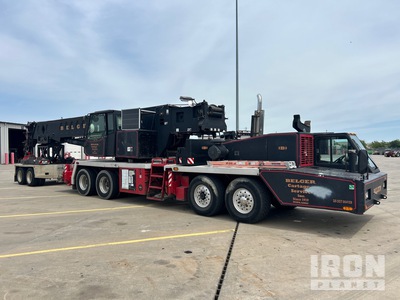

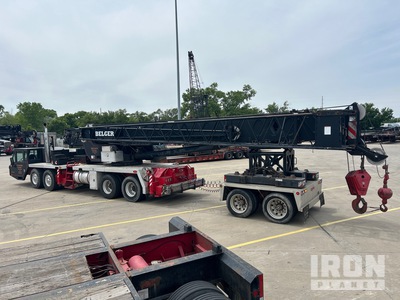

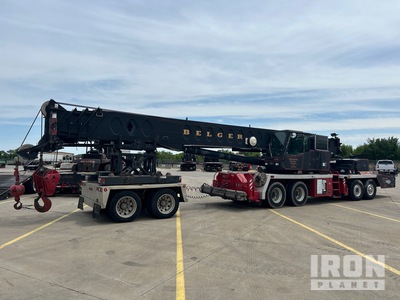

General Appearance
(23)
Serial Number / VIN
F2I7-6254
Hour Meter / Odometer
19271 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Safety Certification Label
There is a safety certification label with a date of 2/6/25
Safety Certification Report
Safety Certification Report Available
Load Chart
Yes
Safety
(1)
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
(17)
Lower/Carrier Engine Hours
19271 hrs Carrier Engine
Mirrors
Window Controls
Operational
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Operational, Operational
Engine Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational
Gauges
Operational
Gear Selector
Brake Control
Engine Brake
Not operationally checked
Clutch
Engages
PTO Control
Cable engaged, Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
(18)
Emissions Status
Other US EPA Label
Emission Label
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Underbody
(19)
Transmission
Operational
Clutch
Engages
PTO Pump
Operational
Steer Axle
Front Drive Axle
Rear Drive Axle
Axle Bump Stops
Limited Function Check - Carrier
The drivetrain was operational without a load.
Steering Linkage
Steering Wheel Play
Brake Type
Air
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Springs/Hangers Condition
Suspension Air Bags
Frame Condition
Cross Members
Tire Condition
Wheel Condition
Wheel Studs
Hydraulics - Crane Carrier/Chassis
(8)
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulic)
Stabilizer Cylinders
Limited Function Check
The hydraulic system was operational.
Upper Control Station
(26)
Mirrors
No visible damage or missing components
Glass
Seats/Armrests
Safety Lock Out/Stop
Load Moment Indicator
Operational
Anti Two Block
Operational
Hydraulic Controls
Oil Pressure
The gauge registers in the operating range.
Exterior Lights
Warning Lights
Operational
Gauges
Operational
Hoist Brakes
Drum Rotation Indicator
Operational
Air Conditioner
The ambient temperature is too cold to check.
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Crane Superstructure
(11)
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Wear Pads
Boom Angle Indicator
Turntable Bearing
Bottom Covers
Limited Function Check
The main crane components functioned when checked without a load.
Outrigger Beams
Outrigger Cylinders
Outrigger Pads
Crane Superstructure Hydraulics
(14)
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Lift Cylinders
Telescopic Boom Cylinders
Specialty
(20)
Jib
Main Load Block
Overhaul Ball
Counterweights
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | May 06, 2026 |
| Silicon | 34.91 PPM |
| Tin | 0.68 PPM |
| Silver | 0 PPM |
| Aluminum | 0 PPM |
| Chromium | 0.49 PPM |
| Lead | 1.84 PPM |
| Copper | 2.27 PPM |
| Nickel | 3.52 PPM |
| Iron | 8.9 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
