170 Photos
1997 Link-Belt HC248H 200 ton 5 Axle 10x4x4 All Terrain Crane
Located
Wichita, KS
Wichita, KS
Usage
18,762 mi
18,762 mi
Serial number
C5NI7-8001
C5NI7-8001
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#14733488
In yard
No
Features
Eaton Fuller 8 Speed Manual Transmission, 4206 hrs Carrier Engine, 2023 US EPA Label, Detroit Series 60 6 Cylinder Diesel Carrier Engine, Anti Two-Block, Trimble GS820 Load Moment Indicator, 2023 US EPA Label, Isuzu Diesel Upper Engine, 60 ft Luffing Jib, Rooster Sheave, Johnson 3301 lb 6 Sheave 150 ton Hook Block, Overhaul Ball
Notes
**No title is available. A Bill of Sale will be provided to convey ownership upon request**

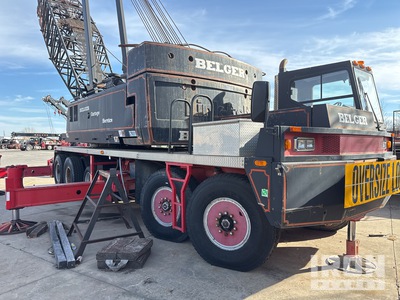

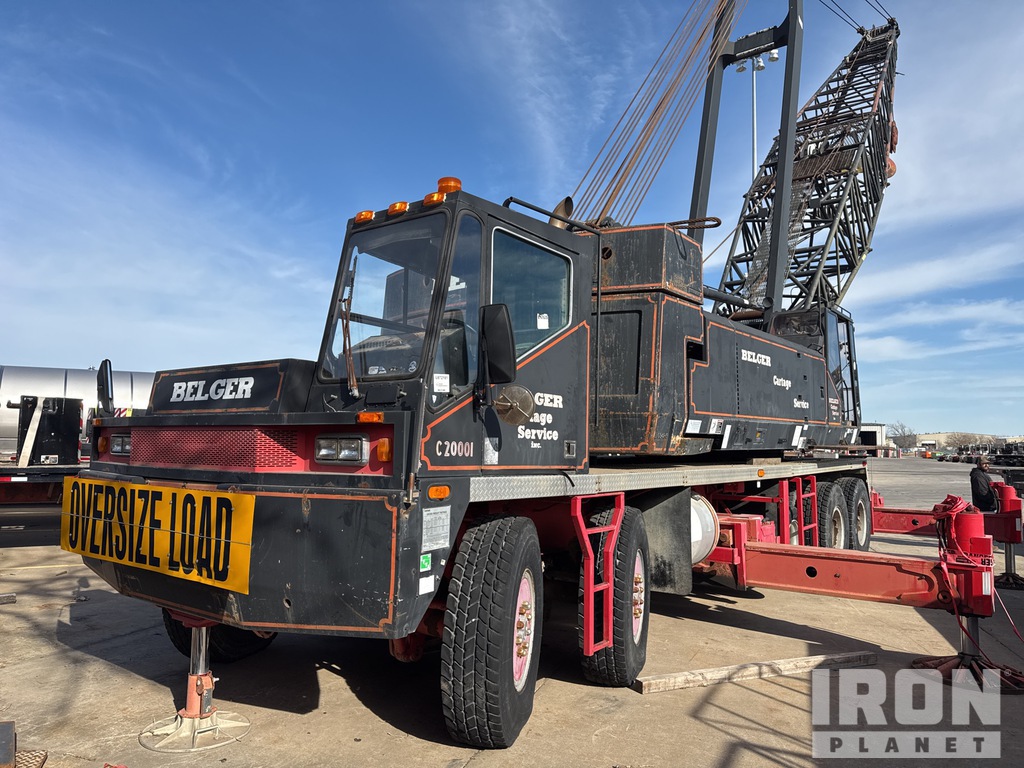

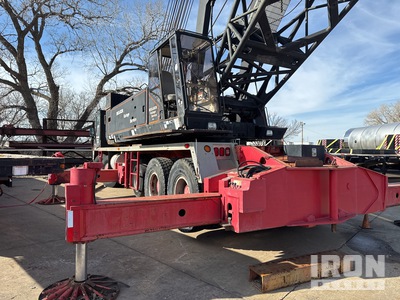

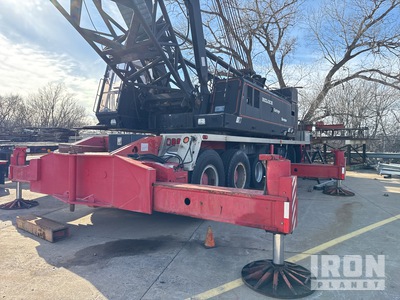

General Appearance
(19)
Serial Number / VIN
C5NI7-8001
Hour Meter / Odometer
18762 mi-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Safety Certification Label
There is a safety certification label with a date of 01/05/2026
Safety Certification Report
Safety Certification Report Available
Load Chart
Yes
Safety
Travel Alarm
Inoperable
Horn
Operational
Seat Belts
Not equipped
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
(11)
Lower/Carrier Engine Hours
4206 hrs Carrier Engine
Seats/Armrests
Mirrors
Steering Controls
Drivetrain Controls
Dash Console
Engine Oil Pressure
The gauge registers in the operating range.
Gauges
Operational
Heater
Not operationally checked
Limited Function Check
The main components are in place and operational as noted.
Engine
(7)
Emissions Status
2023 US EPA Label
Emission Label
Blow-by (subjective visual observation)
Minor
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Radiator
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Underbody
(4)
Transmission
Operational
Clutch
Engages
Steer Axle
Front Drive Axle
Rear Drive Axle
Final Drives
Limited Function Check - Carrier
The drivetrain could not be operationally checked.
Carrier Chassis
(29)
Steering Linkage
Steering Wheel Play
Brake Type
Air
Master Cylinder/Brake Control
Brake Lines/Hoses
Not operationally checked
Park Brake
Held against power
Limited Function Check - Brakes
The brakes were not operationally checked.
Springs/Hangers Condition
External Electrical / Air Connections
Not operationally checked
Frame Condition
Cross Members
Tire Size
All of the tires are the same size, 585/95r24 Rear tires
Tread Depth
LF 12/32 /32", LMI 16/32 /32", LMO 16/32 /32", LRI 16/32 /32", LRO 16/32 /32", RRI 12/32 /32", RRO 12/32 /32", RMI 12/32 /32", RMO 12/32 /32", RF 12/32 /32", LFI 10/32 /32", LFO 10/32 /32", RFI 12/32 /32", RFO 12/32 /32", Tag LO 8/32 /32", Tag LI 8/32 /32", Tag RO 8/32 /32", Tag RI 8/32 /32"
Wheel Condition
Wheel Studs
Outrigger Beams
Outrigger Cylinders
Outrigger Pads
Hydraulics
(7)
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Limited Function Check
The hydraulic system was operational.
Upper Control Station
(19)
Hour Meter Reading
8593.9 Hours-IronPlanet makes no guarantees as to actual hours/miles; we can only report what can be visually observed.
Control Station - Upper
(11)
Glass
No visible damage
Seats/Armrests
Controls Hydraulic or Air
Load Charts
Chart book in cab
Oil Pressure
The gauge registers in the operating range.
Gauges
Operational
Hoist Brakes
Heater
Not operationally checked
Limited Function Check
The main components are in place and operational as noted.
Upper Engine
(5)
Emissions Status
2023 US EPA Label
Emission Certification Label
US EPA certification label
Blow by @ idle (subjective visual observation)
No noticeable vapor or pressure
Starter
Radiator
Engine - Right Side
Limited Function Check (Engine)
The engine started and ran.
Crane Superstructure
(46)
Hoist Drums
Hydraulic Operation
Boom Drums
Hydraulic Operation
Main Boom Pins
Pendant Line (Boom Tension Line)
Cable Type, Cable pendant lines on each section of boom.
Point Sheaves
Boom Point Section
Gantry/Mast
Boom Stops
Main Boom Chords
Boom Length
14 Sections, Tail section plus point installed. Plus several additional sections and jib in storage. Also boom dolly for unit.
Boom Angle Indicator
Turntable Bearing
Swing Drive
Operational
Limited Function Check
The main chassis components functioned when checked without a load.
Specialty
(12)
Jib
Main Load Block
Fairlead
Third Drum
Counterweights
