190 Photos
1997 Liebherr LTM1030/1 30 ton 4x4x4 All Terrain Crane
Located
Caorso, EMRM, ITA
Caorso, EMRM, ITA
Usage
97,287 km (60,452 mi)
97,287 km (60,452 mi)
Serial number
W09262000VEL05244
W09262000VEL05244
Loading...
Detailed equipment information
This lot is protected by IronClad Assurance
Buy with confidence knowing that this lot has been given a full and detailed inspection by a qualified inspector.
ID number
#14623092
In yard
Yes
Year
1997
Manufacturer
Model
Asset type
Serial number or VIN
W09262000VEL05244
Features
6 Speed Automatic Transmission, 15150 hrs Carrier Engine, Liebherr 6 Cylinder Diesel Carrier Engine, Anti Two-Block, Liebherr Load Moment Indicator, 8.4 m Minimum 26 m Maximum Boom Length, Bifold Jib, 140 kg 20 ton Capacity Liebherr 3 Sheave Hook Block, 5.3 t Counterweight, Counterweight Removal System
Notes
** Buyer Responsible for dismantling / load out ** <br> <br> ** Copy of CE Certificate ** <br> <br> ** Italian Registration ** <br> <br> ** Note for International buyers out of Italy: De-registration required for this item; the cost is 185 Euro and will be charged to Buyer. **
Supporting documents
General Appearance

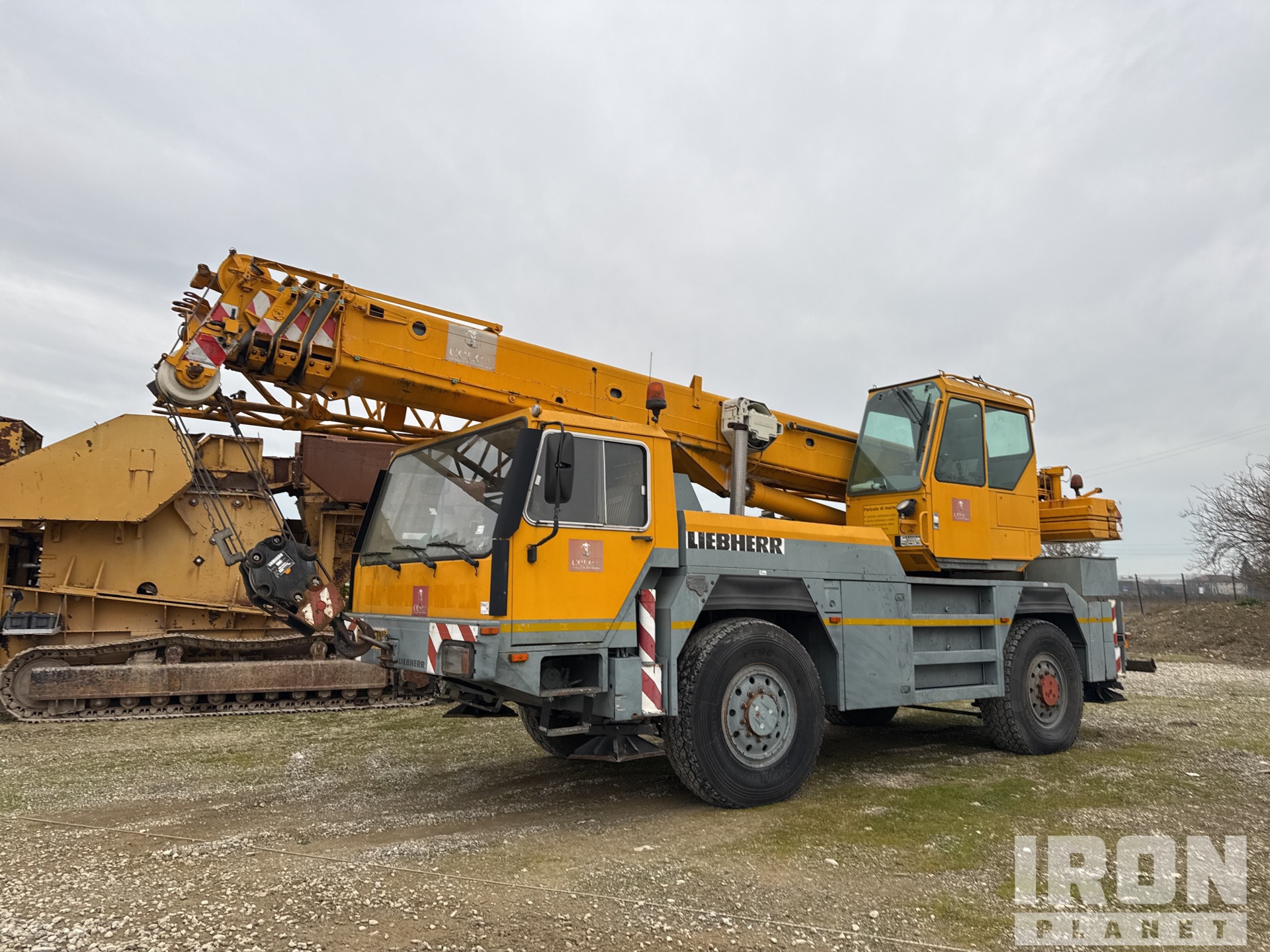

Picture, Left Front Corner

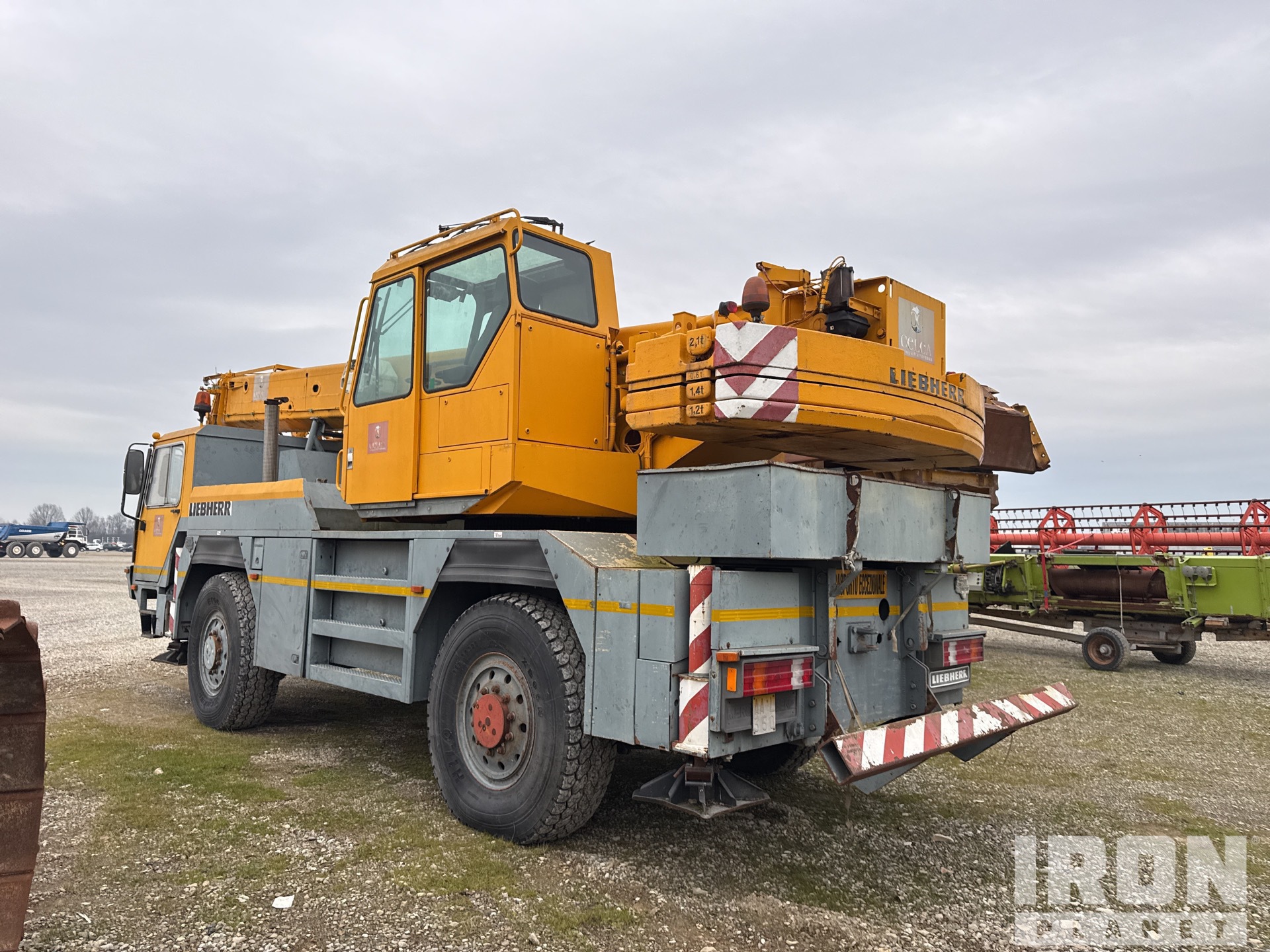

Picture, Left Rear Corner

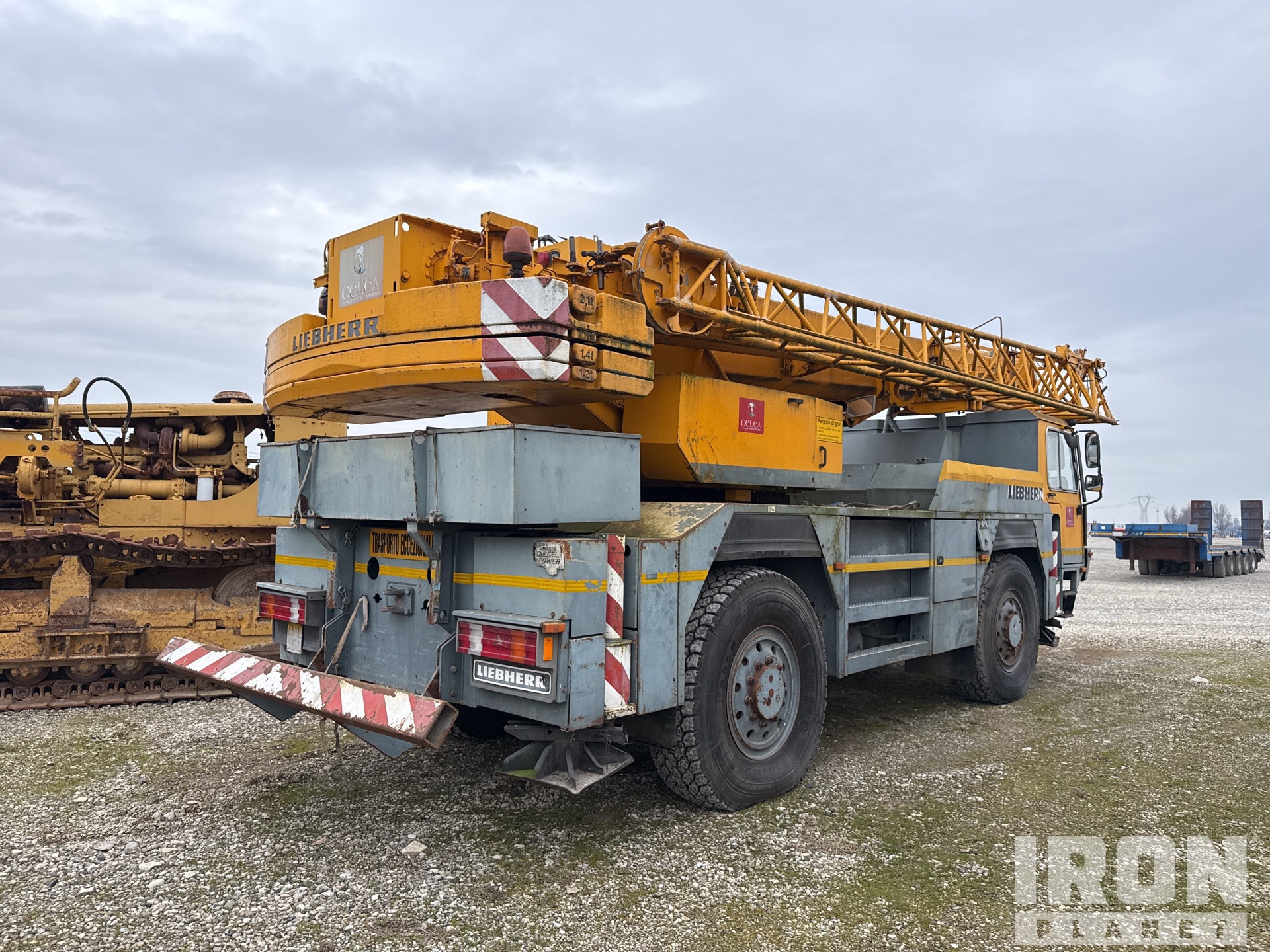

Picture, Right Rear Corner

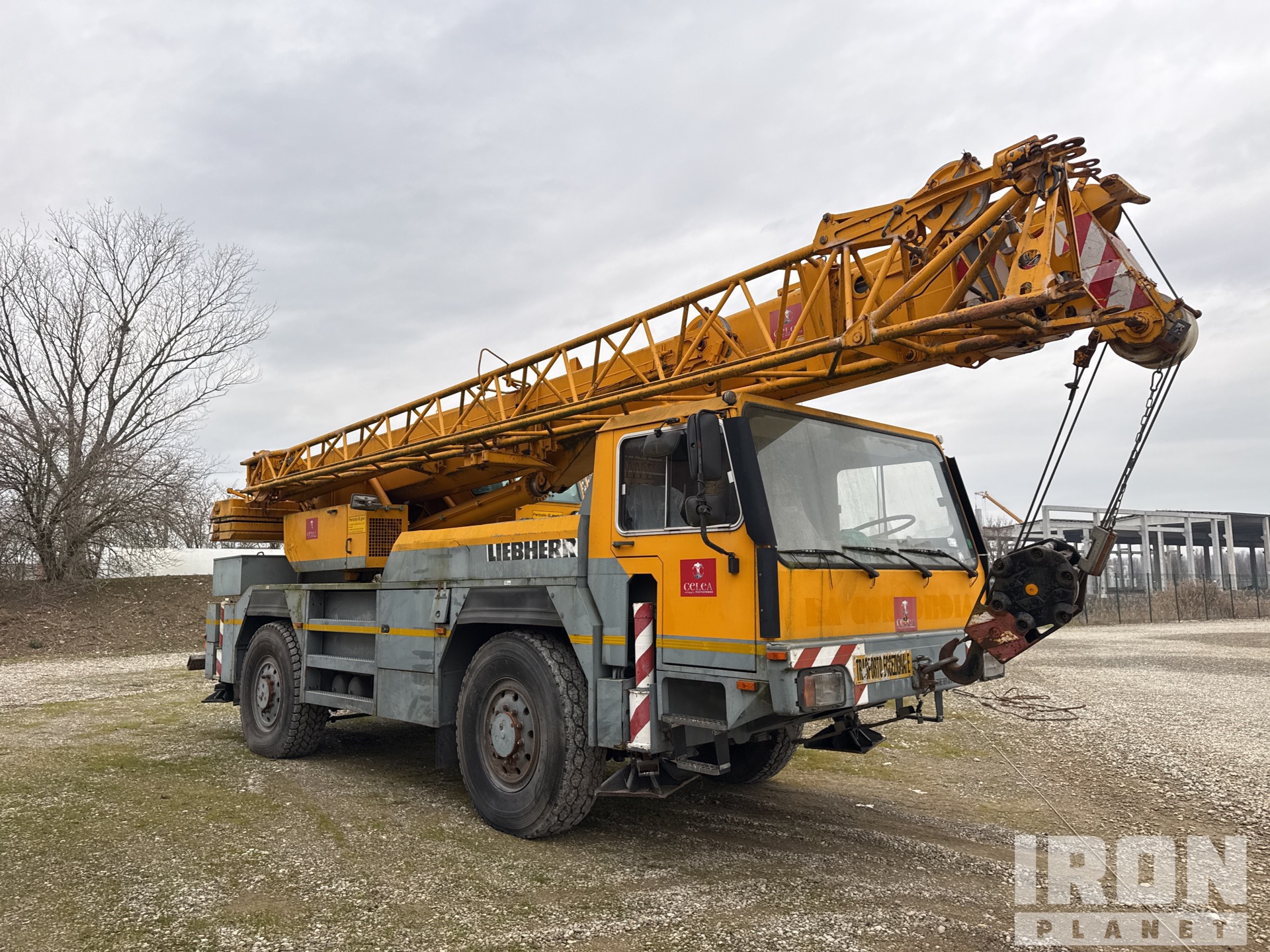

Picture, Right Front Corner

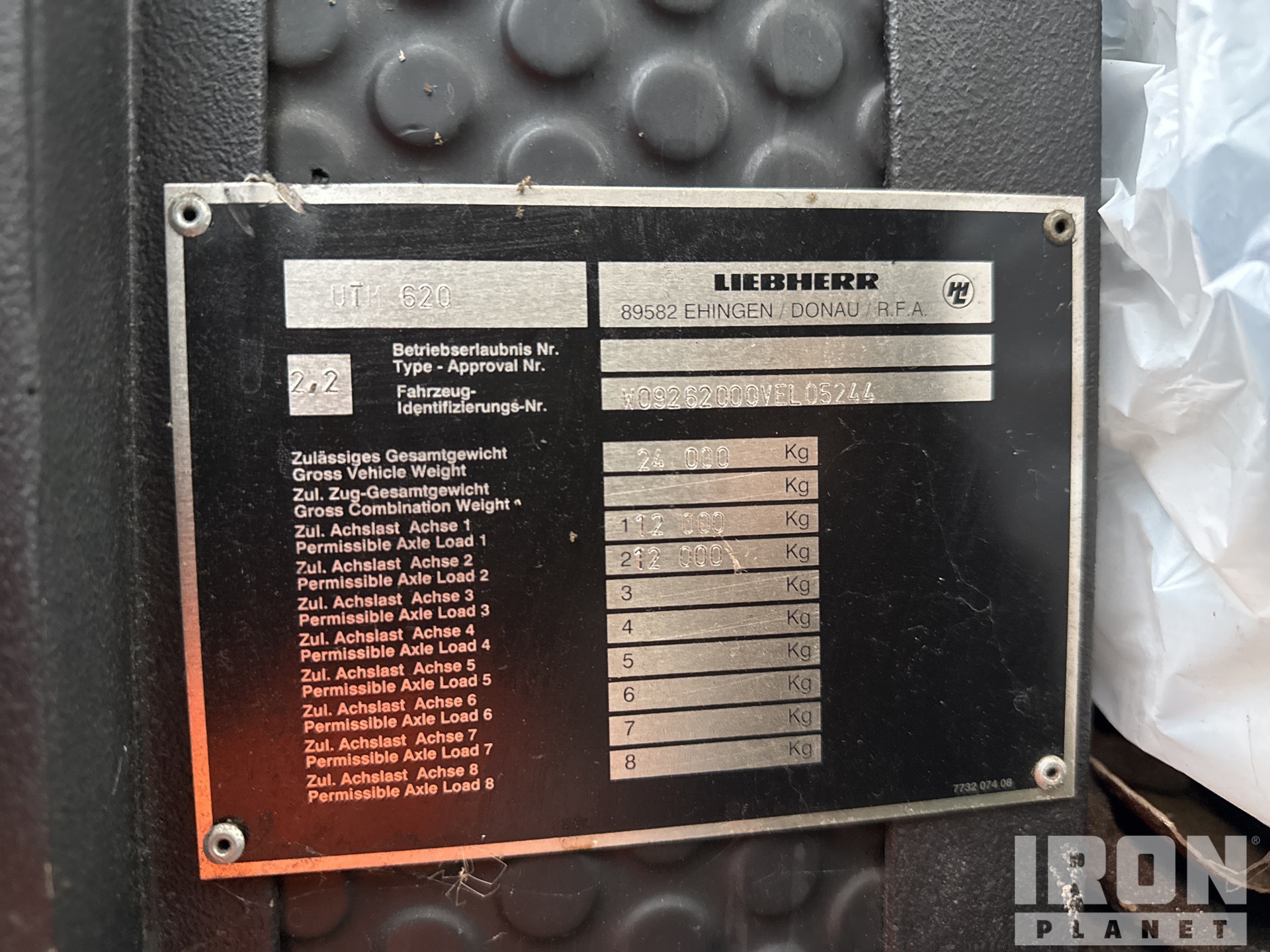

Serial Number / VIN
W09262000VEL05244
CE Mark
CE Marked
Hour Meter / Odometer
97287 km-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Load Chart
No
Paint
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Not operational, Some not operational
Safety
Horn
Operational
Seat Belts
Operational, Not equipped
Safety Lock Out/Stop
Operational Missing
Control Station
Lower/Carrier Engine Hours
15150 hrs Carrier Engine
Mirrors
Seats/armrests
seat is ripped
Seat Belts
Operational
Steering Control
Horn
Operational
Engine Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational, Some warning light stays on
Gauges
Operational
Gear Selector
Brake Control
Clutch
Engages
Heater
Not operationally checked
Limited Function Check
The main components are in place and operational as noted. Air leaks are noticeable under the steering wheel
Engine
Blow-by (subjective visual observation)
Minor
Starter
Operational
Air Compressor
Operational, Air leak noted underneath steering wheel
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Underbody
Transmission
Operational, At delivery struggled to drive off from the trailer’s bed wheels spots
Clutch
Engages
Steer Axle
Front Drive Axle
Rear Drive Axle
Final Drives
Limited Function Check - Carrier
The drivetrain was operational except as noted.
Steering Linkage
Steering Wheel Play
Brake Type
Air
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Springs/Hangers Condition
Frame Condition
Tire Condition
There could be a small puncture on the right side tires
Wheel Condition
Wheel Studs
Hydraulics - Crane Carrier/Chassis
Hydraulic Tank
Hoses (Hydraulic)
Stabilizer Cylinders
Limited Function Check
The hydraulic system was operational.
Upper Control Station
Hour Meter Reading
9696 Hours-IronPlanet makes no guarantees as to actual hours/miles; we can only report what can be visually observed.
Seat Belts
Not equipped
Mirrors
No visible damage or missing components
Glass
Seats/Armrests
Horn
Operational
Safety Lock Out/Stop
Missing
Load Moment Indicator
Powers On, Not operationally checked
Anti Two Block
Not operationally checked
Hydraulic Controls
Oil Pressure
No oil pressure indicator
Exterior Lights
Not operational
Warning Lights
Operational
Heater
Not operationally checked
Limited Function Check
The main components are in place and operational as noted. Some buttons including hoist selection switch are missing
Chassis
Crane Superstructure
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Wear Pads
Boom Angle Indicator
Missing
Turntable Bearing
Bottom Covers
Limited Function Check
The crane components are functional, but some components are in need of repair or replacement., Hoist was not operational. This may be due to the absence of its selection switch button in the upper dashboard
Outrigger Beams
Outrigger Cylinders
Outrigger Pads
Crane Superstructure Hydraulics
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Not operational
Lift Cylinders
Telescopic Boom Cylinders
Limited Function Check
The hydraulic system is generally operational except for the hoist. This may be due to the absence of its selection switch button in the upper control dashboard.
Specialty
Jib
Main Load Block
Counterweights
