176 Photos
1996 Grove GMK5130 130 ton 10x8x8 All Terrain Crane
Located
Theodore, AL
Theodore, AL
Usage
97,036 km
97,036 km
Serial number
5110-8013
5110-8013
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15726432
In yard
No
Features
Air Conditioner, Automatic Transmission, Mercedes-Benz 8 Cylinder Diesel Carrier Engine, Air Conditioner, Anti Two-Block, Grove EKS83 Load Moment Indicator, Mercedes-Benz Diesel Upper Engine, 42 ft Minimum 167 ft Maximum Boom Length, Rooster Sheave, 36 ft to 59 ft Bifold Offset Jib, Johnson 5 Sheave Hook Block, 500 lb Overhaul Ball, 20.2 t Counterweight, Counterweight Removal System, T/A Crane Dolly
Notes
<br><br> **Title is not available. Bill of sale will be provided to convey ownership upon request.**

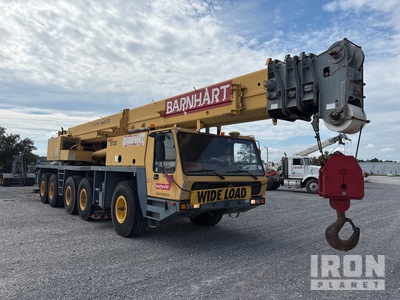

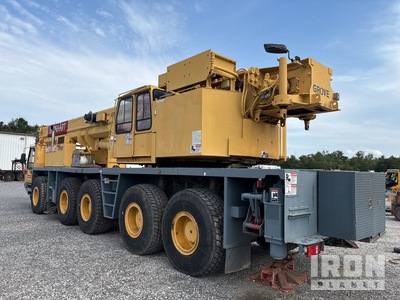

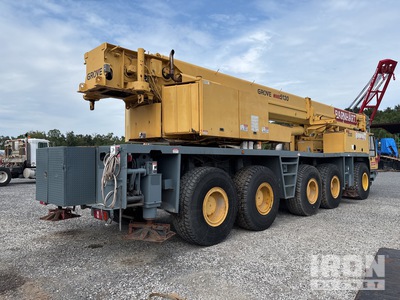

General Appearance
Serial Number / VIN
5110-8013
CE Mark
No CE mark found
Hour Meter / Odometer
97036 km-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Safety Certification Report
Safety Certification Report Not Available
Safety Certification Label
There is a safety certification label with a date of 9/3/26
Load Chart
Yes
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Lower/Carrier Engine Hours
Mirrors
Window Controls
Operational
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Operational
Engine Oil Pressure
The gauge registers in the operating range. Has two gauges that read different pressure.
Warning Lights
Operational
Gauges
Operational
Gear Selector
Brake Control
Air Conditioner
Inoperable
Heater
Inoperable
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
No US EPA Label Present
Blow-by (subjective visual observation)
Minor
Starter
Operational
Air Compressor
Slow to build air, Audible air leaks after shut-down
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Underbody
Transmission
Operational
PTO Pump
Operational
Steer Axle
Front Drive Axle
Center Drive Axle
Rear Drive Axle
Final Drives
Limited Function Check - Carrier
The drivetrain was operational without a load.
Steering Linkage
Steering Wheel Play
Brake Type
Air
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Springs/Hangers Condition
Frame Condition
Cross Members
No visible damage
Tire Condition
Wheel Condition
Wheel Studs
Hydraulics - Crane Carrier/Chassis
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulic)
Stabilizer Cylinders
Limited Function Check
The hydraulic system was operational.
Upper Control Station
Hour Meter Reading
34582 Hours-IronPlanet makes no guarantees as to actual hours/miles; we can only report what can be visually observed.
Seat Belts
Operational
Glass
Seats/Armrests
Horn
Operational
Safety Lock Out/Stop
Operational
Load Moment Indicator
Not operationally checked
Anti Two Block
Not operationally checked
Hydraulic Controls
Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational
Gauges
Operational
Hoist Brakes
Drum Rotation Indicator
Operational
Air Conditioner
Inoperable
Heater
Inoperable
Limited Function Check
The main components are in place and operational as noted.
Upper Engine
Emissions Status
No US EPA Label Present
Emission Certification Label
None found
A/C Compressor
Compressor will not engage, The fan belt is slipping causing compressor to turn slowly. Compressor is not mounted straight inline with belt.
Blow by @ idle (subjective visual observation)
Minor
Starter
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Right Side
Limited Function Check (Engine)
The engine started and ran.
Chassis
Crane Superstructure
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Wear Pads
Boom Angle Indicator
Turntable Bearing
Limited Function Check
The main crane components functioned when checked without a load.
Outrigger Beams
Outrigger Cylinders
Outrigger Pads
Crane Superstructure Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Lift Cylinders
Telescopic Boom Cylinders
Limited Function Check
The hydraulic system was operational.
Specialty
Jib
Main Load Block
Overhaul Ball
Counterweights
Additional information
