119 Photos
1996 Demag AC665 250 ton 6x4 All Terrain Crane
Located
Post Falls, ID
Post Falls, ID
Usage
6,215 hrs
6,215 hrs
Serial number
W09309672TZM02018
W09309672TZM02018
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15726437
In yard
No
Features
Air Conditioner, Manual Transmission, 6215.8 hrs Carrier Engine, Mercedes-Benz 6 Cylinder Carrier Engine, Air Conditioner, Diesel Upper Engine, 48 ft Minimum 194 ft Maximum Boom Length, 80 ton Capacity 3 Sheave Hook Block
Notes
<br><br> **Title is not available. Bill of sale will be provided to convey ownership upon request.** <br><br>***OFF-ROAD***

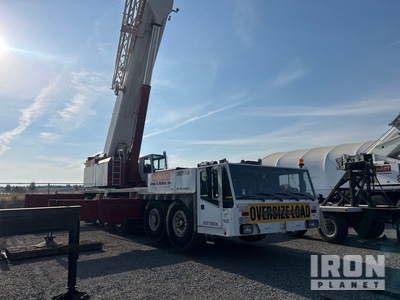

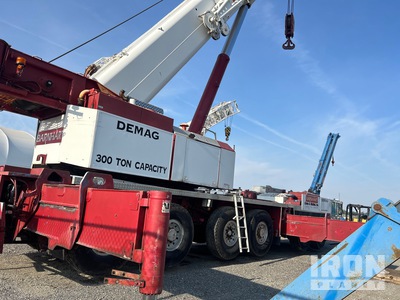

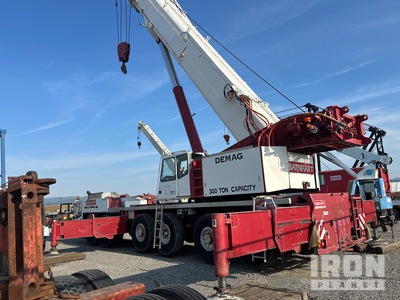

General Appearance
Serial Number / VIN
W09309672TZM02018
CE Mark
CE Marked
Hour Meter / Odometer
6215 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Windshield is cracked
Exterior Lights
Operational
Safety Certification Label
Safety Certification Label not legible.
Safety Certification Report
Load Chart
No
Safety
Horn
Inoperable
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Lower/Carrier Engine Hours
6215.8 hrs Carrier Engine
Mirrors
Window Controls
Operational
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Operational, Inoperable
Engine Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational
Gauges
Operational
Gear Selector
Brake Control
Engine Brake
Not operationally checked
Clutch
No free travel
PTO Control
Air engaged, Operational
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Starter
Operational
Exhaust System
Oil Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Underbody
Transmission
Retarder
Exhaust: Retarder
Steer Axle
Front Drive Axle
Center Drive Axle
Rear Drive Axle
Final Drives
Limited Function Check - Carrier
The drivetrain could not be operationally checked.
Steering Linkage
Steering Wheel Play
Brake Type
Air
Master Cylinder/Brake Control
Brake Lines/Hoses
Not operationally checked
Limited Function Check - Brakes
The brakes were not operationally checked.
Frame Condition
Cross Members
No visible damage
Tire Condition
Wheel Condition
Wheel Studs
Hydraulics - Crane Carrier/Chassis
Valves
Hydraulic Tank
Hoses (Hydraulic)
Stabilizer Cylinders
Limited Function Check
The hydraulic system could not be operationally checked.
Upper Control Station
Hour Meter Reading
13159 Hours-IronPlanet makes no guarantees as to actual hours/miles; we can only report what can be visually observed.
Mirrors
No visible damage or missing components
Glass
Seats/Armrests
Safety Lock Out/Stop
Hydraulic Controls
Gauges
Hoist Brakes
Air Conditioner
Not operationally checked
Heater
Not operationally checked
Limited Function Check
The item was not operational. Ratings are based on a static inspection.
Upper Engine
Oil Leaks
Rear of engine
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Right Side
Limited Function Check (Engine)
The engine would crank but would not run. Static Check Only
Crane Superstructure
Main Boom Pins
Main Boom Sections
Boom Head Section
Boom Angle Indicator
Missing
Turntable Bearing
Bottom Covers
Limited Function Check
The main crane components could not be operated.
Outrigger Beams
Outrigger Cylinders
Outrigger Pads
Crane Superstructure Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Not operationally checked
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Lift Cylinders
Limited Function Check
The hydraulic system could not be operationally checked.
Specialty
Jib
Main Load Block
Fairlead
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Aug 24, 2026 |
| Silicon | 10.09 PPM |
| Tin | 3.37 PPM |
| Silver | 0 PPM |
| Aluminum | 3.09 PPM |
| Chromium | 4.12 PPM |
| Lead | 4.85 PPM |
| Copper | 3.18 PPM |
| Nickel | 0.34 PPM |
| Iron | 83.74 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
