126 Photos
1991 Link-Belt HTC-11100 200000 lb 8x4 Hydraulic Truck Crane
Located
Tulsa, OK
Tulsa, OK
Usage
141,755 mi
141,755 mi
Serial number
65I1-383
65I1-383
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#14733485
In yard
No
Features
Eaton Fuller 9 Speed Manual Transmission, 4416 hrs Carrier Engine, Cummins IND335NC2 6 Cylinder Diesel Carrier Engine, Anti Two-Block, Greer RCI514 Load Moment Indicator, 37 ft Minimum 115 ft Maximum Boom Length, Auxiliary Hoist, Rooster Sheave, 33 ft to 33 ft Swingaway Jib, 1667 lb 70 ton Capacity McKissick 5 Sheave Hook Block, 350 lb Overhaul Ball, 5800 lb Counterweight, Boom Dolly

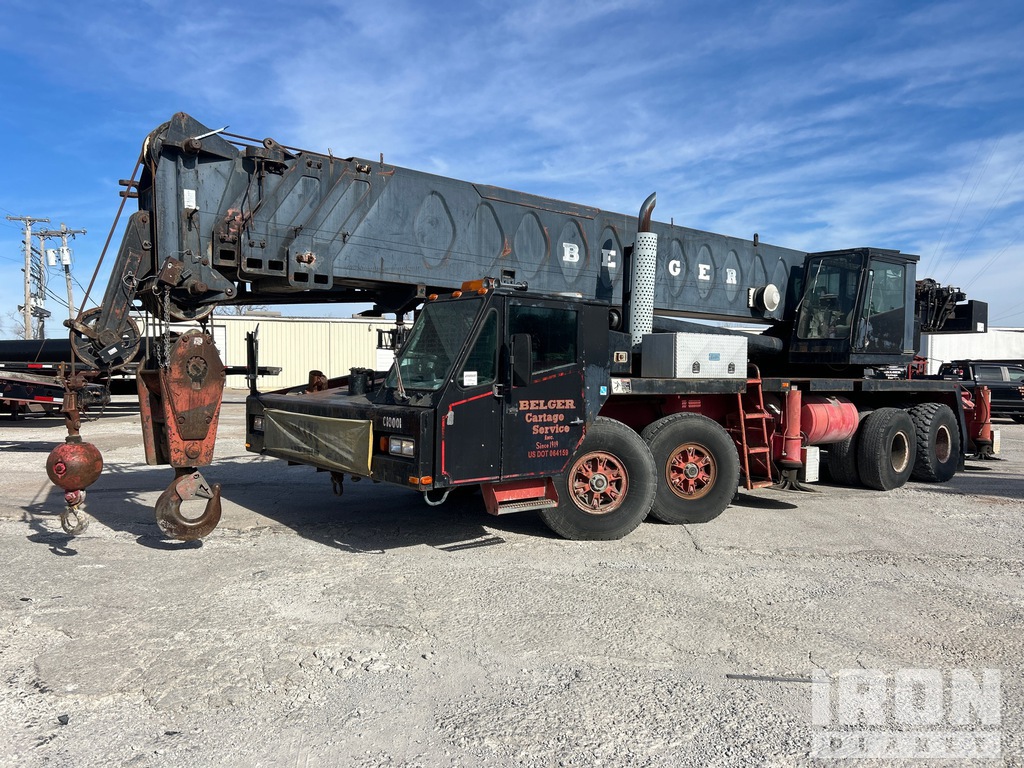

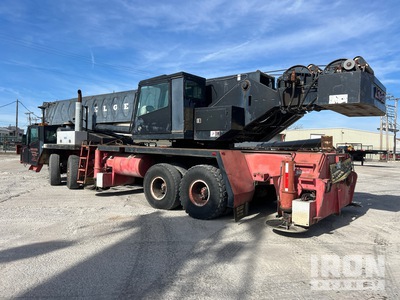

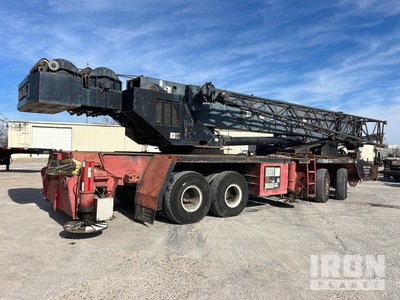

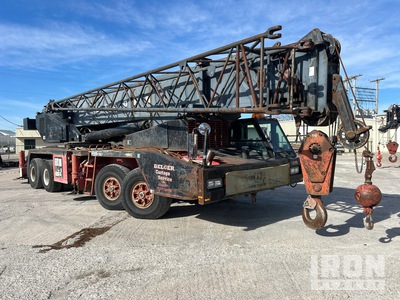

General Appearance
(23)
Serial Number / VIN
65I1-383
CE Mark
No CE mark found
Hour Meter / Odometer
141755 mi-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Safety Certification Label
There is a safety certification label with a date of 11/22/2024
Safety Certification Report
Safety Certification Report Available
Load Chart
Yes
Safety
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
(13)
Lower/Carrier Engine Hours
4416 hrs Carrier Engine
Mirrors
Window Controls
Operational
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Operational, Inoperable
Engine Oil Pressure
40 PSI
Gauges
Operational
Gear Selector
Brake Control
Clutch
Engages
PTO Control
Cable engaged
Heater
Inoperable
Limited Function Check
The main components are in place and operational as noted.
Engine
(13)
Blow-by (subjective visual observation)
Visible
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Underbody
(24)
Transmission
Operational
Clutch
Engages
PTO Pump
Steer Axle
Front Drive Axle
Dripping Leak, Leak
Rear Drive Axle
Axle Bump Stops
Limited Function Check - Carrier
The drivetrain was operational without a load.
Steering Linkage
Steering Wheel Play
Brake Type
Air
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Springs/Hangers Condition
Frame Condition
Cross Members
Tire Condition
Wheel Condition
Wheel Studs
Hydraulics - Crane Carrier/Chassis
(9)
Pumps (Hydraulics)
Valves
Hydraulic Tank
Dripping leak
Hoses (Hydraulic)
Stabilizer Cylinders
Dripping leak on the right cylinder, Puddle forming leak
Limited Function Check
The hydraulic system was operational.
Upper Control Station
(19)
Hour Meter Reading
916.2 Hours-IronPlanet makes no guarantees as to actual hours/miles; we can only report what can be visually observed.
Glass
Seats/Armrests
Safety Lock Out/Stop
Load Moment Indicator
Operational
Anti Two Block
Operational
Hydraulic Controls
Oil Pressure
40 PSI
Warning Lights
Operational
Gauges
Operational
Drum Rotation Indicator
Operational
Heater
Not operationally checked, Propane, not tested
Limited Function Check
The main components are in place and operational as noted.
Chassis
(2)
Crane Superstructure
(13)
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Wear Pads
Turntable Bearing
Bottom Covers
Limited Function Check
The main crane components functioned when checked without a load.
Outrigger Beams
Outrigger Cylinders
Puddle forming leak on right rear.
Outrigger Pads
Crane Superstructure Hydraulics
(6)
Valves
Hoses (Hydraulic)
Swing Motor
Dripping leak, Leak
Main Hoist
Auxiliary Hoist
Lift Cylinders
Telescopic Boom Cylinders
Specialty
(4)
Jib
Main Load Block
Overhaul Ball
Counterweights
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Feb 18, 2026 |
| Silicon | 0.43 PPM |
| Tin | 0 PPM |
| Silver | 0.01 PPM |
| Aluminum | 2.84 PPM |
| Chromium | 0.75 PPM |
| Lead | 3.76 PPM |
| Copper | 5.28 PPM |
| Nickel | 0.48 PPM |
| Iron | 12.89 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
