103 Photos

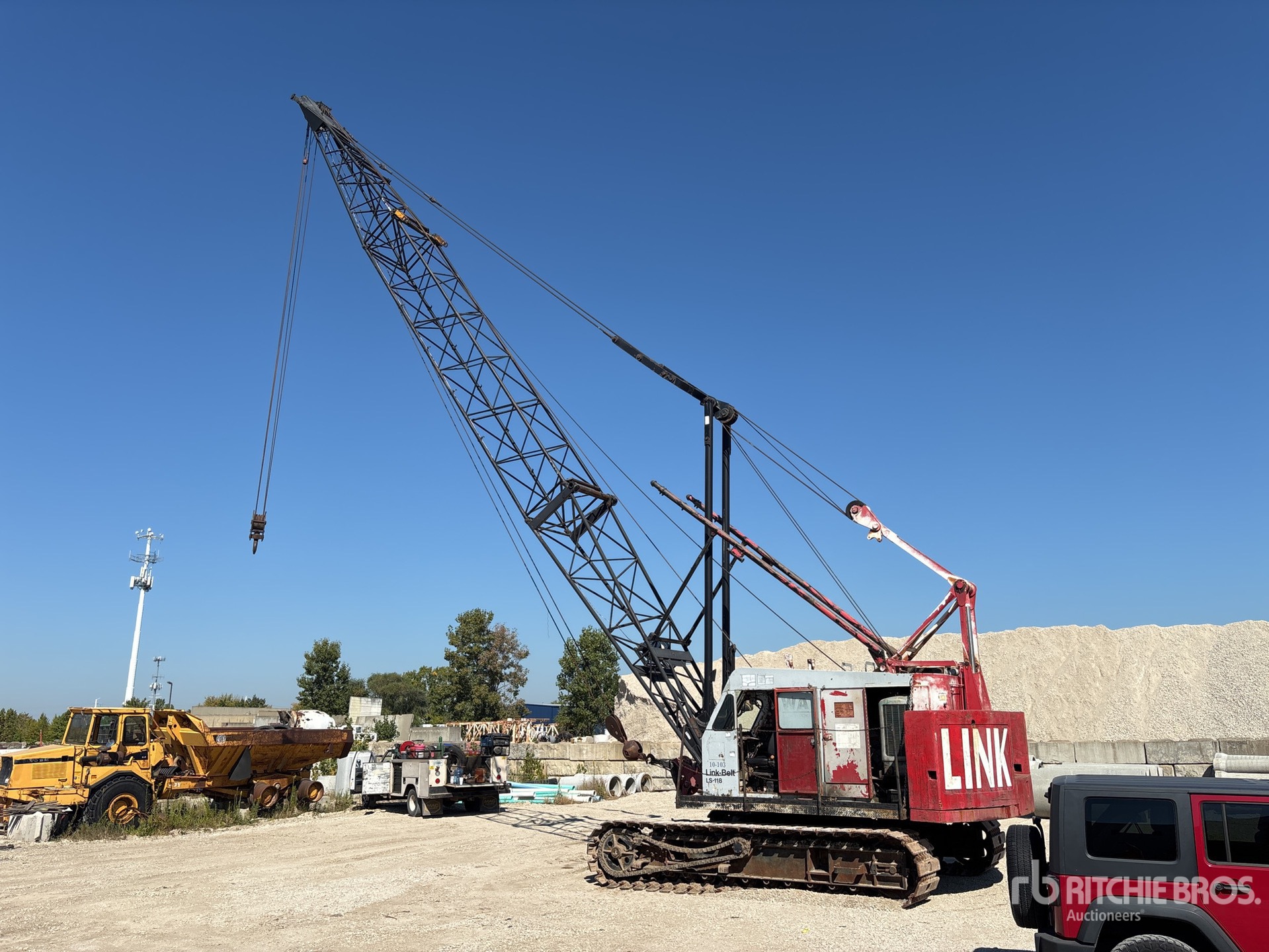

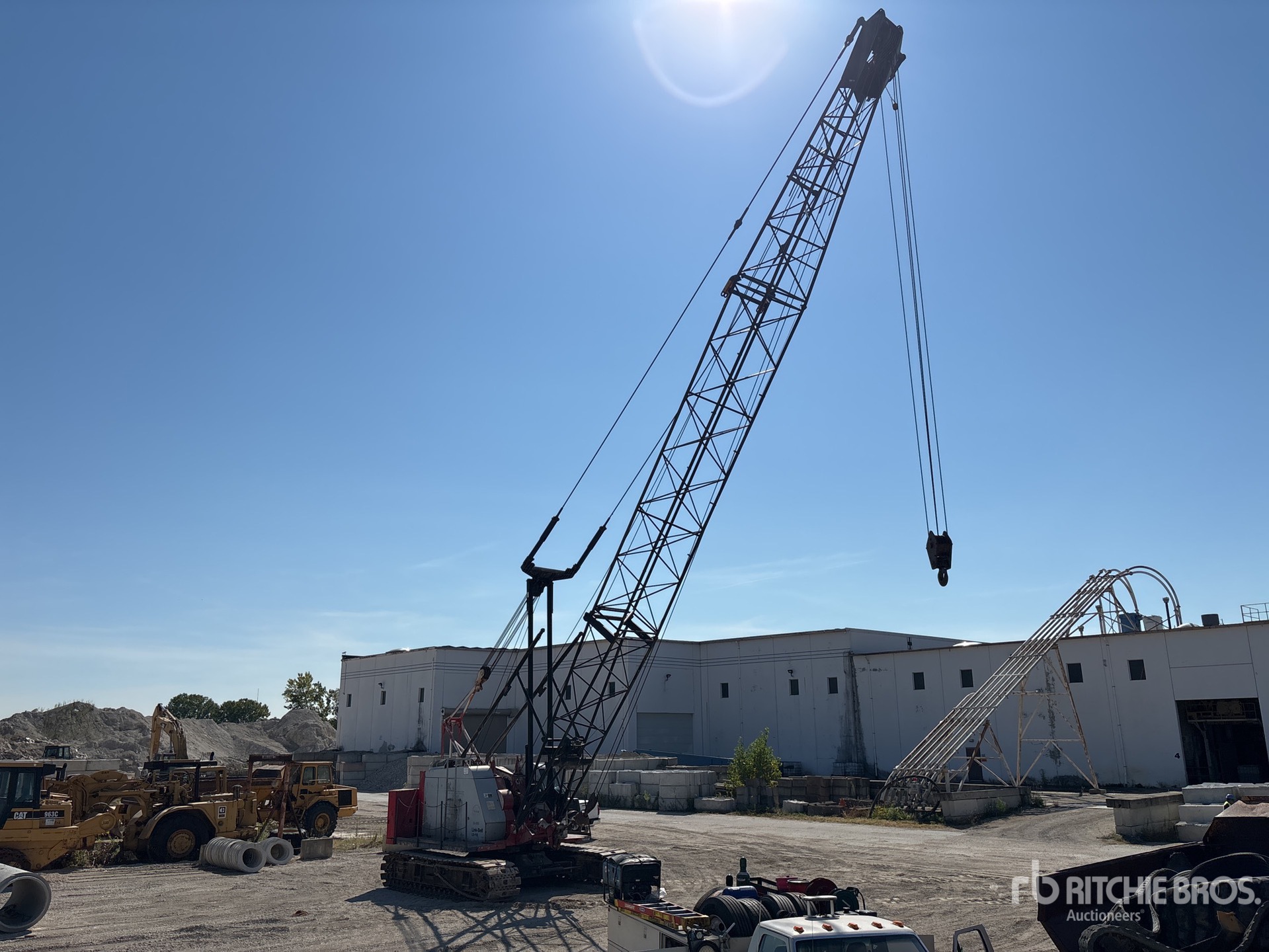

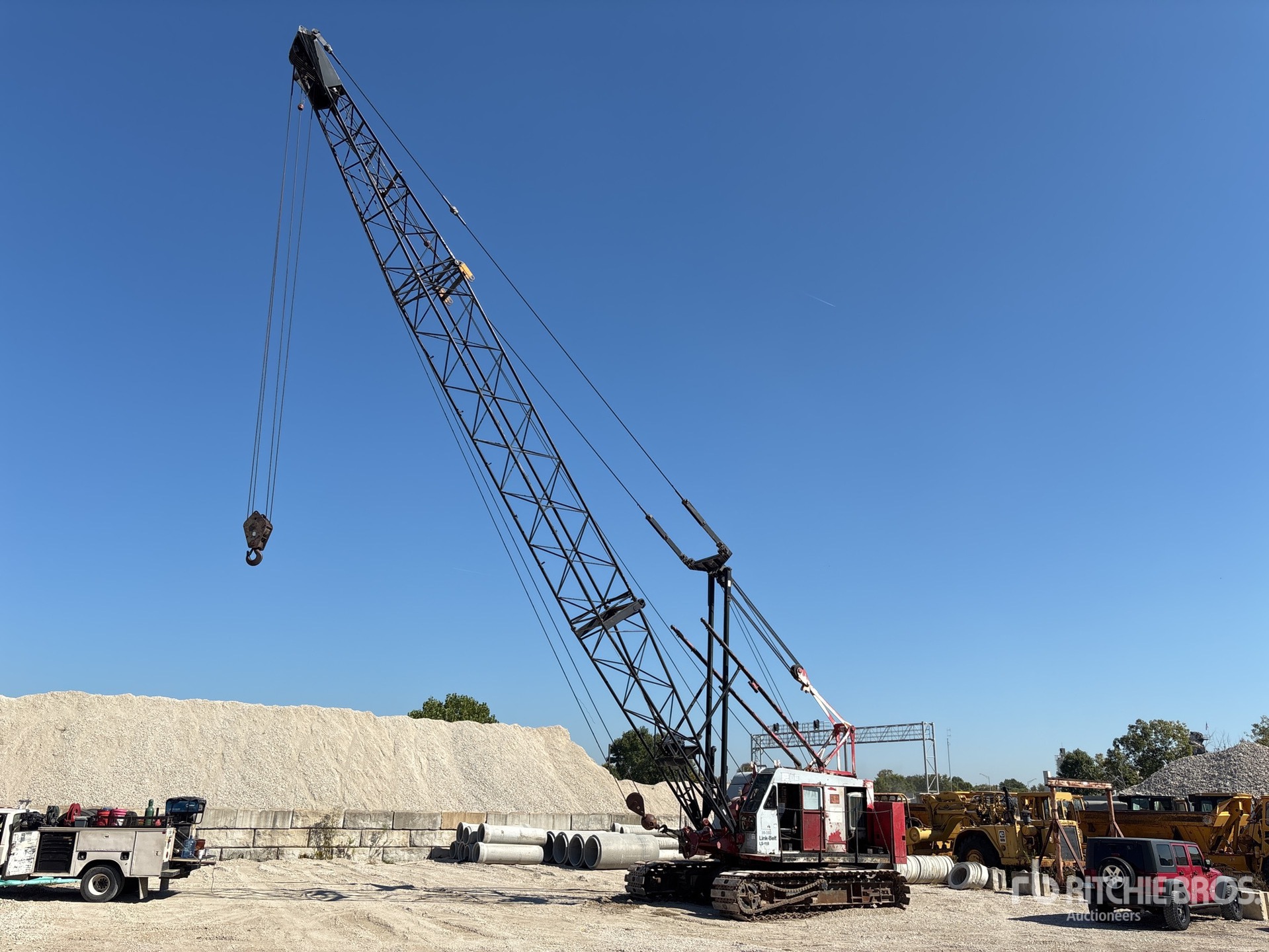

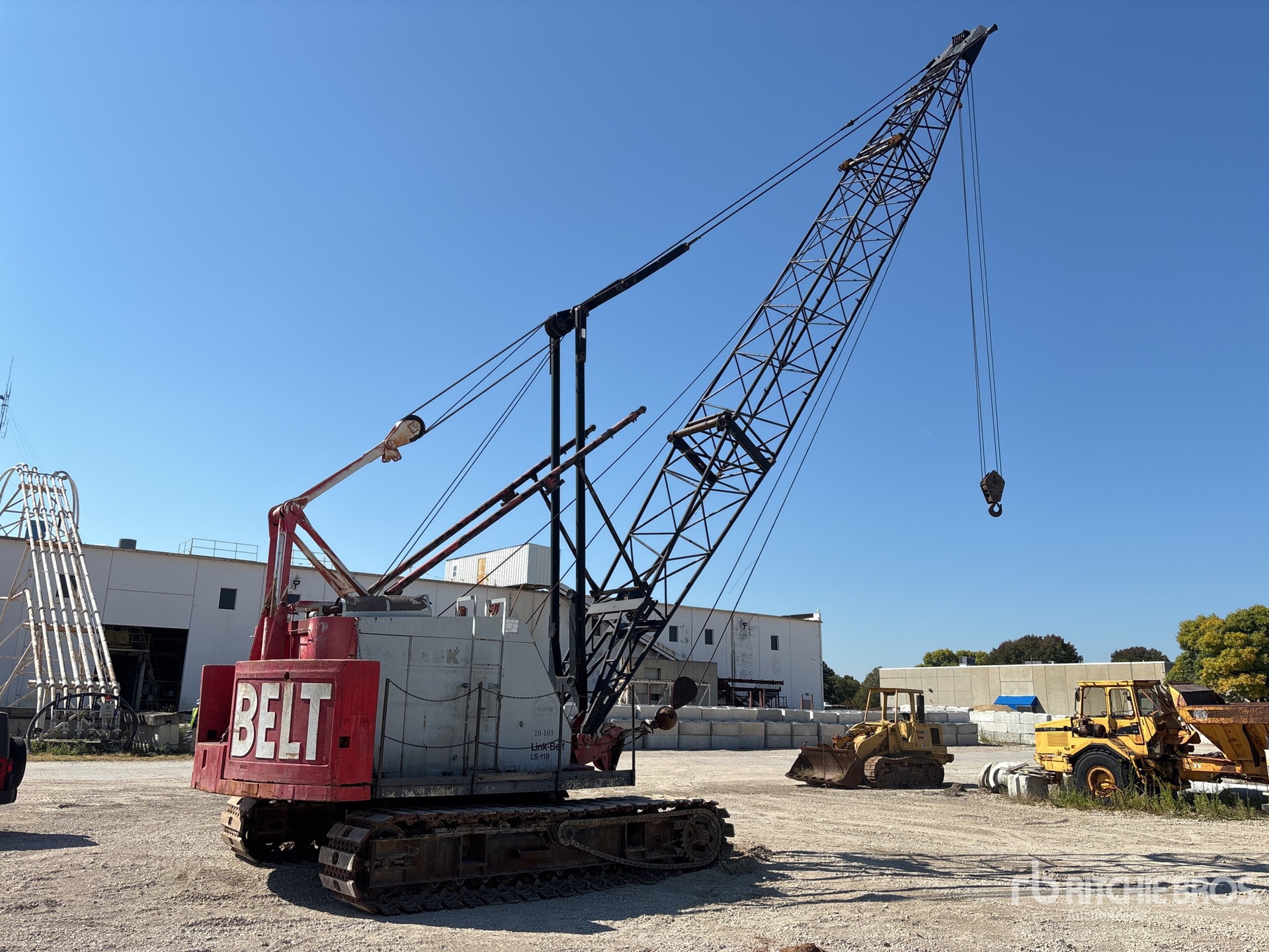

Link-Belt LS-118 60 ton Lattice-Boom Crawler Crane
Located
Naperville, IL
Usage
547 hrs
Serial number
9LW5168
Loading...
Detailed equipment information
A qualified Ritchie Bros. employee collected detailed equipment information and performed functional tests on the key components of this asset. You, or a proxy, may also inspect any items on site prior to bidding on auction day.
ID number
#13858344
In yard
No
Year
1977
Manufacturer
Model
Asset type
Serial number or VIN
9LW5168
Features
70 ft Boom, Auxiliary Hoist, 3rd Drum, 584 lb 4 Sheave 35 ton Hook Block, 396 lb 12 ton Overhaul Ball, Counterweight Removal System, Anti Two-Block, 36 in Track Shoes, Expandable Width Tracks
General Appearance
Picture, Left Front Corner
Picture, Left Rear Corner
Picture, Right Rear Corner
Picture, Right Front Corner
Serial Number / VIN
9LW5168
Hour Meter / Odometer
547 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Safety Certification Label
There was no safety certification label located on the machine.
Safety Certification Report
Safety Certification Report Not Available

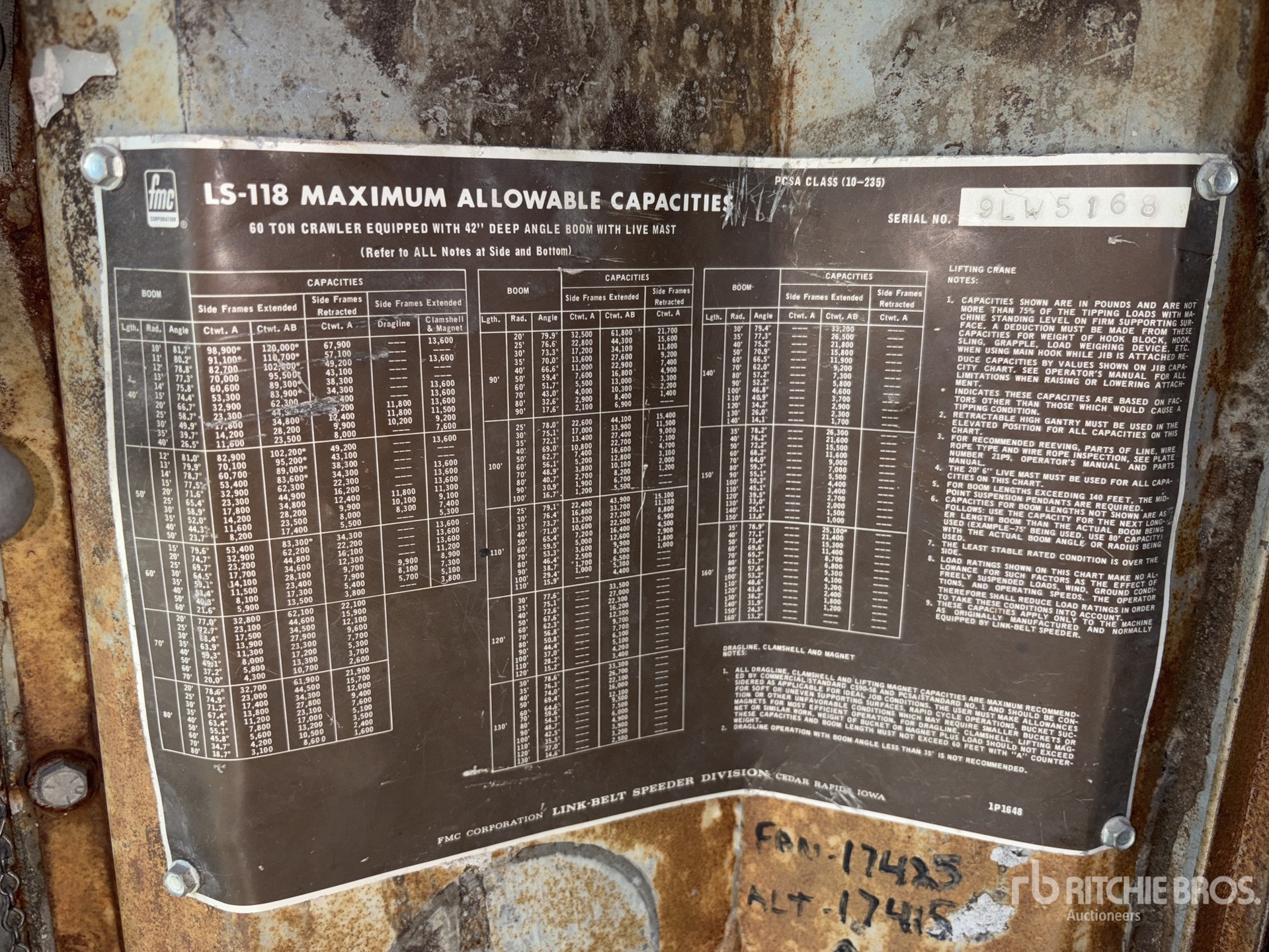

Load Chart
Yes
Crane Superstructure
Control Station
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
No US EPA Label Present
Limited Function Check
The engine started and ran.
Drivetrain
Limited Function Check
The drivetrain was operational.
Hydraulics
Limited Function Check
The hydraulic system was operational.
Undercarriage
Deficiencies
Deficiencies
Deficient Components/Systems Include but are not limited to: Coolant leak near radiator. No gauges operational except oil pressure. Have to start from engine side. Auxiliary hoist sticks. Drive clutches stick at times.
