120 Photos

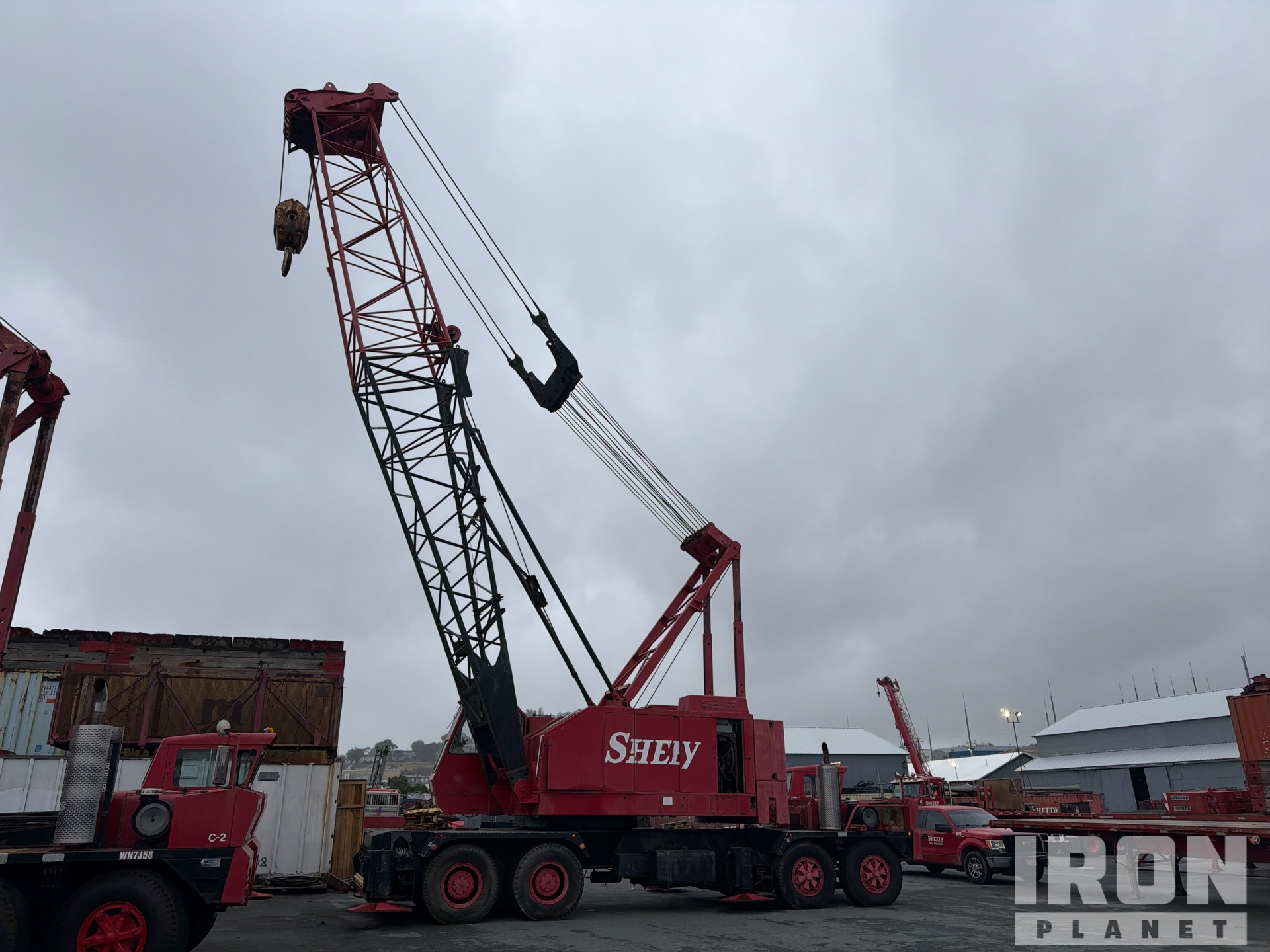

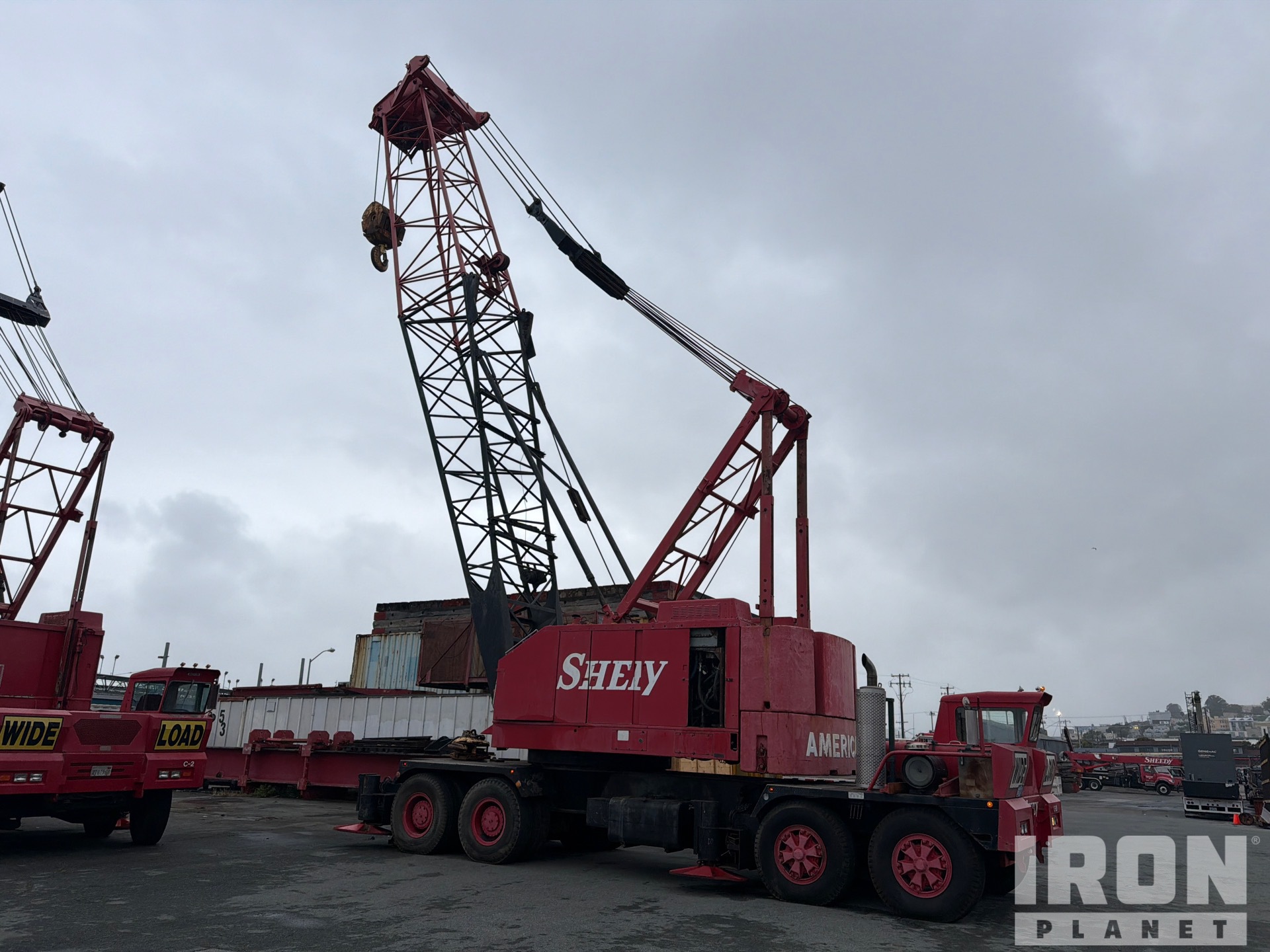

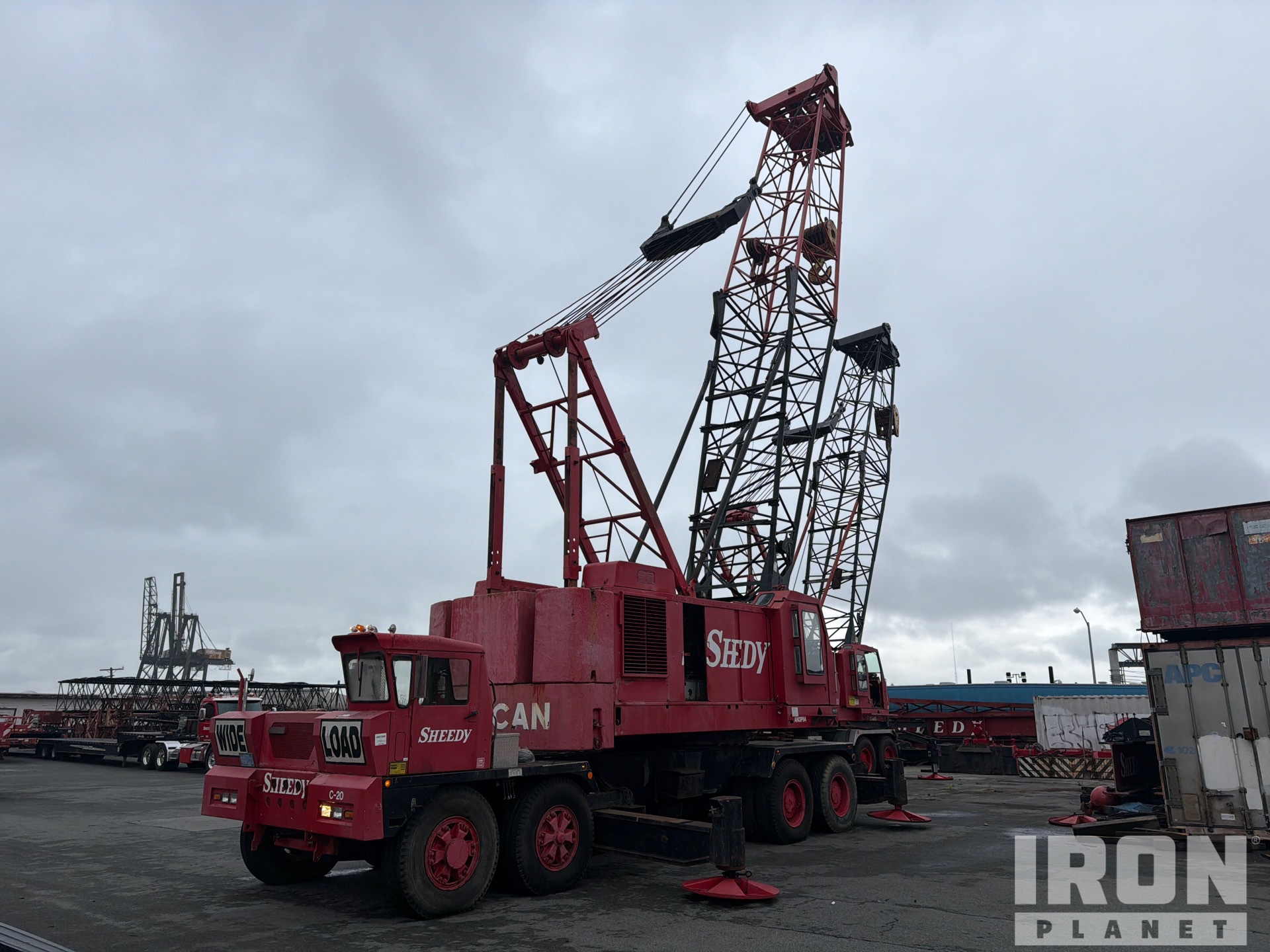

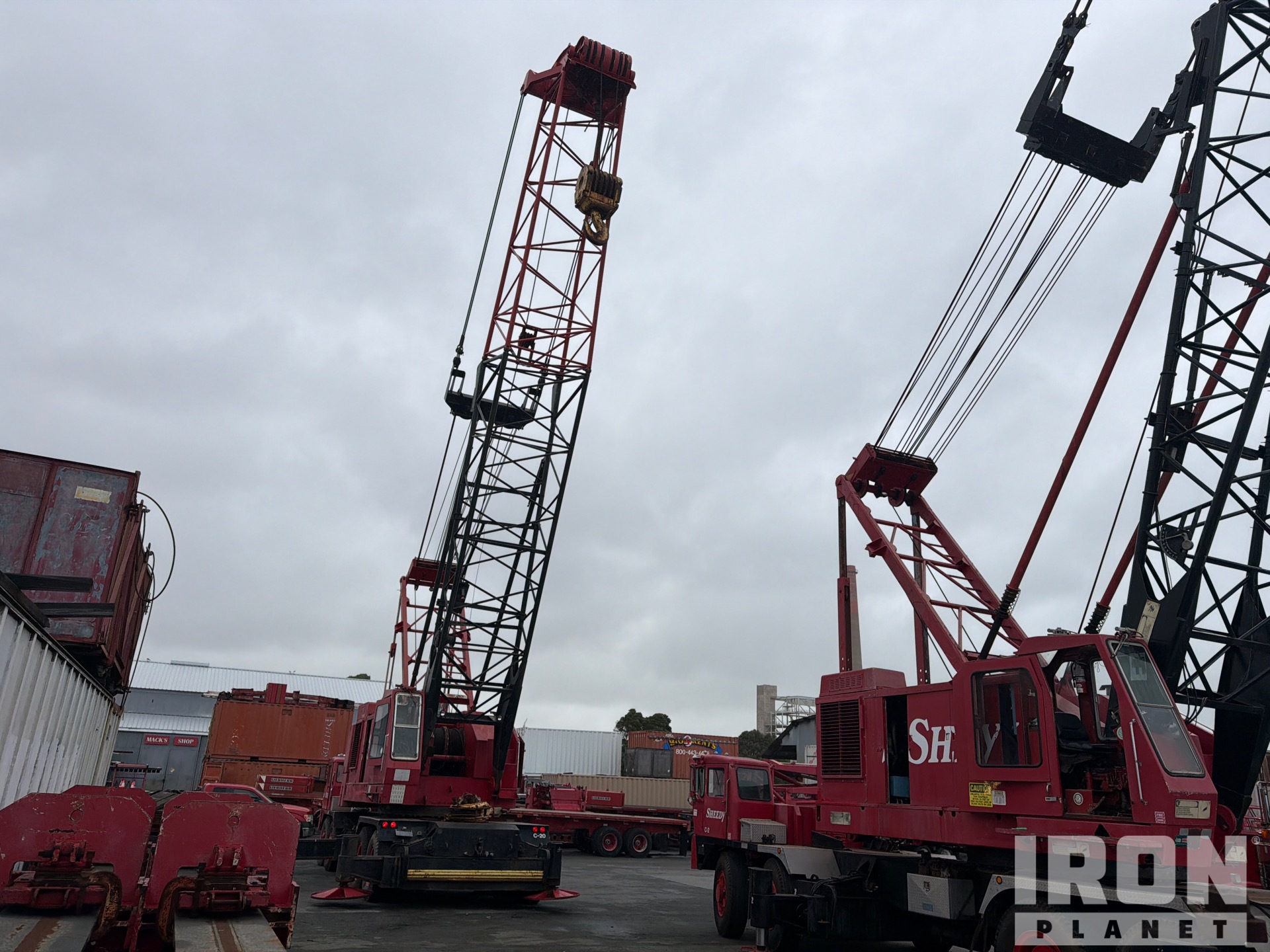

1977 American 8460 160 ton Lattice-Boom Truck Crane
Located
San Francisco, CA
San Francisco, CA
Usage
198 mi
198 mi
Serial number
2021
2021
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#14904358
In yard
No
Features
Eaton Fuller 15 Speed Manual Transmission, Cummins ISM 6 Cylinder 10.8 L Diesel Carrier Engine, Wylie W1250 Load Moment Indicator, Cummins Diesel Upper Engine, 280 ft Boom, Overhaul Ball, Hook Block
Notes
<br><br> **We do not guarantee current registration or that this item will meet local emission requirements. Titles/titling docs may be delayed due to extended processing times at DMV.
General Appearance
Serial Number / VIN
2021
Hour Meter / Odometer
198 mi-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Indication of Additional Hours
Age and condition
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Some not operational, Passenger headlight. Driver headlight. lights are not operational
Safety Certification Label
There is a safety certification label with a date of 12-04-2007
Safety Certification Report
Safety Certification Report Available, Expired 01/23/2025
Load Chart
Yes
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Seats/Armrests
Mirrors
Steering Controls
Drivetrain Controls
Dash Console
Engine Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational, Stop Engine. Engine coolant level too low. light stays on
Gauges
Operational
Heater
Not operationally checked
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
No US EPA Label Present
Emission Label
Blow-by (subjective visual observation)
No access.
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Underbody
Transmission
Clutch
Engages
PTO Pump
Operational
Steer Axle
Front Drive Axle
Rear Drive Axle
Final Drives
Limited Function Check - Carrier
The drivetrain was operational without a load.
Carrier Chassis
Steering Linkage
Steering Wheel Play
Brake Type
Air
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Held against power, Stopped the machine while rolling
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Springs/Hangers Condition
Frame Condition
Cross Members
Tire Size
All of the tires are the same size, 14.00-24 Front tires, 14.00-24 Rear tires
Tire Condition
Tread Depth
LF 18 /32", LR 18 /32", LMI 24 /32", LMO 18 /32", LRI 14 /32", LRO 17 /32", RRI 15 /32", RRO 12 /32", RMI 10 /32", RMO 21 /32", RR 16 /32", RF 20 /32"
Wheel Condition
Wheel Studs
Outrigger Beams
Outrigger Cylinders
Outrigger Pads
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Not operationally checked
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Limited Function Check
The hydraulic system was operational.
Upper Control Station
Hour Meter Reading
2884 Hours-IronPlanet makes no guarantees as to actual hours/miles; we can only report what can be visually observed.
Control Station - Upper
Glass
No visible damage
Seats/Armrests
Load Moment Indicator
Not operationally checked with a load.
Controls Hydraulic or Air
Load Charts
Chart book in cab
Warning Lights
Gauges
Hoist Brakes
Limited Function Check
Upper Engine
Emission Certification Label
Not legible
Blow by @ idle (subjective visual observation)
No access.
Starter
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check (Engine)
The engine started and ran.
Crane Superstructure
Hoist Drums
Boom Drums
Hydraulic Operation
Hoist and Boom Clutches
Main Boom Pins
Pendant Line (Boom Tension Line)
Cable Type
Point Sheaves
Boom Point Section
Gantry/Mast
Boom Stops
Main Boom Chords
Boom Length
15 Sections, 50 ft 0 in Length, 20 ft 0 in base section, 6 50’, 3 20’, 1 10’ Jib: 3 20’, 2 10’. Boom tip section, jib tip section.
JIB Length
Boom Angle Indicator
Turntable Bearing
Bottom Covers
Swing Drive
Operational
Limited Function Check
The main chassis components functioned when checked without a load.
Specialty
Jib
Main Load Block
Overhaul Ball
Counterweights
