145 Photos
1967 American 9260 125 ton Lattice-Boom Crawler Crane
Located
Matthews, NC
Matthews, NC
Usage
6,868 hrs
6,868 hrs
Serial number
GS11960
GS11960
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#16113385
In yard
No
Features
121 ft Boom, Rooster Sheave, Johnson 965 kg 2 Sheave 55 ton Hook Block, Overhaul Ball, 215000 lb Counterweight, 42 in Smooth Track Shoes

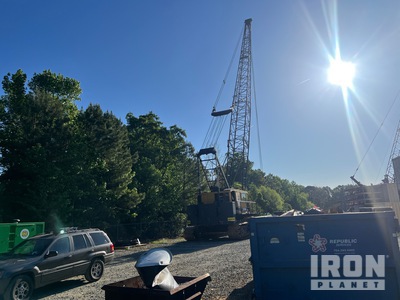

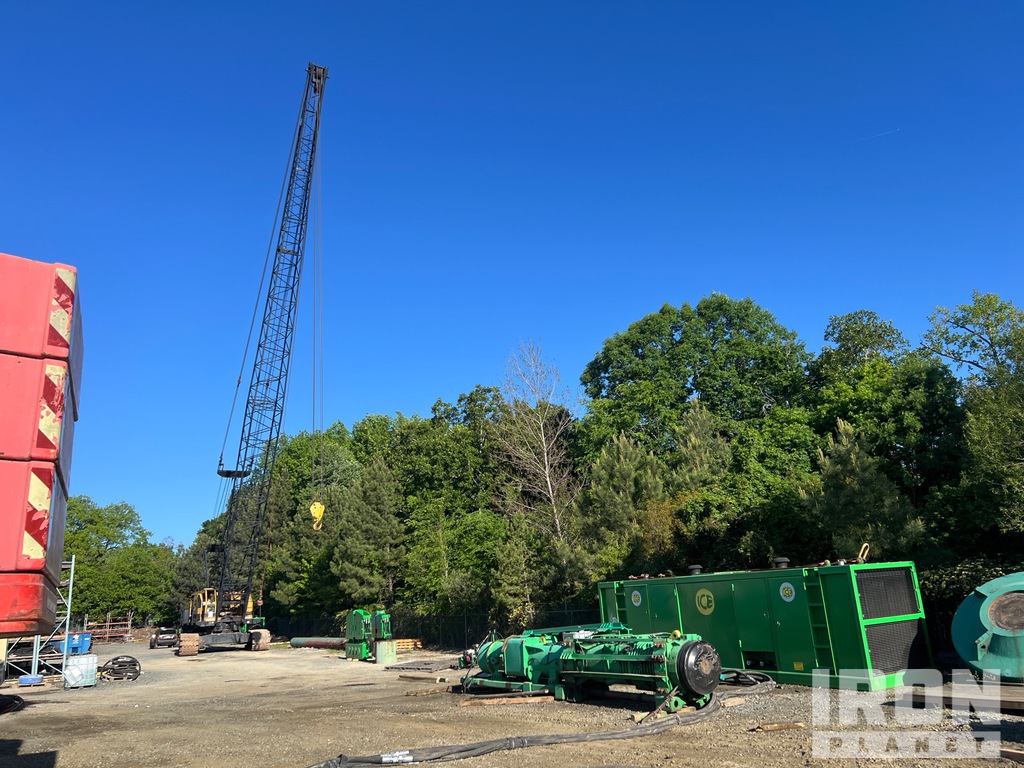

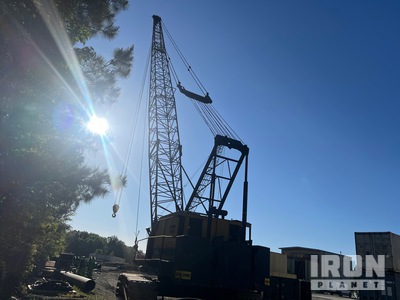

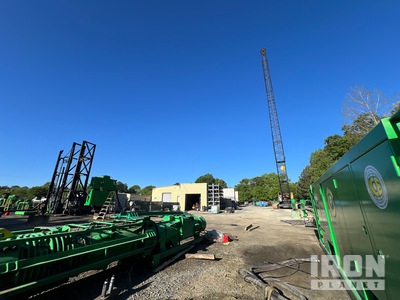

General Appearance
(18)
Serial Number / VIN
GS11960
CE Mark
No CE mark found
Hour Meter / Odometer
6868 hrs, Meter inoperable-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Sheet Metal (fiberglass) Condition
Left side access doors hung in open position
Hand Rails
Glass
Safety Certification Label
There is a safety certification label with a date of 02/22/2023
Safety Certification Report
Safety Certification Report Not Available
Load Chart
Yes
Safety
(1)
Seat Belts
Not equipped
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station - Upper
(21)
Mirrors
Glass
Cracked
Seats/Armrests
Load Moment Indicator
Not operationally checked with a load.
Controls Hydraulic or Air
Load Charts
Chart book in cab
Oil Pressure
The gauge registers in the operating range. 55 PSI
Gauges
Operational
Hoist Brakes
Heater
Not operationally checked
Limited Function Check
The main components are in place and operational as noted.
Engine
(11)
Engine
No US EPA Label Present
Blow-by (subjective visual observation)
Visible
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
(6)
Steering Clutches (Crane)
Steering Brakes
Service Brakes
Drive Chains/Sprockets
Drive Motors
Final Drives
Limited Function Check (Drivetrain-Crawler Crane)
The drivetrain functioned properly without a load.
Hydraulics
(9)
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
No cable
Limited Function Check
The hydraulic system was operational.
Crane Superstructure
(56)
Hoist Drums
Hydraulic Operation
Boom Drums
Hydraulic Operation
Hoist and Boom Clutches
Main Boom Pins
Pendant Line (Boom Tension Line)
Cable Type
Point Sheaves
Boom Point Section
Gantry/Mast
Boom Stops
Main Boom Chords
Left cord curve section
Boom Length
121 ft overall length, 40 ft 5 in Length, 30 ft 6 in base section
Boom Angle Indicator
Turntable Bearing
Bottom Covers
Hook Rollers
Swing Drive
Operational
Limited Function Check
The main chassis components functioned when checked without a load.
Undercarriage
(19)
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Track Links
Left Carrier Rollers
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Track Links
Right Carrier Rollers
Right Track Rollers
Right Idler
Right Sprocket
Specialty
(4)
Main Load Block
Overhaul Ball
Counterweights
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | May 05, 2026 |
| Silicon | 0 PPM |
| Tin | 0.35 PPM |
| Silver | 0 PPM |
| Aluminum | 0 PPM |
| Chromium | 0.33 PPM |
| Lead | 0.88 PPM |
| Copper | 0.4 PPM |
| Nickel | 1.06 PPM |
| Iron | 4.04 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
